TF0240US081AADD
Xeriwell or Others
| Item: | Torque Motor | OEM: | TF0240US081AADD |
|---|---|---|---|
| Feature: | Parker Compatible | ||
| Highlight: | slow speed high torque motor,lsht hydraulic motor | ||

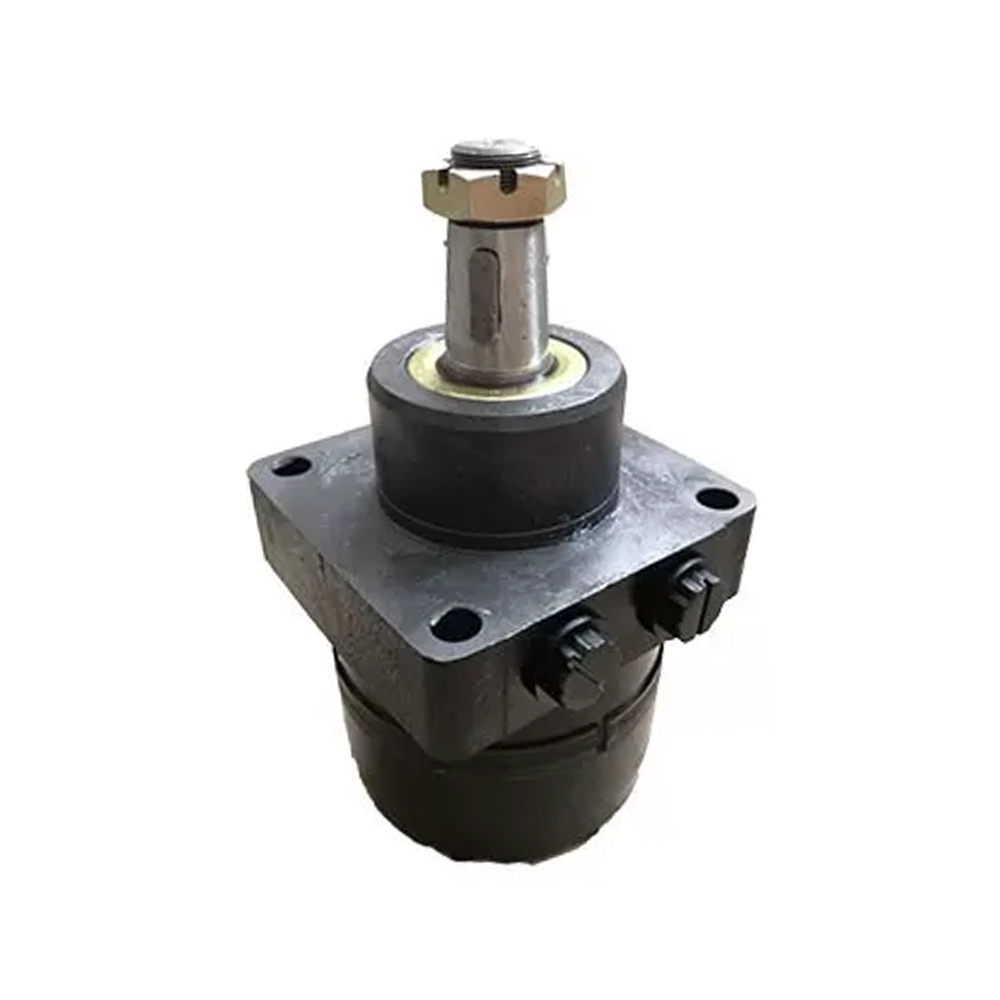

TF0240US081AADD Torque Motor Parker Alternative Wheel Mounting Tappered Shaft
Torque motor TF0240US081AADD Parker alternative wheel mounting tappered shaft
We produce hydraulic motors
We provide hydraulic motors directly compatible with Parker TE, TF, TG in performance, fit, installation
Main Specificaion：
| Type | ||||||||||||
| 125 | 160 | 200 | 230 | 250 | 300 | 350 | 375 | 475 | 540 | 750 | ||
| Geometric displacement (cm3/rev.) | 118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 | |
| Max. speed (rpm) | cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
| int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 | |
| Max. torque (N•m) | cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
| int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 | |
| peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 | |
| Max. output (kW) | cont. | 12.0 | 15.0 | 15.5 | 16.0 | 17.5 | 18.0 | 17.5 | 16.5 | 14.5 | 11.5 | 8.0 |
| int. | 14.0 | 17.5 | 18.0 | 19.0 | 20.0 | 21.0 | 20.0 | 19.0 | 16.5 | 15.0 | 10.0 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 | |
| peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 14 | |
| Max. flow (L/min) | cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
| int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 | |
More Parker motors are availalbe as follows:
TE
TF
TG
TJ
| 排量 (cm3/rev.) | 125 | 160 | 200 | 230 | 250 | 300 | 350 | 375 | 475 | 540 | 750 |
| L1(mm) | 10.2 | 13.5 | 17 | 19.5 | 22 | 25.4 | 29.5 | 31.8 | 39.4 | 47.3 | 63.5 |
| L(mm) | 119 | 122 | 125.5 | 128 | 130.5 | 134.5 | 138 | 140.5 | 148 | 156 | 176 |
| 重量 (kg) | 12 | 12.1 | 12.3 | 12.4 | 12.6 | 13 | 13.2 | 13.5 | 14 | 14.6 | 16 |
