TB0065US110AAAA
Xeriwell or Others
| Item: | LSHT Motor | OEM #: | TB0065US110AAAA |
|---|---|---|---|
| Manufacturer: | Xeriwell | Displacement: | 65 Ml/r |
| Mounting Flange: | 4 Bolt Wheel Mount | Shaft Type: | 1'' SAE 6B |
| Highlight: | TB0065US110AAAA High Torque Hydraulic Motor,High Torque Hydraulic Motor 65ml/R,lsht hydraulic motor 65ml/R | ||

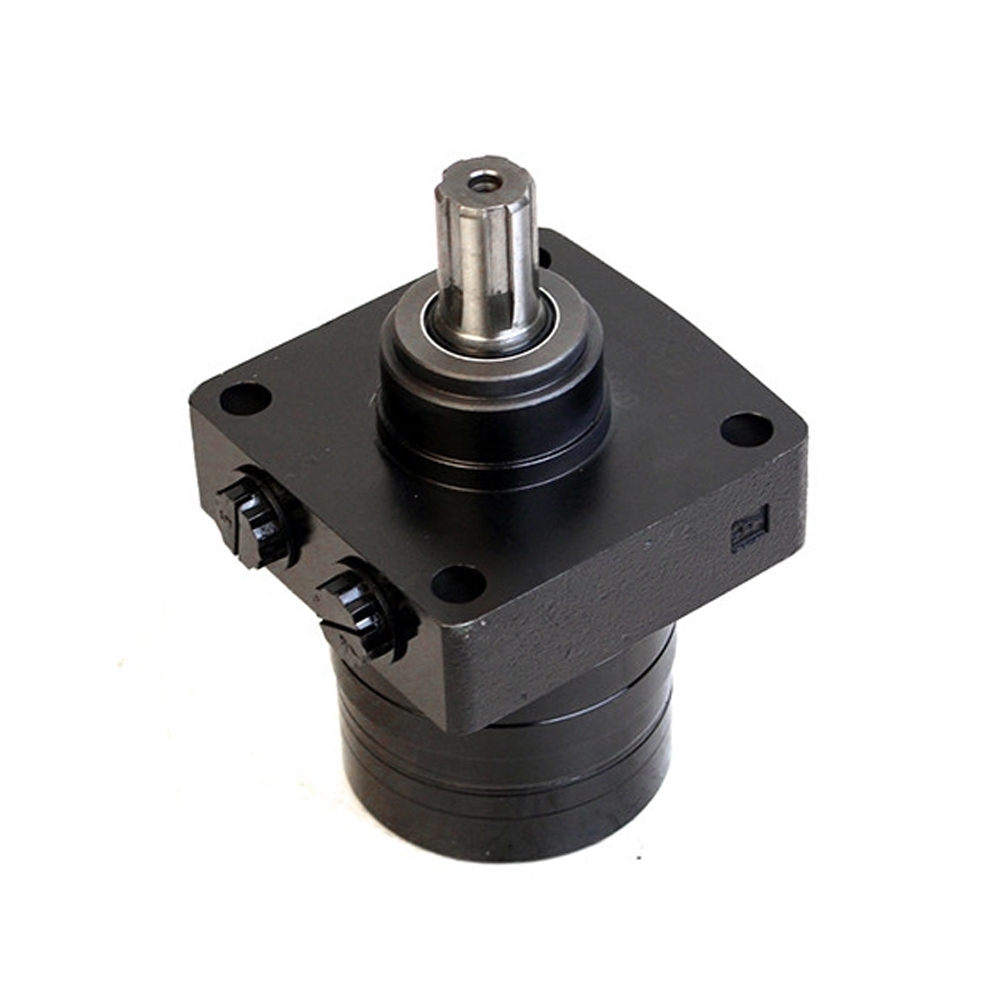

TB0065US110AAAA, Torque Motor compatible, Wheel mounting, 1'' SAE 6B
Quick review:
This is a Parker low speed, high torque compatibel hydraulic motor. TB0065US110AAAA , 9.5 cu. in. / rev displacement. Maximum pressure 1840 PSI continuous, maximum pressure 2425 PSI intermittent. Torque 2170 in-lb. continuous, torque 3026 in-lb. intermittent. Maximum speed 370 RPM continuous. Flow rate 15.8 GPM. 1" diameter shaft with SAE 6B shaft. 7/8-14" ORB ports. 4 Bolt wheel mounting flange. 1 year warranty.
Here is main specifications:
| Specifications | |
| Shaft: | 1" SAE 6B |
| Rotation: | Standard |
| Displacement (cm3/rev): | 65 |
| Mounting: | 4 Bolt Wheel mount |
| Ports: | 7/8-14 SAE |
| Geometric Displacement: | 65 cm3/rev (4.0 in3/rev) |
| Maximum Speed: | 511 rev/min |
| Maximum Torque - Continuous / Intermittent: | 107 Nm (946 lb in) / 145 Nm (1284 lb in) |
More PARKER Low speed high torque compatible motors availalbe like :
TB
TC
TJ
TE
TF
TG
TK
About Xeriwell:
From China, Xeriwell produce variety of low speed high toqrue hydraulic motors to suit range of brands & applications, in more competitive way.
We introduce us as advantage supplement of your current hydraulic supply, solve reliability, quality, time, cost, brand promotion.
Contact us to talk work together.
