QT
Xeriwell or Others

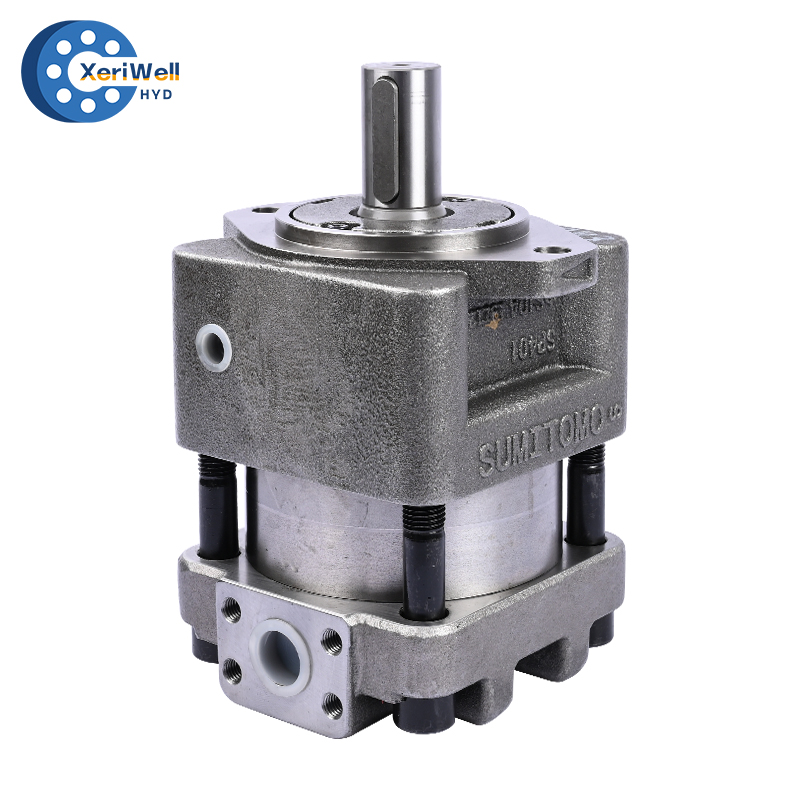

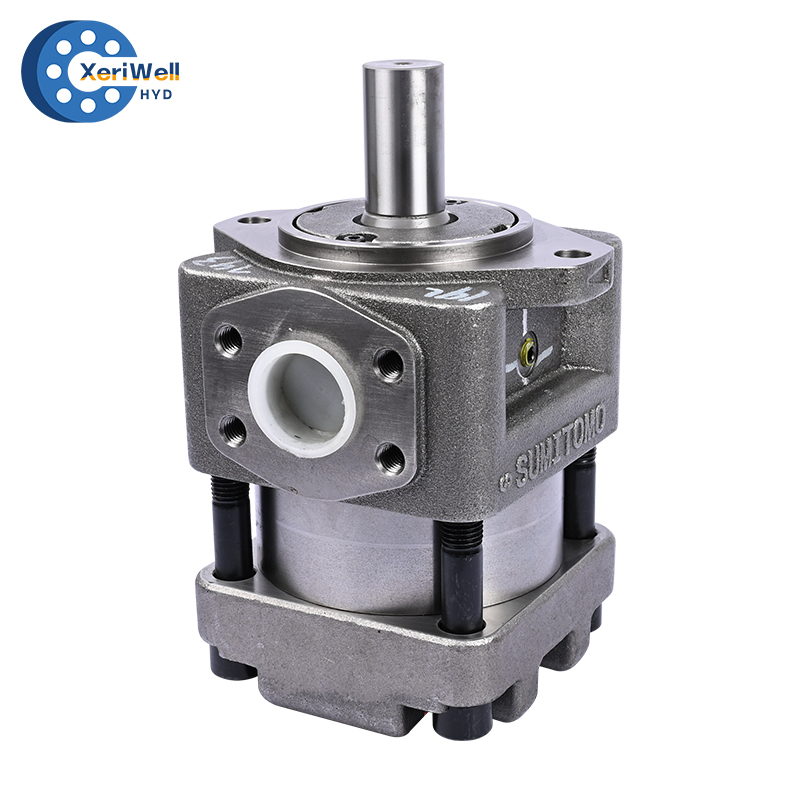

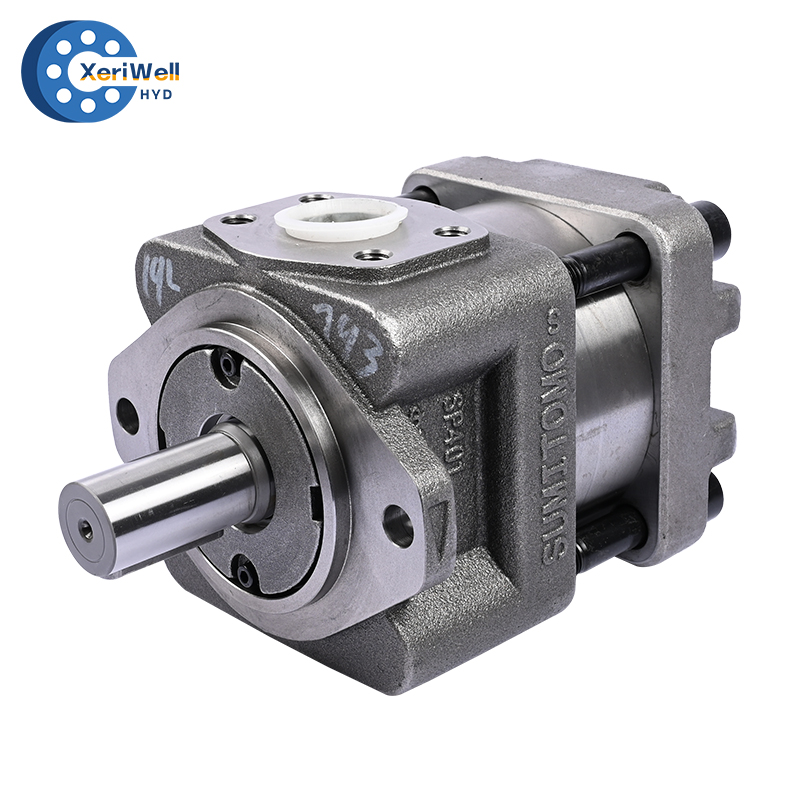

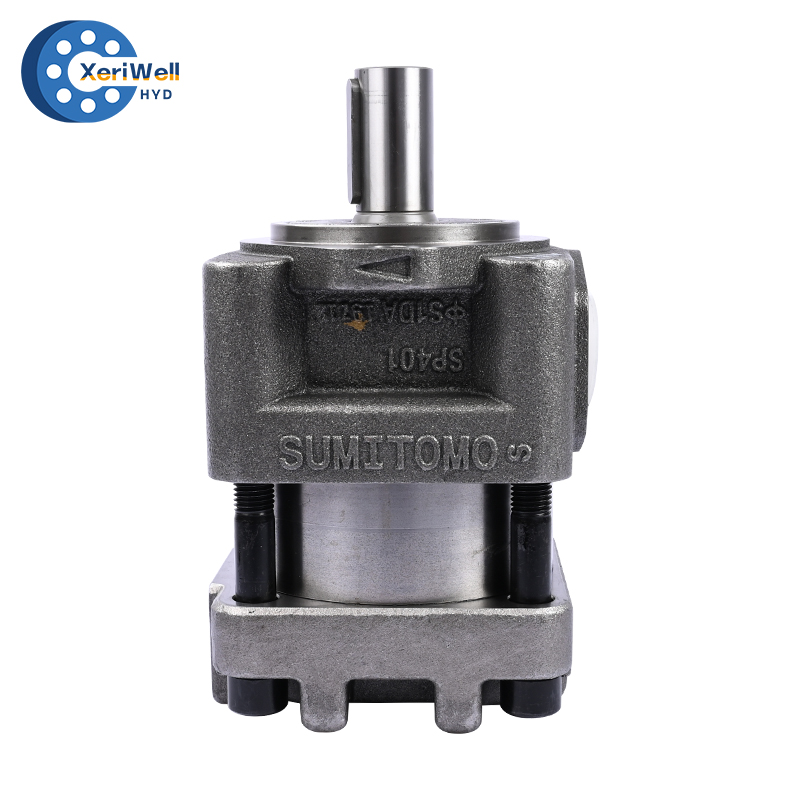

The Sumitomo gear pump is a robust and reliable component designed for a wide range of industrial and mobile applications. Known for its durability and efficiency, this pump is engineered to deliver consistent performance under varying conditions.
Key Features:
1. High Efficiency: The hydraulic gear pump offers excellent volumetric and mechanical efficiency, ensuring optimal power output with minimal energy loss.
2. Durable Construction: Built with high-quality materials, the pump is designed to withstand harsh operating environments, offering long service life and reduced maintenance costs.
3. Compact Design: Its compact and lightweight design allows for easy integration into various hydraulic systems, making it ideal for applications where space is a constraint.
4. Wide Operating Range: The pump is capable of operating at high pressures and flows, making it suitable for a wide range of industrial tasks.
5. Low Noise Levels: Designed with precision and care, the pump operates quietly, minimizing noise pollution and enhancing operator comfort.
6. Versatile Mounting Options: Available with multiple mounting configurations, the pump can be easily adapted to fit different hydraulic setups.
Type: QT23, QT33, QT43, QT53, QT63
| Model | Flow | Preset Pressure MPa | Greatest Pressure MPa | Torque Nm | Motor Power kW |

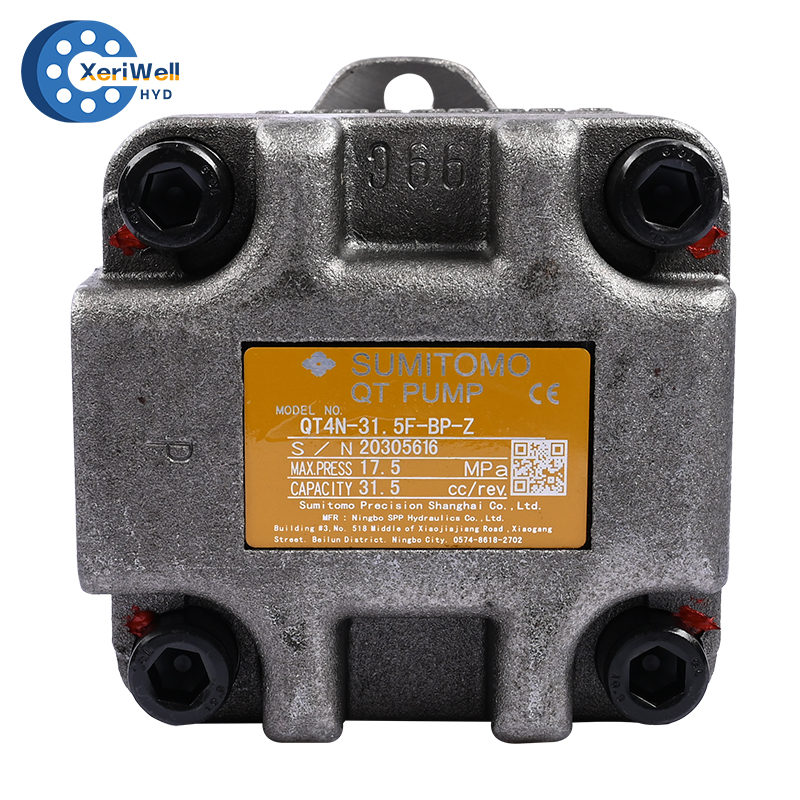

| QT4N | 31.5 | 17.5 | 17.5 | 92.5 | 14 |
| 40 | 17.5 | 17.5 | 120.5 | 17.9 | |
| QT5N | 50 | 17.5 | 17.5 | 147.5 | 22.4 |
| 63 | 17.5 | 17.5 | 184.8 | 28.1 | |
| QT6N | 80 | 17.5 | 17.5 | 232.1 | 35.2 |
| 100 | 17.5 | 17.5 | 291.2 | 44.2 | |
| 125 | 17.5 | 17.5 | 358.3 | 54.4 | |
| QT8N | 200 | 17.5 | 17.5 | 589.5 | 88.6 |
| 200 | 17.5 | 17.5 | 736.5 | 111.2 |
