| Quantity: | |
|---|---|
BMT
Xeriwell or Others
| Features: | Same As Eaton-charlynn 2000 Series | Products Name: | Hydraulic Orbital Motor |
|---|---|---|---|
| Model No.: | BMT | Displacement: | 160.200.230.250............ |
| Warranty: | 12-18 Months | OEM: | Available |
| Highlight: | lsht hydraulic motor,omt hydraulic motor | ||

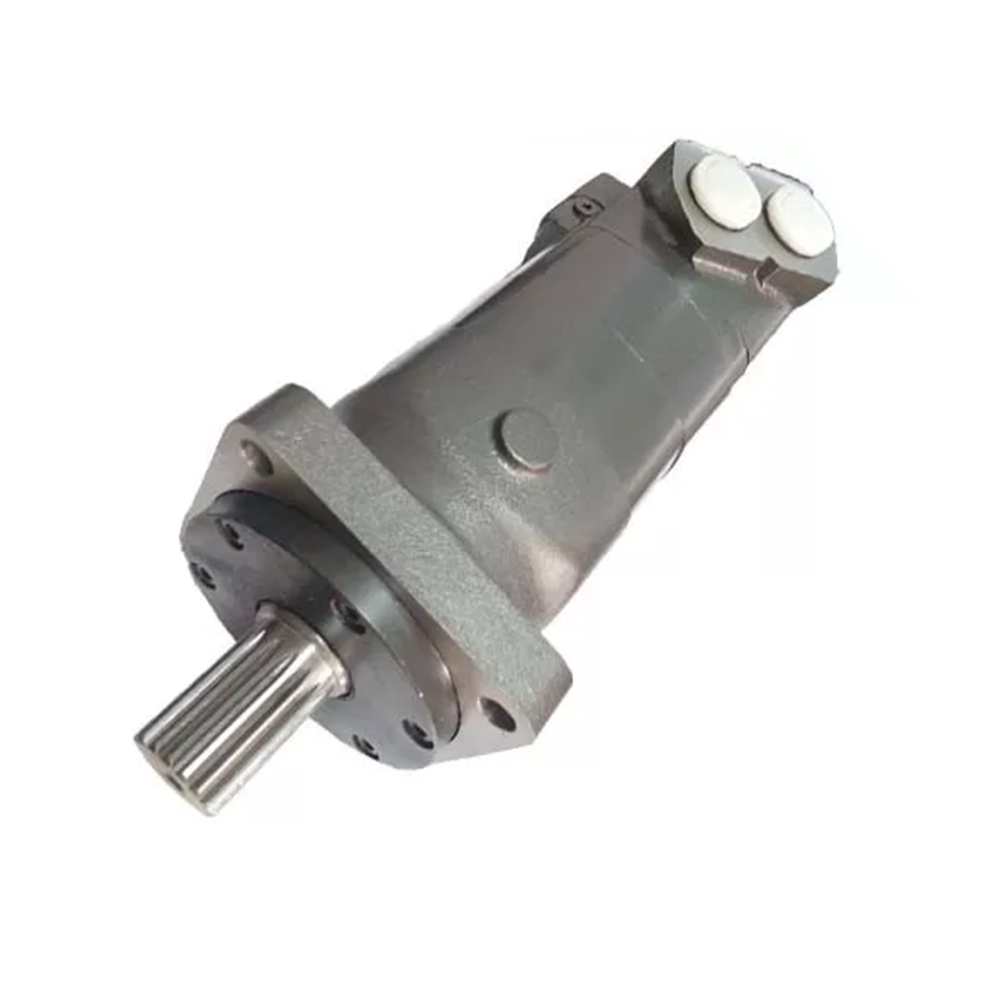

Low Speed High Torque Hydraulic Motor BMT OMT985cc Replace Heavy Equipments Parts
Characteristic Features:
Smooth running over the entire speed range
Constant operating torque over a wide speed range
Long life under extreme operating conditions
High return pressure without the use of drain line (High pressure shaft seal)
High efficiency
High starting torque
Robust and compact design
High radial and axial bearing capacity
For applications in both open and closed loop hydraulic systems
Suitable for a wide variety of hydraulics fluids
Specifications:
| Type | BMT 160 | BMT 200 | BMT 230 | BMT 250 | BMT 315 | BMT 400 | BMT 500 | BMT 630 | BMT 800 | |
| Geometric displacement (cm3 /rev.) | 161.1 | 201.4 | 232.5 | 251.8 | 326.3 | 410.9 | 523.6 | 629.1 | 801.8 | |
| Max. speed (rpm) | cont. | 625 | 625 | 536 | 500 | 380 | 305 | 240 | 196 | 154 |
| int. | 780 | 750 | 643 | 600 | 460 | 365 | 285 | 233 | 185 | |
| Max. torque (N·m) | cont. | 470 | 590 | 670 | 730 | 950 | 1080 | 1220 | 1318 | 1464 |
| int. | 560 | 710 | 821 | 880 | 1140 | 1260 | 1370 | 1498 | 1520 | |
| peak | 669 | 838 | 958 | 1036 | 1346.3 | 1450.3 | 1643.8 | 1618.8 | 1665 | |
| Max. output (kW) | cont. | 27.7 | 34.9 | 34.7 | 34.5 | 34.9 | 31.2 | 28.8 | 25.3 | 22.2 |
| int. | 32 | 40 | 40 | 40 | 40 | 35 | 35 | 27.5 | 26.8 | |
| Max. pressure drop (MPa) | cont. | 20 | 20 | 20 | 20 | 20 | 18 | 16 | 14 | 12.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 21 | 18 | 16 | 13 | |
| peak | 28 | 28 | 28 | 28 | 28 | 24 | 21 | 19 | 16 | |
| Max. flow (L/min) | cont. | 100 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 |
| int. | 125 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | |
| Max. inlet pressure (MPa) | cont. | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 |
| int. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| peak | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 19.5 | 20 | 20.4 | 20.5 | 21 | 22 | 23 | 24 | 25 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
Applications:
Construction
Agricultural
Material handling & Lifting
Forestry
Lawn & turf equipment
Special purpose
Machine tools & stationary
Marine equipment

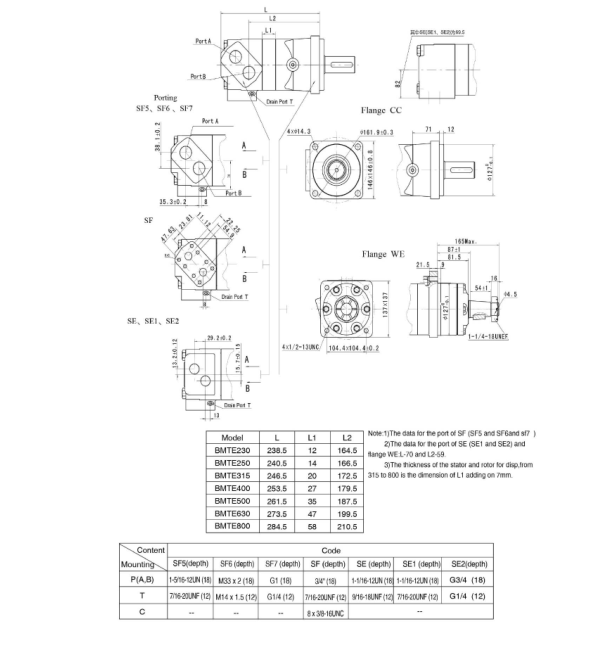

| Model | L | L1 | L2 |
| BMTE230 | 238.5 | 12 | 164.5 |
| BMTE250 | 240.5 | 14 | 166.5 |
| BMTE315 | 246.5 | 20 | 172.5 |
| BMTE400 | 253.5 | 27 | 179.5 |
| BMTE500 | 261.5 | 35 | 187.5 |
| BMTE630 | 273.5 | 47 | 199.5 |
| BMTE800 | 284.5 | 58 | 210.5 |
| Note:1)The data for the port of SF (SF5 and SF6and sf7 ) 2)The data for the port of SE (SE1 and SE2) and flange WE L-70 and L2-59. 3)The thickness of the stator and rotor for disp,from 315 to 800 is the dimension of L1 adding on 7mm. | |||
| Mounting Content | Code | ||||||
| SF5(depth) | SF6 (depth) | SF7 (depth) | SF (depth) | SE (depth) | SE1 (depth) | SE2(depth) | |
| P(A,B) | 1-5/16-12UN (18) | M33 x 2 (18) | G1 (18) | 3/4” (18) | 1-1/16-12UN (18) | 1-1/16-12UN (18) | G3/4 （18） |
| T | 7/16-20UNF (12) | M14 x 1.5 (12) | G1/4 (12) | 7/16-20UNF (12) | 9/16-18UNF (12) | 7/16-20UNF (12) | G1/4 （12） |
| C | -- | -- | -- | 8 x 3/8-16UNC | --- | ||
