| Quantity: | |
|---|---|
BMH
Xeriwell or Others
| Features: | Same As OMR/ Eaton S,t,w/ M+S MR | Product Name: | High Torque Low Rpm Hydraulic Motor |
|---|---|---|---|
| Warranty: | Two Years | Model Number: | BMH |
| Displacement: | 200,250,315,400,... | Applications: | Agricultural, Forestry, Marine, Construction, Ground Care, Industrial, ... |
| Highlight: | slow speed high torque motor,lsht hydraulic motor | ||

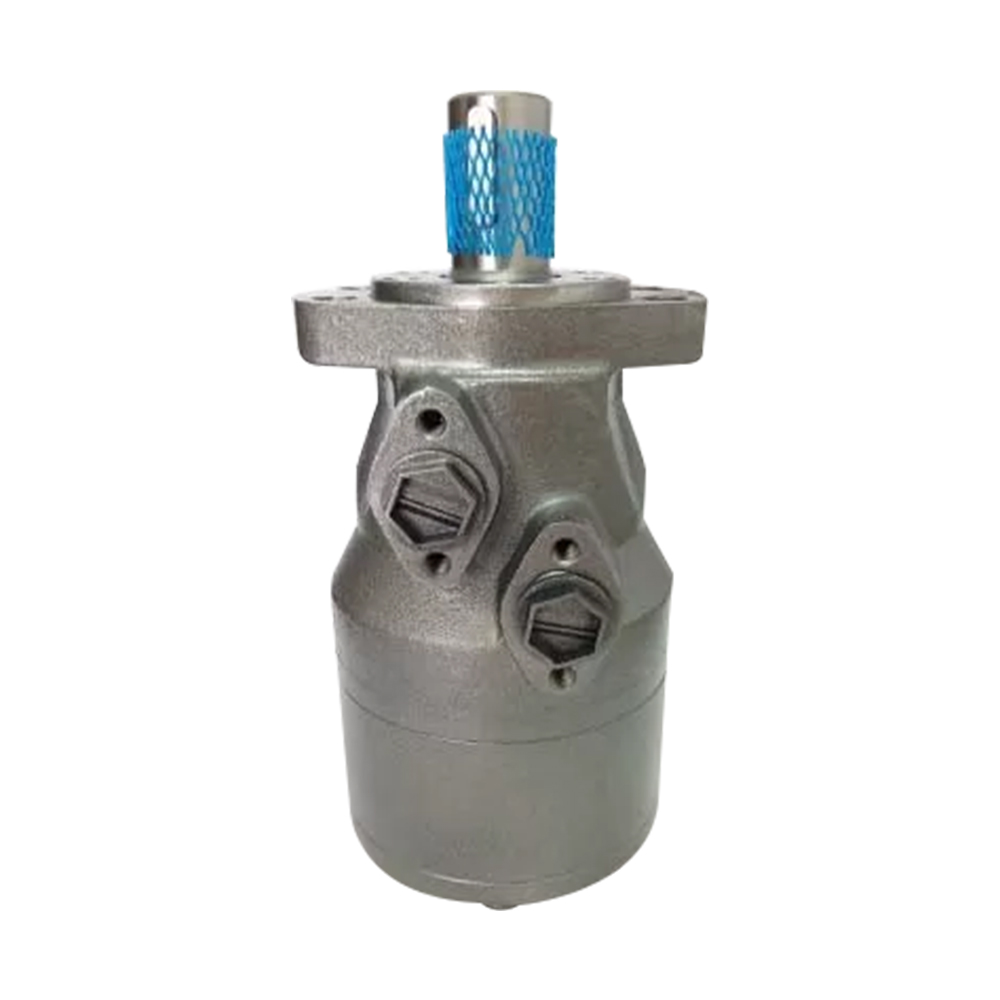

Low Speed High Torque Hydraulic Motor BMH Hydraulic Motors/Gerotor Motor
Hydraulic Orbit Motor BMH:
* Advanced manufacturing devices for the Gerolor gear set, which use low pressure of start-up,provide smooth, reliable operation and high efficiency.
* Shaft seal can bear high pressure of back and the motor can be used in parallel or series.
* Special design in the driver-linker and prolong operating life.
* Special design for distribution system can meet the requirement of low noise of unit.
* Compact volume and easy installation.
OMH hydraulic motor Main specifiction:
| Type | BMH 200 | BMH 250 | BMH 315 | BMH 400 | BMH 500 | |
Displacement (cc/rev) | 203.2 | 255.9 | 316.5 | 406.4 | 489.2 | |
Max torque (n.m) | cont | 510 | 621 | 740 | 850 | 830 |
| int | 439 | 348 | 282 | 220 | 184 | |
Max pressure (mpa) | cont | 17.5 | 17.5 | 17.5 | 15.5 | 12.5 |
| int | 20 | 20 | 20 | 19 | 16 | |
Max speed rate (rpm) | cont | 366 | 290 | 236 | 183 | 155 |
| int | 439 | 348 | 282 | 220 | 184 | |
Max flow (L/min) | cont | 75 | 75 | 75 | 75 | 75 |
| int | 90 | 90 | 90 | 90 | 90 | |
Weight(kg) | 10.5 | 11 | 11.5 | 12.3 | 13.0 | |

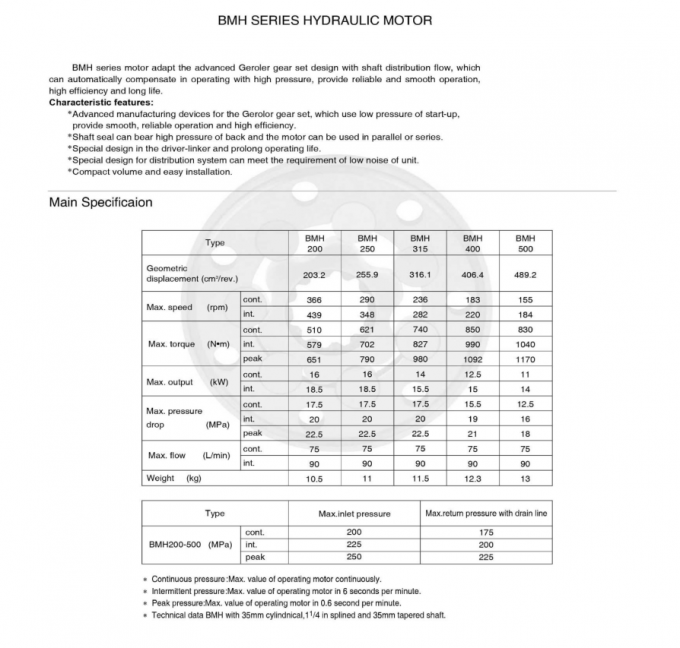

| Main Specificaion | ||||||
| Type | BMH 200 | BMH 250 | BMH 315 | BMH 400 | BMH 500 | |
| Geometric displacement (cm3/rev.) | 203.2 | 255.9 | 316.1 | 406.4 | 489.2 | |
| Max. speed (rpm) | cont. | 366 | 290 | 236 | 183 | 155 |
| int. | 439 | 348 | 282 | 220 | 184 | |
| Max. torque (N▪m) | cont. | 510 | 621 | 740 | 850 | 830 |
| int. | 579 | 702 | 827 | 990 | 1040 | |
| peak | 651 | 790 | 980 | 1092 | 1170 | |
| Max. output (kW) | cont. | 16 | 16 | 14 | 12.5 | 11 |
| int. | 18.5 | 18.5 | 15.5 | 15 | 14 | |
| Max. pressure drop (MPa) | cont. | 17.5 | 17.5 | 17.5 | 15.5 | 12.5 |
| int. | 20 | 20 | 20 | 19 | 16 | |
| peak | 22.5 | 22.5 | 22.5 | 21 | 18 | |
| Max. flow (L/min) | cont. | 75 | 75 | 75 | 75 | 75 |
| int. | 90 | 90 | 90 | 90 | 90 | |
| Weight (kg) | 10.5 | 11 | 11.5 | 12.3 | 13 | |
| Type | Max.inlet pressure | Max.return pressure with drain line | ||
| BMH200-500 (MPa) | cont. | 200 | 175 | |
| int. | 225 | 200 | ||
| peak | 250 | 225 | ||
| ※ Continuous pressure:Max. value of operating motor continuously. ※ Intermittent pressure:Max. value of operating motor in 6 seconds per minute. ※ Peak pressure:Max. value of operating motor in 0.6 second per minute. ※ Technical data BMH with 35mm cylindrical,11/4 in splined and 35mm tapered shaft. | ||||
