| Quantity: | |
|---|---|
BMH 500
Xeriwell or Others
| Product Name: | Hydraulic Orbital Motors | Output Shaft: | Φ32 , Φ35 , Φ31.75 , Φ25.4 |
|---|---|---|---|
| Displacement: | 200 , 250 , 315 , 400 , 500 . | Applications: | Heavy Equipment , Aerial Platform |
| Replacement: | OMH, M+S MH | Ports: | G1/2 , M22*1.5 , 7/8-14 O*ring Etc |
| Highlight: | heavy duty hydraulic motor,hydraulic lift motor | ||

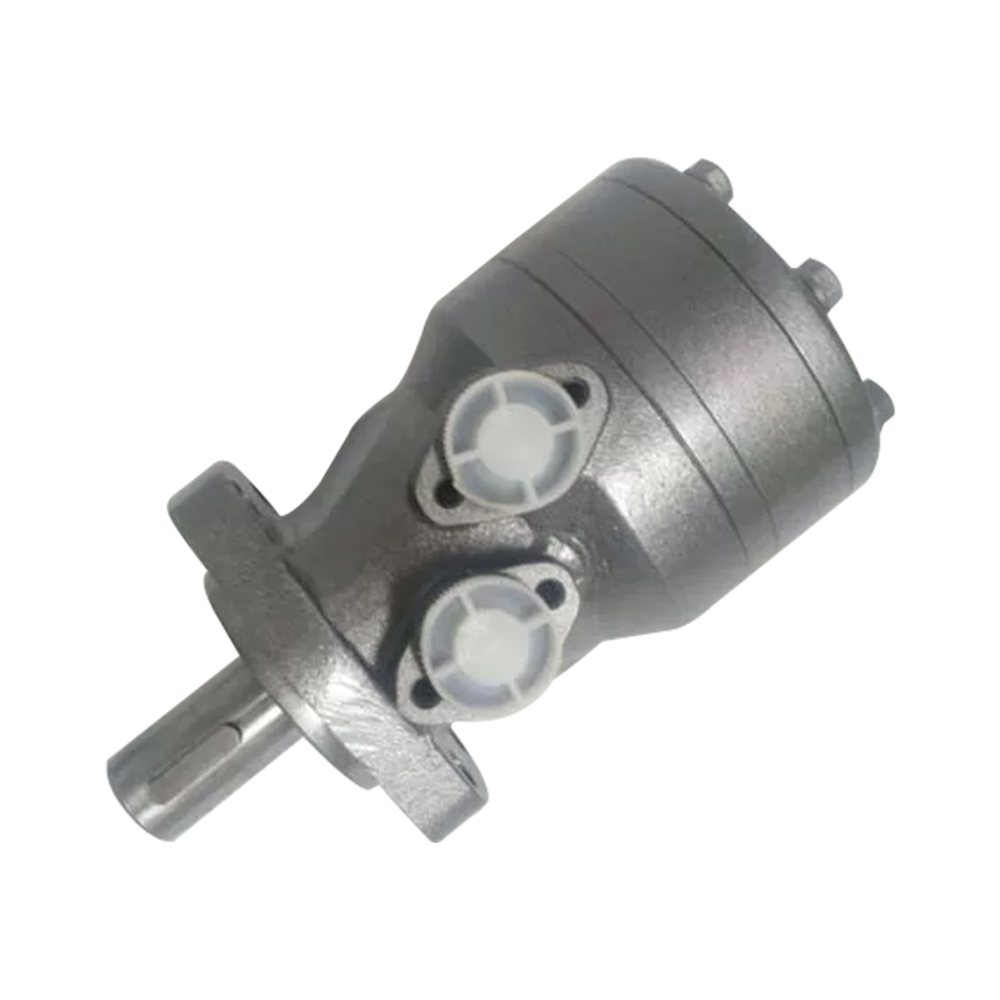

Hydraulic Drive Motor BMH 500 In Heavy Equipment , Aerial Platform
Characteristic Features:
* Advanced manufacturing devices for the Gerolor gear set, which use low pressure of start-up,provide smooth, reliable operation and high efficiency.
* Shaft seal can bear high pressure of back and the motor can be used in parallel or series.
* Special design in the driver-linker and prolong operating life.
* Special design for distribution system can meet the requirement of low noise of unit.
* Compact volume and easy installation
Main specifiction:
| Type | BMH 200 | BMH 250 | BMH 315 | BMH 400 | BMH 500 | |
Displacement (cc/rev) | 203.2 | 255.9 | 316.5 | 406.4 | 489.2 | |
Max torque (n.m) | cont | 510 | 621 | 740 | 850 | 830 |
| int | 439 | 348 | 282 | 220 | 184 | |
Max pressure (mpa) | cont | 17.5 | 17.5 | 17.5 | 15.5 | 12.5 |
| int | 20 | 20 | 20 | 19 | 16 | |
Max speed rate (rpm) | cont | 366 | 290 | 236 | 183 | 155 |
| int | 439 | 348 | 282 | 220 | 184 | |
Max flow (L/min) | cont | 75 | 75 | 75 | 75 | 75 |
| int | 90 | 90 | 90 | 90 | 90 | |
Weight(kg) | 10.5 | 11 | 11.5 | 12.3 | 13.0 | |
MOTOR CROSS REFERENCE TABLE | ||||||||
Xeriwell HYDRAULIC | M+S HYDRAULIC | EATON CHAR LYNN | ROSS TRW | WHITE CROSS | PARKER | SAM BREVINI | BOSCH RECROTH | |
| BMM | MM MLHK | J SERIES | OMM | BGM | MGX | |||
| BMP/BM1 | MP HP | H SERIES | OMP DH | MF MG | WP RS | TC TE TB | BG | MGP GXP |
| BMR/BM2 | MR HR MLHRW,RW | S,T SERIES W SERIES | OMR DS OMEW | MB | WR RE | TF | BR | MGR GMR |
| BMH/BM4 | MH MLHH HW HWF | OMH | ME | RE | TG | |||
| BMS/BM5 | MS MSY MLHS | 2000 SERIES | OMS | ME | RE | TG | HPR | MGS GMS |
| BMT/BM6 | MT MLHT MTM | 6000 SERIES | OMT TMT | MJ | HT | MGT,GMT | ||
| BMV | MV MLHV | 10000 SERIES | OMV | MGV GMV | ||||
Applications :
conveyor drives
winches
agricultural machinery
forest machinery
cranes
sawmill equipment
lifts/elevators
agriculture
forestry
marine
construction
mining
heavy equipment
aerial platform
Hydraulic Drive Motor BMH usually have a drain connection for the internal leakage, which means that when the power unit is turned off the hydraulic motor in the drive system will move slowly if an external load is acting on it. Thus, for applications such as a winch with suspended load, there is always a need for a brake or a locking device.
| Product Name: | Hydraulic Orbital Motors | Output Shaft: | Φ32 , Φ35 , Φ31.75 , Φ25.4 |
|---|---|---|---|
| Displacement: | 200 , 250 , 315 , 400 , 500 . | Applications: | Heavy Equipment , Aerial Platform |
| Replacement: | OMH, M+S MH | Ports: | G1/2 , M22*1.5 , 7/8-14 O*ring Etc |
| Highlight: | heavy duty hydraulic motor,hydraulic lift motor | ||
Hydraulic Drive Motor BMH 500 In Heavy Equipment , Aerial Platform
Characteristic Features:
* Advanced manufacturing devices for the Gerolor gear set, which use low pressure of start-up,provide smooth, reliable operation and high efficiency.
* Shaft seal can bear high pressure of back and the motor can be used in parallel or series.
* Special design in the driver-linker and prolong operating life.
* Special design for distribution system can meet the requirement of low noise of unit.
* Compact volume and easy installation
Main specifiction:
| Type | BMH 200 | BMH 250 | BMH 315 | BMH 400 | BMH 500 | |
Displacement (cc/rev) | 203.2 | 255.9 | 316.5 | 406.4 | 489.2 | |
Max torque (n.m) | cont | 510 | 621 | 740 | 850 | 830 |
| int | 439 | 348 | 282 | 220 | 184 | |
Max pressure (mpa) | cont | 17.5 | 17.5 | 17.5 | 15.5 | 12.5 |
| int | 20 | 20 | 20 | 19 | 16 | |
Max speed rate (rpm) | cont | 366 | 290 | 236 | 183 | 155 |
| int | 439 | 348 | 282 | 220 | 184 | |
Max flow (L/min) | cont | 75 | 75 | 75 | 75 | 75 |
| int | 90 | 90 | 90 | 90 | 90 | |
Weight(kg) | 10.5 | 11 | 11.5 | 12.3 | 13.0 | |
MOTOR CROSS REFERENCE TABLE | ||||||||
Xeriwell HYDRAULIC | M+S HYDRAULIC | EATON CHAR LYNN | ROSS TRW | WHITE CROSS | PARKER | SAM BREVINI | BOSCH RECROTH | |
| BMM | MM MLHK | J SERIES | OMM | BGM | MGX | |||
| BMP/BM1 | MP HP | H SERIES | OMP DH | MF MG | WP RS | TC TE TB | BG | MGP GXP |
| BMR/BM2 | MR HR MLHRW,RW | S,T SERIES W SERIES | OMR DS OMEW | MB | WR RE | TF | BR | MGR GMR |
| BMH/BM4 | MH MLHH HW HWF | OMH | ME | RE | TG | |||
| BMS/BM5 | MS MSY MLHS | 2000 SERIES | OMS | ME | RE | TG | HPR | MGS GMS |
| BMT/BM6 | MT MLHT MTM | 6000 SERIES | OMT TMT | MJ | HT | MGT,GMT | ||
| BMV | MV MLHV | 10000 SERIES | OMV | MGV GMV | ||||
Applications :
conveyor drives
winches
agricultural machinery
forest machinery
cranes
sawmill equipment
lifts/elevators
agriculture
forestry
marine
construction
mining
heavy equipment
aerial platform
Hydraulic Drive Motor BMH usually have a drain connection for the internal leakage, which means that when the power unit is turned off the hydraulic motor in the drive system will move slowly if an external load is acting on it. Thus, for applications such as a winch with suspended load, there is always a need for a brake or a locking device.
