Hydraulic Gear Pump
Xeriwell or Others
| Product Name: | High Efficiency Hydraulic Pump | Pressure Level: | 16 MPa |
|---|---|---|---|
| Displacement (ml/r): | 04,06,08,10,12,14,16,20,25 | Applications: | , Fiat Tractors Fiat / Fiatagri 80-90 |
| Direction Of Rotation: | Left , Right | Gear Modulus: | 3 |
| Highlight: | high pressure gear pump,small gear pump | ||

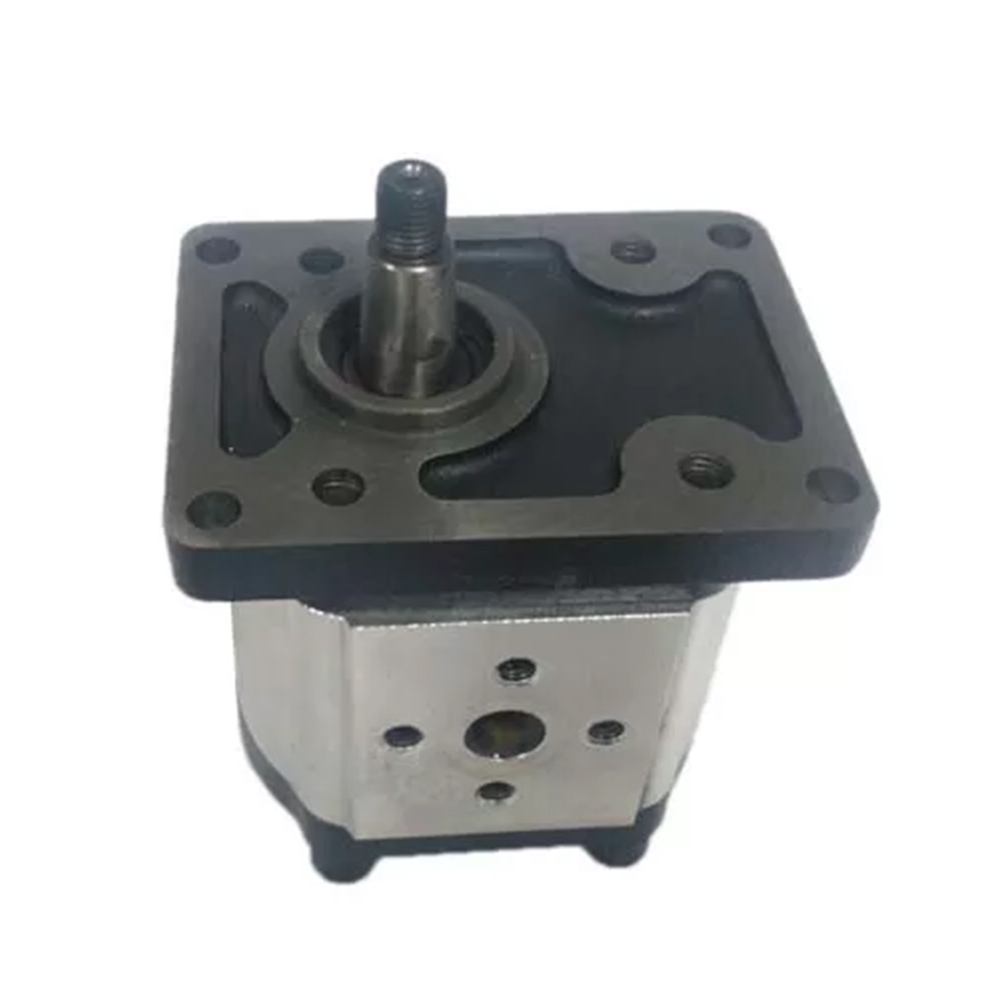

Hydraulic Gear Pump CBT-E3 for , Fiat tractors Fiat / Fiatagri 80-90
Hydraulic Gear Pump CBT-E3 series can be provided with various kinds of mounting flange, shaft ends, and connection styles of inlet and outlet . This series pump can be made as CBT-E3******--side-in and rear-out, rear-in and side-out. CBT-E3 pumps can also be combined as a relief pump CBT-E3***YL***with safety valve, or as a constant flow pump CBT-E3***HL***with constant flow valve.
Characteristic Features:
Simple and compact structure
small volume
light in mass
Good technology
Strong self-absorption
Insensitive to oil contamination
Large speed range
Impact resistance load
Easy maintenance
Reliable work.
Type and displacement:
| Type | CBT-F5 | CBG | G5 | GPC4 | GM5 | CBT-F2 | CBT-E3 |
| displacement | 20-63 | 06-25 | 05-30 | 20-80 | 05-25 | 1.3-4.2 | 04-25 |

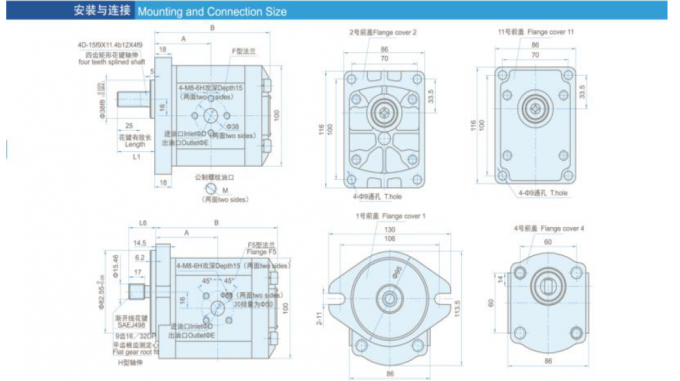

| 型号Model | A | B | ΦD | ΦE | M |
| CBT-E304***2 | 45.5 | 95 | Φ14 | Φ10 | M18x1.5-6H |
| CBT-E306***2 | 47 | 98 | Φ14 | Φ10 | |
| CBT-E308***2 | 48.25 | 100.5 | Φ14 | Φ10 | |
| CBT-E310***2 | 49.75 | 103.5 | Φ16 | Φ15 | M24x1.5-6H |
| CBT-E312***2 | 51.75 | 107.5 | Φ18 | Φ15 | |
| CBT-E314***2 | 52.85 | 109.7 | Φ18 | Φ15 | |
| CBT-E316***2 | 54.25 | 112.5 | Φ18 | Φ15 | |
| CBT-E320***2 | 57.25 | 118.5 | Φ18 | Φ15 | M27x1.5-6H |
| CBT-E325***2 | 61.25 | 126.5 | Φ18 | Φ15 |
| 型号Model | A | B | ΦD | ΦE |
| CBT-E306***4 | 45 | 96 | Φ14 | Φ10 |
| CBT-E308***4 | 46.25 | 98.5 | Φ14 | Φ10 |
| CBT-E310***4 | 47.75 | 101.5 | Φ18 | Φ15 |
| CBT-E312***4 | 49.75 | 105.5 | Φ18 | Φ15 |
| CBT-E314***4 | 50.85 | 107.7 | Φ18 | Φ15 |
| CBT-E316***4 | 52.25 | 110.5 | Φ18 | Φ15 |
| CBT-E320f1*4 | 55.25 | 116.5 | Φ18 | Φ15 |
| CBT-E320F5**4 | 55.25 | 116.5 | Φ20 | Φ15 |
| CBT-E325***4 | 59.25 | 124.5 | Φ18 | Φ15 |
| 型号Model | A | B | ΦD | ΦE |
| CBT-E306***1 | 47.8 | 98.8 | Φ14 | Φ10 |
| CBT-E308***1 | 49.05 | 101.3 | Φ14 | Φ10 |
| CBT-E310***1 | 50.55 | 104.3 | Φ18 | Φ15 |
| CBT-E312***1 | 52.55 | 108.3 | Φ18 | Φ15 |
| CBT-E314***1 | 53.65 | 110.5 | Φ18 | Φ15 |
| CBT-E316***1 | 55.05 | 113.3 | Φ18 | Φ15 |
| CBT-E320f1**1 | 58.05 | 119.3 | Φ18 | Φ15 |
| CBT-E320F5**1 | 58.05 | 119.3 | Φ20 | Φ15 |
| CBT-E325***1 | 62.05 | 127.3 | Φ18 | Φ15 |
| 型号Model | A | B | ΦD | ΦE |
| CBT-E306***11 | 47 | 98 | Φ14 | Φ10 |
| CBT-E308***11 | 48.25 | 100.5 | Φ14 | Φ10 |
| CBT-E310***11 | 49.75 | 103.5 | Φ18 | Φ15 |
| CBT-E312***11 | 51.75 | 107.5 | Φ18 | Φ15 |
| CBT-E314***11 | 52.85 | 109.7 | Φ18 | Φ15 |
| CBT-E316***11 | 54.25 | 112.5 | Φ18 | Φ15 |
| CBT-E320f111 | 57.25 | 118.5 | Φ18 | Φ15 |
| CBT-E320F5**11 | 57.25 | 118.5 | Φ20 | Φ15 |
| CBT-E325***11 | 61.25 | 126.5 | Φ18 | Φ15 |
| 前盖代号 轴伸形式 | 四齿花键轴伸 | E型轴伸 | E1型轴伸 | B、B1型轴伸 | S、S3型轴伸 | H型轴伸 | S1型轴伸 | S2型轴伸 |
| L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | |
| 1 | 39.2 | 41.2 | 39.2 | \ | \ | 30.7 | 44.7 | \ |
| 2 | 40 | 42 | 40 | 14 | 38.5 | 31.5 | 45.5 | 40 |
| 4 | 42 | 44 | 42 | 16 | 40.5 | 33.5 | 47.5 | 42 |
| 11 | 40 | 42 | 40 | 14 | 38.5 | 31.5 | 45.5 | 40 |
Applications :
Hydraulic Gear Pump is external pumps with axial compensation and radial balancing. They are widely applied in hydraulic system and Agricultural & Tractors and Engineering Trucks.
