| Quantity: | |
|---|---|
BMS
Xeriwell or Others
| Features: | Same As Eaton-charlynn 2000 Series | Products Name: | Hydraulic Orbital Motor |
|---|---|---|---|
| Model No.: | BMS | Displacement: | 80cc, 100cc, 125cc, 160cc, 200cc, 250cc, 315cc, 375cc |
| Warranty: | 12-18 Months | OEM: | Available |
| Highlight: | orbital hydraulic motor,cycloid hydraulic motor | ||
Orbit Hydraulic Motor BMS , 2000 Series Hydraulic Power Parts For Harvesters , Cranes
1. Characteristic Features:
* Advanced manufacturing devices for the Gerotor gear set which use low pressure of start-up, provide smooth and reliable operation and high efficiency.
* The output shaft adapts in tapered roller bearings that permit high axial and radial forces. Can offer capacities of high pressure and high torque in the wide of applications.
* Advanced design in disc distribution flow, which can automatically compensate in operating with high volume efficiency and long life, provide smooth and reliable operation.
2. Main Specifications:
Output Shaft Size: Ø31.75mm, Ø32mm Parallel Key or Splined Shaft.

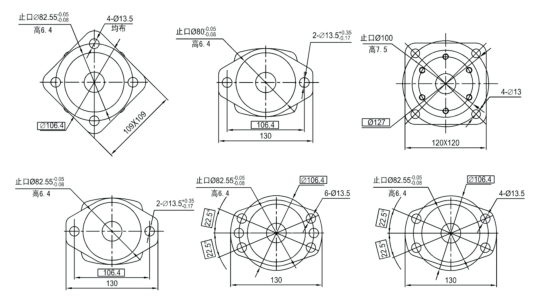

Flange: 2-Ø13.5 Rhomb-flange, 4-Ø13.5 Rhomb-flange, Or Customized.
Pilot: Ø82.5×8mm, Ø44.4×2.8mm.

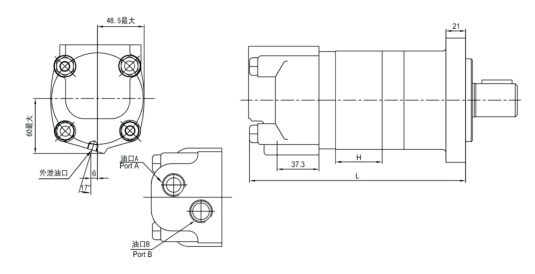

Port and Drain Port: G1/2" / G1/4"; M22×1.5 / M14×1.5; 7/8-14 O-ring / 7/16-20UNF;
1/2-14 NPTF / 7/16-20UNF; PT(Rc)1/2 / PT(Rc)1/4.
Paint: No Paint, Blue, Black, Silver Grey
| Type | BMS BMSE 80 | BMS BMSE 100 | BMS BMSE 125 | BMS BMSE 160 | BMS BMSE 200 | BMS BMSE 250 | BMS BMSE 315 | BMS BMSE 375 | |
| Geometric displacement (cm3 /rev.) | 80.6 | 100.8 | 125 | 157.2 | 200 | 252 | 314.5 | 370 | |
| Max. speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 200 |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 240 | |
| Max. torque (N·m) | cont. | 190 | 240 | 310 | 316 | 400 | 450 | 560 | 536 |
| int. | 240 | 300 | 370 | 430 | 466 | 540 | 658 | 645 | |
| peak | 260 | 320 | 400 | 472 | 650 | 690 | 740 | 751 | |
| Max. output (kW) | cont. | 15.9 | 18.8 | 19.5 | 15.6 | 15.7 | 14.1 | 14.1 | 11.8 |
| int. | 20.1 | 23.5 | 23.2 | 21.2 | 18.3 | 17 | 18.9 | 17 | |
| Max. pressure drop (MPa) | cont. | 17.5 | 17.5 | 17.5 | 15 | 14 | 12.5 | 12 | 10 |
| int. | 21 | 21 | 21 | 21 | 16 | 16 | 14 | 12 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 18.5 | 14 | |
| Max. flow (L/min) | cont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Max. inlet pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 12.6 | |
