| Quantity: | |
|---|---|
BMM32
Xeriwell or Others
| MODE TYPE: | BMM8,12.5,20,32,40,50cc | POWER: | HYDRAULIC OIL |
|---|---|---|---|
| FEATURE: | MATCH THAN OMM, M+S MM MOTOR | SHAFT: | 16mm |
| OIL PORT: | G3/8" | ||
| Highlight: | slow speed high torque motor,omt hydraulic motor | ||

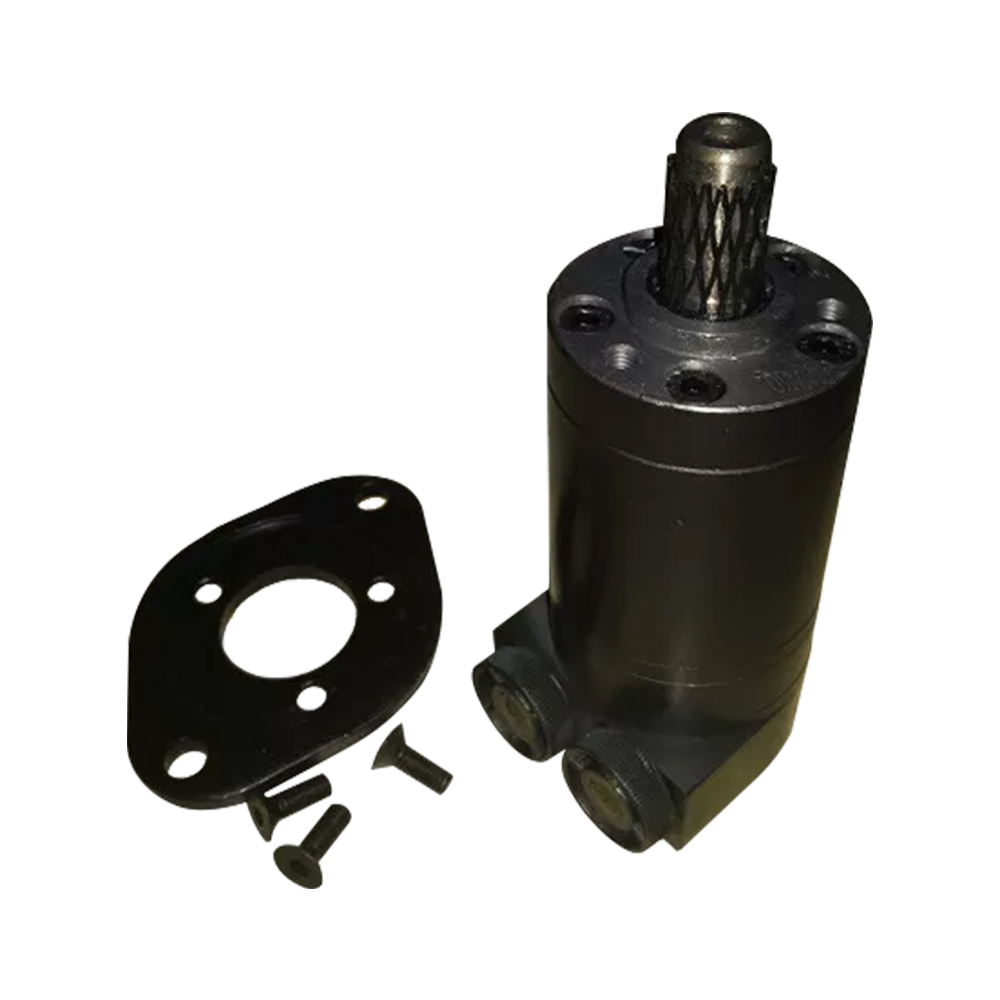

151G0033 / 151G0029 OMM32 / BMM32 Side Oil Port G3/8" Orbital Motor
Xeriwell professional manufacturer produce Hydraulic Orbital Motors,our motors match and Eaton,M+S motor series.
1. Oil Port : G3/8"
2. Drain Port : G1/8"
3. Screw : M6

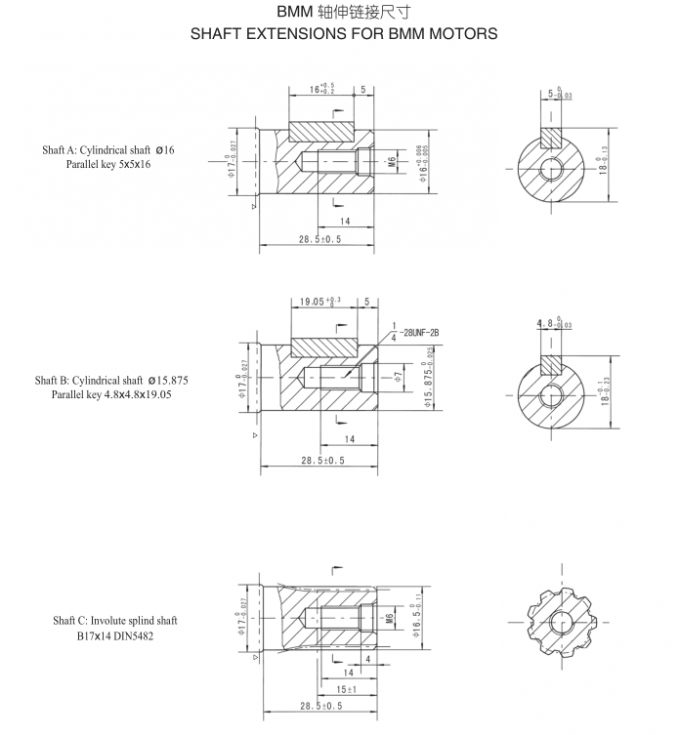

4. Shaft : 16mm
5. Key : 5x5x16mm
6. Side oil port.
7. Displacement : 32cc
Our BMM motor quality match than OMM,MM,Eaton J series and our price have a big advantage.
| OMM / BMM | ||||||
| 151G-0040 | 151G-0001 | 151G-0002 | 151G-0003 | 151G-0277 | 151G-0037 | 151G-0211 |
| 151G-0041 | 151G-0004 | 151G-0005 | 151G-0006 | 151G-0279 | 151G-0013 | 151G-0211 |
| 151G-0048 | 151G-0031 | 151G-0032 | 151G-0033 | - | - | - |
| 151G-0049 | 151G-0034 | 151G-0035 | 151G-0036 | - | 151G-0094 | - |
| 151G-0046 | 151G-0024 | 151G-0025 | 151G-0026 | - | - | 151G-0211 |
| 151G-0047 | 151G-0027 | 151G-0028 | 151G-0029 | - | - | 151G-0211 |
| type | BMM8 | BMM12 | BMM20 | BMM32 | BMM40 | BMM50 | |
| displacement | 8.2 | 12.9 | 19.9 | 31.6 | 39.8 | 50.3 | |
| Max speed(rpm) | rated | 1537 | 1256 | 814 | 513 | 452 | 358 |
| Cont. | 1950 | 1550 | 1000 | 630 | 500 | 400 | |
| int. | 2450 | 1940 | 1250 | 800 | 630 | 500 | |
| Max Torque (N*M) | rated | 8 | 13 | 19 | 31 | 37 | 33 |
| Cont. | 11 | 16 | 25 | 40 | 45 | 46 | |
| int. | 15 | 23 | 35 | 57 | 70 | 88 | |
| peak | 21 | 33 | 51 | 64 | 82 | 100 | |
| Max speed (kw) | rated | 1.3 | 1.7 | 1.7 | 1.7 | 1.7 | 1.2 |
| Cont. | 1.8 | 2.4 | 2.4 | 2.4 | 2.2 | 1.8 | |
| int. | 2.6 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | |
| Max pressure drop(MPa) | rated | 9 | 9 | 9 | 9 | 8.5 | 6 |
| Cont. | 10 | 10 | 10 | 10 | 9 | 7 | |
| int. | 14 | 14 | 14 | 14 | 14 | 14 | |
| peak | 20 | 20 | 20 | 16 | 16 | 16 | |
| Max flow(L/min) | rated | 14 | 18 | 18 | 18 | 20 | 20 |
| Cont. | 18 | 20 | 20 | 20 | 20 | 20 | |
| int. | 20 | 25 | 25 | 25 | 25 | 25 | |
| Weight(kg) | 1.9 | 2 | 2.1 | 2.2 | 2.3 | 2.4 | |
Xeriwell HYDRAULIC BMM DETAILS:
High quality products,Offer the lowest price,Protect customers profit and Offer the best after service are our principle.
Our processing equipment from Germany,oil seal is high pressure oil seal,precision parts processing and strict quality control.
We are looking for good long cooperation in the hydraulic field,very hope we can become good long partner.
Hope I can get our good cooperation chance.
