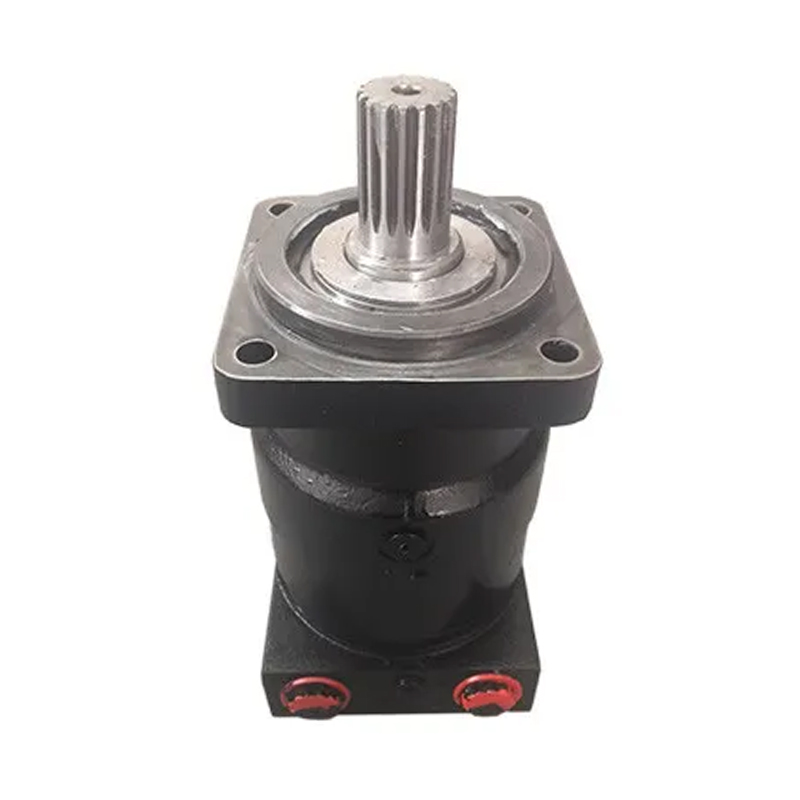

Skid-Steer Loader Hydraulic Rotation Drive Motor VOM4, Equivalent to TMT Hydraulic Drive Motors

Skid-steer loaders Hydraulic Motors VOM4 replace TMT Drive Motors

Quick details:

• VOM4-500-K6FS3B

• Φ38.1 spline shaft 17-DP12/24, 4-Φ14.2 square flange, pilot Φ127×12.5

• inlet and outlet ports 1-/1/16-12UN O-ring, drain 9/16-18UNF

• This hydraulic motor is designed for transmission drives e.g. skid-steer loaders and the like but is also applicable in working hydraulic systems, that require a large intermittent pressure and a high torque.

Applications:

For heavy duty Skid Steer Loaders, Road Rollers, Pavers, , KKOMATSU, HYUNDAI, CAT, YANMA, JCB. Replacement for 'TMT' series.

Technical datas:

The VOM4 hydraulic motor is an advanced valve distribution structure motor that uses a column-type rotary stator to work.
High pressure, high work efficiency, good efficiency and long working life. Can be based on the standard structure based on user needs Versatile variant design.

It's characteristics:

• Adopting advanced stator-parameter design, low starting pressure, high efficiency and good retention.

• Valve distribution structure makes the motor flow matching precision high, and the automatic compensation function after wear is strong, ensuring high volumetric efficiency and long motor life.

• Ensure that the motor speed is stable and the load speed characteristics are stable.

• Can withstand high working pressure and large output torque.

• Adopt advanced rotary shaft seal design. Can withstand high back pressure.

• The structure of tapered roller bearing adopts strong bearing shaft and radial load capacity. The motor can directly drive the working mechanism and the application range is expanded.

Other related hydraulic motors:
- Hydraulic Orbit Motors, such as BMM, BMP, BMR, BMS, BMH, BMT, BMV, etc.
Advantage: Replace and Match , Eaton, M+S, Parker, very close performance at much more cenvenient rates.
