| Quantity: | |
|---|---|
OMSS100
Xeriwell or Others
| Product: | Short Motor | Model Number: | OMSS100 |
|---|---|---|---|
| Flange: | Bearingless | Displacement: | 100 Ml/r |
| Highlight: | omss100 danfoss hydraulic motor,151f0536 danfoss hydraulic motor,151f5167 orbit hydraulic motor | ||

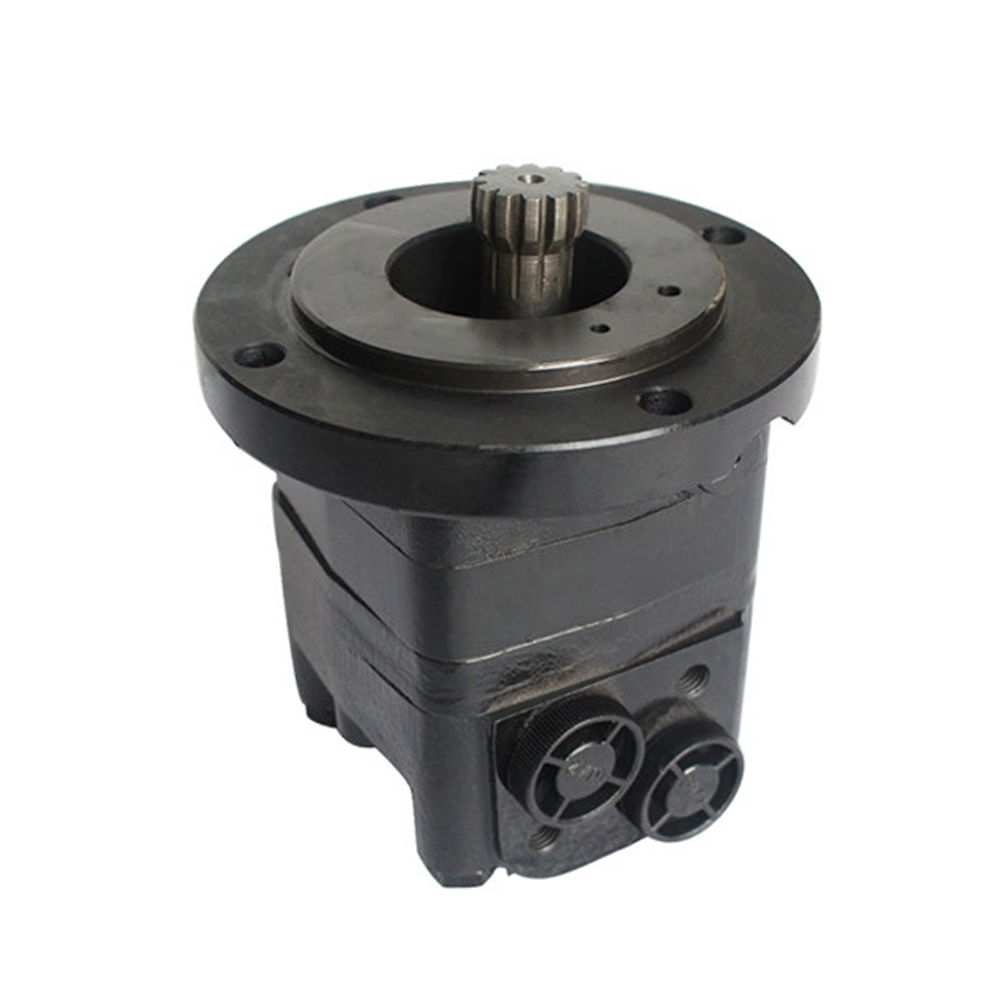

Short engine OMSS100 replace Danfoss 151F0536, 151F5067, 151F5167
Quick review:
This is an OMSS gerotor Motor with bearingless flange. It is form, fit and function compatible with Danfoss OMSS series. Dealers and users of Danfoss sell and use it directly as an 151F0536, 151F5067, 151F5167 compatible motor.

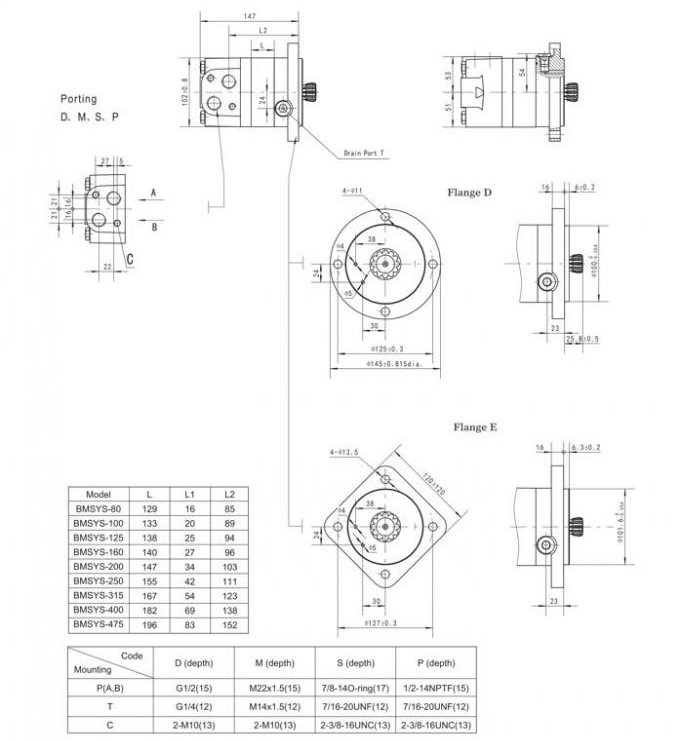

Technical information
Splined shaft 12 spline 12/24 (Ø27.6mm)
Flange 4 bolt Ø125 - centring Ø99.9mm
port 1/2 BSP - Drain 1/4 BSP
ref Danfoss 151F0536 (can replace151F5067 - 151F5167 )
| Type | BMS BMSE 80 | BMS BMSE 100 | BMS BMSE 125 | BMS BMSE 160 | BMS BMSE 200 | BMS BMSE 250 | BMS BMSE 315 | BMS BMSE 375 | |
| Geometric displacement (cm3 /rev.) | 80.6 | 100.8 | 125 | 157.2 | 200 | 252 | 314.5 | 370 | |
| Max. speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 200 |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 240 | |
| Max. torque (N·m) | cont. | 190 | 240 | 310 | 316 | 400 | 450 | 560 | 536 |
| int. | 240 | 300 | 370 | 430 | 466 | 540 | 658 | 645 | |
| peak | 260 | 320 | 400 | 472 | 650 | 690 | 740 | 751 | |
| Max. output (kW) | cont. | 15.9 | 18.8 | 19.5 | 15.6 | 15.7 | 14.1 | 14.1 | 11.8 |
| int. | 20.1 | 23.5 | 23.2 | 21.2 | 18.3 | 17 | 18.9 | 17 | |
| Max. pressure drop (MPa) | cont. | 17.5 | 17.5 | 17.5 | 15 | 14 | 12.5 | 12 | 10 |
| int. | 21 | 21 | 21 | 21 | 16 | 16 | 14 | 12 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 18.5 | 14 | |
| Max. flow (L/min) | cont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Max. inlet pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 12.6 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
