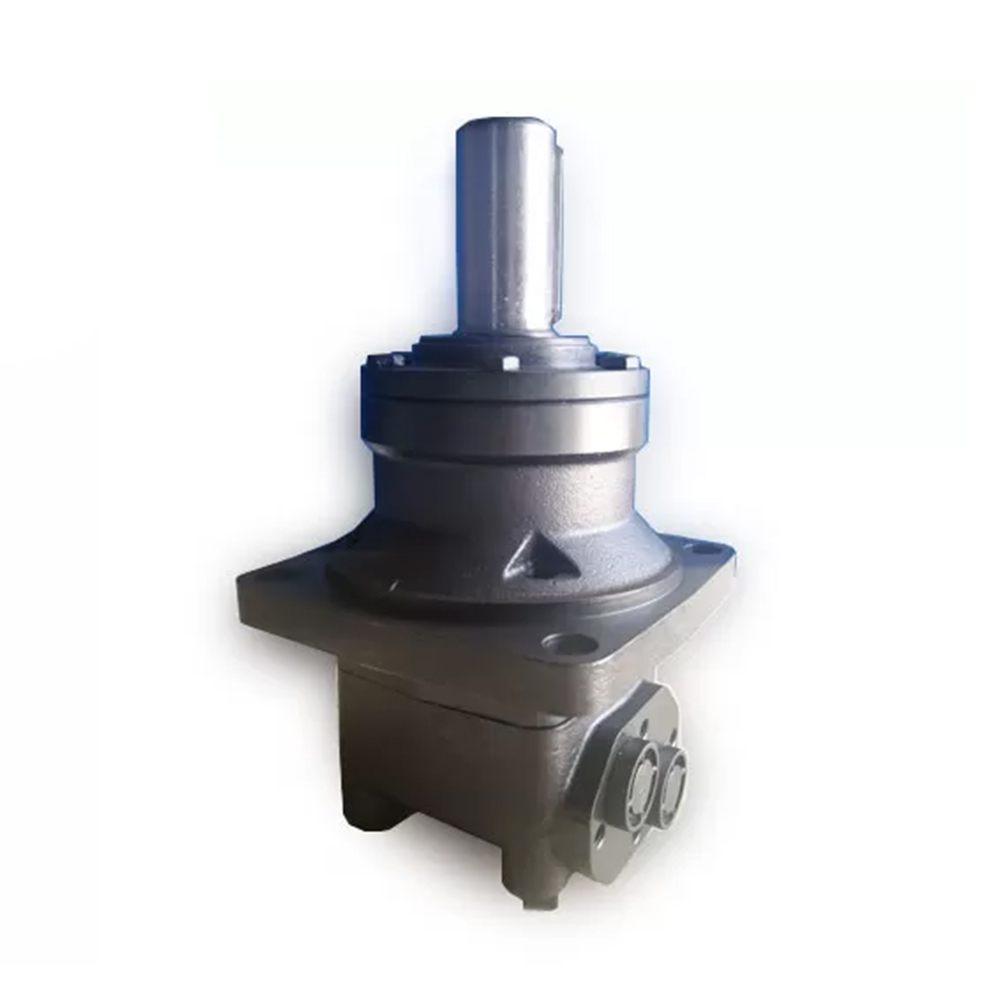

BMTW MOTOR
Xeriwell or Others
| Material: | Cast Iron /Steel | Application: | Construction Machines, Mine Machines |
|---|---|---|---|
| Displacement: | 315cc | Max.speed(rpm): | Cont.380rpm/int.460rpm |
| Max.torque(N.m): | Cont.950N.m/int.1140N.m | Max.pressure Drop: | Cont.20mpa/int.24Mpa |
| Oil Temperature: | Normal-35℃-80℃ | Viscosity: | 42-74mm2/s |
| Highlight: | Shaft 40mm high torque hydraulic motor,Forestry Engines high torque hydraulic motor,Forestry Engines low speed hydraulic motor | ||
Product details
Output volume (cc/rev): 326,3
Shaft Ø (mm): 40
max r.p.m.: 380
Torque max. (Nm): 950
Power max. (kW): 33,5
Pressure difference (bar): 200
Inlet pressure (bar): 210
Volume flow max. (l/min): 125
Engine version: with non-return valves
Connection: G 3/4"
Leakage oil connection: G 1/4"
Main Specification:
| Type | BMT 160 | BMT 200 | BMT 230 | BMT 250 | BMT 315 | BMT 400 | BMT 500 | BMT 630 | BMT 800 | |
| Geometric displacement (cm3 /rev.) | 161.1 | 201.4 | 232.5 | 251.8 | 326.3 | 410.9 | 523.6 | 629.1 | 801.8 | |
| Max. speed (rpm) | cont. | 625 | 625 | 536 | 500 | 380 | 305 | 240 | 196 | 154 |
| int. | 780 | 750 | 643 | 600 | 460 | 365 | 285 | 233 | 185 | |
| Max. torque (N·m) | cont. | 470 | 590 | 670 | 730 | 950 | 1080 | 1220 | 1318 | 1464 |
| int. | 560 | 710 | 821 | 880 | 1140 | 1260 | 1370 | 1498 | 1520 | |
| peak | 669 | 838 | 958 | 1036 | 1346.3 | 1450.3 | 1643.8 | 1618.8 | 1665 | |
| Max. output (kW) | cont. | 27.7 | 34.9 | 34.7 | 34.5 | 34.9 | 31.2 | 28.8 | 25.3 | 22.2 |
| int. | 32 | 40 | 40 | 40 | 40 | 35 | 35 | 27.5 | 26.8 | |
| Max. pressure drop (MPa) | cont. | 20 | 20 | 20 | 20 | 20 | 18 | 16 | 14 | 12.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 21 | 18 | 16 | 13 | |
| peak | 28 | 28 | 28 | 28 | 28 | 24 | 21 | 19 | 16 | |
| Max. flow (L/min) | cont. | 100 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 |
| int. | 125 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | |
| Max. inlet pressure (MPa) | cont. | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 |
| int. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| peak | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 19.5 | 20 | 20.4 | 20.5 | 21 | 22 | 23 | 24 | 25 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
CHARACTERISTIC FEATURES:
Constant operating torque over a wide speed range
Smooth running over the entire speed range
High starting torque
High efficiency
High return pressure without the use of drain line (High pressure shaft seal)
Long life under extreme operating conditions
High radial and axial bearing capacity
Robust and compact design
Suitable for a wide varie
Applications:
Agricultural Machinery
Forestry Equipment
Fishing Equipment
Plastics Industry
Construction Industry
Mining
OMM
OMP
OMR
OMS
OMH
OMT
OMV
MM/MLHM
MP/MLHP
MR/MLHR
MH/MLHH
MS/MLHS
MT/MLHT
MV/MLHV
