| Product: | Hydraulic Geroler Motor | Displacement: | 400CC |
|---|---|---|---|
| Max.Speed(rpm): | Cont.183rpm/int.220rpm | Max.Torque(N.m): | Cont.850N.m/int.990N.m |
| Max. Pressure Drop: | Cont.15.5MPa/int.19MPa | Max.flow(L/min): | Cont.75L/min~int.90L/min |
| Highlight: | sauer danfoss hydraulic motor,sauer danfoss motor,400CC danfoss motors | ||
| Type | BMH 200 | BMH 250 | BMH 315 | BMH 400 | BMH 500 | |
Displacement (cc/rev) | 203.2 | 255.9 | 316.5 | 406.4 | 489.2 | |
Max torque (n.m) | cont | 510 | 621 | 740 | 850 | 830 |
| int | 439 | 348 | 282 | 220 | 184 | |
Max pressure (mpa) | cont | 17.5 | 17.5 | 17.5 | 15.5 | 12.5 |
| int | 20 | 20 | 20 | 19 | 16 | |
Max speed rate (rpm) | cont | 366 | 290 | 236 | 183 | 155 |
| int | 439 | 348 | 282 | 220 | 184 | |
Max flow (L/min) | cont | 75 | 75 | 75 | 75 | 75 |
| int | 90 | 90 | 90 | 90 | 90 | |
Weight(kg) | 10.5 | 11 | 11.5 | 12.3 | 13.0 | |

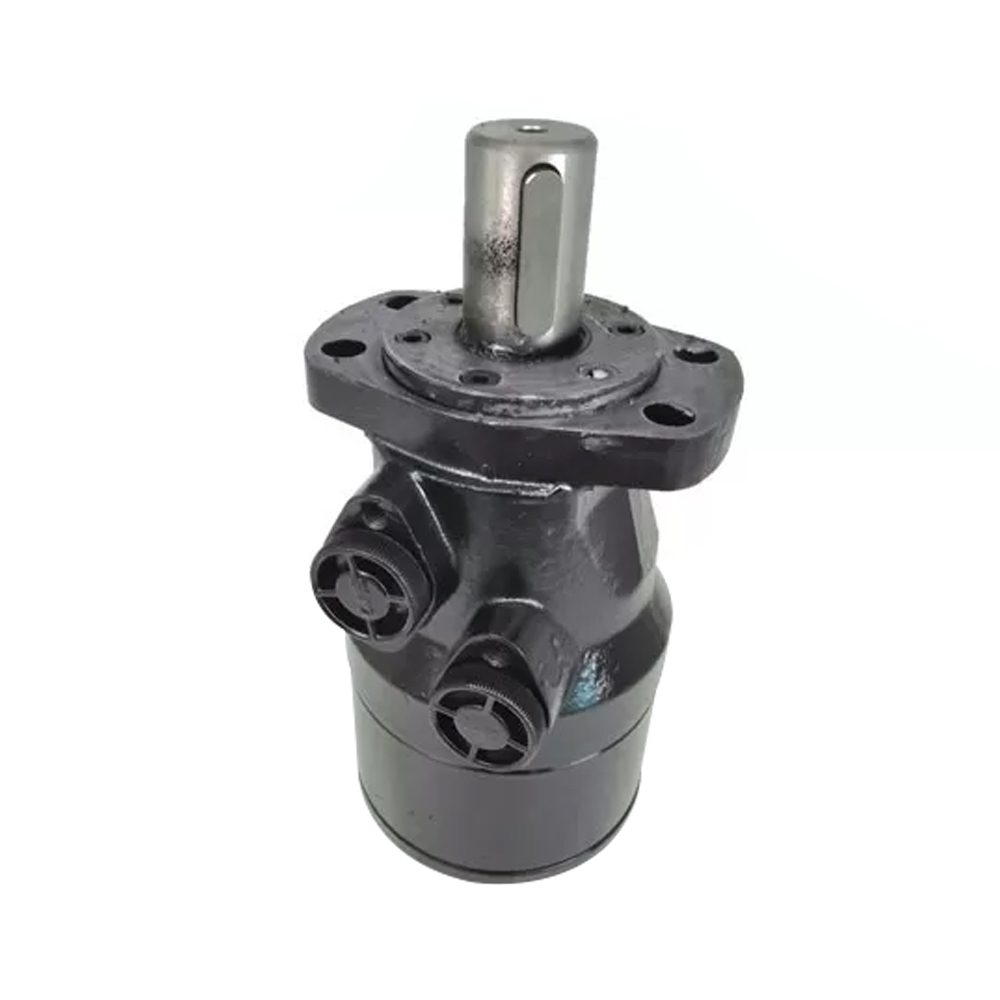

Danfoss OMH BMH 400 151H1020 35mm straight shaft side ports G1/2 BSP for fishery tube reel
BMH motor is a middle motors,which are widely used on drilling machines,fishery tube reel concrete pump, harvester, etc.
Features:
* The output shaft, with the deep groove ball bearing, can bear certain axial force and radial force.
* Special design in the driver-linker and prolong operating life.
* Special design for distribution system can meet the requirement of low noise of unit.
* Compact volume and easy installation.

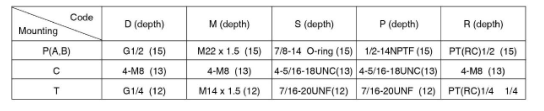

Main Specifications:
| Mounting Code | D (depth) | M (depth) | S (depth) | P (depth) | R (depth) |
| P(A,B) | G1/2 (15) | M22 × 1.5 (15) | 7/8-14 O-ring (15) | 1/2-14NPTF (15) | PT(RC)1/2 (15) |
| C | 4-M8 (13) | 4-M8 (13) | 4-5/16-18UNC(13) | 4-5/16-18UNC(13) | 4-M8 (13) |
| T | G1/4 (12) | M14 x 1.5 (12) | 7/16-20UNF(12) | 7/16-20UNF (12) | PT(RC)1/4 1/4 |
