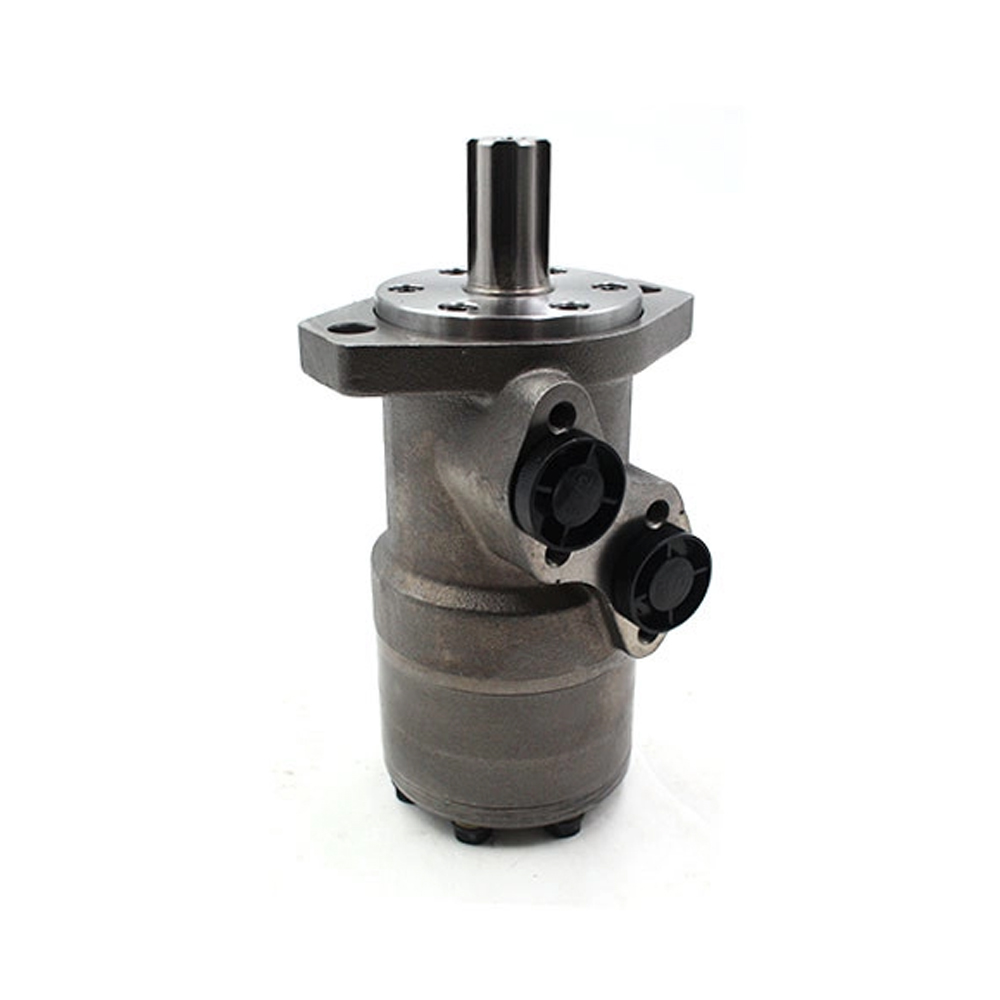

Sae A 2 Bolt Danfoss Gerotor Motor 6t Spline Shaft 1/2" Bsp Ports Omp Ompx

Pictures are for display only, please contact us to choose the right product for you.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
  • BMP

  • Xeriwell or Others

Model No.: Danfoss Omp Displacement: 250cc
Speed: 250/310rpm Torque: 380/460Nm
Max Power: 8.5/10.5KW Max Flow: 60/75l/min
Certificate: CE/ISO Certificate Crossing Type: White Motor,M+S,Brevini
Highlight:

2 bolt danfoss gerotor motor

,

spline shaft danfoss gerotor motor

,

danfoss hydraulic motor omp


SAE A 2 Bolt 6T Spline Shaft 1/2" BSP Ports Danfoss OMP OMPX Orbital Valve Motor

  • Type: Spool valve Gerotor motor

  • Series: BMP/OMP/MP Series

  • Displacement: 240.3cc

  • Pressure Rating: 11+14mpa

  • Speed: 250-310 Rpm

  • Output Torque: 2059 Inch-lb

  • Flow Rate: 60-75l/min

  • Port Type: Side

  • Port Size: 7/8-14 O-ring

  • Mounting Type: 2-Bolt, φ82.5x8Pilot

  • Oil Temperature: 180 deg F

  • Shaft Size:SAE 6B

DANFOSS

151B-3100 151B-2150 151B-3105 151B-2155 151B-3110 151B-2183 151B-2188 151B-3115
151B-3101 151B-2151 151B-3106 151B-2156 151B-3111 151B-2184 151B-2189 151B-3116
151B-3102 151B-2152 151B-3107 151B-2157 151B-3112 151B-2185 151B-2190 151B-3117
151B-3103 151B-2153 151B-3108 151B-2158 151B-3113 151B-2186 151B-2191 151B-3118
151B-3104 151B-2154 151B-3109 151B-2159 151B-3114 151B-2187 151B-3120 151B-3119

Eaton/Char-Lynn

112-1066 112-1096 112-1090 112-1060 112-1163 112-1145 112-1107 112-1068
112-1067 112-1097 112-1091 112-1061 112-1063 112-1069 112-1099 112-1062

M+S Hydraulic

MV315 MV400 MV500 MV630 MV800
MVS315 MVS400 MVS500 MVS630 MVS800
MVW315 MVW400 MVW500 MVW630 MVW800
MLHV315 MLHV400 MLHV500 MLHV 630 MLHV800
MLHVS315 MLHVS400 MLHVS500 MLHVS630 MLHVS800
MLHVW315 MLHVW400 MLHVW500 MLHVW630 MLHVW800
