| Quantity: | |
|---|---|
BMSY80
Xeriwell or Others
| Product: | Disc Valve Hydraulic Motor | Apply To: | Tractor Attachment |
|---|---|---|---|
| Flange: | 4bolts Flange | Shaft: | SAE B -6spline Shaft |
| Max Flow: | Cont.65/int.80L/min | Max Speed: | 800rpm |
| Highlight: | hydraulic pto motor 80cc,80cc hydraulic pto drive motor,800rpm hydraulic pto motor | ||

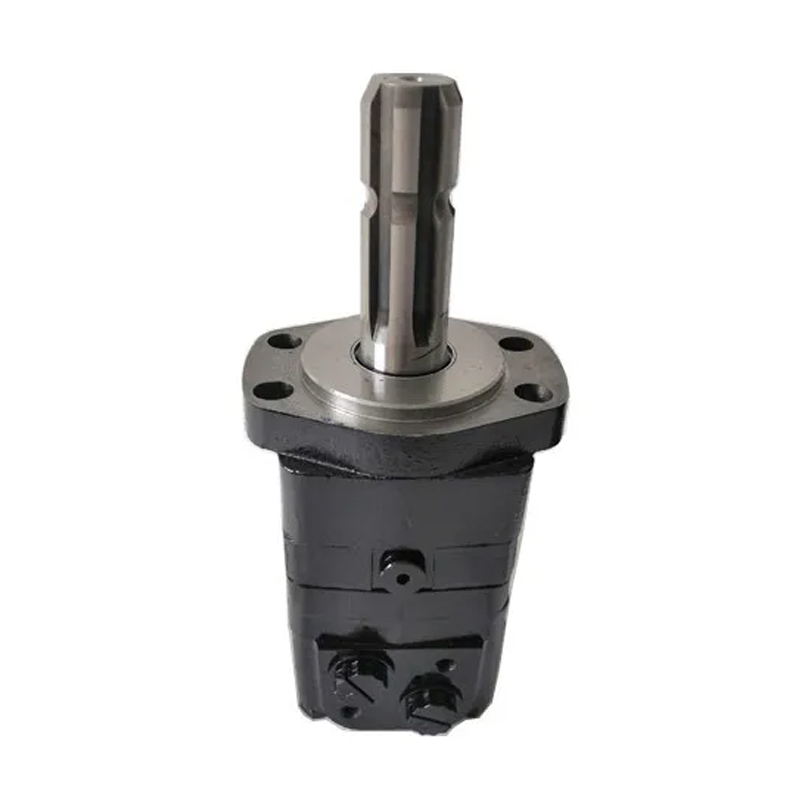

Hydraulic PTO Torque Motor Roller Type Gear Stator BMSY 80cc 1 3/8" X 6 Spline Standard Agricultural
Interchangeable with motor series including: Char‑Lynn 2000, Danfoss OMS/OMSS, White RE/DH, and Parker‑Ross MB/TF.
Main Specifications:
| Type | BMSY BMSE 80 | BMSY BMSE 100 | BMSY BMSE 125 | BMSY BMSE 160 | BMSY BMSE 200 | BMSY BMSE 250 | BMSY BMSE 315 | BMSY BMSE 375 | |
| Geometric displacement (cm3 /rev.) | 80.6 | 100.8 | 125 | 157.2 | 200 | 252 | 314.5 | 370 | |
| Max. speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 200 |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 240 | |
| Max. torque (N·m) | cont. | 190 | 240 | 310 | 316 | 400 | 450 | 560 | 536 |
| int. | 240 | 300 | 370 | 430 | 466 | 540 | 658 | 645 | |
| peak | 260 | 320 | 400 | 472 | 650 | 690 | 740 | 751 | |
| Max. output (kW) | cont. | 15.9 | 18.8 | 19.5 | 15.6 | 15.7 | 14.1 | 14.1 | 11.8 |
| int. | 20.1 | 23.5 | 23.2 | 21.2 | 18.3 | 17 | 18.9 | 17 | |
| Max. pressure drop (MPa) | cont. | 17.5 | 17.5 | 17.5 | 15 | 14 | 12.5 | 12 | 10 |
| int. | 21 | 21 | 21 | 21 | 16 | 16 | 14 | 12 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 18.5 | 14 | |
| Max. flow (L/min) | cont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Max. inlet pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 12.6 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
| Xeriwell Motor | Danfoss Motor | M+S Motor |
| BMS80 | OMS80 | MS80 |
| BMS100 | OMS100 | MS100 |
| BMS125 | OMS125 | MS125 |
| BMS160 | OMS160 | MS160 |
| BMS200 | OMS200 | MS200 |
| BMS250 | OMS250 | MS250 |
| BMS315 | OMS315 | MS315 |
| BMS400 | OMS400 | MS400 |
Characteristic Features:
1. Low internal leakage
2. High torque at low speeds
3. Large displacement volume
4. Relatively small size
5. Low noise level
6. Longer life expectancy
Every hydraulic product supplied by Xeriwell is tested at least twice on our professional test bench.
Each unit comes with an official quality certificate.
Free replacement of products/parts and free maintenance service will be provided for failures or defects arising from quality issues under normal operating conditions within the warranty period.
We offer a 1‑year quality warranty for all our products.
