pvv pvq
Xeriwell or Others

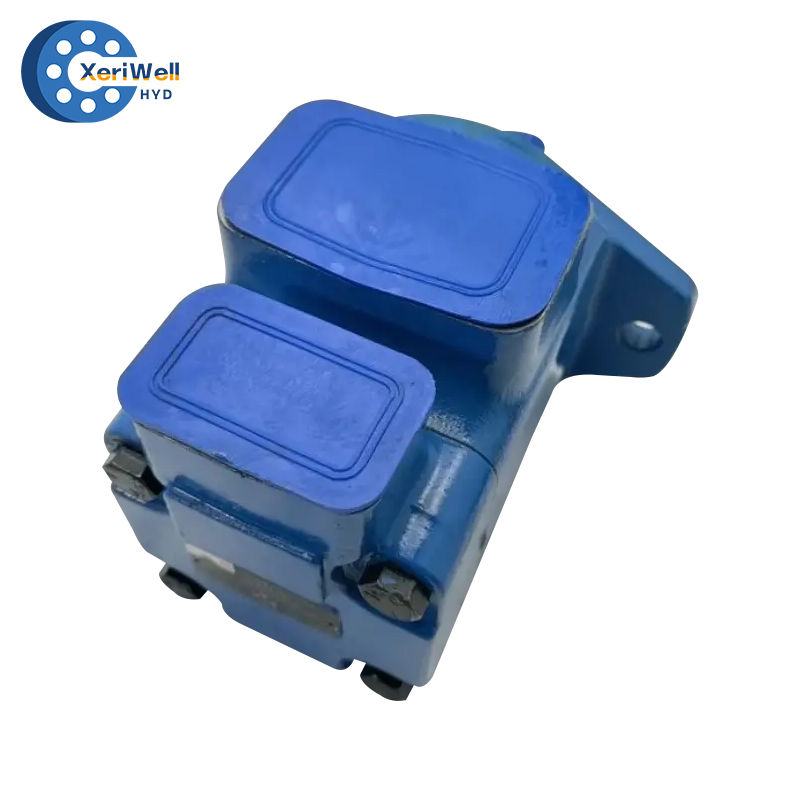

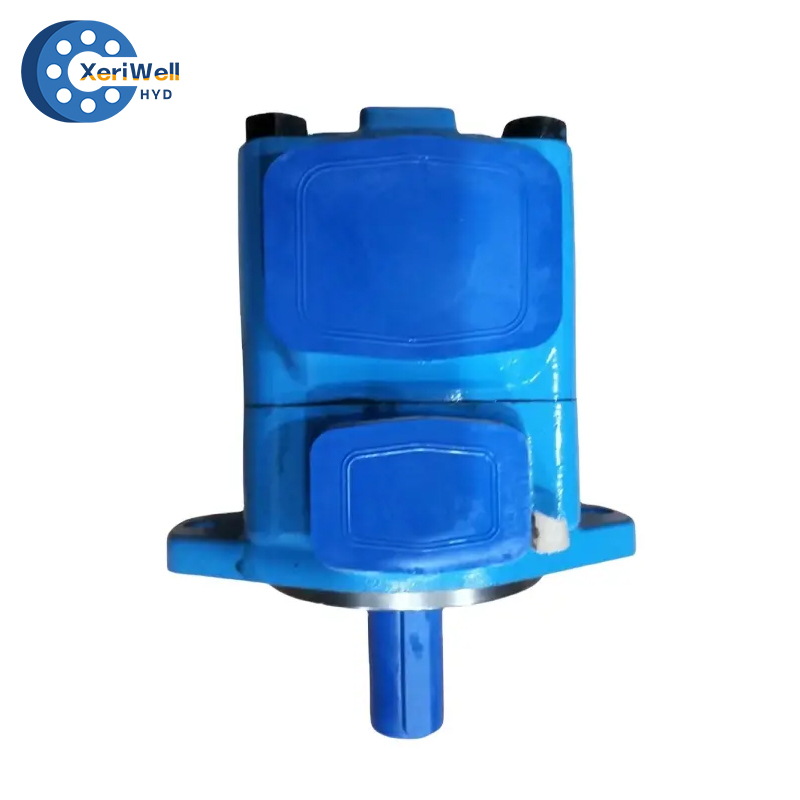

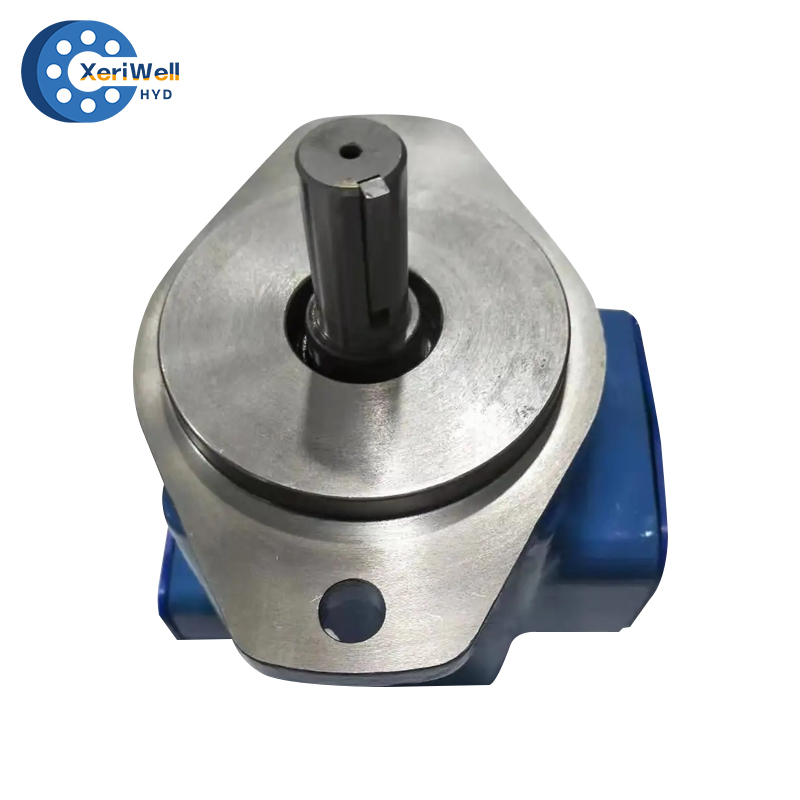

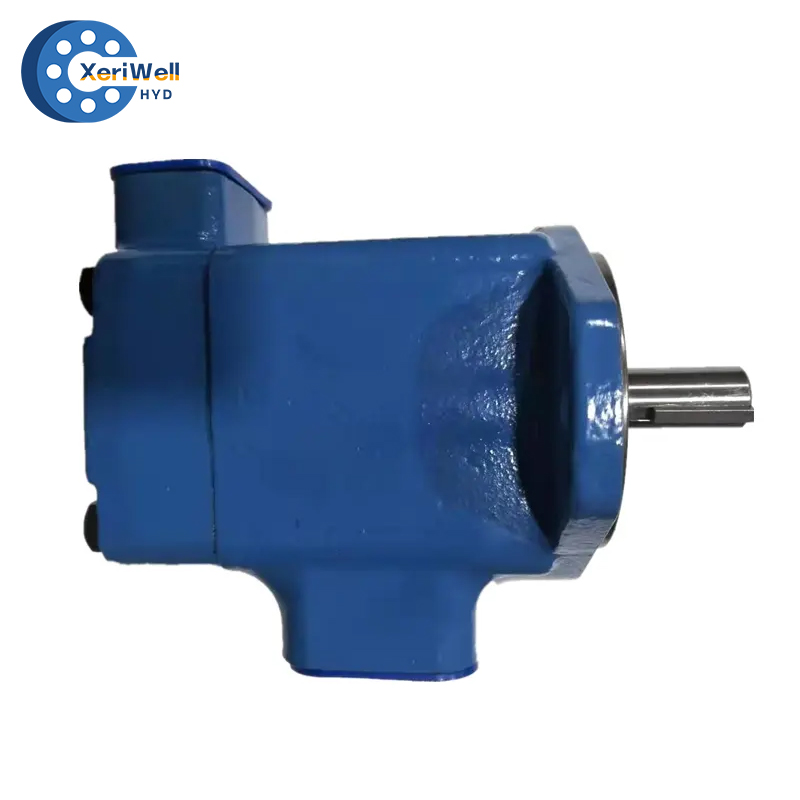

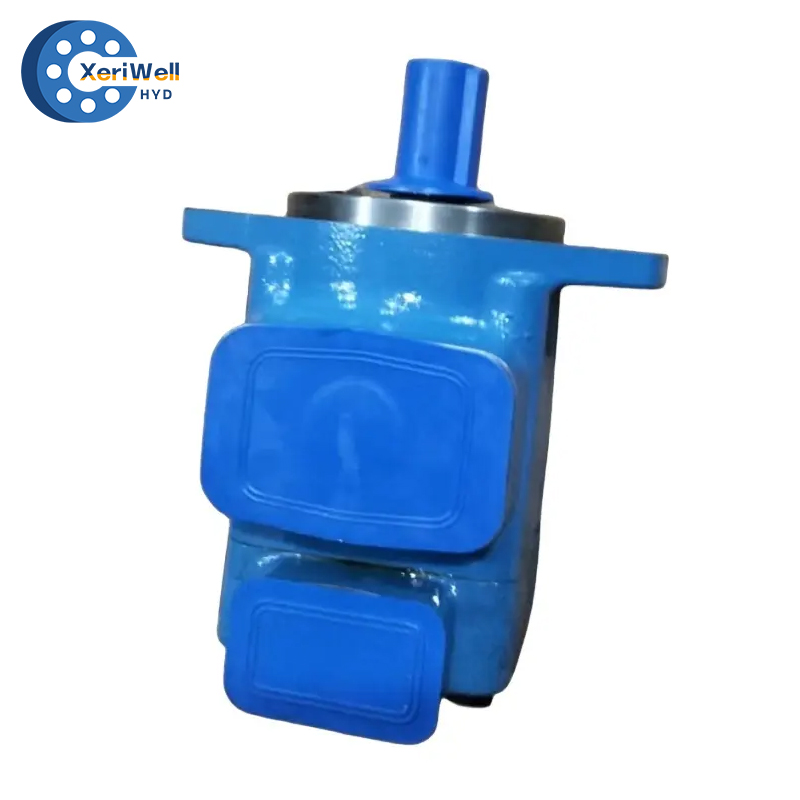

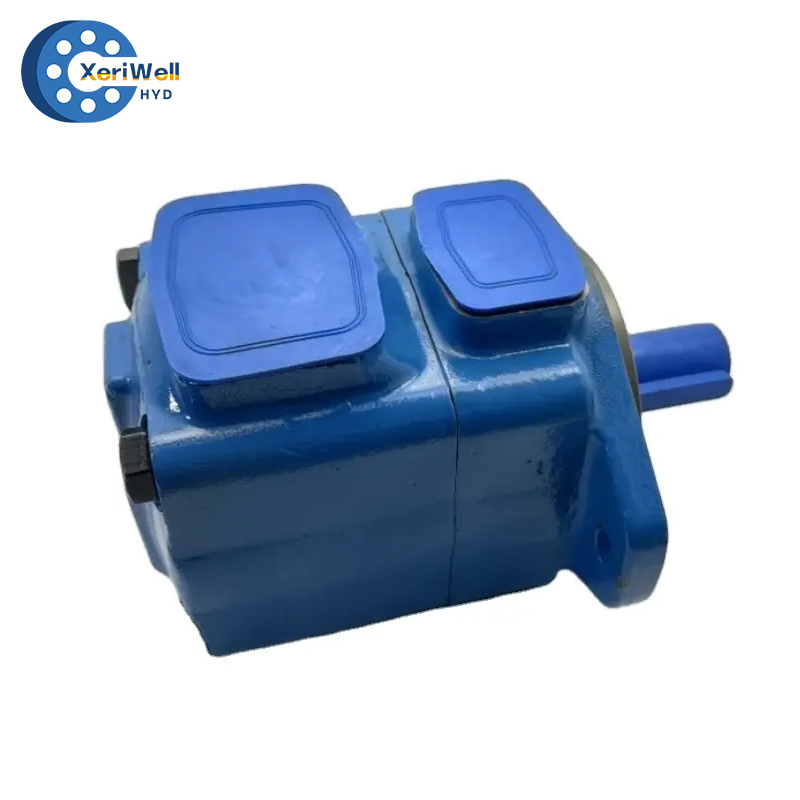

Rexroth PVV PVQ 21/41/42/51/52/54 Hydraulic vane pump

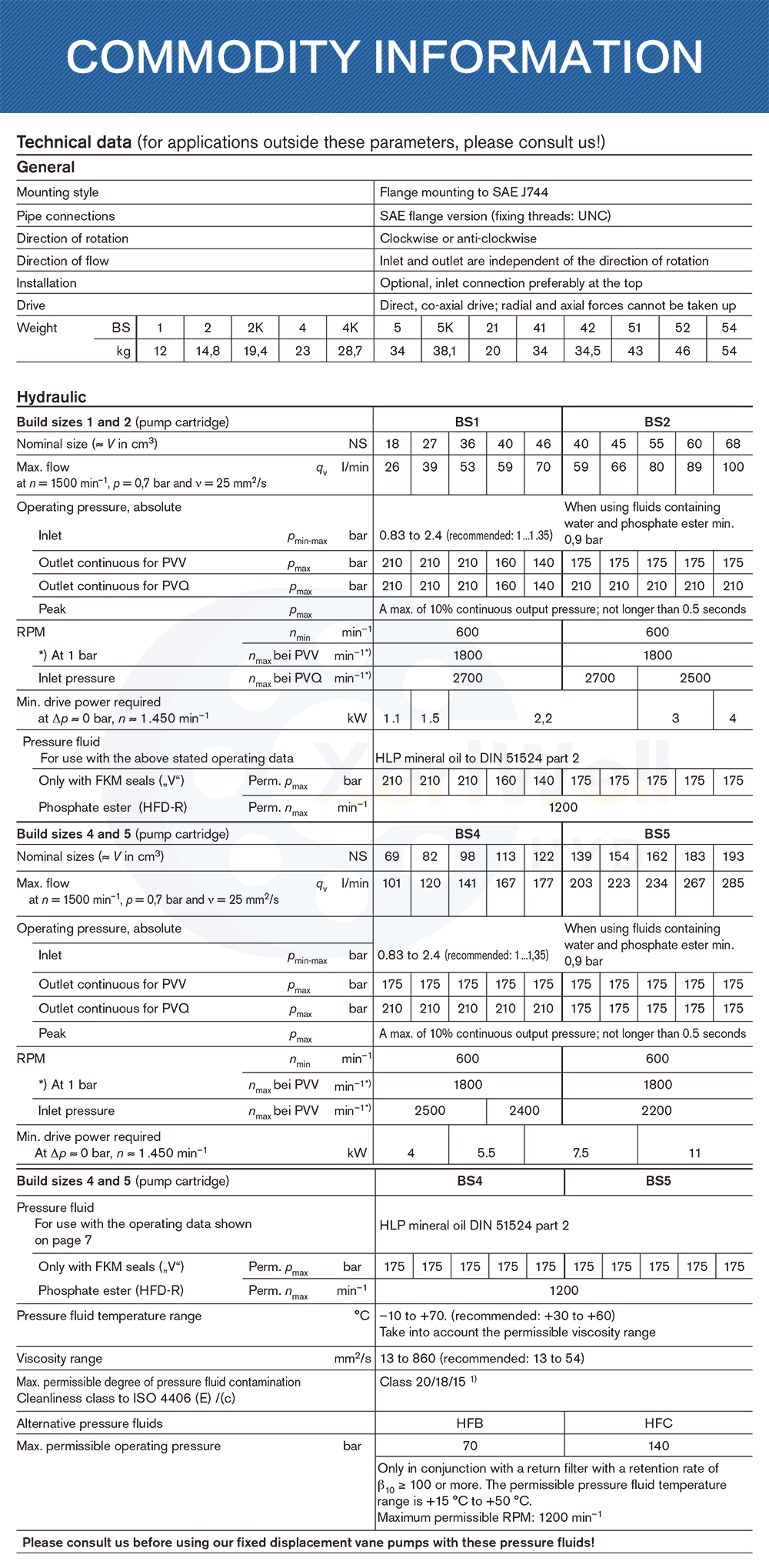

| Technical data (for applications outside these parameters,please consult us!) | |||||||||||||||
| Mounting style | Flange mounting to SAE J744 | ||||||||||||||
| Pipe connections | SAE flange version (fixing threads:UNC) | ||||||||||||||
| Direction of rotation | Clockwise or anti-clockwise | ||||||||||||||
| Direction of flow | Inlet and outlet are independent of the direction of rotation | ||||||||||||||
| Installation | Optional,inlet connection preferably at the top | ||||||||||||||
| Drive | Direct,co-axial drive;radial and axial forces cannot be taken up | ||||||||||||||
| Weight | BS | 1 | 2 | 2K | 4 | 4K | 5 | 5K | 21 | 41 | 42 | 51 | 52 | 54 | |
| kg | 12 | 14,8 | 19,4 | 23 | 28,7 | 34 | 38,1 | 20 | 34 | 34,5 | 43 | 46 | 54 | ||
