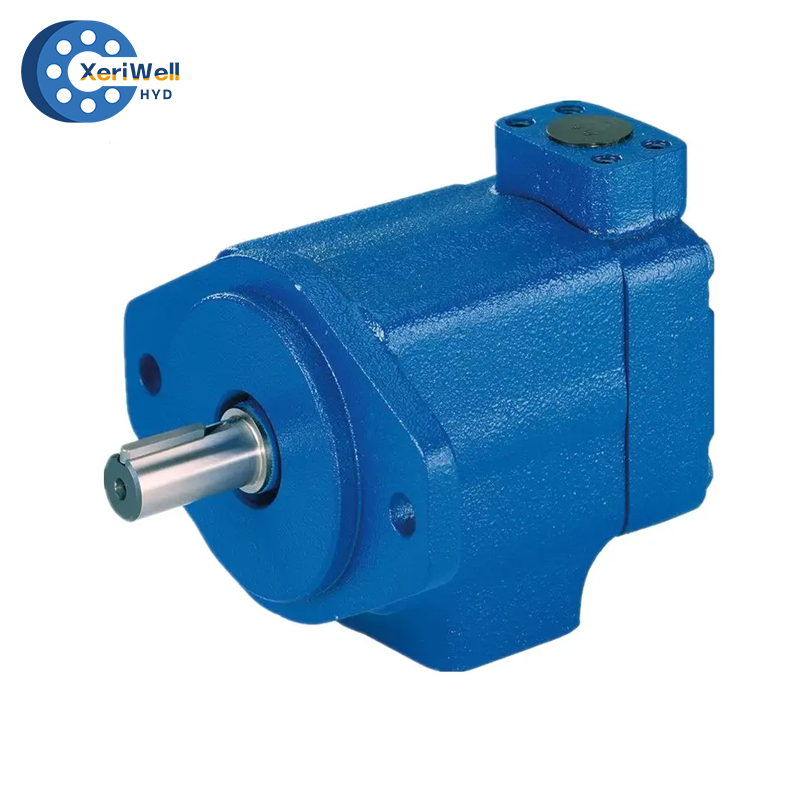

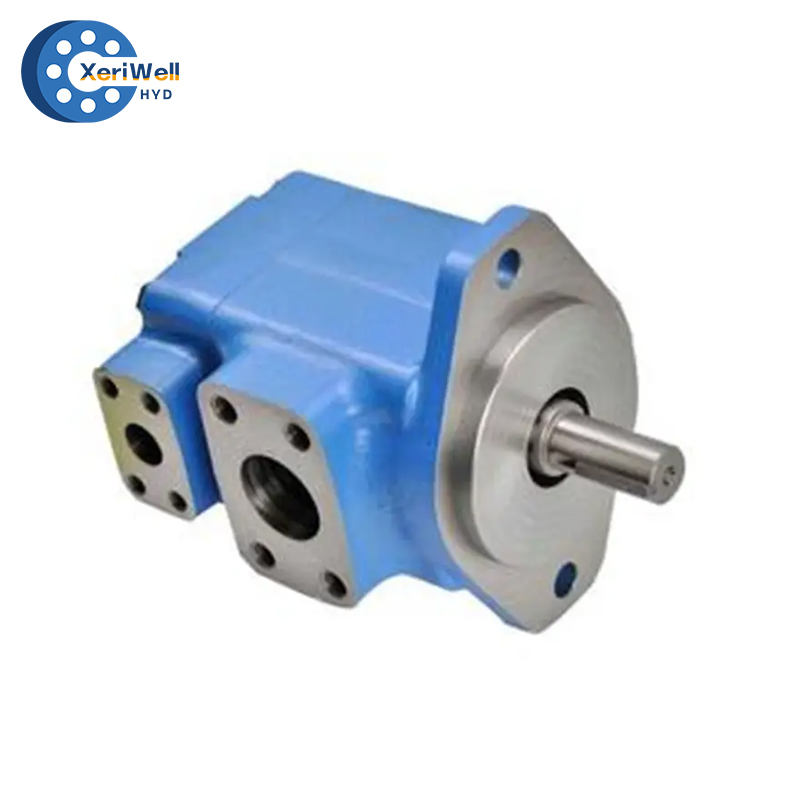

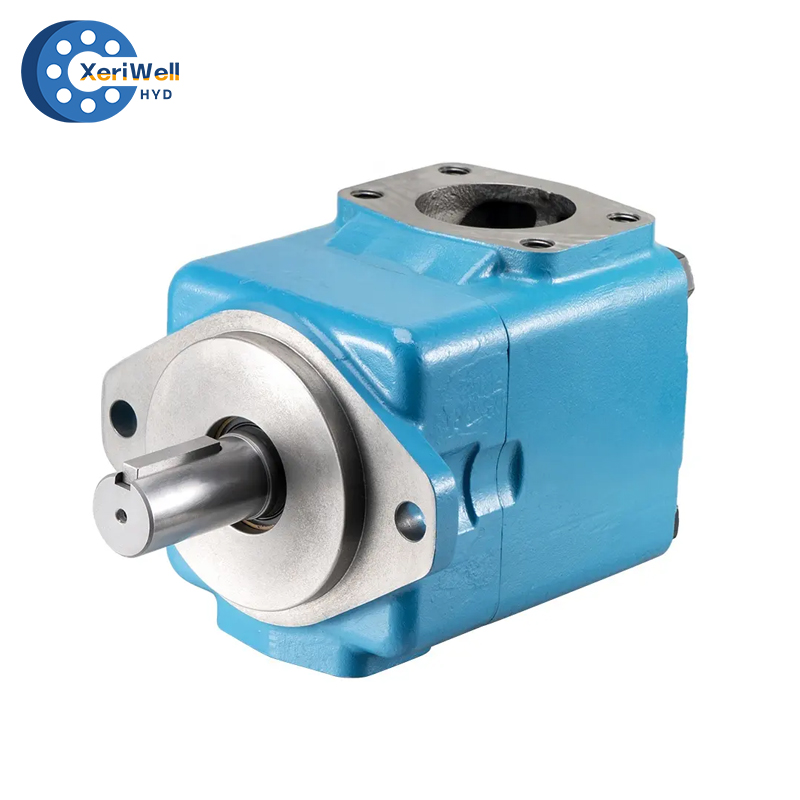

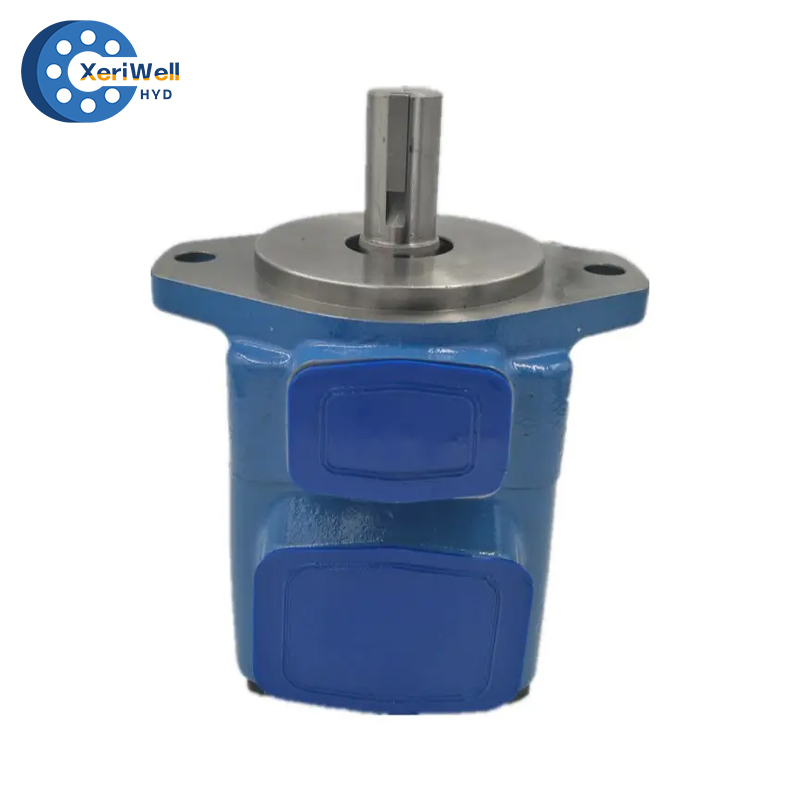

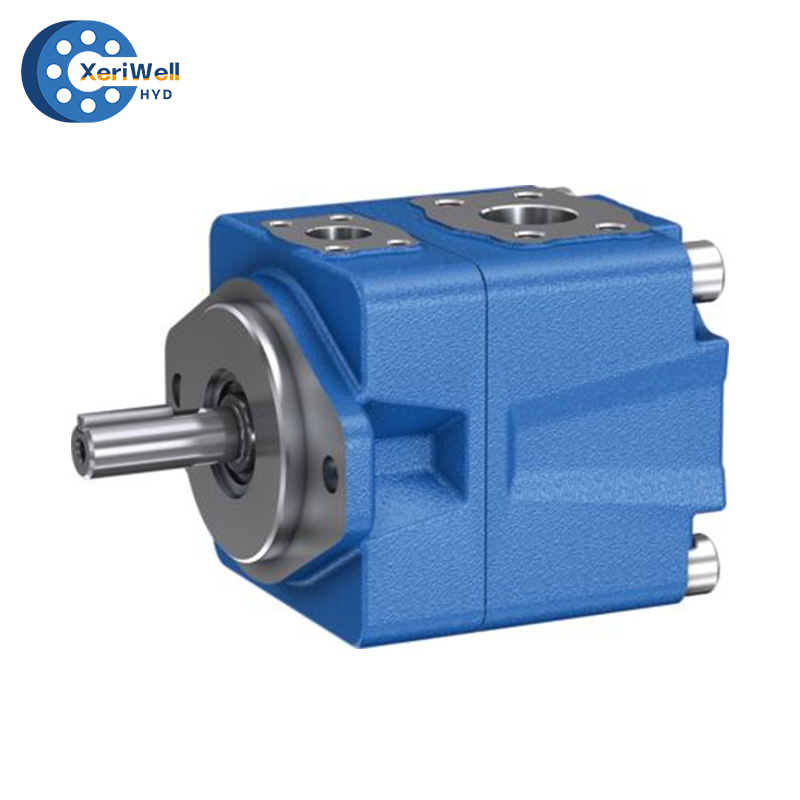

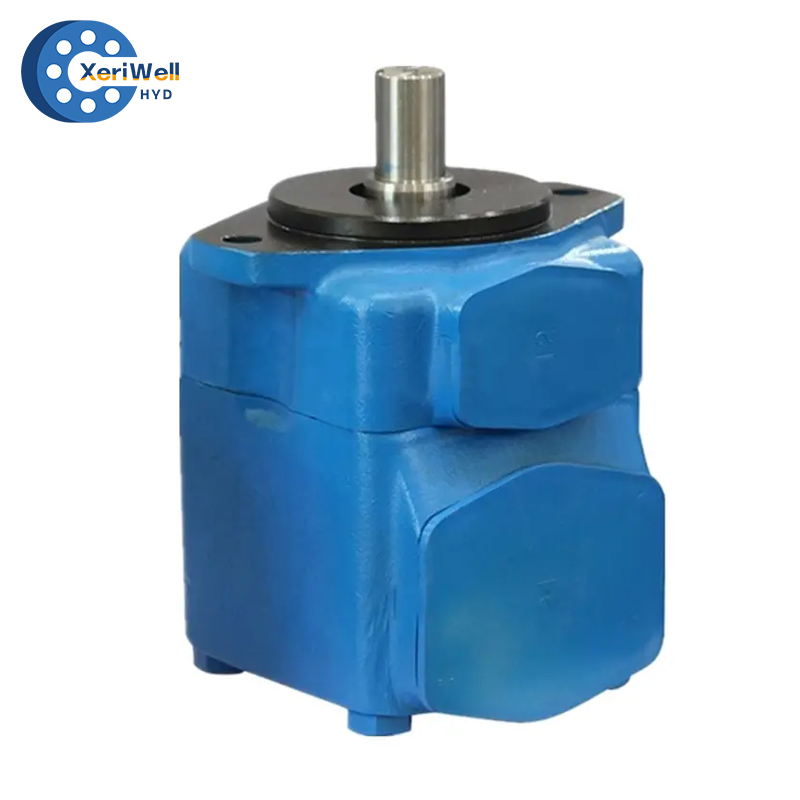

Rexroth PVH Series Hydraulic Vane pump

Pictures are for display only, please contact us to choose the right product for you.

Quantity:
Type:	PVH16 PVH20 PVH23 PVH25 PVH28 PVH32 PVH35 PVH41 PVH45 PVH50 PVH58 PVH64 PVH70 PVH79
Availability:





Inquire Add to Basket

Model:
pvh
Brand:
Xeriwell or Others

Rexroth PVH Series Hydraulic Vane pump Product Introduction

详情图

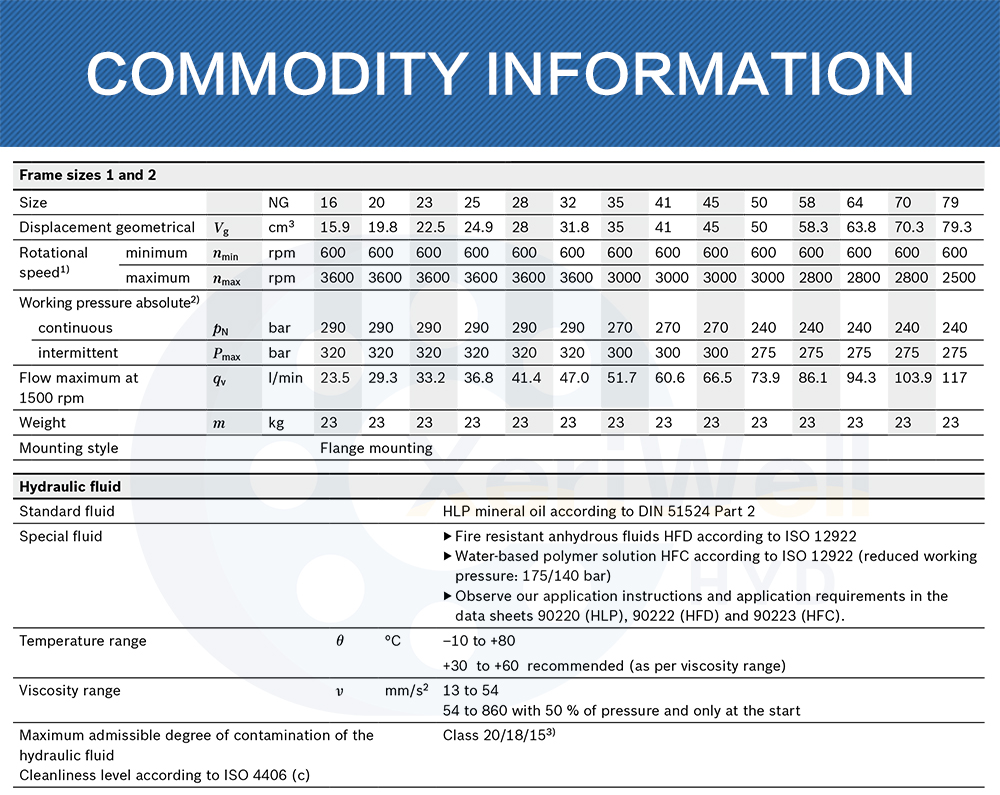

Size		NG	16	20	23	25	28	32	35	41	45	50	58	64	70	79
Displacement geometrical	Vg	cm3	15.9	19.8	22.5	24.9	28	31.8	35	41	45	50	58.3	63.8	70.3	79.3
Rotational speed1) minimum	nmin	rpm	600	600	600	600	600	600	600	600	600	600	600	600	600	600
maximum	nmax	rpm	3600	3600	3600	3600	3600	3600	3000	3000	3000	3000	2800	2800	2800	2500
Working pressure absolute2)
continuous	pN	bar	290	290	290	290	290	290	270	270	270	240	240	240	240	240
intermittent	Pmax	bar	320	320	320	320	320	320	300	300	300	275	275	275	275	275
Flow maximum at 1500 rpm	qv	l/min	23.5	29.3	33.2	36.8	41.4	47	51.7	60.6	66.5	73.9	86.1	94.3	103.9	117
Weight	m	kg	23	23	23	23	23	23	23	23	23	23	23	23	23	23
Mounting style	Flange mounting

Hydraulic
