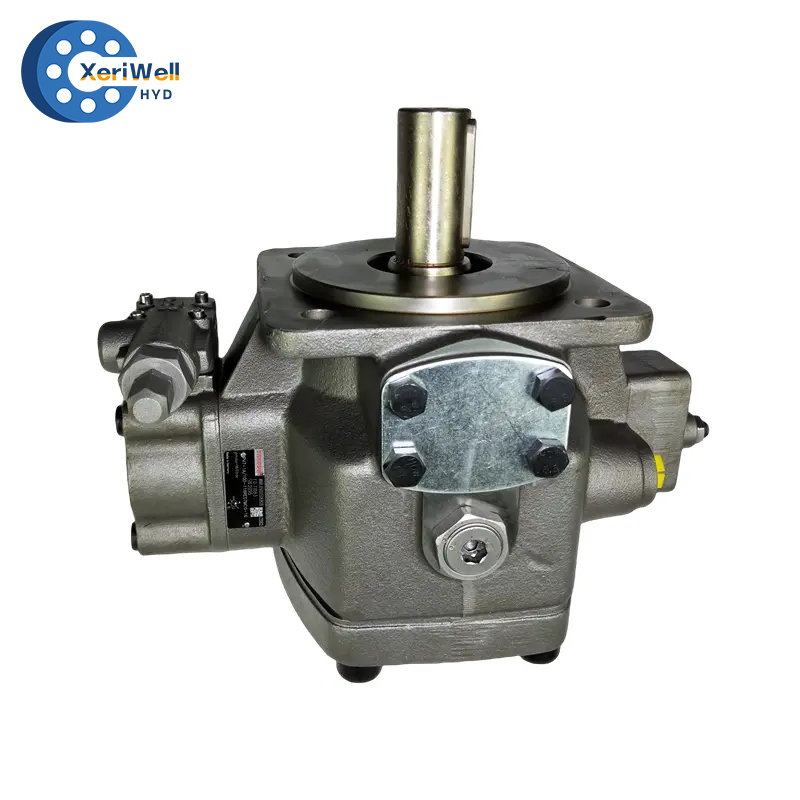

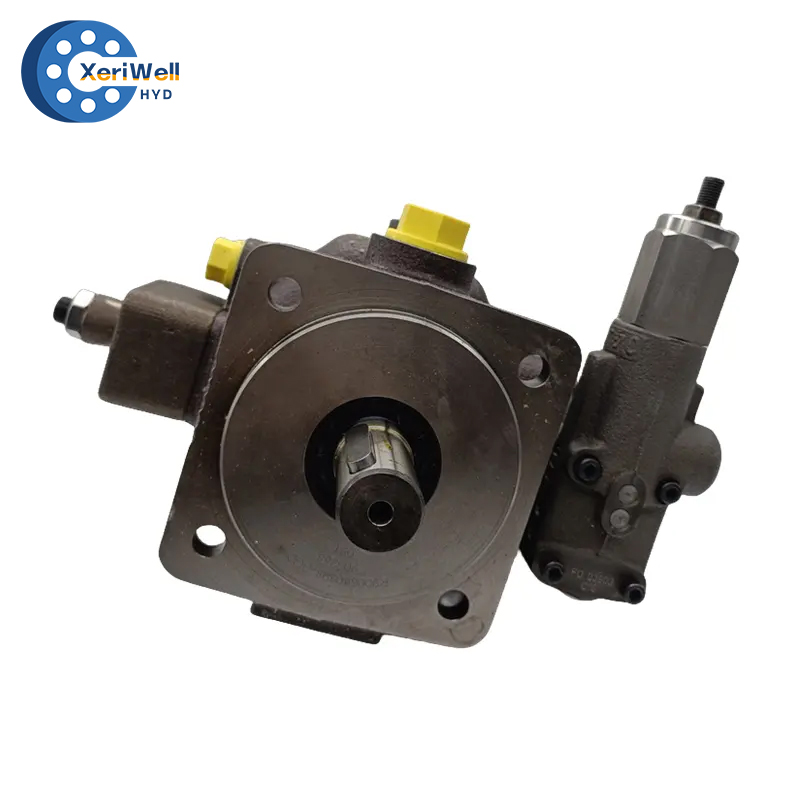

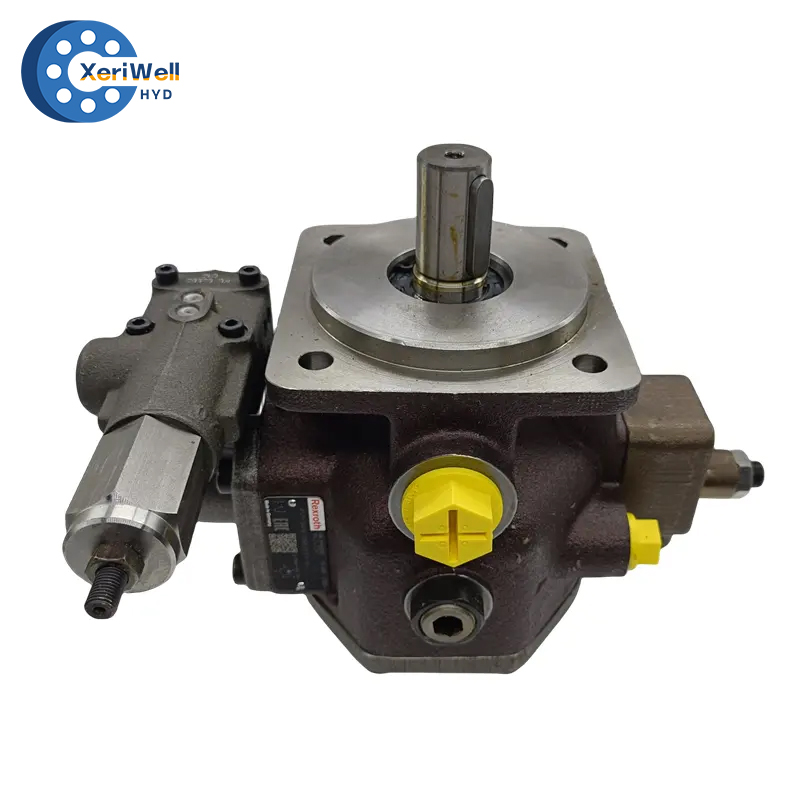

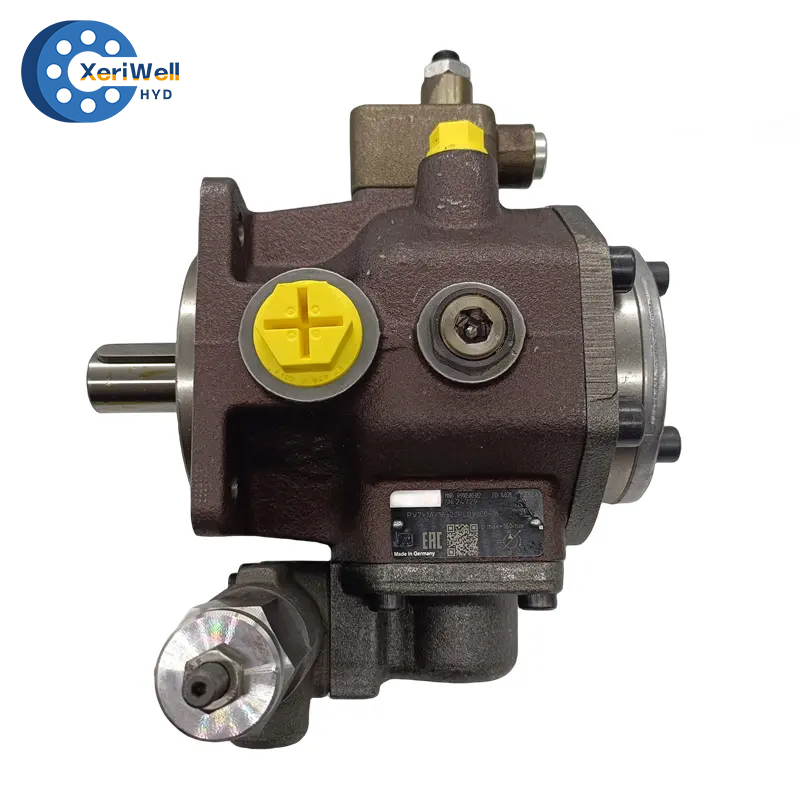

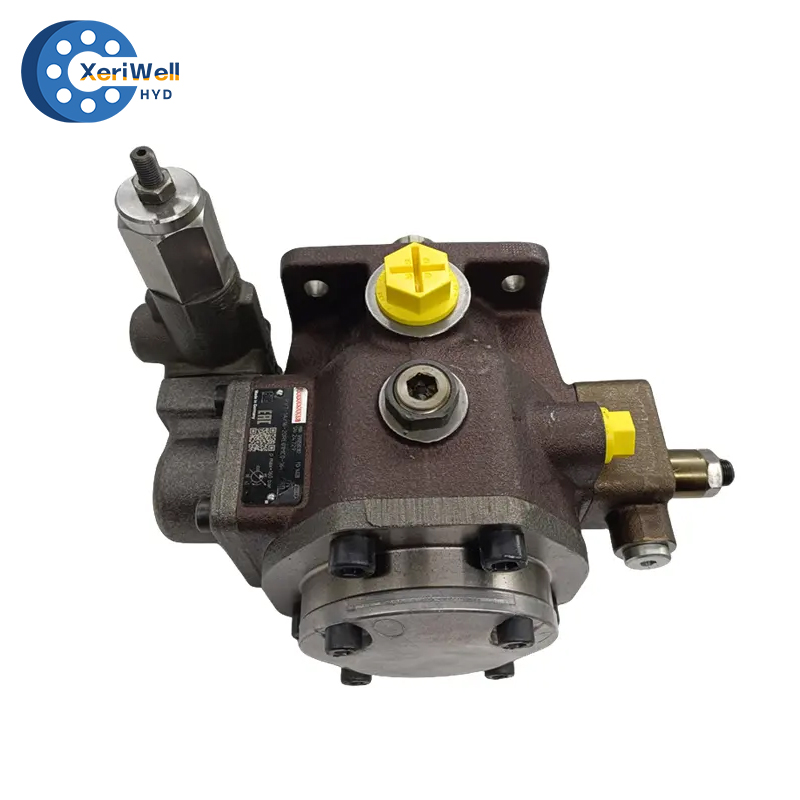

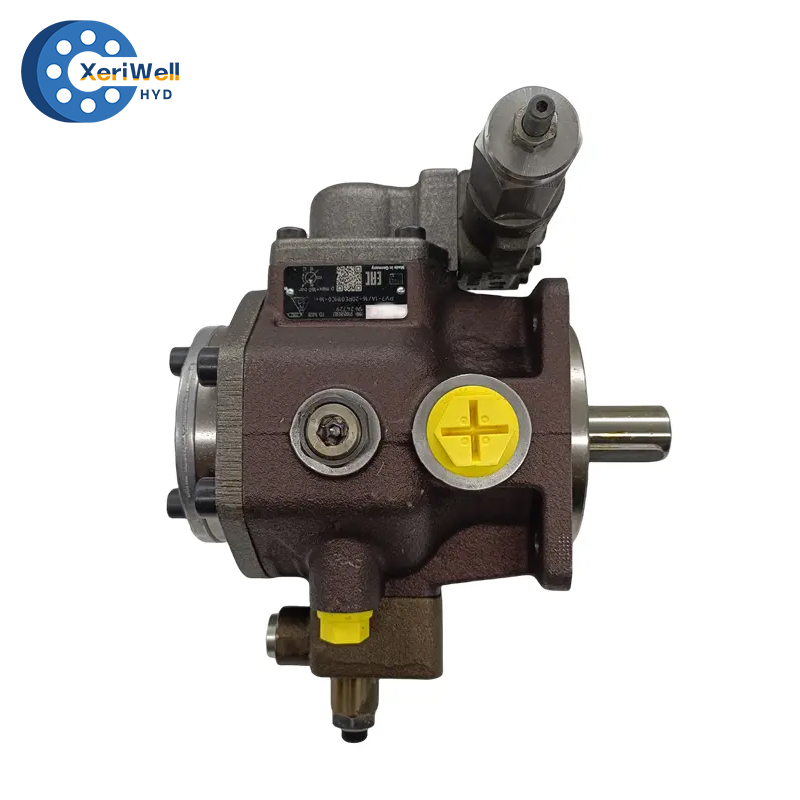

Rexroth PV7
Xeriwell or Others

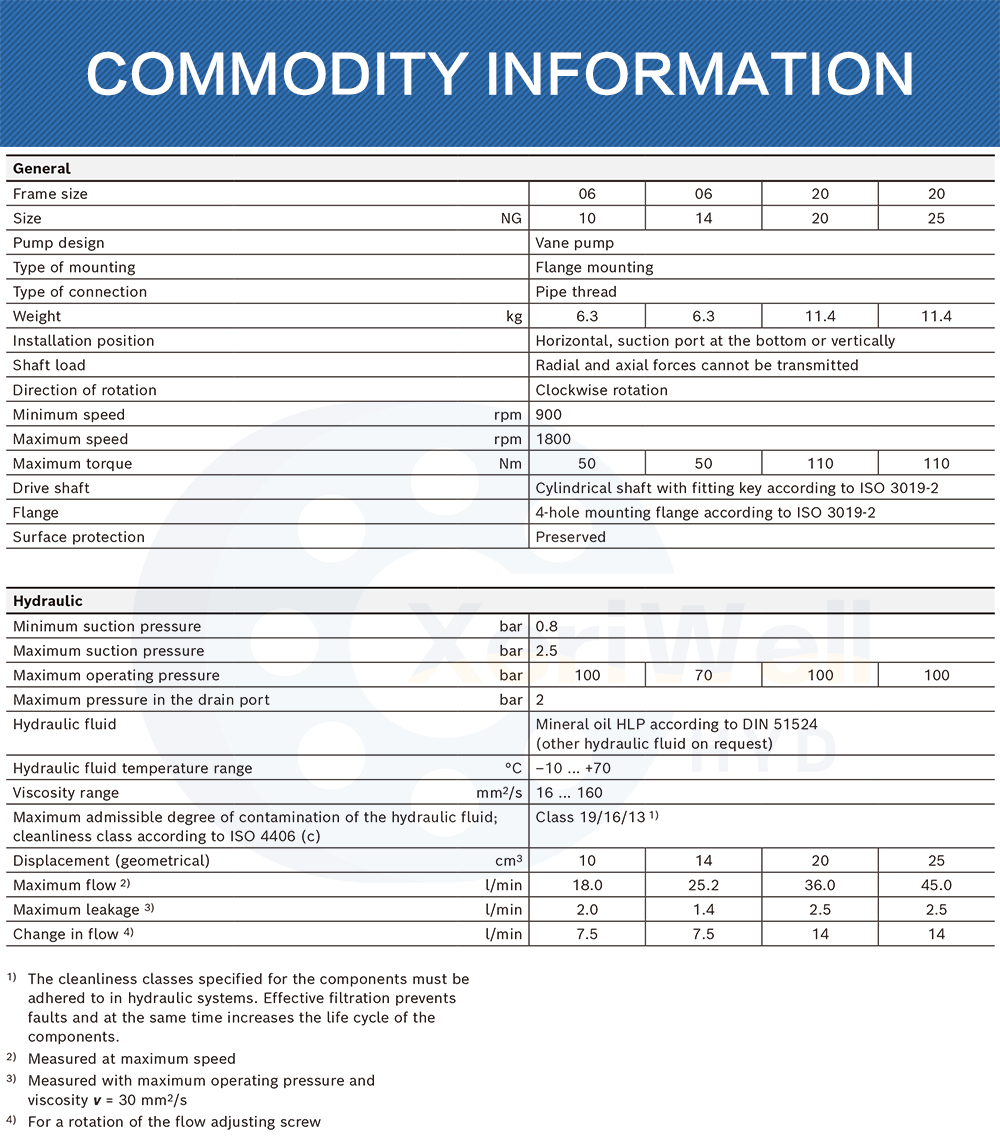

| General | |||||
| Frame size | 6 | 6 | 20 | 20 | |
| Size | NG | 10 | 14 | 20 | 25 |
| Pump design | Vane pump | ||||
| Type of mounting | Flange mounting | ||||
| Type of connection | Pipe thread | ||||
| Weight | kg | 6.3 | 6.3 | 11.4 | 11.4 |
| Installation position | Horizontal,suction port at the bottom or vertically | ||||
| Shaft load | Radial and axial forces cannot be transmitted | ||||
| Direction of rotation | Clockwise rotation | ||||
| Minimum speed | rpm | 900 | |||
| Maximum speed | rpm | 1800 | |||
| Maximum torque | Nm | 50 | 50 | 110 | 110 |
| Drive shaft | Cylindrical shaft with fitting key according to ISO 3019-2 | ||||
| Flange | 4-hole mounting flange according to ISO 3019-2 | ||||
| Surface protection | Preserved | ||||
| General | |||||
| Frame size | 6 | 6 | 20 | 20 | |
| Size | NG | 10 | 14 | 20 | 25 |
| Pump design | Vane pump | ||||
| Type of mounting | Flange mounting | ||||
| Type of connection | Pipe thread | ||||
| Weight | kg | 6.3 | 6.3 | 11.4 | 11.4 |
| Installation position | Horizontal,suction port at the bottom or vertically | ||||
| Shaft load | Radial and axial forces cannot be transmitted | ||||
| Direction of rotation | Clockwise rotation | ||||
| Minimum speed | rpm | 900 | |||
| Maximum speed | rpm | 1800 | |||
| Maximum torque | Nm | 50 | 50 | 110 | 110 |
| Drive shaft | Cylindrical shaft with fitting key according to ISO 3019-2 | ||||
| Flange | 4-hole mounting flange according to ISO 3019-2 | ||||
| Surface protection | Preserved | ||||
| Hydraulic | |||||
| Minimum suction pressure | bar | 0.8 | |||
| Maximum suction pressure | bar | 2.5 | |||
| Maximum operating pressure | bar | 100 | 70 | 100 | 100 |
| Maximum pressure in the drain port | bar | 2 | |||
| Hydraulic fluid | Mineral oil HLP according to DIN 51524 (other hydraulic fluid on request) | ||||
| Hydraulic fluid temperature range | °C | −10 ... +70 | |||
| Viscosity range | mm2/s | 16 ... 160 | |||
| Maximum admissible degree of contamination of the hydraulic fluid;cleanliness class according to ISO 4406 (c) | °C | Class 19/16/131) | |||
| Displacement (geometrical) | cm3 | 10 | 14 | 20 | 25 |
| Maximum flow2) | l/min | 18 | 25.2 | 36 | 45 |
| Maximum leakage3) | l/min | 2 | 1.4 | 2.5 | 2.5 |
| Change in flow4) | l/min | 7.5 | 7.5 | 14 | 14 |
| 1)The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and at the same time increases the life cycle of the components. 2)Measured at maximum speed 3)Measured with maximum operating pressure and viscosityν= 30 mm2/s 4)For a rotation of the flow adjusting screw | |||||
