| Type: | |
|---|---|
| spare parts avaliable: | |
| Quantity: | |

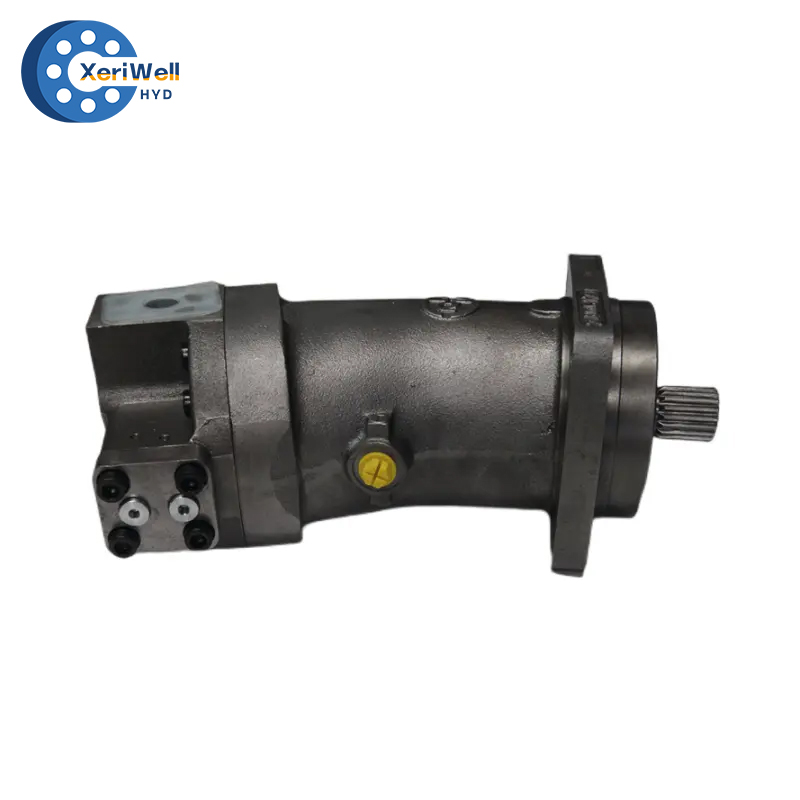

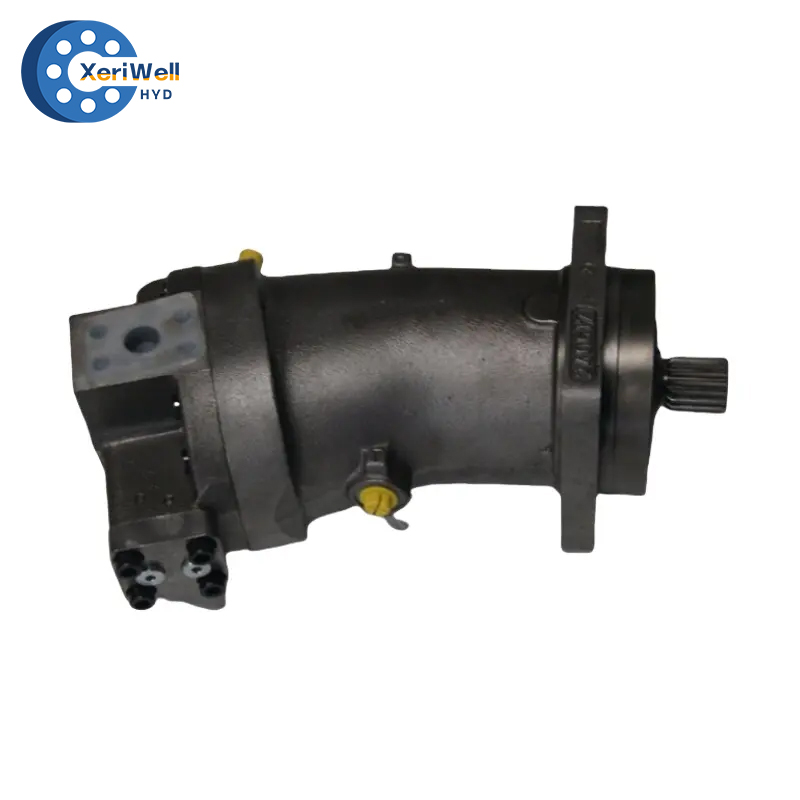

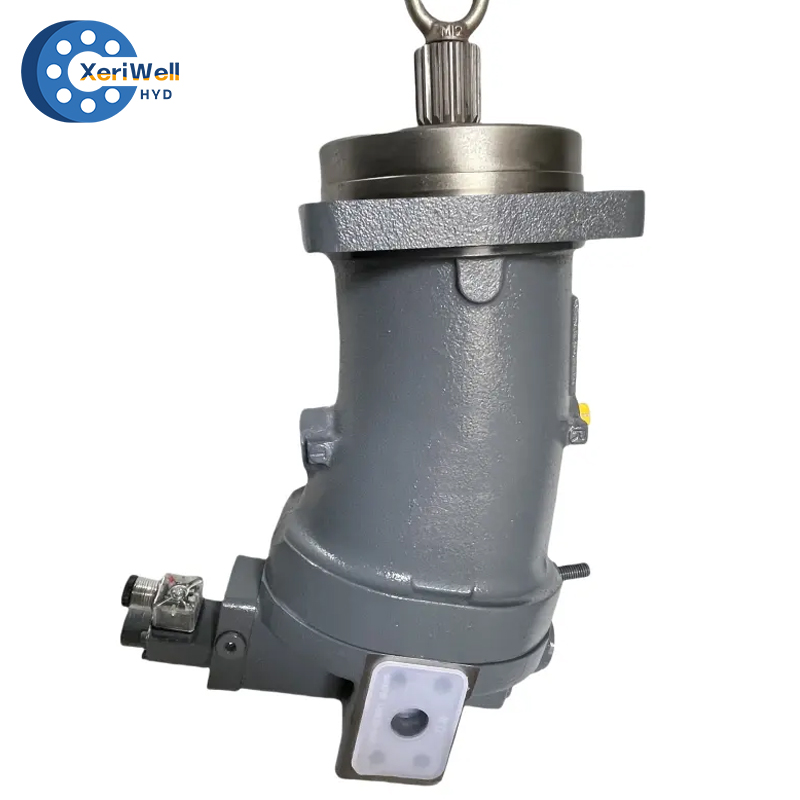

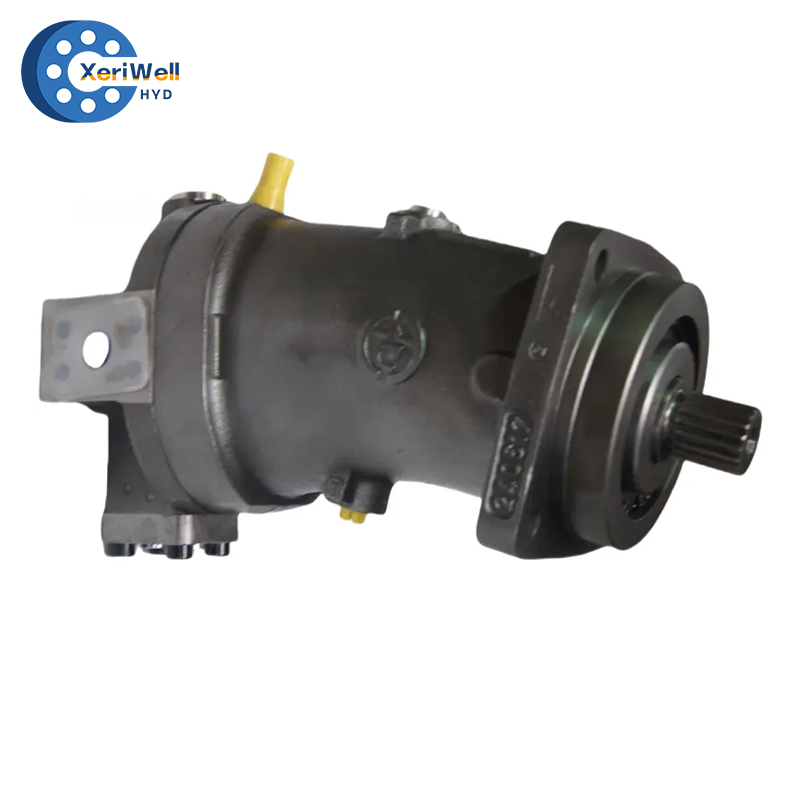

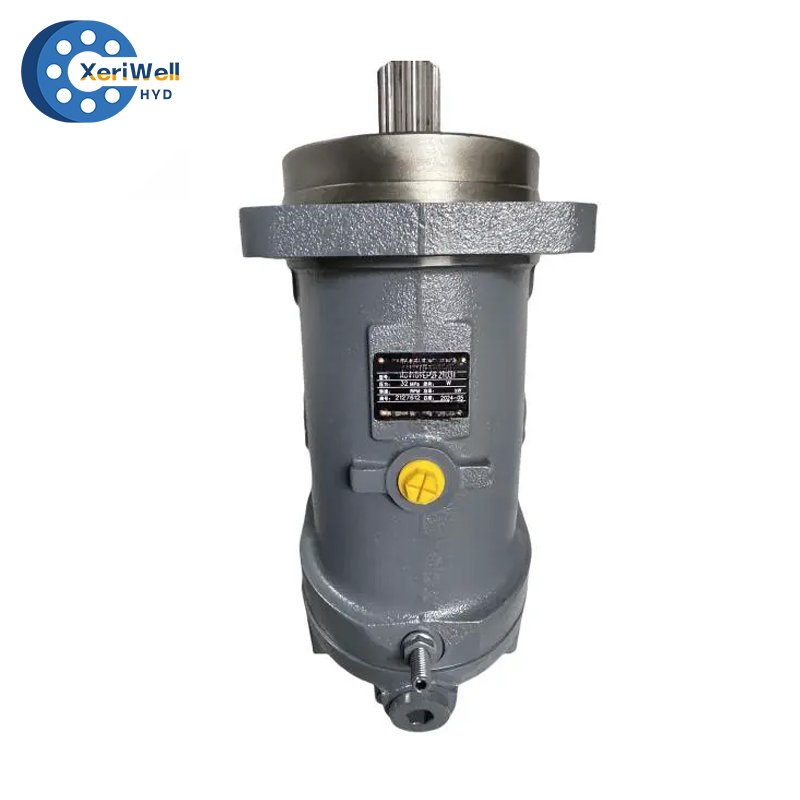

A6V
xeriwell or others
Rexroth A6V 20/28/55/80/107/140/160/200/250/255/355/500/1000 Hydraulic Motor technical data:

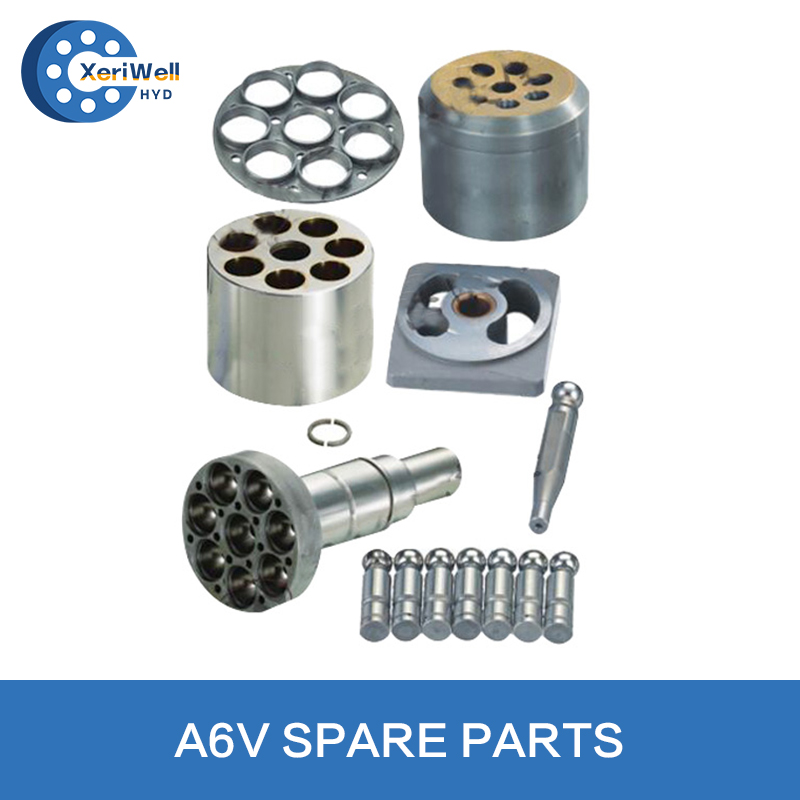

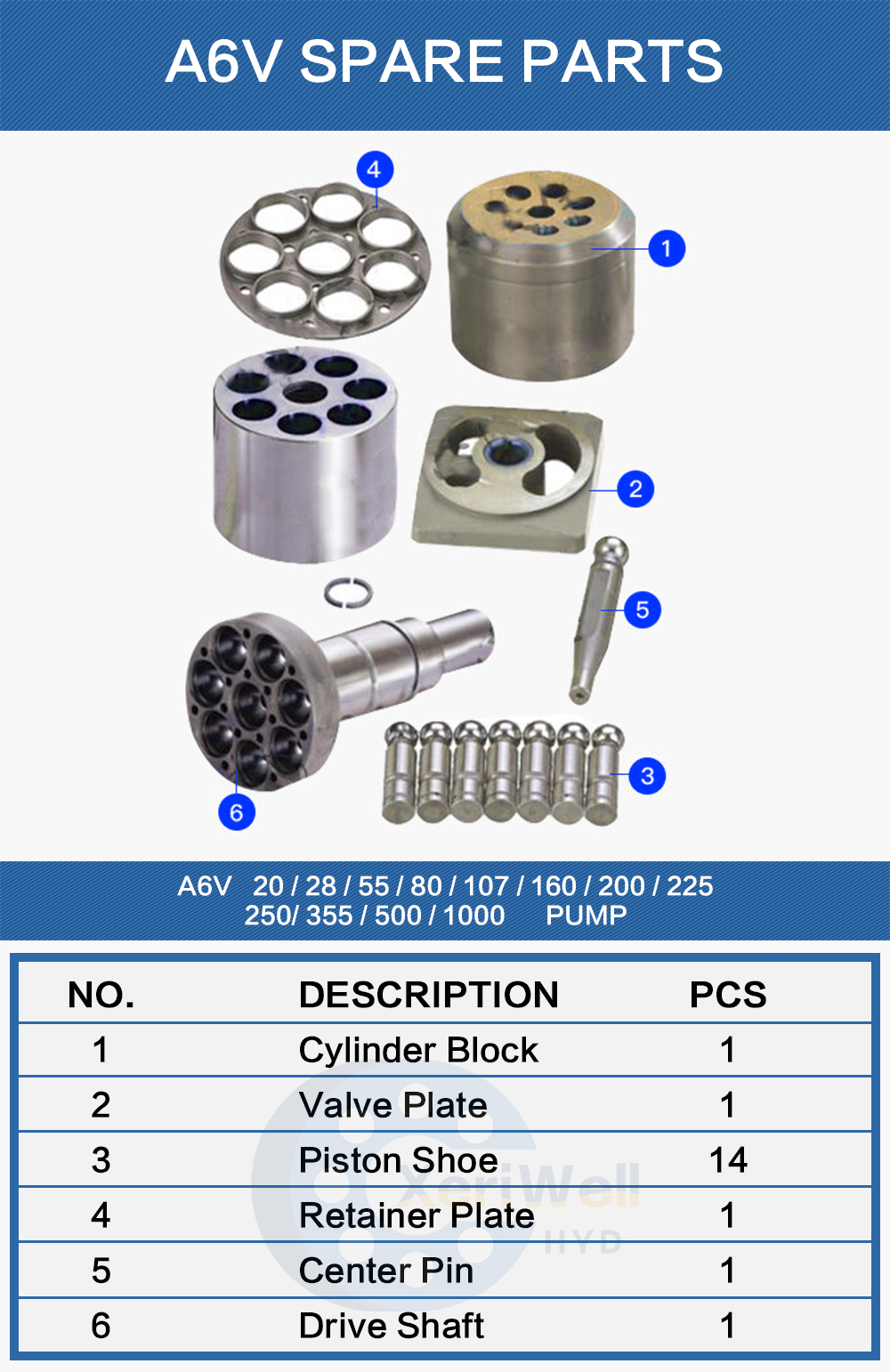

Rexroth A6V 20/28/55/80/107/140/160/200/250/255/355/500/1000 Hydraulic Motor spare parts list:

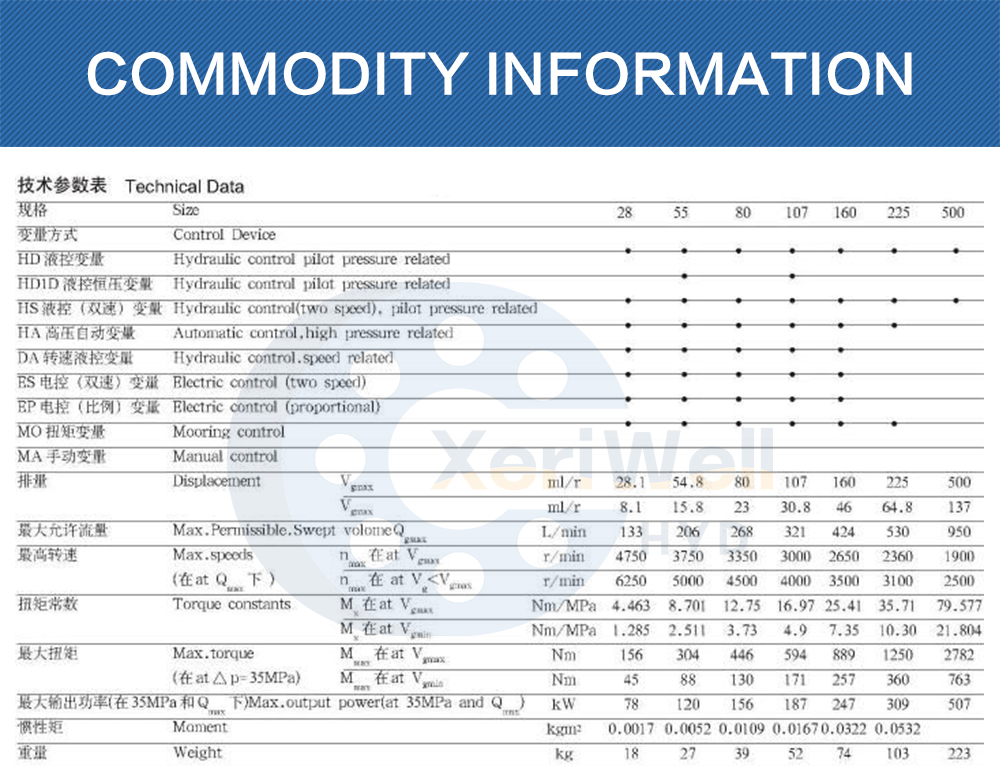

| 技术参数表 Technical Data | ||||||||||
| 规格 | Size | 28 | 55 | 80 | 107 | 160 | 225 | 500 | ||
| 变量方式 | Control Device | ● | ● | ● | ● | ● | ● | ● | ||
| HD液控变量 | Hydraulic control pilot pressure related | ● | ● | |||||||
| HD1D液控恒压变量 | Hydraulic control pilot pressure related | ● | ● | ● | ● | ● | ● | ● | ||
| HS液控（双速）变量 | Hydraulic control(two speed)，pilot pressure related | ● | ● | ● | ● | ● | ● | |||
| HA高压自动变量 | Automatic control,high pressure related | ● | ● | ● | ● | ● | ||||
| DA转速液控变量 | Hydraulic control,speed related | ● | ● | ● | ● | ● | ||||
| ES电控（双速）变量 | Electric control (two speed) | ● | ● | ● | ● | ● | ||||
| EP电控（比例）变量 | Electric control (proportional) | ● | ● | ● | ● | ● | ● | |||
| MO扭矩变量 | Mooring control | |||||||||
| MA手动变量 | Manual control | |||||||||
| 排量 | Displacement | Vgmax | ml/r | 28.1 | 54.8 | 80 | 107 | 160 | 225 | 500 |
| Vgmax | ml/r | 8.1 | 15.8 | 23 | 30.8 | 46 | 64.8 | 137 | ||
| 最大允许流量 | Max.Permissible.Swept volumeQgmax | L/min | 133 | 206 | 268 | 321 | 424 | 530 | 950 | |
| 最高转速 | Max.speeds | nmax在at Vgmax | r/min | 4750 | 3750 | 3350 | 3000 | 2650 | 2360 | 1900 |
| (在at Qmax下 ) | nmax在at Vg<Vgmax | r/min | 6250 | 5000 | 4500 | 4000 | 3500 | 3100 | 2500 | |
| 扭矩常数 | Torque constants | My在at Vgmax | Nm/MPa | 4.463 | 8.701 | 12.75 | 16.97 | 25.41 | 35.71 | 79.577 |
| My在at Vmin | Nm/MPa | 1.285 | 2.511 | 3.73 | 4.9 | 7.35 | 10.3 | 21.804 | ||
| 最大扭矩 | Max.torque | Mmax在at Vgmax | Nm | 156 | 304 | 446 | 594 | 889 | 1250 | 2782 |
| (在at △ p= 35MPa) | Mmax在at Vmin | Nm | 45 | 88 | 130 | 171 | 257 | 360 | 763 | |
| 最大输出功率(在35MPa和Qmax下)Max.output power(at 35MPa and Qmax) | kW | 78 | 120 | 156 | 187 | 247 | 309 | 507 | ||
| 惯性矩 | Moment | kgm2 | 0.0017 | 0.0052 | 0.0109 | 0.0167 | 0.0322 | 0.0532 | ||
| 重量 | Weight | kg | 18 | 27 | 39 | 52 | 74 | 103 | 223 | |
