Rexroth A2FO Hydraulic Pump

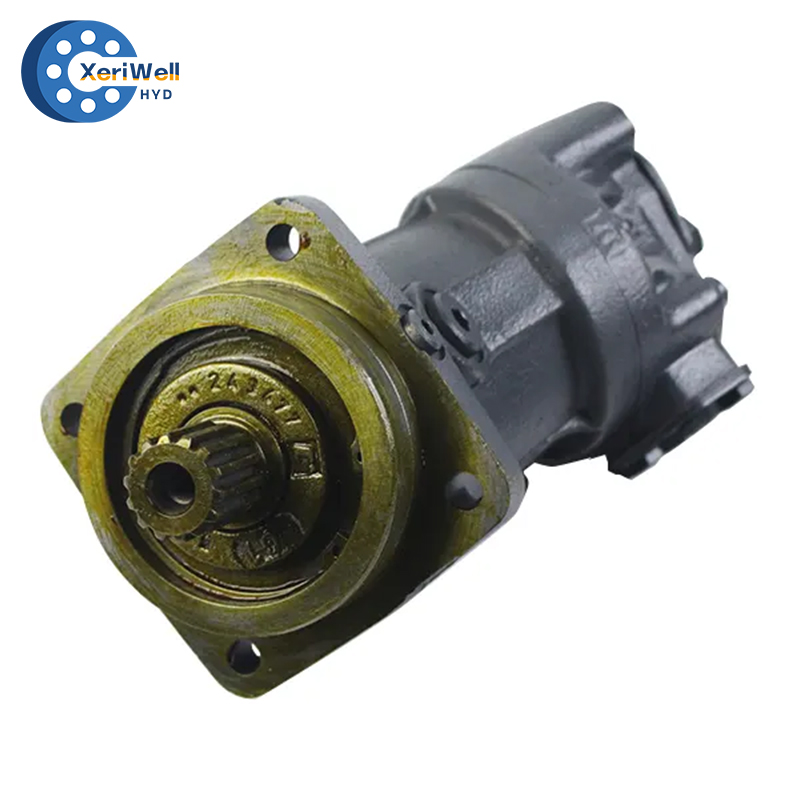

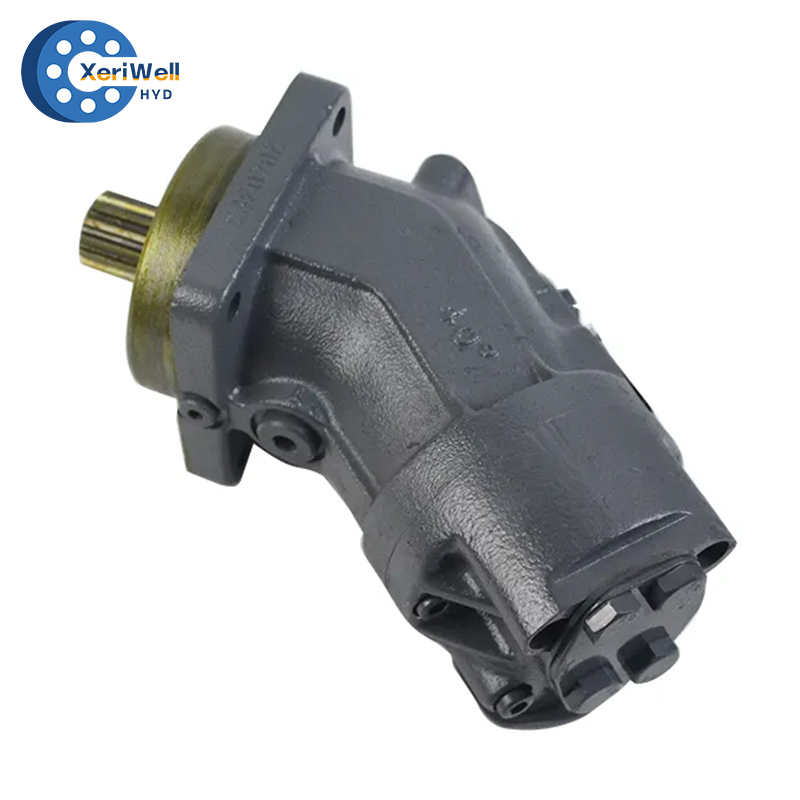

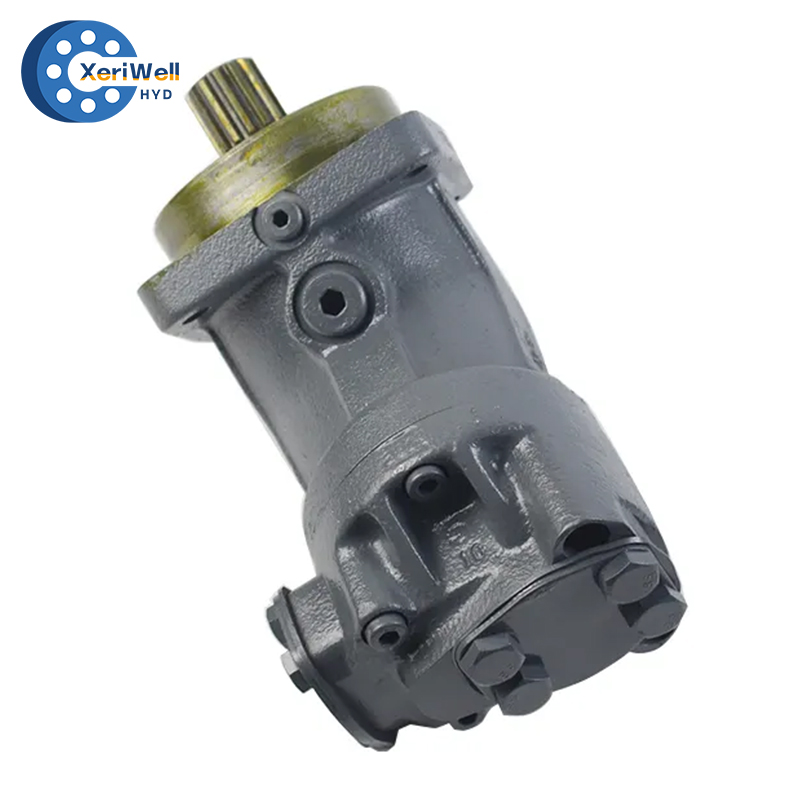

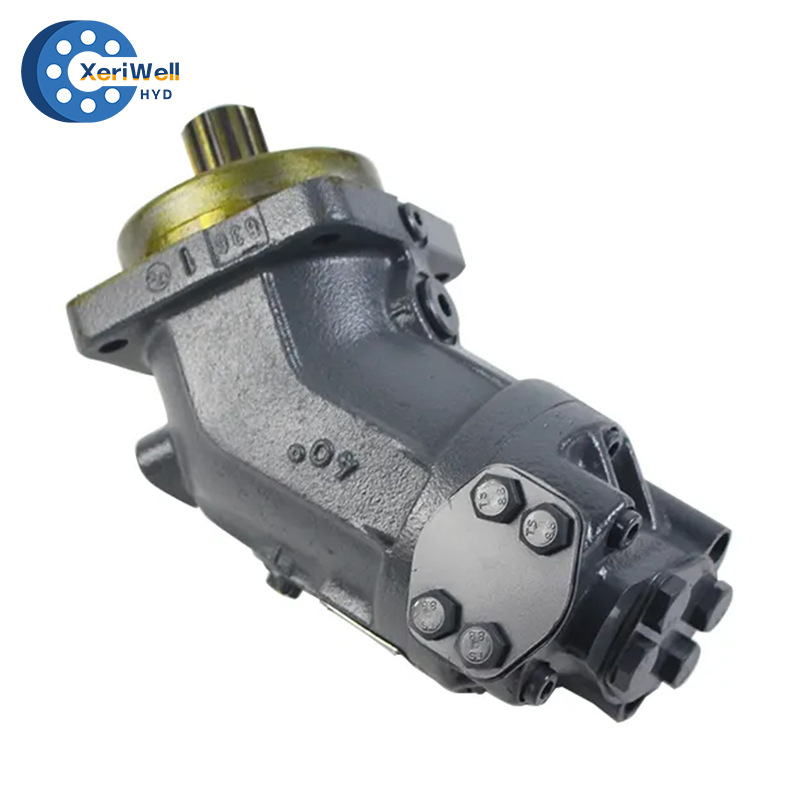

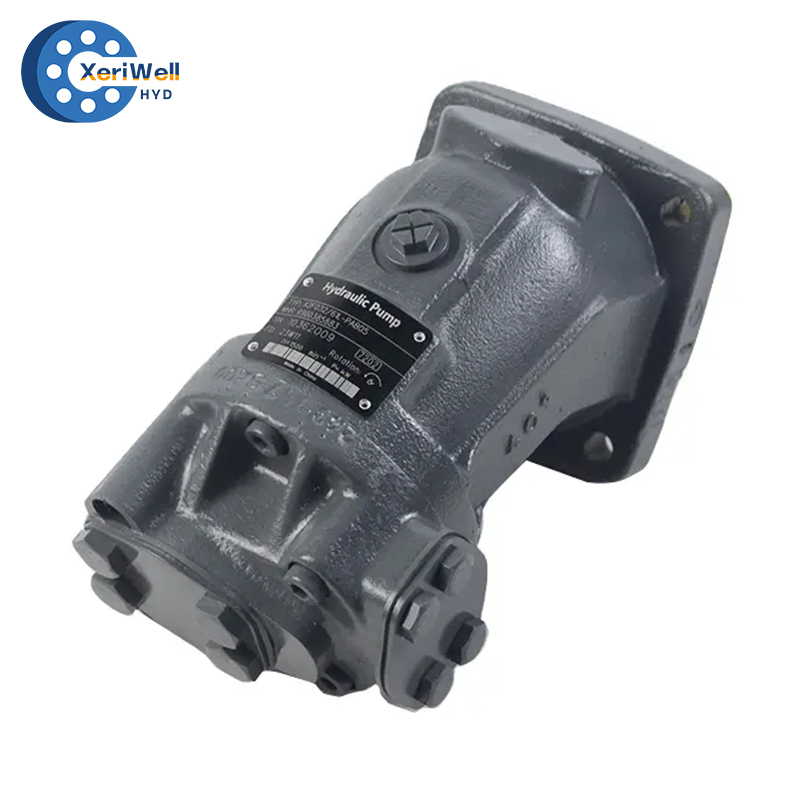

Rexroth A2FO Hydraulic Pump Product Introduction

The Rexroth A2FO axial piston fixed pump is a high-efficiency hydraulic pump designed for use in open circuits in mobile and industrial applications. Featuring a compact bent-axis design and robust construction, the A2FO pump offers consistent and reliable hydraulic performance across a wide range of operating conditions.

Key Features:

1) High Pressure and Performance: Supports nominal pressures up to 400 bar and peak pressures up to 450 bar, making it ideal for demanding applications such as excavators, loaders, and industrial presses.

2) Compact and Durable Design: Its short installation length and robust construction ensure easy integration into space-constrained systems while providing excellent durability.

3) Wide Speed Range: Operates efficiently from low speeds up to 4250 RPM (depending on the pump size), ensuring flexibility for various applications.

4) Energy Efficiency: The bent-axis design ensures high mechanical and volumetric efficiency, reducing energy loss and operational costs.

5) Flexible Configuration: Available in a wide range of sizes from 5 cm³/rev to 1000 cm³/rev, allowing precise customization to system requirements.

6) Low Maintenance: Built with straightforward, reliable components to minimize downtime and ensure long service life.

The A2FO pump is particularly suited for applications requiring consistent hydraulic power delivery, including construction, agriculture, and manufacturing

Type: A2FO5, A2FO10, A2FO12, A2FO16, A2FO23, A2FO28, A2FO32, A2FO45, A2FO56, A2FO63, A2FO80, A2FO90, A2FO107, A2FO125, A2FO160, A2FO180, A2FO200, A2FO250, A2FO355, A2FO500, A2FO710, A2FO1000

Rexroth A2FO Hydraulic Pump catalogue pdf manual diagram

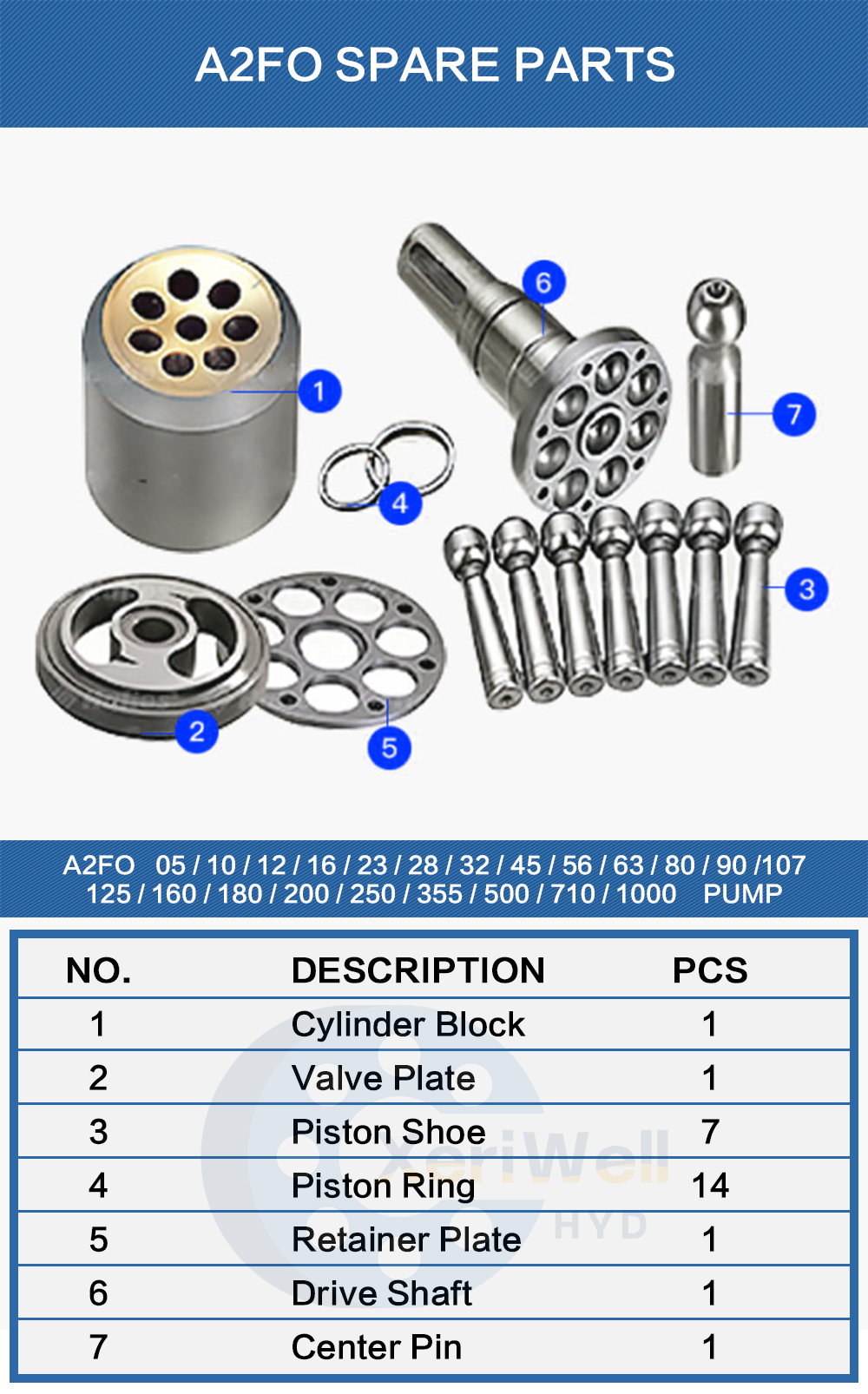

Rexroth A2FO 5/10/12/16/23/28/32/45/56/63/80/90/107/125/160/180/200/250/355/500/710/1000 Hydraulic  Pump spare parts list:

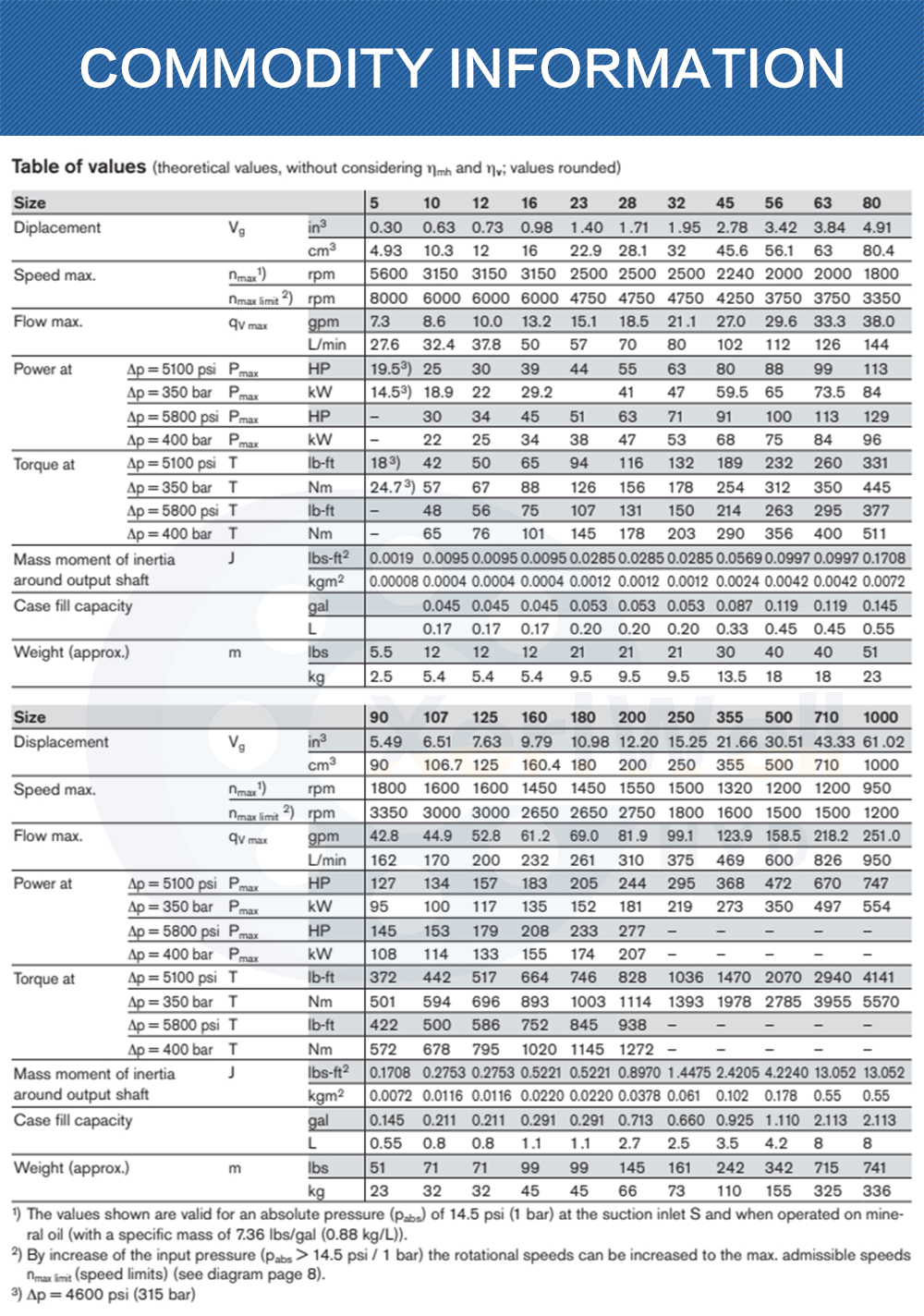

Table of values (theoretical values,without considering ηmhand ηv;values rounded)
Size			5	10	12	16	23	28	32	45	56	63	80
Displacement	Vg	in3	0.3	0.63	0.73	0.98	1.4	1.71	1.95	2.78	3.42	3.84	4.91
		cm3	4.93	10.3	12	16	22.9	28.1	32	45.6	56.1	63	80.4
Speed max.	nmax1)	rpm	5600	3150	3150	3150	2500	2500	2500	2240	2000	2000	1800
	nmax limit2)	rpm	8000	6000	6000	6000	4750	4750	4750	4250	3750	3750	3350
Flow max.	qv max	gpm	7.3	8.6	10	13.2	15.1	18.5	21.1	27	29.6	33.3	38
		L/min	27.6	32.4	37.8	50	57	70	80	102	112	126	144
Power at	Δp = 5100 psi Pmax	HP	19.53)	25	30	39	44	55	63	80	88	99	113
	Δp = 350 bar Pmax	kW	14.53)	18.9	22	29.2		41	47	59.5	65	73.5	84
	Δp = 5800 psi Pmax	HP	–	30	34	45	51	63	71	91	100	113	129
	Δp = 400 bar Pmax	kW	–	22	25	34	38	47	53	68	75	84	96
Torque at	Δp = 5100 psi T	lb-ft	183)	42	50	65	94	116	132	189	232	260	331
	Δp = 350 bar T	Nm	24.73)	57	67	88	126	156	178	254	312	350	445
	Δp = 5800 psi T	lb-ft	–	48	56	75	107	131	150	214	263	295	377
	Δp = 400 bar T	Nm	–	65	76	101	145	178	203	290	356	400	511
Mass moment of inertia around output shaft	J	lbs-ft2	0.0019	0.0095	0.0095	0.0095	0.0285	0.0285	0.0285	0.0569	0.0997	0.0997	0.1708
		kgm2	0.00008	0.0004	0.0004	0.0004	0.0012	0.0012	0.0012	0.0024	0.0042	0.0042	0.0072
Case fill capacity		gal		0.045	0.045	0.045	0.053	0.053	0.053	0.087	0.119	0.119	0.145
		L		0.17	0.17	0.17	0.2	0.2	0.2	0.33	0.45	0.45	0.55
Weight (approx.)	m	lbs	5.5	12	12	12	21	21	21	30	40	40	51
		kg	2.5	5.4	5.4	5.4	9.5	9.5	9.5	13.5	18	18	23

Size			90	107	125	160	180	200	250	355	500	710	1000
Displacement	Vg	in3	5.49	6.51	7.63	9.79	10.98	12.2	15.25	21.66	30.51	43.33	61.02
		cm3	90	106.7	125	160.4	180	200	250	355	500	710	1000
Speed max.	nmax1)	rpm	1800	1600	1600	1450	1450	1550	1500	1320	1200	1200	950
	nmax limit2)	rpm	3350	3000	3000	2650	2650	2750	1800	1600	1500	1500	1200
Flow max.	qv max	gpm	42.8	44.9	52.8	61.2	69	81.9	99.1	123.9	158.5	218.2	251
		L/min	162	170	200	232	261	310	375	469	600	826	950
Power at	Δp = 5100 psi	Pmax	HP	127	134	157	183	205	244	295	368	472	670	747
	Δp = 350 bar	Pmax	kW	95	100	117	135	152	181	219	273	350	497	554
	Δp = 5800 psi	Pmax	HP	145	153	179	208	233	277	–	–	–	–	–
	Δp = 400 bar	Pmax	kW	108	114	133	155	174	207	–	–	–	–	–
Torque at	Δp = 5100 psi	T	lb-ft	372	442	517	664	746	828	1036	1470	2070	2940	4141
	Δp = 350 bar	T	Nm	501	594	696	893	1003	1114	1393	1978	2785	3955	5570
	Δp = 5800 psi	T	lb-ft	422	500	586	752	845	938	–	–	–	–	–
	Δp = 400 bar	T	Nm	572	678	795	1020	1145	1272	–	–	–	–	–
Mass moment of inertia around output shaft	J	lbs-ft2	0.1708	0.2753	0.2753	0.5221	0.5221	0.897	1.4475	2.4205	4.224	13.052	13.052
		kgm2	0.0072	0.0116	0.0116	0.022	0.022	0.0378	0.061	0.102	0.178	0.55	0.55
Case fill capacity		gal	0.145	0.211	0.211	0.291	0.291	0.713	0.66	0.925	1.11	2.113	2.113
		L	0.55	0.8	0.8	1.1	1.1	2.7	2.5	3.5	4.2	8	8
Weight (approx.)	m	lbs	51	71	71	99	99	145	161	242	342	715	741
		kg	23	32	32	45	45	66	73	110	155	325	336
1) The values shown are valid for an absolute pressure (pabs) of 14.5 psi (1 bar) at the suction inlet S and when operated on mine-ral oil (with a specific mass of 7.36 lbs/gal (0.88 kg/L)). 2) By increase of the input pressure (pabs>14.5 psi / 1 bar) the rotational speeds can be increased to the max. admissible speeds nmax limit(speed limits) (see diagram page 8). 3) Δp = 4600 psi (315 bar)
