A22VG
Xeriwell or Others

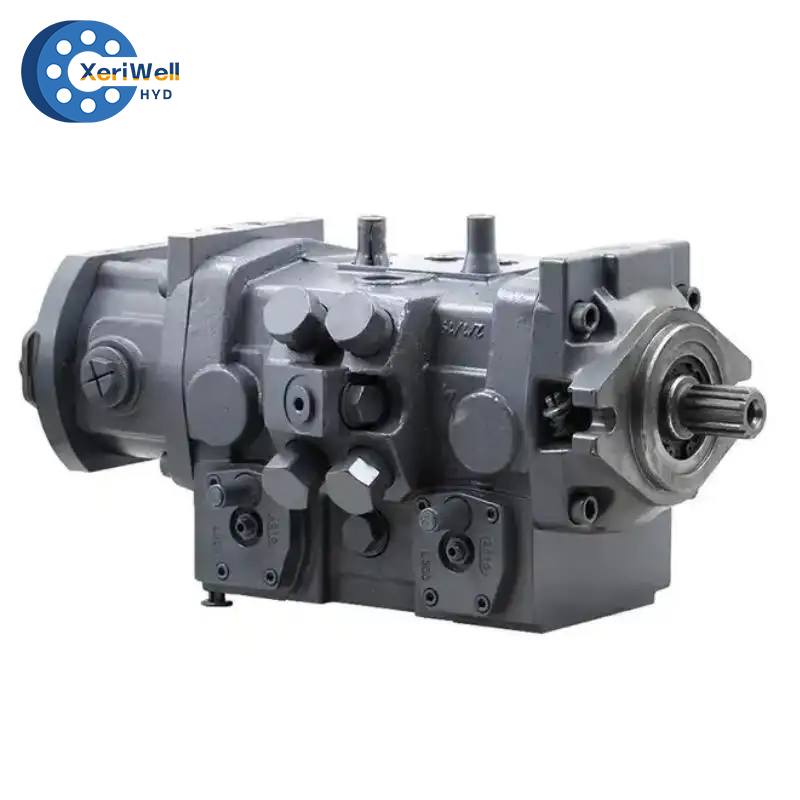

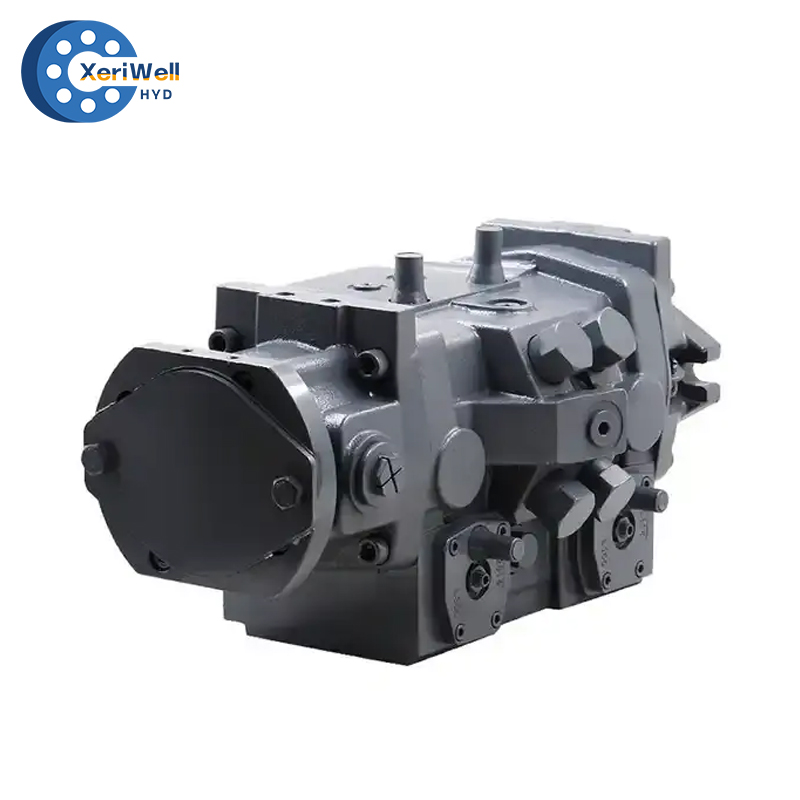

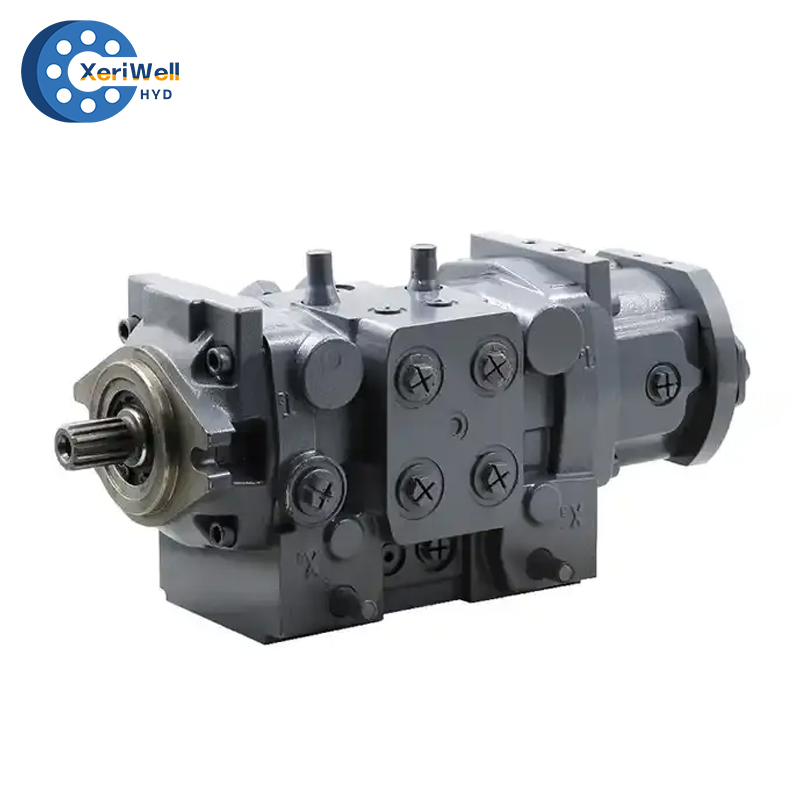

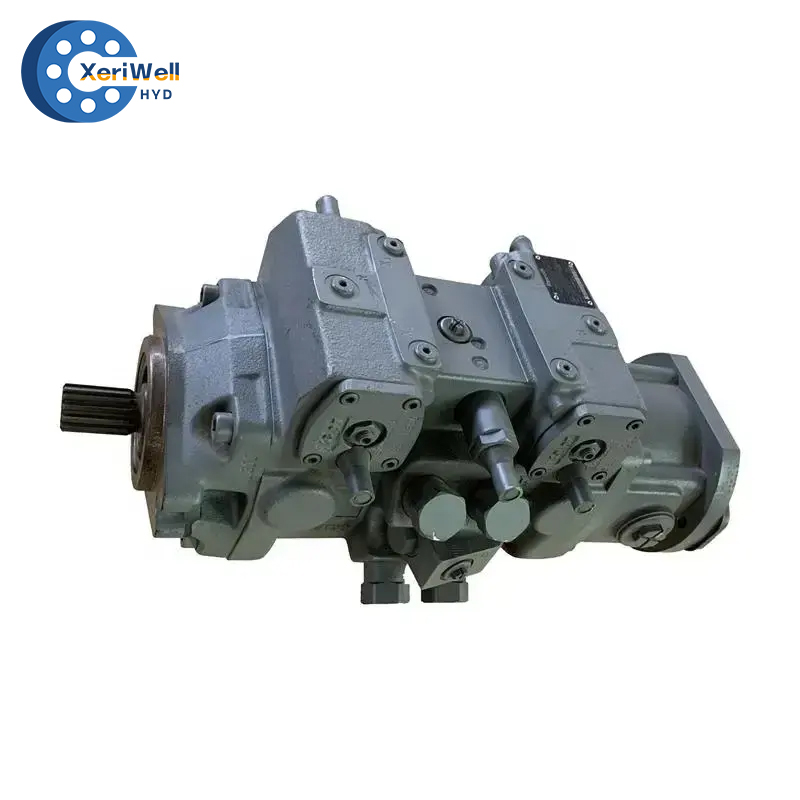

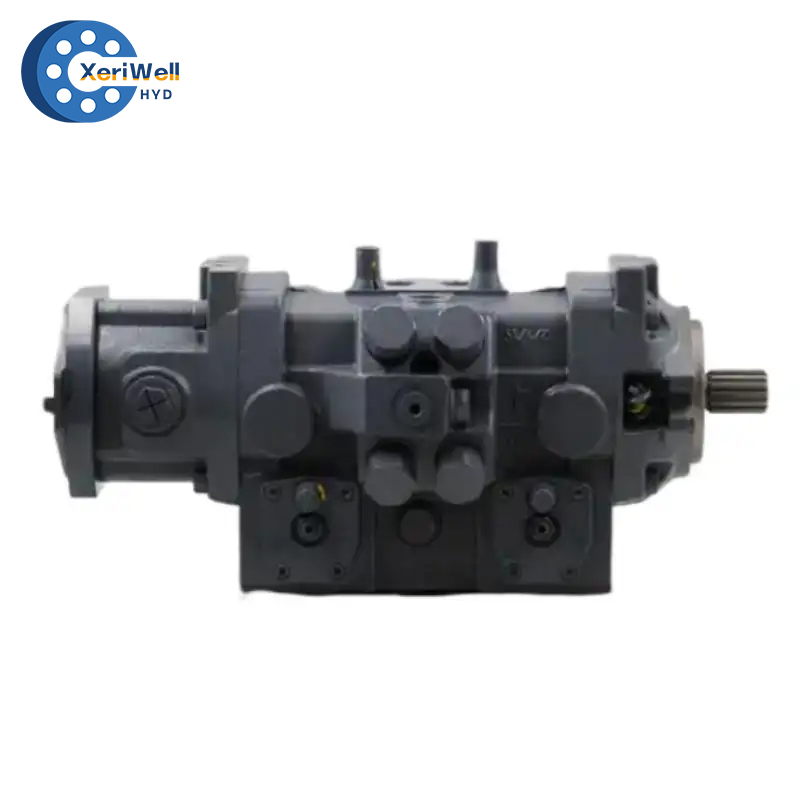

Rexroth A22VG is a variable double pump available with two axial piston rotary groups of swashplate design for hydrostatic drives in a closed circuit.
Features:
1) Variable double pump with two axial piston rotary groups of swashplate design for hydrostatic drives in a closed circuit.
2) The flow is proportional to the drive speed and displacement.
3) The flow can be infinitely varied by adjusting the swashplate angle.
4) Flow direction changes smoothly when the swashplate is moved through the neutral position.
5) Only one shared port for case drain fluid for both circuits.
6) Compact design for tight installation conditions.
Type: A22VG45

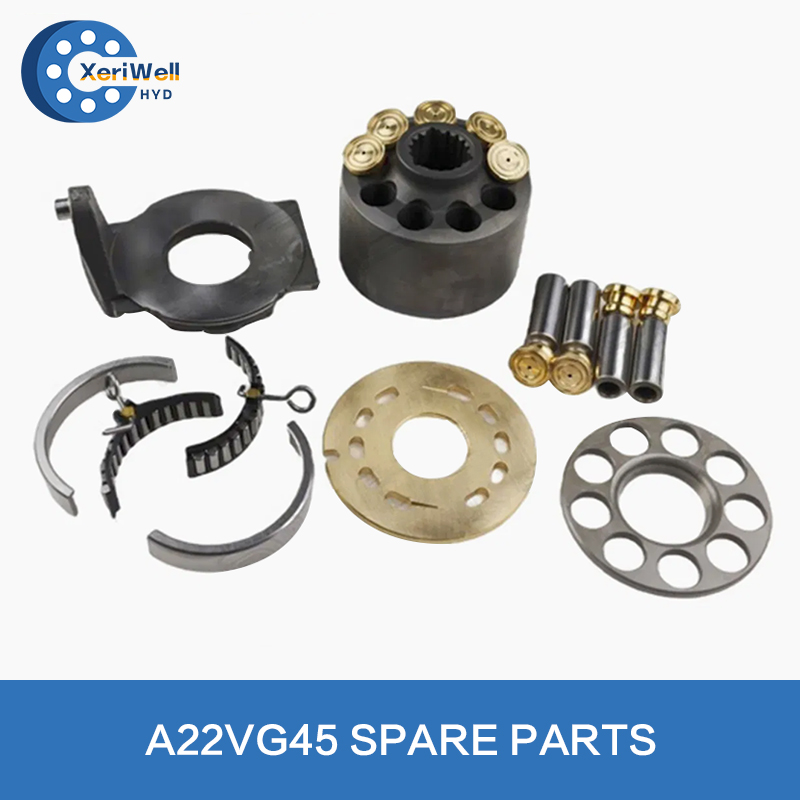

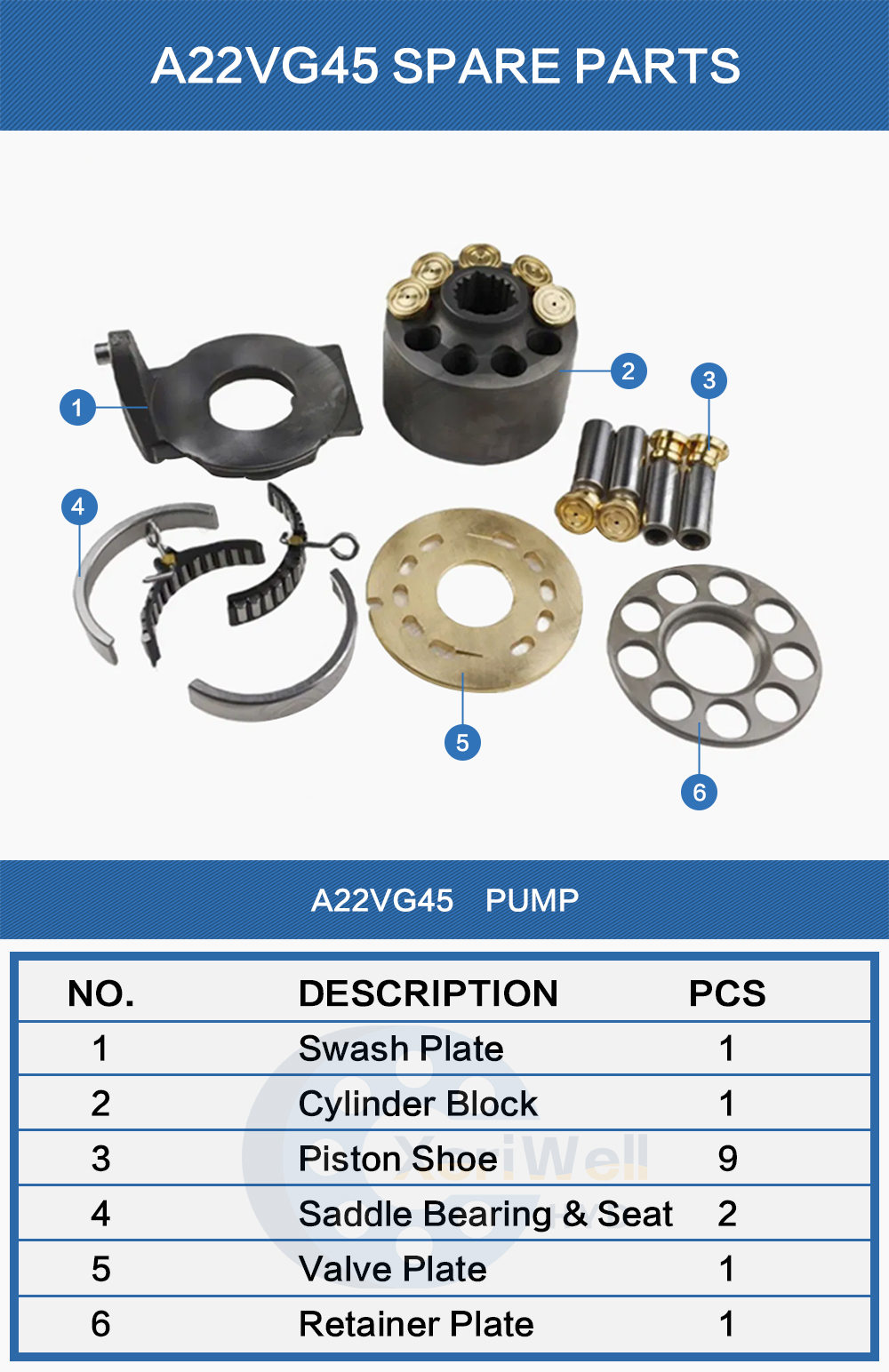

Rexroth A22VG 45 Hydraulic Pump spare parts list:
| Technical data | ||||||
| Size | NG | 45 | ||||
| Displacement geometric,per revolution | variable pump (for each rotary group) | Vg max | cm3 | 2 x 46 | ||
| boost pump (at p = 25 bar) | Vg Sp | cm3 | 14.9 | |||
| Rotational speed1) | maximum at Vg max | nnom | rpm | 33006) | ||
| limited maximum2) | nmax1 | rpm | 3550 | |||
| intermittent maximum3) | nmax2 | rpm | 3800 | |||
| minimum | nmin | rpm | 500 | |||
| Flow | at Vg maxand nnom | qv | l/min | 2 x 152 | ||
| Power4) | at Vg max,nnomand Δp = 380 bar | P | kW | 192 | ||
| Torque4) | at Vg maxand | Δp = 300 bar | T | Nm | 556 | |
| Δp = 100 bar | T | Nm | 146 | |||
| Rotary stiffness drive shaft | 1 1/4 in | S7 | Pump 1 | c1 | Nm/rad | 73804 |
| Pump 2 | c2 | Nm/rad | 23066 | |||
| Moment of inertia (see graphic below) | rotary group 1 | JTW1 | kgm2 | 0.003327 | ||
| rotary group 2 | JTW2 | kgm2 | 0.003293 | |||
| Maximum angular acceleration for each rotary group5) | α | rad/s2 | 4000 | |||
| Case volume | V | L | 1.7 | |||
| Weight with HT control (approx.) | m | kg | 53 | |||
