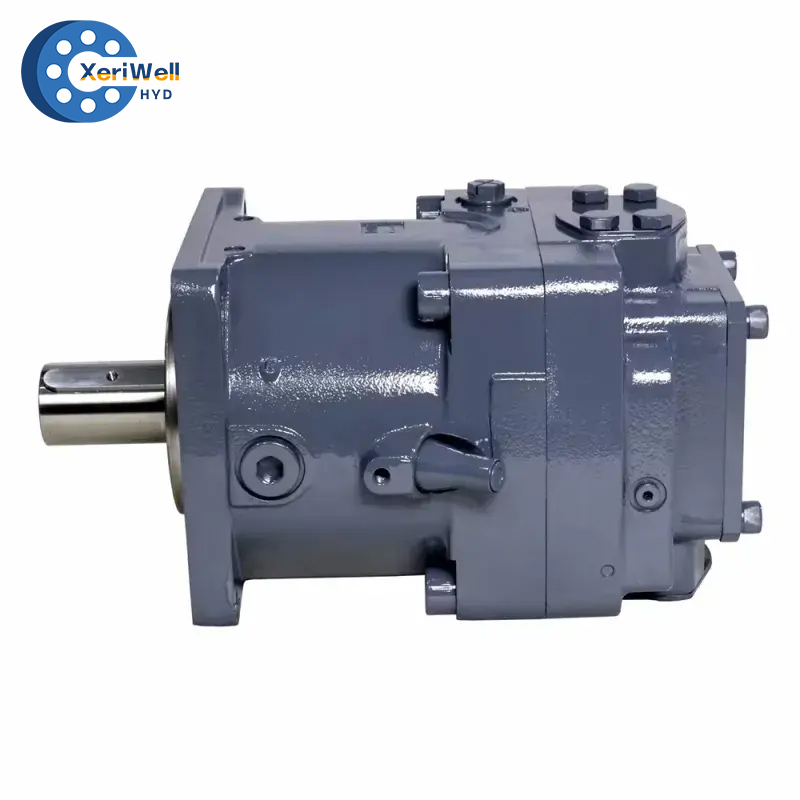

Rexroth A11VO Hydraulic Pump

The A11VO is a variable pump with axial piston rotary group in swashplate design for hydrostatic drives in open circuits. The flow is proportional to the drive speed and the displacement. The flow can be continuously changed with closed loop control.

Features:

1) Variable axial piston pump of swashplate design for hydrostatic drives in open circuit hydraulic system.

2) Designed primarily for use in mobile applications.

3) The pump operates under self-priming conditions, with tank pressurization, or with an optional built-in charge pump (impeller).

4) A comprehensive range of control options is available matching any application requirement.

5) Power control option is externally adjustable, even when the pump is running.

6) The through drive is suitable for adding gear pumps and axial piston pumps up to the same, i.e. 100% through drive.

7) The output flow is proportional to the drive speed and infinitely variable between qV max and qV min = 0.

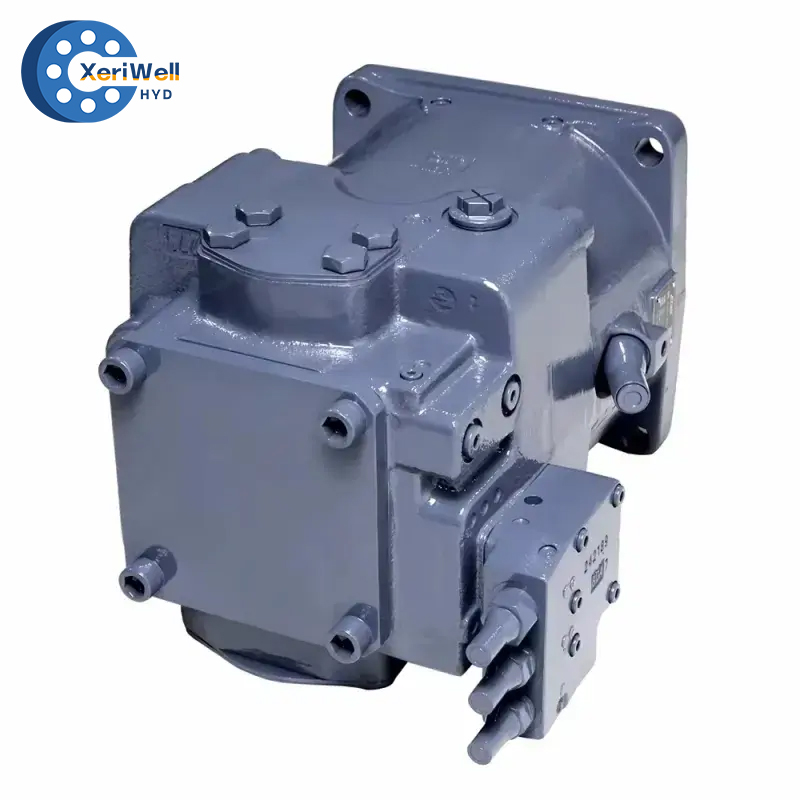

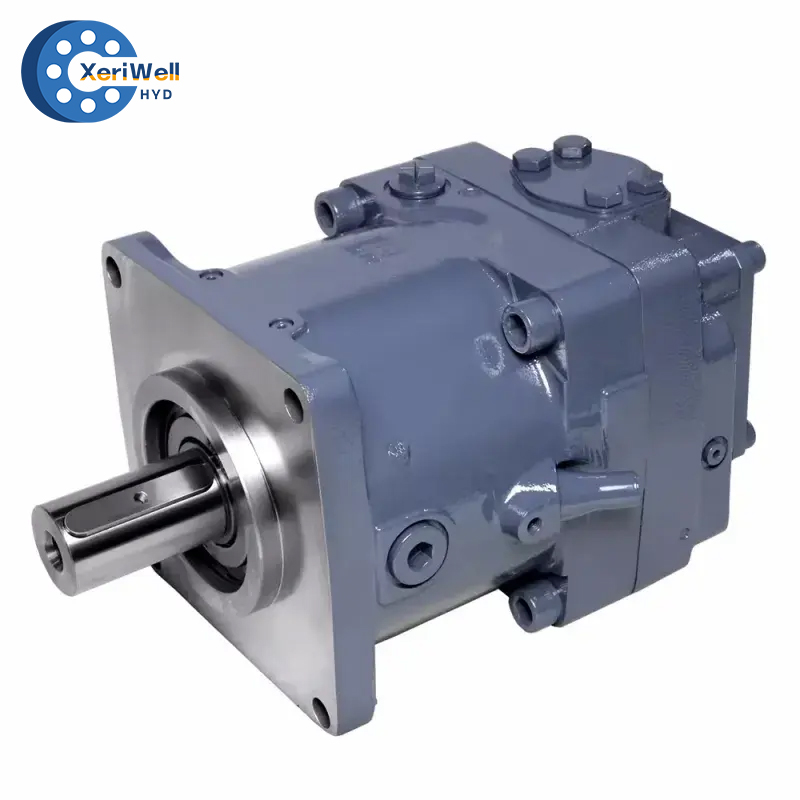

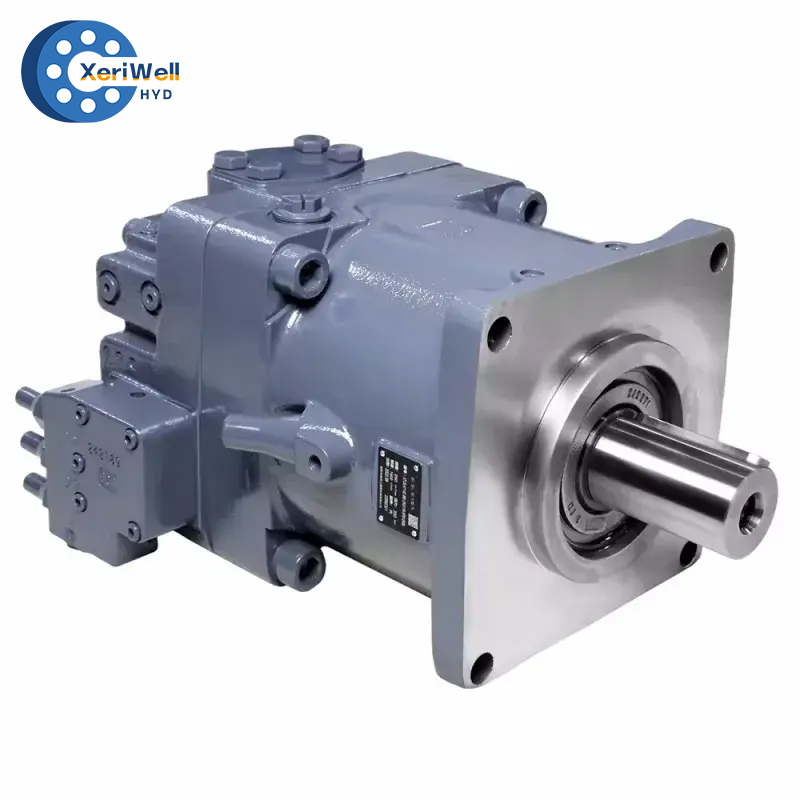

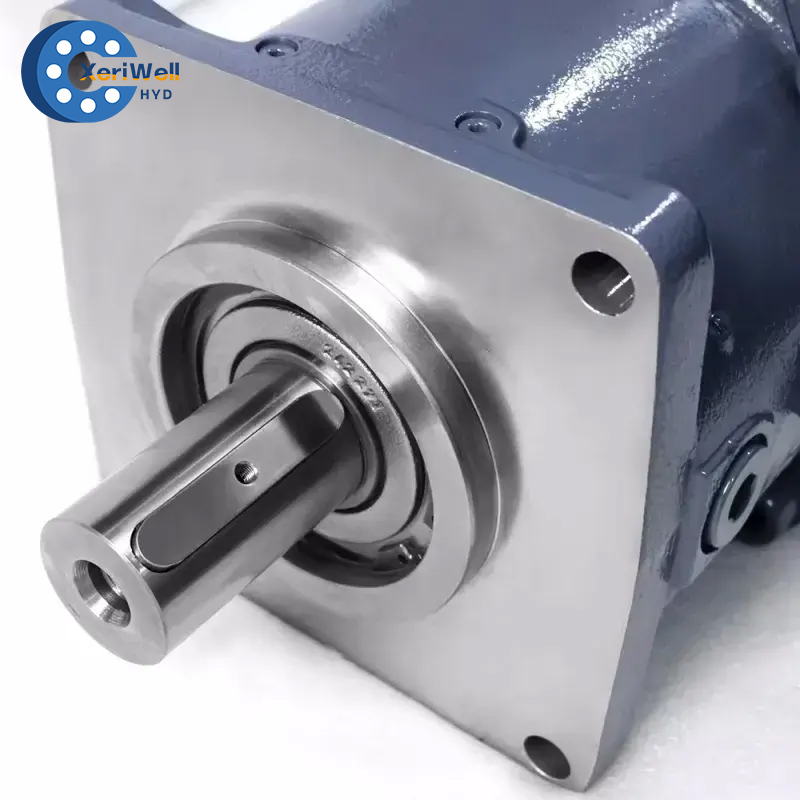

Type: A11VO40, A11VO60, A11VO75, A11VO95, A11VO130, A11VO145, A11VO190, A11VO260

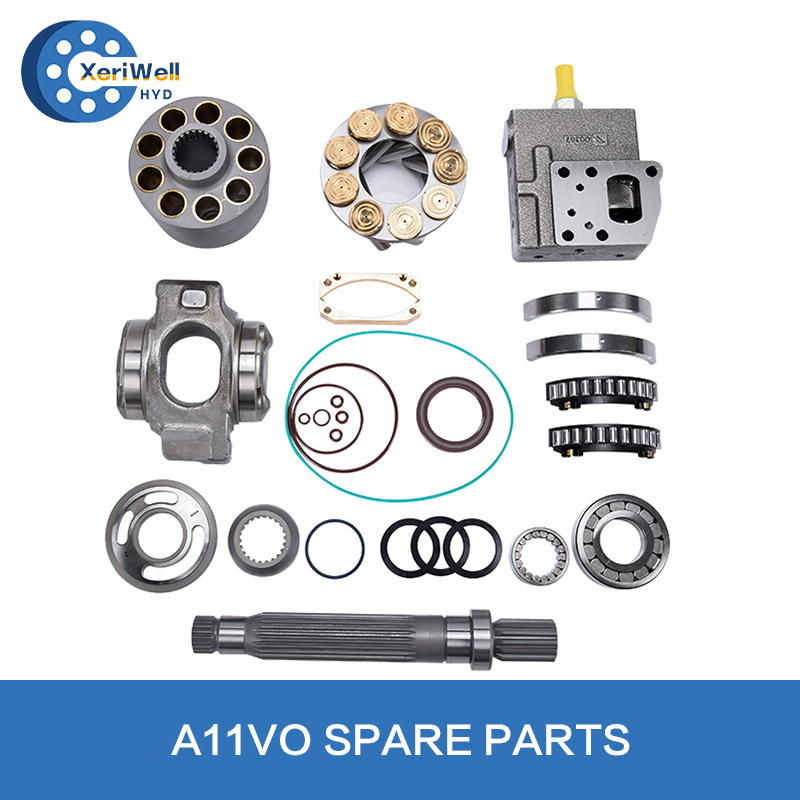

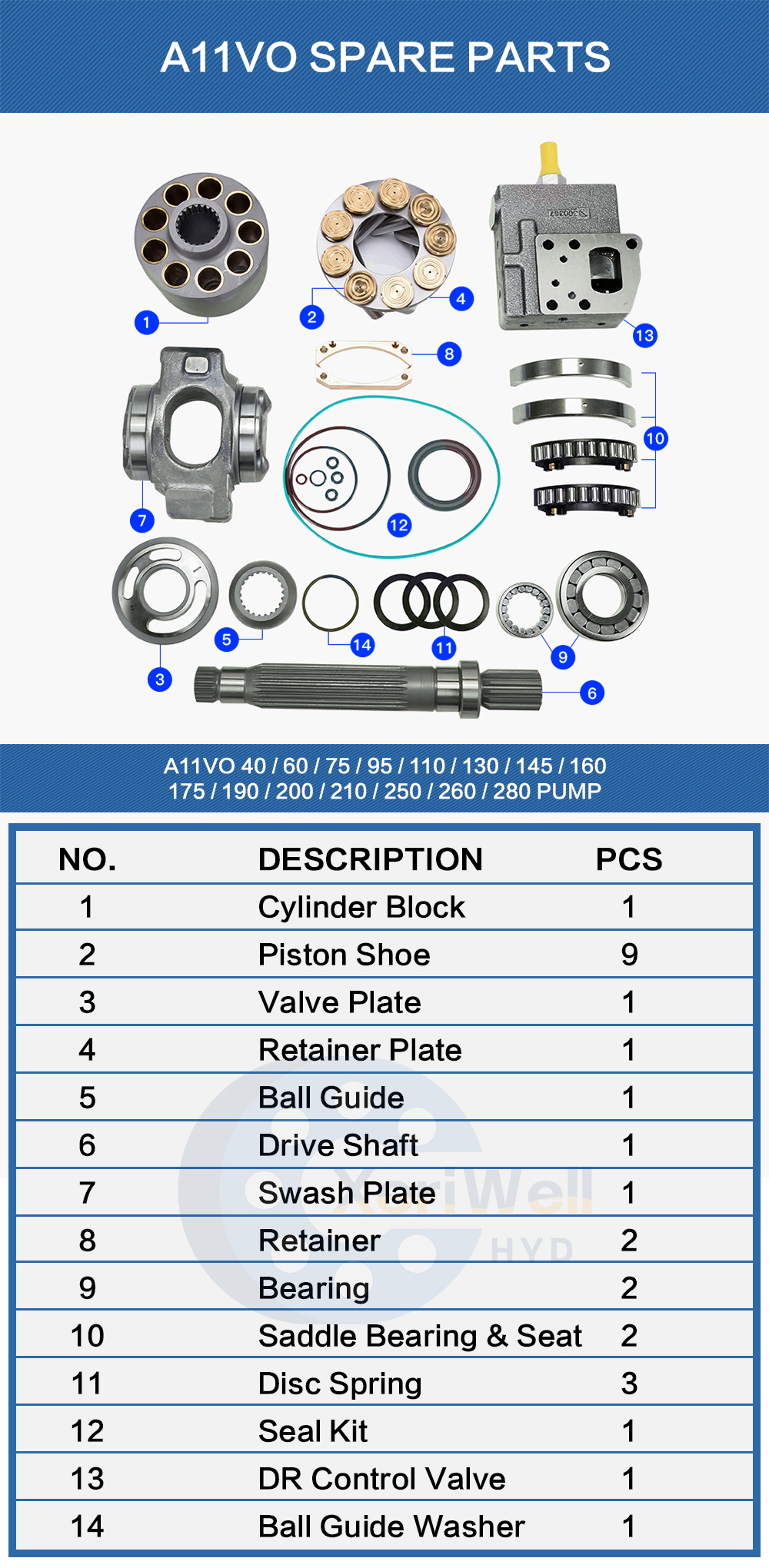

Rexroth A11VO 40/60/75/95/110/130/145/160/175/190/200/210/250/260/280 Hydraulic Pump Spare parts list:

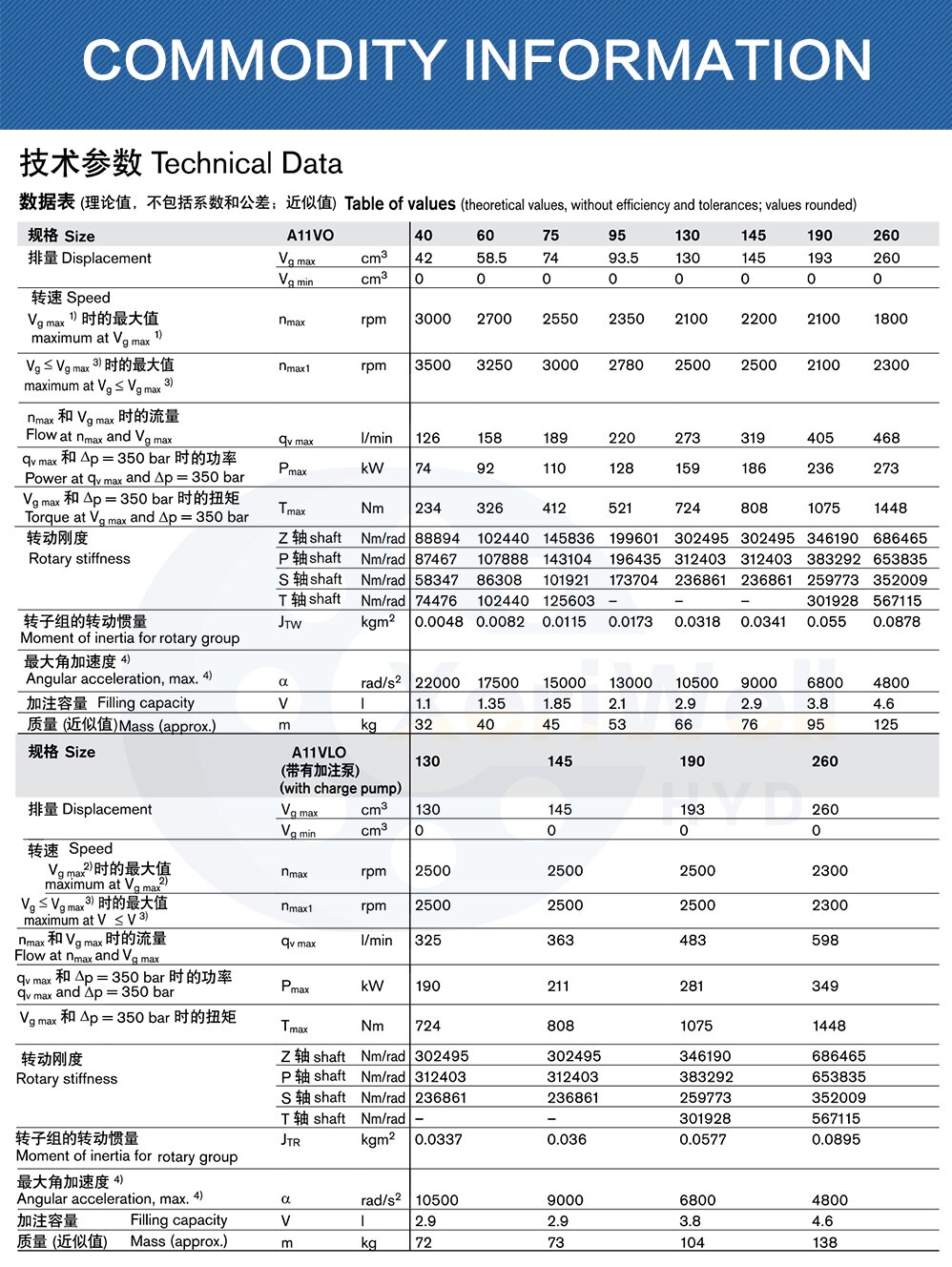

技术参数 Technical Data 数据表（理论值，不包括系数和公差；近似值）Table of values (theoretical values,without efficiency and tolerances;values rounded)
规格 Size	A11VO	40	60	75	95	130	145	190	260
排量 Displacement	Vgmax	cm3	42	58.5	74	93.5	130	145	193
	Vgmin	cm3	0	0	0	0	0	0	0
转速 Speed Vgmax1)时的最大值 maximum at Vgmax1)	nmax	rpm	3000	2700	2550	2350	2100	2200	2100
Vg≤ Vgmax3)时的最大值 maximum at Vg≤ Vgmax3)	nmax1	rpm	3500	3250	3000	2780	2500	2500	2100
nmax和 Vgmax 时的流量 Flow at nmaxand Vgmax	qvmax	l/min	126	158	189	220	273	319	405
qvmax 和 Δp = 350 bar 时的功率 Power at qvmax and Δp = 350 bar	Pmax	kW	74	92	110	128	159	186	236
Vgmax 和 Δp = 350 bar 时的扭矩 Torque at Vgmax and Δp = 350 bar	Tmax	Nm	234	326	412	521	724	808	1075
转动刚度 Rotary stiffness	Z 轴shaft	Nm/rad	88894	102440	145836	199601	302495	302495	346190
	P 轴shaft	Nm/rad	87467	107888	143104	196435	312403	312403	383292
	S 轴shaft	Nm/rad	58347	86308	101921	173704	236861	236861	259773
	T 轴shaft	Nm/rad	74476	102440	125603	–	–	–	301928
转子组的转动惯量 Moment of inertia for rotary group	JTW	kgm2	0.0048	0.0082	0.0115	0.0173	0.0318	0.0341	0.055
最大角加速度4) Angular acceleration,max.4)	α	rad/s2	22000	17500	15000	13000	10500	9000	6800
加注容量 Filling capacity	V	l	1.1	1.35	1.85	2.1	2.9	2.9	4.6
质量 (近似值)Mass (approx.)	m	kg	32	40	45	53	66	76	95

规格 Size	A11VLO (带有加注泵) (with charge pump)		130	145	190	260
排量 Displacement	Vgmax	cm3	130	145	193	260
	Vgmin	cm3	0	0	0	0
转速 Speed Vgmax2)时的最大值 maximum at Vgmax2)	nmax	rpm	2500	2500	2500	2300
Vg≤ Vgmax3)时的最大值 maximum at Vg≤ V3)	nmax1	rpm	2500	2500	2500	2300
nmax和 Vgmax 时的流量 Flow at nmaxand Vgmax	qvmax	l/min	325	363	483	598
qvmax 和 Δp = 350 bar 时的功率 Power at qvmax and Δp = 350 bar	Pmax	kW	190	211	281	349
Vgmax 和 Δp = 350 bar 时的扭矩 Torque at Vgmax and Δp = 350 bar	Tmax	Nm	724	808	1075	1448
转动刚度	Z 轴shaft	Nm/rad	302495	302495	346190	686465
	P 轴shaft	Nm/rad	312403	312403	383292	653835
	S 轴shaft	Nm/rad	236861	236861	259773	352009
	T 轴shaft	Nm/rad	–	–	301928	567115
转子组的转动惯量 Moment of inertia for rotary group	JTR	kgm2	0.0337	0.036	0.0577	0.0895
最大角加速度4) Angular acceleration,max.4)	α	rad/s2	10500	9000	6800	4800
加注容量 Filling capacity	V	l	2.9	2.9	3.8	4.6
质量 (近似值)Mass (approx.)	m	kg	72	73	104	138
