| Type: | |
|---|---|
| spare parts avaliable: | |
| Quantity: | |

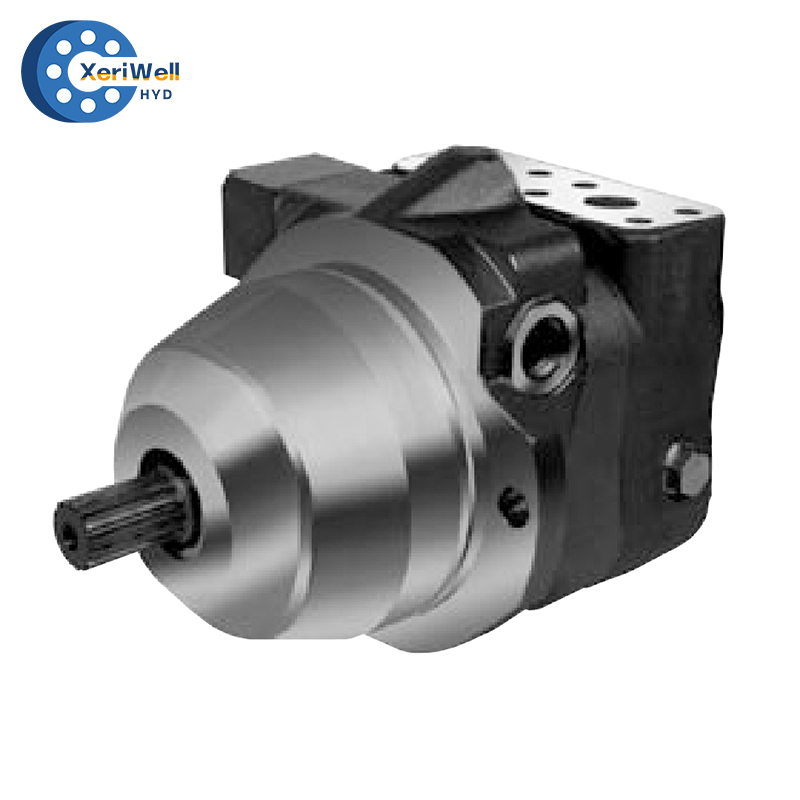

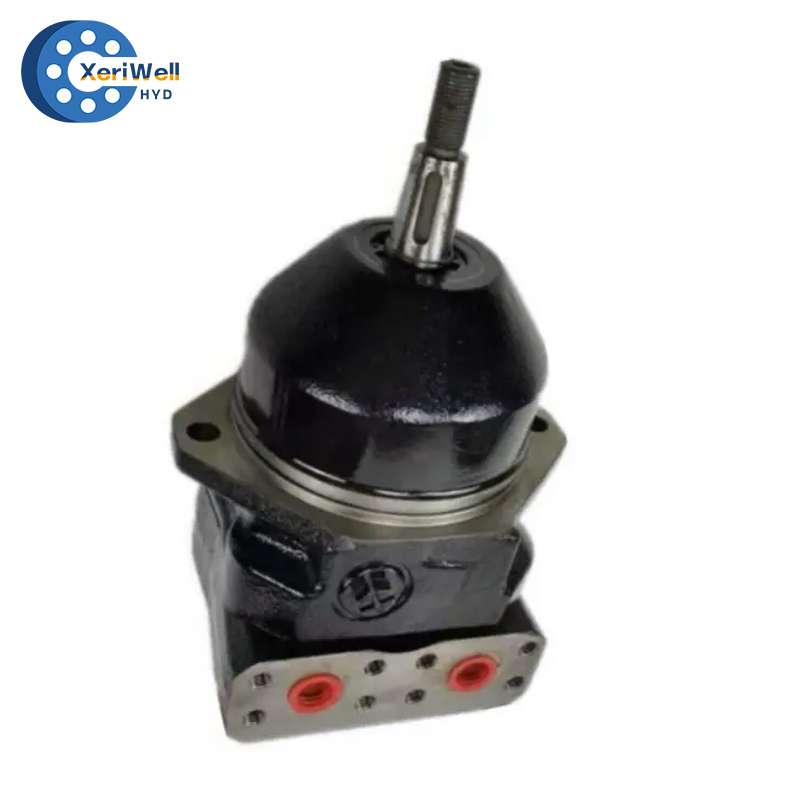

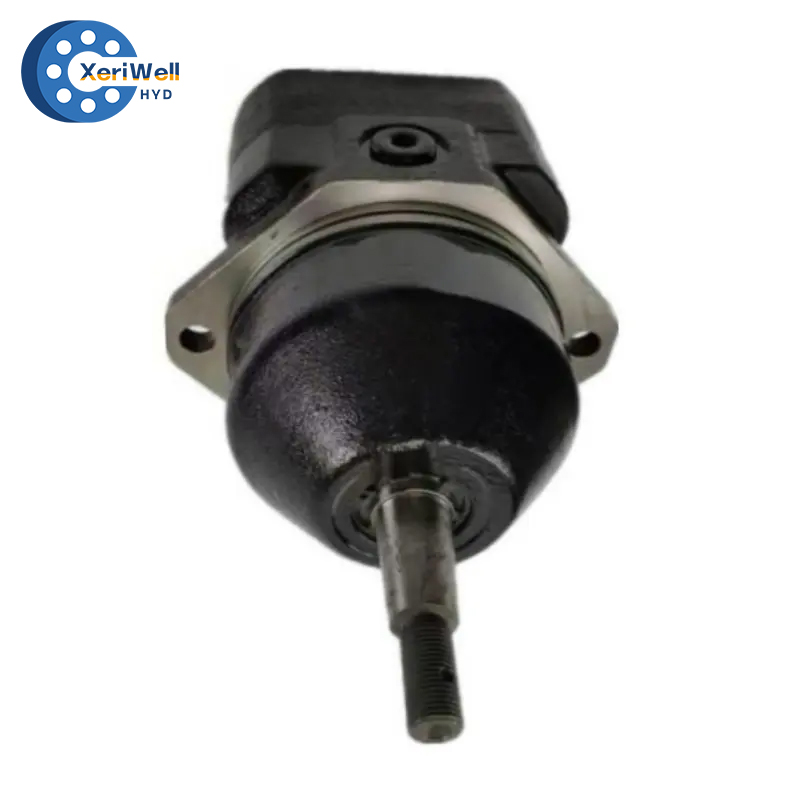

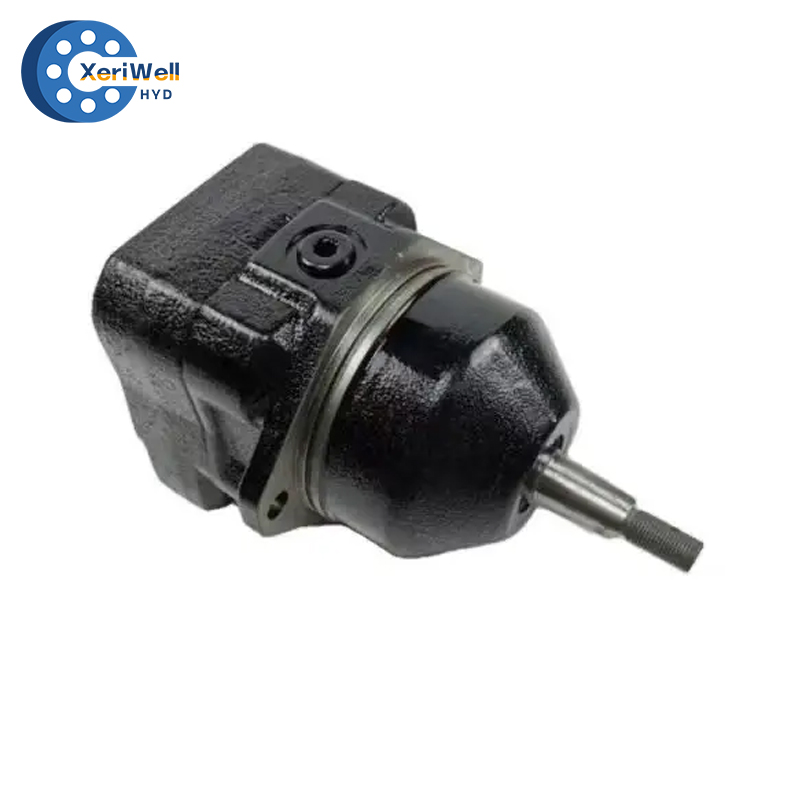

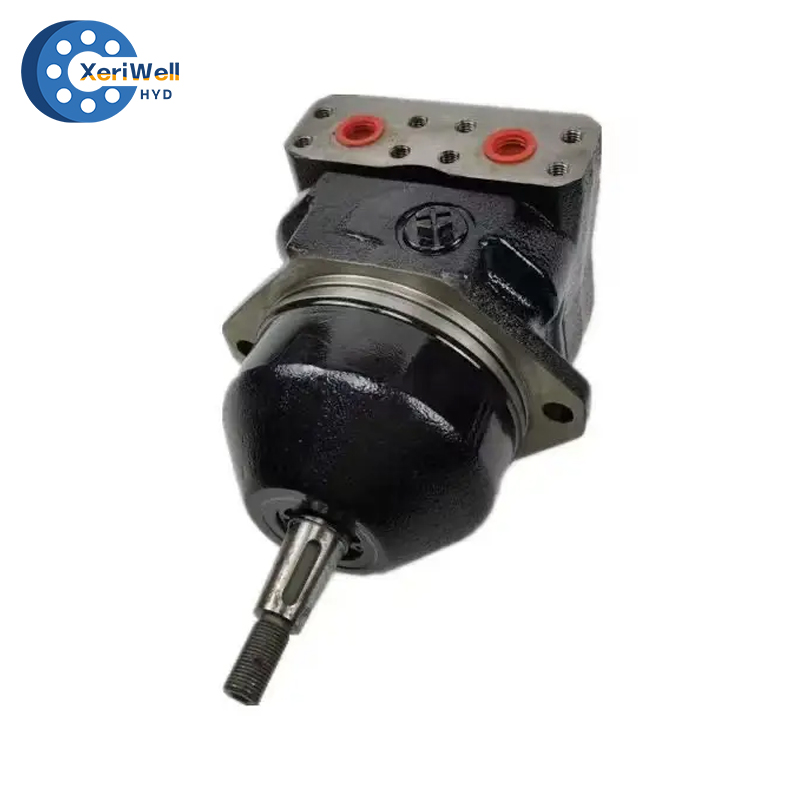

A10VE
xeriwell or others
Rexroth A10VE 28/43/45/60/63 A10VEC45 hydraulic motor technical data:

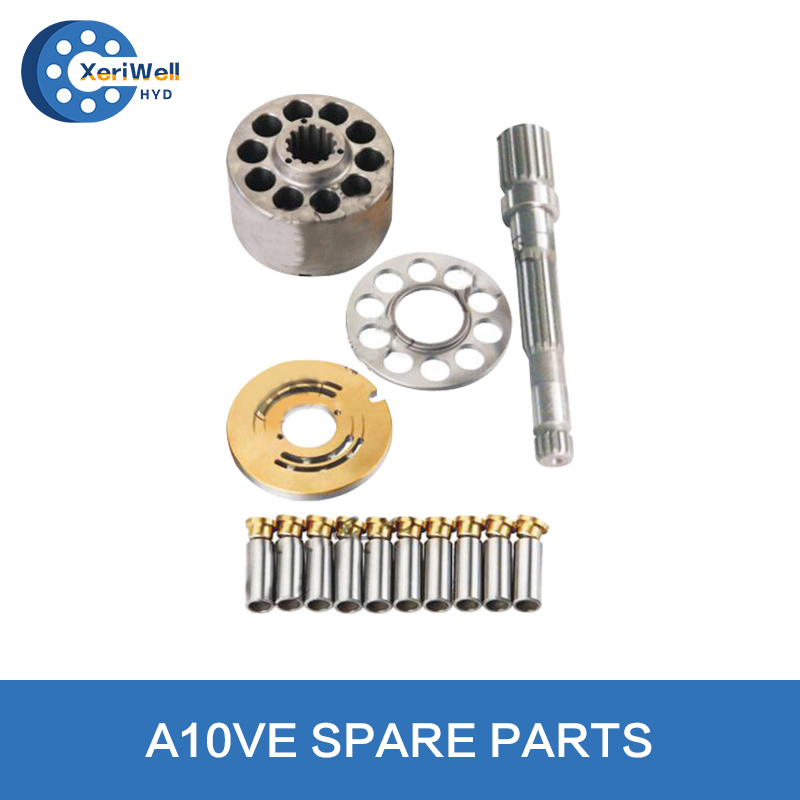

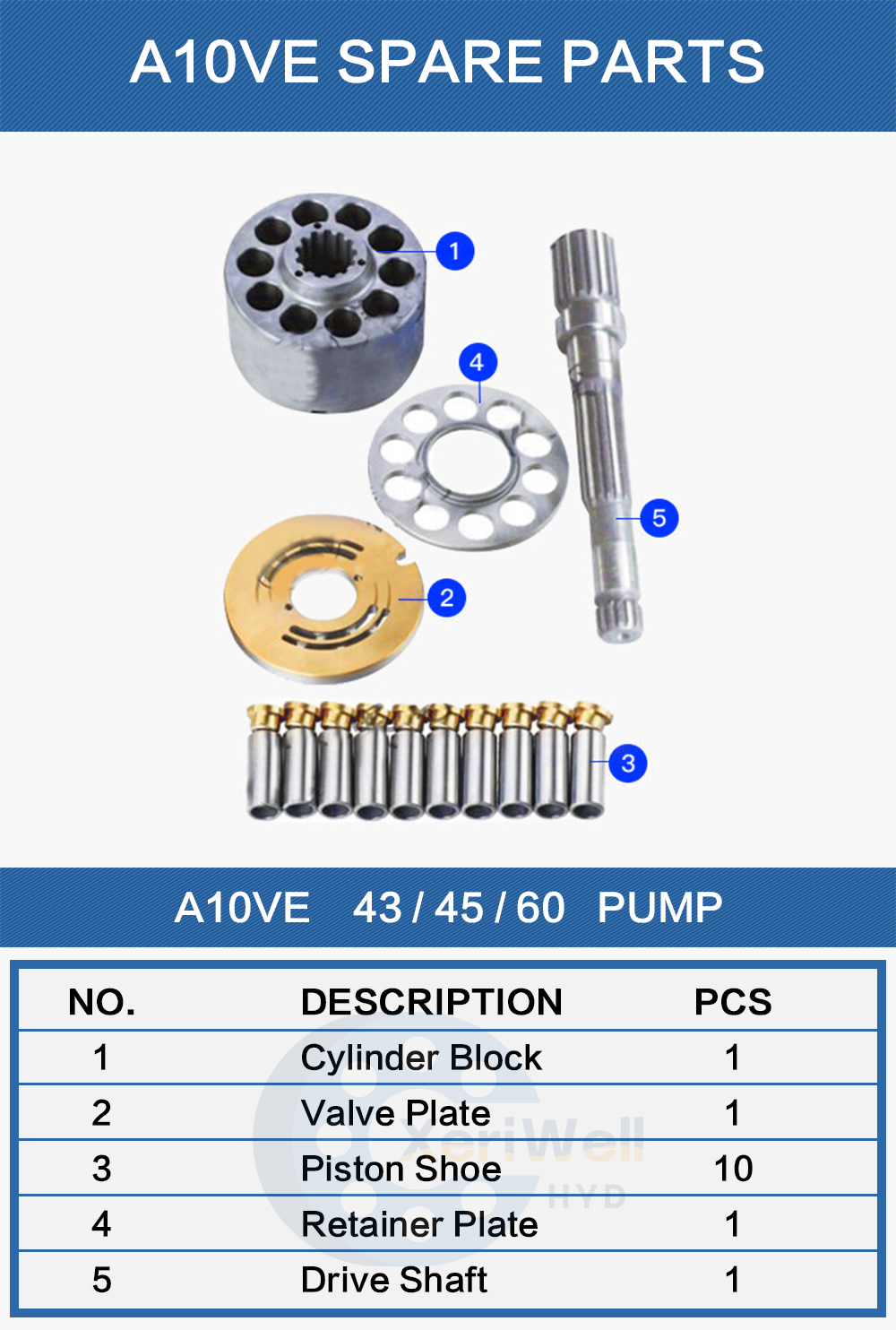

Rexroth A10VE 28/43/45/60/63 A10VEC45 hydraulic motor spare parts list:

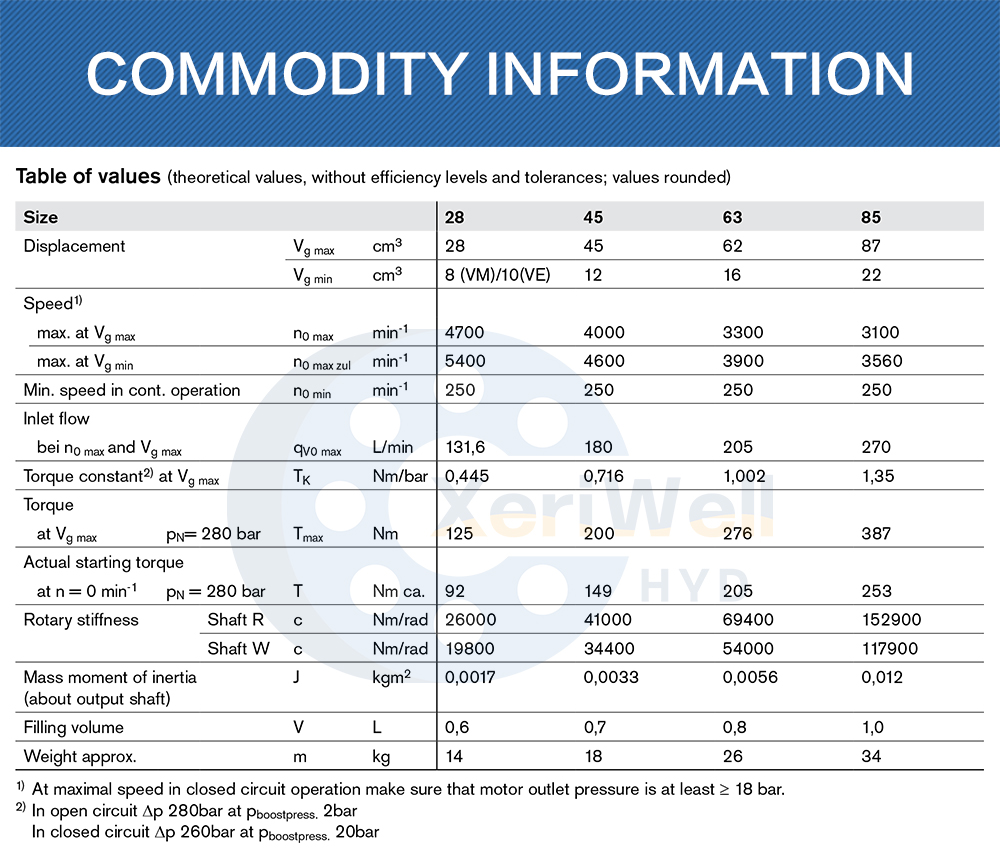

| Table of values (theoretical values,without efficiency levels and tolerances;values rounded) | ||||||
| Size | 28 | 45 | 63 | 85 | ||
| Displacement | Vg max | cm3 | 28 | 45 | 62 | 87 |
| Vg min | cm3 | 8 (VM)/10(VE) | 12 | 16 | 22 | |
| Speed1) | ||||||
| max. at Vg max | n0 max | min-1 | 4700 | 4000 | 3300 | 3100 |
| max. at Vg min | n0 max zul | min-1 | 5400 | 4600 | 3900 | 3560 |
| Min. speed in cont. operation | n0 min | min-1 | 250 | 250 | 250 | 250 |
| Inlet flow | ||||||
| bei n0 maxand Vg max | qV0 max | L/min | 131,6 | 180 | 205 | 270 |
| Torque constant2)at Vg max | TK | Nm/bar | 0,445 | 0,716 | 1002 | 1,35 |
| Torque | ||||||
| at Vg max pN= 280 bar | Tmax | Nm | 125 | 200 | 276 | 387 |
| Actual starting torque | ||||||
| at n = 0 min-1 pN= 280 bar | T | Nm ca. | 92 | 149 | 205 | 253 |
| Rotary stiffness Shaft R | c | Nm/rad | 26000 | 41000 | 69400 | 152900 |
| Shaft W | c | Nm/rad | 19800 | 34400 | 54000 | 117900 |
| Mass moment of inertia (about output shaft) | J | kgm2 | 0,0017 | 0,0033 | 0,0056 | 0,012 |
| Filling volume | V | L | 0,6 | 0,7 | 0,8 | 1,0 |
| Weight approx. | m | kg | 14 | 18 | 26 | 34 |
| 1)At maximal speed in closed circuit operation make sure that motor outlet pressure is at least ≥ 18 bar. 2)In open circuit Δp 280bar at pboostpress. 2bar In closed circuit Δp 260bar at pboostpress. 20bar | ||||||
