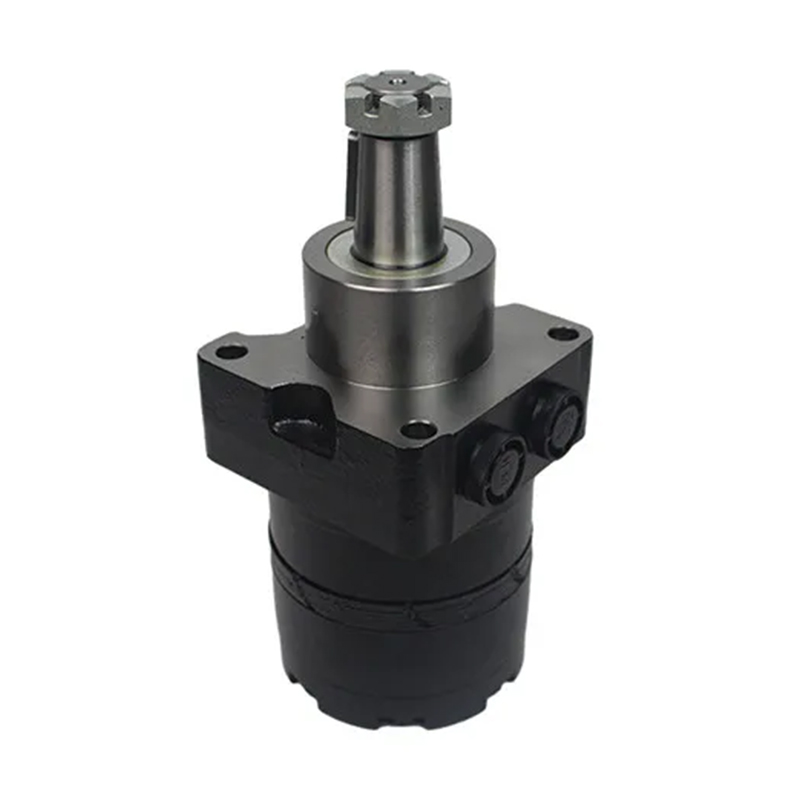

Replacement Wheel Flange Torque Motor for Parker TG, TF & BMER-3 Series, 375ml/R Displacement, 38.1mm Shaft

You are here: Home » Products » Hydraulic Motor » Ungrouped » Replacement Wheel Flange Torque Motor for Parker TG, TF & BMER-3 Series, 375ml/R Displacement, 38.1mm Shaft

Replacement Wheel Flange Torque Motor for Parker TG, TF & BMER-3 Series, 375ml/R Displacement, 38.1mm Shaft

Replacement Wheel Flange Torque Motor for Parker TG, TF & BMER-3 Series, 375ml/R Displacement, 38.1mm Shaft

Pictures are for display only, please contact us to choose the right product for you.

Quantity:
Availability:





Inquire Add to Basket

Model:
BMER3-375-WS-T31-R
Brand:
Xeriwell or Others

Product Description

Product:	Hydraulic Motor	Model No.:	BMER3-375-WS-T31-R
Size:	375 Ml/r	Flange:	4 Bolt Wheel Mount
Shaft:	Cone-shaft 38.1mm	Rotation:	Counter Clockwise
Speed:	200 - 240 Ml/r	Torque:	990 - 1360 Rpm
Pressure Drop:	20.5 - 27.6 MPa	Max Flow:	75 - 95 Lpm
Highlight:	TG parker torque motor , 38.1mm Shaft parker torque motor , TF parker low speed high torque motors

Parker TG TF BMER-3 series Torque Motor 375ml/r wheel mounting 38.1mm shaft

Quick review:

Product, Hydraulic Motor
Model No., BMER3-375-WS-T31-R
Size, 375 ml/r
Flange, 4 bolt wheel mount
Shaft, Cone-shaft 38.1mm
Rotation, Counter clockwis
Speed, 200 - 240 ml/r
Torque, 990 - 1360 rpm
Pressure Drop, 20.5 - 27.6 MPa
Max flow, 75 - 95 Lpm

Specification:

Type		BMER	BMER	BMER	BMER	BMER	BMER	BMER	BMER	BMER	BMER	BMER
Type		125	160	200	230	250	300	350	375	475	540	750
Geometric displacement (cm3/rev.)		118	156	196	228	257	296	345	371	462	540	745
Max. speed (rpm)	cont.	360	375	330	290	290	250	220	200	160	140	100
Max. speed (rpm)	int.	490	470	425	365	350	315	270	240	195	170	120
Max. torque (N•m)	cont.	325	450	530	625	700	810	905	990	1085	980	1050
	int.	380	525	600	710	790	930	1035	1140	1180	1240	1180
	peak	450	590	750	870	980	1120	1285	1360	1260	1380	1370
Max. output (kW)	cont.	12.0	15.0	15.5	16.0	17.5	18.0	17.5	16.5	14.5	11.5	8.0
Max. output (kW)	int.	14.0	17.5	18.0	19.0	20.0	21.0	20.0	19.0	16.5	15.0	10.0
Max. pressure drop (MPa)	cont.	20.5	20.5	20.5	20.5	20.5	20.5	20.5	20.5	17.5	14	10.5
	int.	24	24	24	24	24	24	24	24	19	17.5	12
	peak	27.6	27.6	27.6	27.6	27.6	27.6	27.6	27.6	20.5	20.5	14
Max. flow (L/min)	cont.	45	60	70	70	75	80	80	75	75	75	75
Max. flow (L/min)	int.	60	75	85	85	90	95	95	90	90	90	90

Customers seeking replacement Parker TG & TF hydraulic torque motors will be offered our Xeriwell BMER series as the ideal interchangeable alternative.

Our BMER series boasts extensive customizable options covering displacements, mounting flanges, oil ports and shaft sizes, with hundreds of configurations available to perfectly fit the installation and working requirements of all Parker TG/TF motor users.

A standout design feature of the BMER motor is its flange-mounted valve cavity. Genuine Parker TG and TF units place the valve cavity underneath the motor body, while Xeriwell’s innovative layout relocates this component to the flange side. Despite the structural difference, it fully matches the original Parker TG valve cavity performance. The redesign delivers a more compact, streamlined structure with superior cost efficiency.

This motor caters to clients who prioritize reliable performance without overpaying for brand markups.

For OEM manufacturers: It delivers equivalent core performance while cutting redundant procurement costs.
For hydraulic motor importers: It enriches your product portfolio, fills gaps in your existing product lineup, offers an alternative solution for your clients, and showcases your professional hydraulic product supply capacity to better satisfy your target market demands.

More BMER series to match Parker TF series

More Parker replacement motor available:
