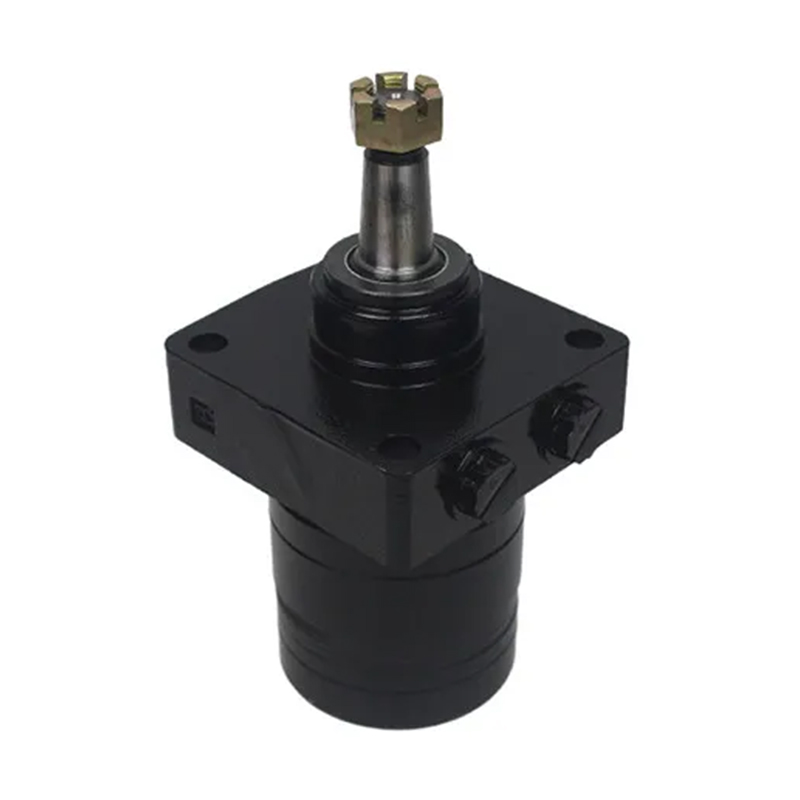

Replacement Wheel Flange Torque Motor, Parker TE/TB/TC/BME2 Series, Displacement 160ml/R

You are here: Home » Products » Hydraulic Motor » Ungrouped » Replacement Wheel Flange Torque Motor, Parker TE/TB/TC/BME2 Series, Displacement 160ml/R

Replacement Wheel Flange Torque Motor, Parker TE/TB/TC/BME2 Series, Displacement 160ml/R

Pictures are for display only, please contact us to choose the right product for you.

Quantity:
Availability:





Inquire Add to Basket

Model:
BME2-160-WS-T-B
Brand:
Xeriwell or Others

Product Description

Product:	High Torque Hydraulic Motor	Model Number:	BME2-160-WS-T-B
Displacement:	160 Ml/r	Speed:	283 - 355 Rpm
Torque:	307 - 422 Nm	Output:	8.9 - 15.6 Kw
Pressure Drop:	14 - 20 MPa	Flange:	Wheel Mount

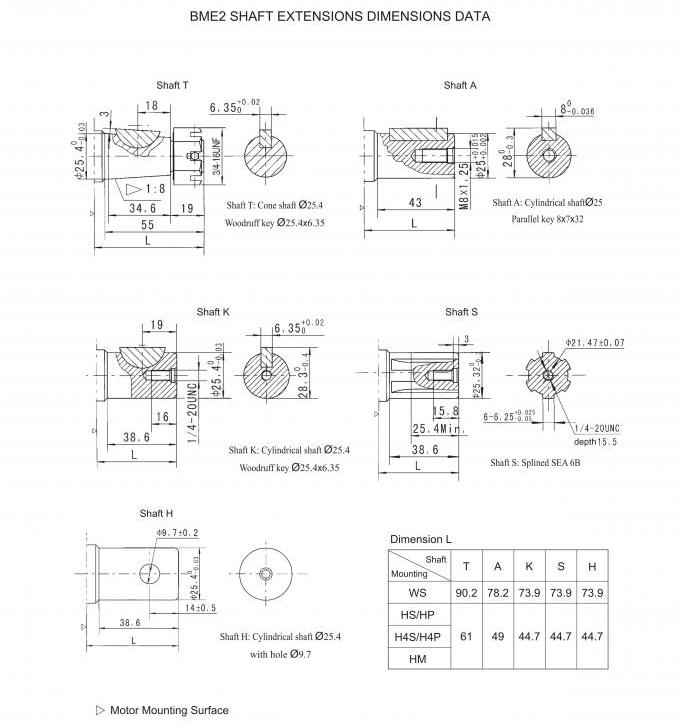

Shaft:	25.4mm Cone-shaft	Rotation:	CCW
Highlight:	BME2 parker torque motor , 160ml/R parker torque motor

Parker TE TB TC BME2 series Torque Motor wheel flange replacement 160ml/r

Quick review:

Model number: BME2-160-WS-T-B
Displacement, 160 ml/r
Speed, 283 - 355 rpm
Torque, 307 - 422 Nm
Output, 8.9 - 15.6 Kw
Pressure Drop, 14 - 20 MPa
Flange, Wheel mount
Shaft, 25.4mm cone-shaft
Rotation, CCW
Features, suit Parker TB, TC, TE

We provide hydraulic system solutions for hydraulic trailer system.

BME2 is the most selected application for trailer hydraulic system.
Welcome to contact us for consultation.

From ligh duty to heavy duty, we have them.

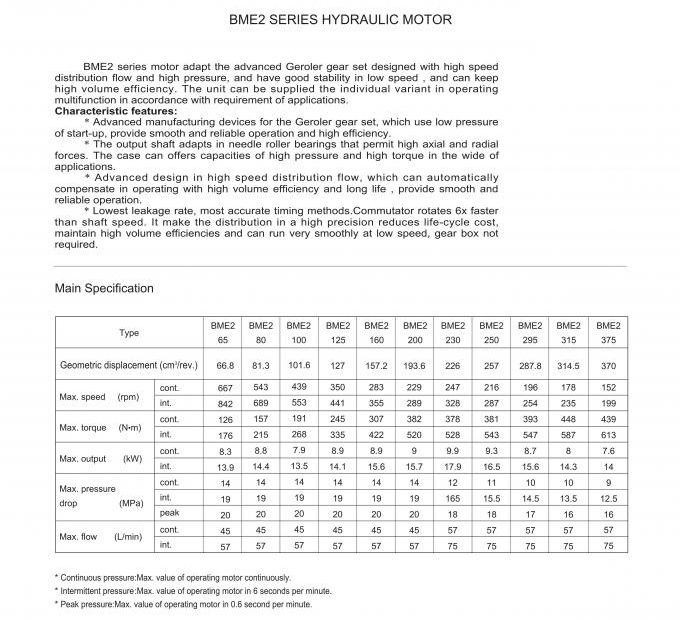

Here is it's technical details:

Type		BME2	BME2	BME2	BME2	BME2	BME2	BME2	BME2	BME2	BME2	BME2
Type		65	80	100	125	160	200	230	250	295	315	375
Geometric displacement (cm3 /rev.)		66.8	81.3	101.6	127	157.2	193.6	226	257	287.8	314.5	370
Max. speed (rpm)	cont.	667	543	439	350	283	229	247	216	196	178	152
Max. speed (rpm)	int.	842	689	553	441	355	289	328	287	254	235	199
Max. torque (N•m)	cont.	126	157	191	245	307	382	378	381	393	448	439
Max. torque (N•m)	int.	176	215	268	335	422	520	528	543	547	587	613
Max. output (kW)	cont.	8.3	8.8	7.9	8.9	8.9	9	9.9	9.3	8.7	8	7.6
Max. output (kW)	int.	13.9	14.4	13.5	14.1	15.6	15.7	17.9	16.5	15.6	14.3	14
Max. pressure drop (MPa)	cont.	14	14	14	14	14	14	12	11	10	10	9
	int.	19	19	19	19	19	19	165	15.5	14.5	13.5	12.5
	peak	20	20	20	20	20	20	18	18	17	16	16
Max. flow (L/min)	cont.	45	45	45	45	45	45	57	57	57	57	57
Max. flow (L/min)	int.	57	57	57	57	57	57	75	75	75	75	75

Our BME2 series torque motors serve as direct interchangeable replacements for Parker TE, TB and TC series units — interchangeable alternatives are our core specialty.

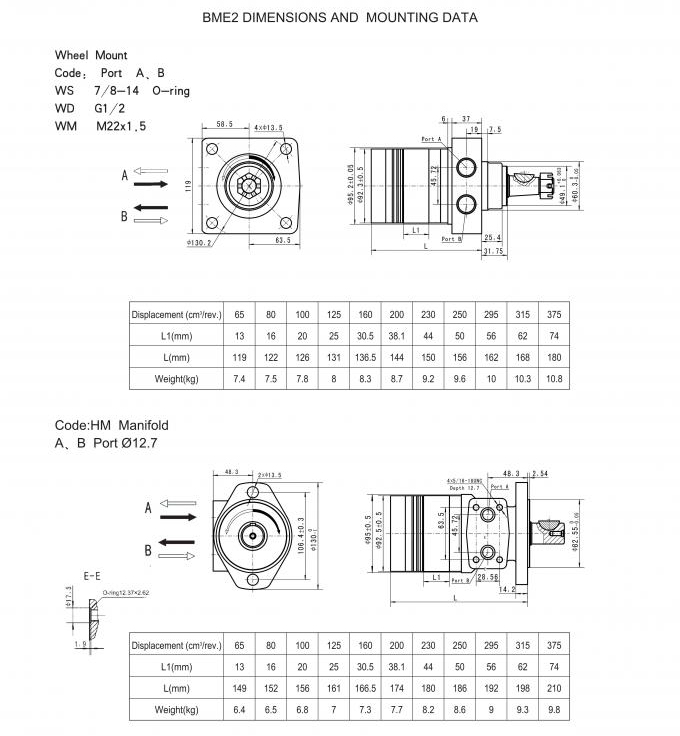

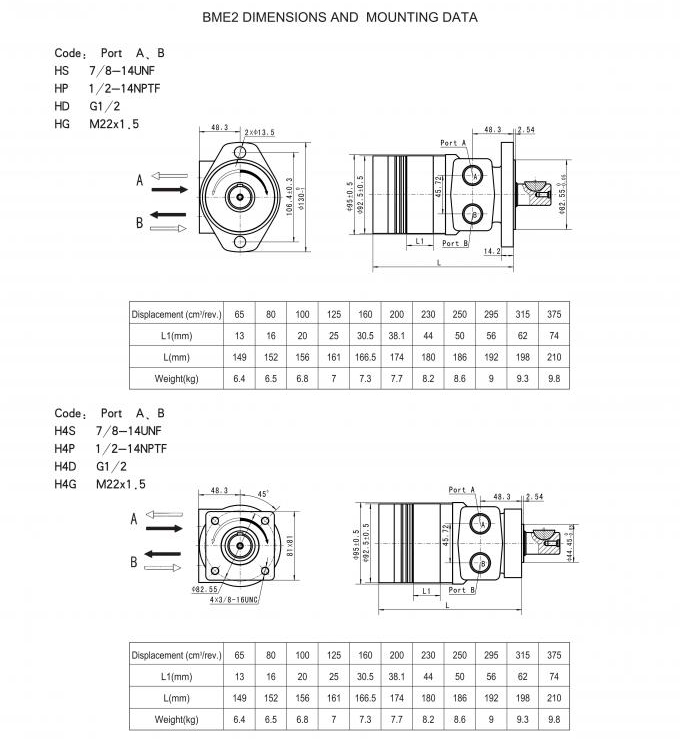

Identical overall outlines and mounting dimensions to original Parker motors enable plug-and-play installation. No modifications to your existing hydraulic system are required, and the unit fits seamlessly into all original Parker motor applications.

It matches OEM-level performance of genuine Parker motors yet comes at a price over 40% lower, supported by reliable, expedited lead times. We also maintain a comprehensive portfolio of model specifications to meet diverse demands.

Our full lineup of high-speed and low-speed motors delivers output torque up to 613 N·m, with operating speeds spanning 152 rpm to 842 rpm. Both gear and gerotor displacement configurations are available across a complete size range.

Xeriwell hydraulic motors feature outstanding overall efficiency, reliable wear compensation functionality and extended service lifespans for consistent long-term operation.
