| Quantity: | |
|---|---|
BMER-2-350
Xeriwell or Others
| Product: | TORQMOTOR | Model Number: | TG Series MOTOR |
|---|---|---|---|
| Applications: | Agricultural Machines, Mowers | Rotary: | Counter Clockwise |
| Flange: | 6 BOLT MAGNETO | Shaft: | 32mm Straight Shaft |
| Highlight: | TG0335 parker tg series motor,Agricultural Machines parker tg series motor,TG0335 parker torqmotor tg series | ||

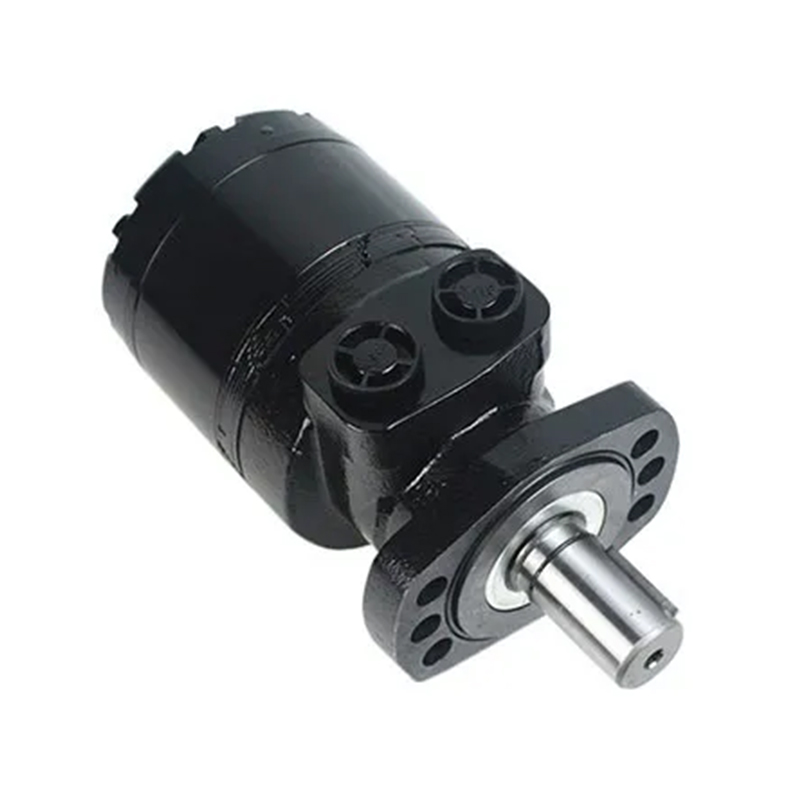

TG0335 Parker TG series torqmotor 6 Bolt Magneto, 1/2" BSP Side Ports for agricultural machines
Part Number:
TG0335EW460AAAA
BMER-2-350-FS-B1-R-B LSHT Hydraulic Motor
6 Bolt Magneto Mount
Displacement (475cc)
32mmKeyed Shaft
#10 SAE ports (7/8-14 UNF)
Specifications:
| CODE | DISPLACEMENT | CONT MAX | INTER MAX | CONT MAX FLOW | INTER MAX FLOW lpm (gpm) | CONT MAX TORQUE Nm (lb-in) | INTER MAX TORQUE Nm (lb-in) | CONT MAX PRESSURE BAR (psi) | INTER MAX PRESSURE BAR (psi) | PEAK MAX PRESSURE BAR (psi) |
| cc (in3/rev) | SPEED rpm | SPEED rpm | lpm (gpm) | |||||||
| 120 | 121 (7.4) | 360 | 490 | 45 (12) | 61 (16) | 327 (2900) | 383 (3400) | 207 (3000) | 241 (3500) | 276 (4000) |
| 160 | 162 (9.9) | 370 | 470 | 61 (16) | 76 (20) | 475 (4200) | 542 (4800) | 207 (3000) | 241 (3500) | 276 (4000) |
| 200 | 204 (12.4) | 300 | 370 | 68 (18) | 83 (22) | 542 (4800) | 633 (5600) | 207 (3000) | 241 (3500) | 276 (4000) |
| 230 | 232 (14.2) | 260 | 320 | 68 (18) | 83 (22) | 644 (5700) | 712 (6300) | 207 (3000) | 241 (3500) | 276 (4000) |
| 260 | 261 (15.9) | 260 | 350 | 76 (20) | 91 (24) | 712 (6300) | 791 (7000) | 207 (3000) | 241 (3500) | 276 (4000) |
| 300 | 300 (18.3) | 250 | 320 | 83 (22) | 95 (25) | 825 (7300) | 938 (8300) | 207 (3000) | 241 (3500) | 276 (4000) |
| 350 | 348 (21.2) | 220 | 270 | 83 (22) | 95 (25) | 921 (8150) | 1045 (9250) | 207 (3000) | 241 (3500) | 276 (4000) |
| 375 | 375 (22.8) | 200 | 250 | 76 (20) | 91 (24) | 1006 (8900) | 1158 (10250) | 207 (3000) | 241 (3500) | 276 (4000) |
| 470 | 465 (28.3) | 160 | 200 | 76 (20) | 91 (24) | 1096 (9700) | 1184 (10475) | 172 (2500) | 189 (2750) | 207 (3000) |
| 540 | 536 (32.7) | 140 | 170 | 76 (20) | 91 (24) | 983 (8700) | 1243 (11000) | 138 (2000) | 172 (2500) | 207 (3000) |
| 750 | 748 (45.6) | 100 | 130 | 76 (20) | 91 (24) | 1062 (9400) | 1237 (10950) | 103 (1500) | 121 (1750) | 138 (2000) |
1. Construction industry
6. Renewable energy
In conclusion, hydraulic motors have diverse applications across various industries. Their ability to generate high torque, provide precise control, and operate in extreme conditions makes them indispensable for powering heavy machinery and equipment. From construction and agriculture to manufacturing and renewable energy, hydraulic motors play a crucial role in enhancing productivity and efficiency in numerous sectors.
Xeriwell hydraulic motor expert, rich specifications, rapid manufacturing, reasonable price, perfect service, looking forward to your consultation
