Replacement TK0500K5360AAAB Low Speed High Torque Hydraulic Motor for Parker Mining Conveyors

Replacement TK0500K5360AAAB Low Speed High Torque Hydraulic Motor for Parker Mining Conveyors

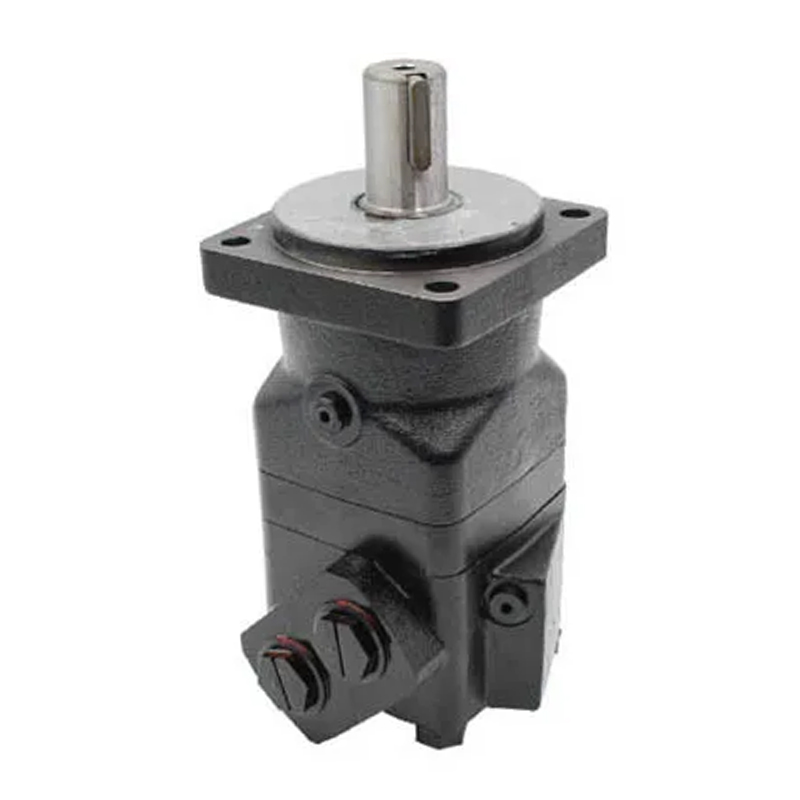

Pictures are for display only, please contact us to choose the right product for you.

Quantity:
Availability:





Inquire Add to Basket

Model:
BMTE 500
Brand:
Xeriwell or Others

Product Description

Product:

Low Speed Hydraulic Motor

Seires:

BMTE Series

Size:

500 Cm3/rev

Feature:

Parker Replacement

Highlight:

hydraulic rotation motor

hydraulic pump motor

Mining conveyers Parker's Low Speed High Torque Motor TK0500K5360AAAB replacement

TK0500K5360AAAB = BMTE500

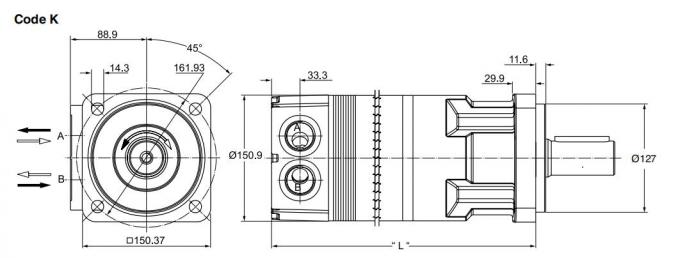

Mounting: Standard SAE CC

Displacement: 500 cm3/rev

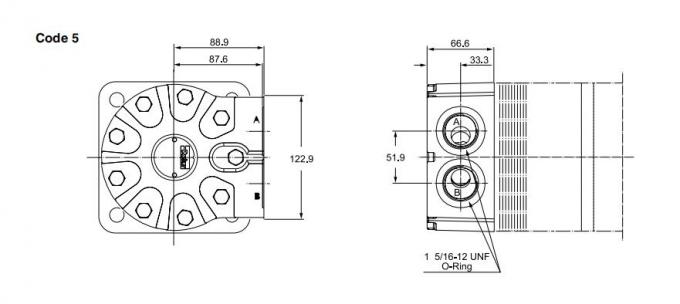

Ports: 1 5/16-12 SAE Rear Radial

Maximum Speed: 298 rev/min

Maximum Torque - Continuous / Intermittent: 1439 Nm (12736 lb in) / 1914 Nm (16940 lb in)

Maximum Oil Flow (continuous / intermittent): 114 lpm (30 gpm) / 151 lpm (40 gpm)

Xeriwell produce and supply hydraulic motors to replace Parker TE, TJ, TG, TF, TB series

Also viable replacement for the Eaton 6K & 10K, OMT & OMV and White DT

Main Specifications:

Type		BMT 160	BMT 200	BMT 230	BMT 250	BMT 315	BMT 400	BMT 500	BMT 630	BMT 800
Geometric displacement (cm3 /rev.)		161.1	201.4	232.5	251.8	326.3	410.9	523.6	629.1	801.8
Max. speed (rpm)	cont.	625	625	536	500	380	305	240	196	154
Max. speed (rpm)	int.	780	750	643	600	460	365	285	233	185
Max. torque (N·m)	cont.	470	590	670	730	950	1080	1220	1318	1464
	int.	560	710	821	880	1140	1260	1370	1498	1520
	peak	669	838	958	1036	1346.3	1450.3	1643.8	1618.8	1665
Max. output (kW)	cont.	27.7	34.9	34.7	34.5	34.9	31.2	28.8	25.3	22.2
Max. output (kW)	int.	32	40	40	40	40	35	35	27.5	26.8
Max. pressure drop (MPa)	cont.	20	20	20	20	20	18	16	14	12.5
	int.	24	24	24	24	24	21	18	16	13
	peak	28	28	28	28	28	24	21	19	16
Max. flow (L/min)	cont.	100	125	125	125	125	125	125	125	125
Max. flow (L/min)	int.	125	150	150	150	150	150	150	150	150
Max. inlet pressure (MPa)	cont.	21	21	21	21	21	21	21	21	21
	int.	25	25	25	25	25	25	25	25	25
	peak	30	30	30	30	30	30	30	30	30
Weight (kg)		19.5	20	20.4	20.5	21	22	23	24	25

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

Applications

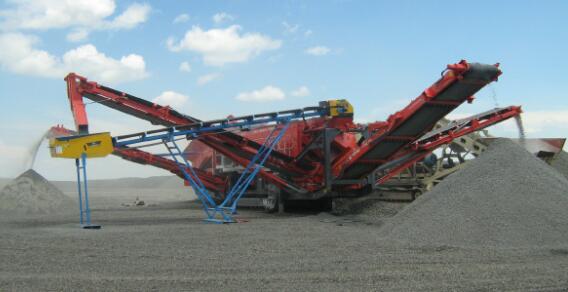

• Mining conveyers

• Mobile mixer-feeders

• Steel handling equipment

• Ride-on concrete trowels

• Mobile concrete mixing

• Drill rig motors

• Injection molding

• Rock power crushers

• Concrete trowels

• Concrete screed

• Waste recycler
