| Quantity: | |
|---|---|
V20
Xeriwell or Others
| Product Name: | High Efficiency Hydraulic Vane Pump | Standard: | Sandard |
|---|---|---|---|
| Rotation: | Right Hand Or Clockwise | Inlet Port Connection: | Pipe Thread Connection |
| SAE Rated Capacity: | 23.5gpm | ||
| Highlight: | high pressure gear pump,small gear pump | ||

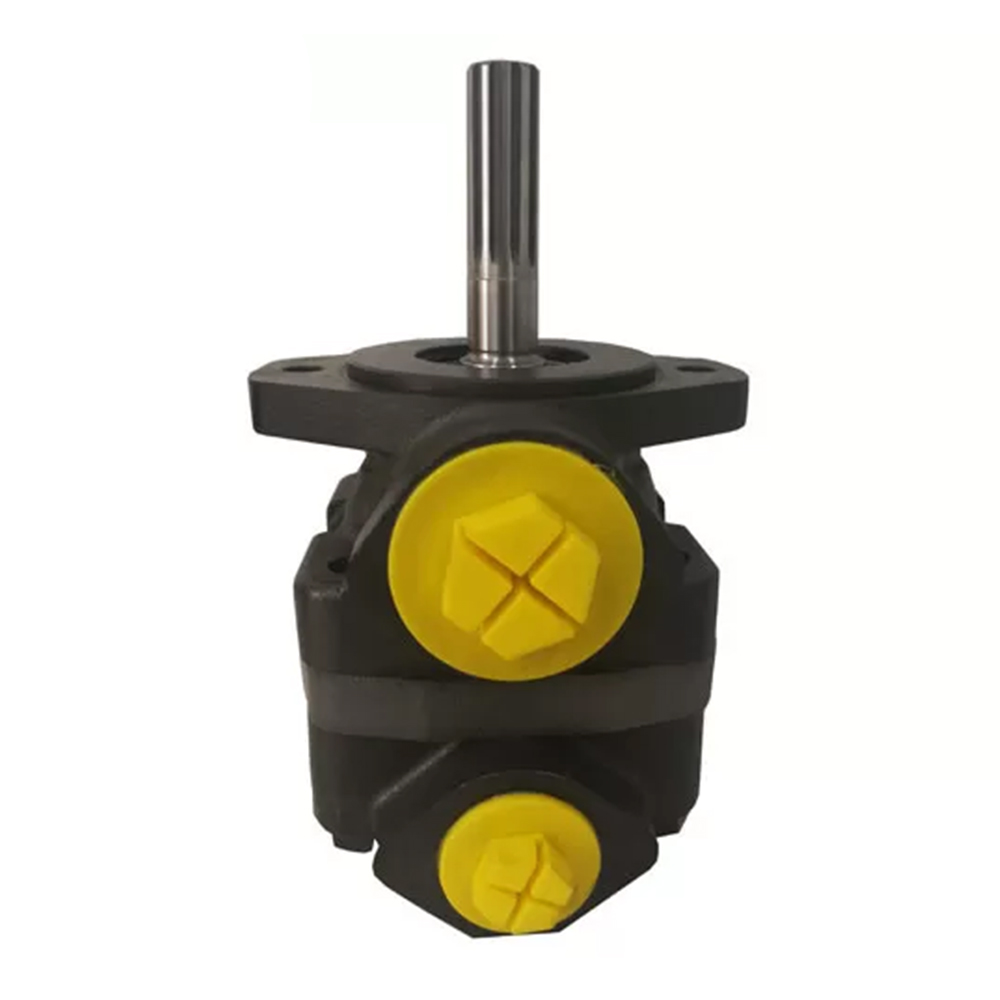

high quality Eaton Vickers V20 series Hydraulic Vane Pump replacement hydraulic vane pump
Xeriwell is engaged in the design, development and sales of hydraulic machinery products for many years. The products include all orbital motors, gear pumps, vane pumps, orbitrol steering units,directional control valves, hydraulic spare parts and many other areas.
This product is suitable for excavators, pavers, injection molding machines, road rollers, cement pump trucks, concrete mixers, pistons, cranes, ceramic machinery, steel, machinery.
| Series | Code | Inlet Connection P-1 NPT | |||
| Outlet Position- view from cover end | |||||
| A-opposite inlet port | B-90 CCW from inlet | C-inline with inlet | D-90CW from inlet | ||
| V20 | 6 | V20-P6P-1A-10R | V20-P6P-1B-10R | V20-P6P-1C-10R | V20-P6P-1D-10R |
| 7 | V20-P7P-1A-10R | V20-P7P-1B-10R | V20-P7P-1C-10R | V20-P7P-1D-10R | |
| 8 | V20-P8P-1A-10R | V20-P8P-1B-10R | V20-P8P-1C-10R | V20-P8P-1D-10R | |
| 9 | V20-P9P-1A-10R | V20-P9P-1B-10R | V20-P9P-1C-10R | V20-P9P-1D-10R | |
| 10 | V20-P10P-1A-10R | V20-P10P-1B-10R | V20-P10P-1C-10R | V20-P10P-1D-10R | |
| 11 | V20-P11P-1A-10R | V20-P11P-1B-10R | V20-P11P-1C-10R | V20-P11P-1D-10R | |
| 12 | V20-P12P-1A-10R | V20-P12P-1B-10R | V20-P12P-1C-10R | V20-P12P-1D-10R | |
| 13 | V20-P13P-1A-10R | V20-P13P-1B-10R | V20-P13P-1C-10R | V20-P13P-1D-10R | |
| Series | Code | Inlet Connection S-1.325-12 straight | |||
| Outlet Position- view from cover end | |||||
| A-opposite inlet port | B-90 CCW from inlet | C-inline with inlet | D-90CW from inlet | ||
| V20 | 6 | V20-S6S-1A-10R | V20-S6S-1B-10R | V20-S6S-1C-10R | V20-S6S-1D-10R |
| 7 | V20-S7S-1A-10R | V20-S7S-1B-10R | V20-S7S-1C-10R | V20-S7S-1D-10R | |
| 8 | V20-S8S-1A-10R | V20-S8S-1B-10R | V20-S8S-1C-10R | V20-S8S-1D-10R | |
| 9 | V20-S9S-1A-10R | V20-S9S-1B-10R | V20-S9S-1C-10R | V20-S9S-1D-10R | |
| 10 | V20-S10S-1A-10R | V20-S10S-1B-10R | V20-S10S-1C-10R | V20-S1S-1D-10R | |
| 11 | V20-S11S-1A-10R | V20-S11S-1B-10R | V20-S11S-1C-10R | V20-S11S-1D-10R | |
| 12 | V20-S12S-1A-10R | V20-S12S-1B-10R | V20-S12S-1C-10R | V20-S12S-1D-10R | |
| 13 | V20-S13S-1A-10R | V20-S13S-1B-10R | V20-S13S-1C-10R | V20-S13S-1D-10R | |
1. High performance, low noise and long life
2. Completely interchangeable with Vickers original
3. Very competitive price
4. 1 year of warranty
5. For industrial machinery and agricultural machinery etc.
6. Short delivery time
Our other hydraulic products
Buy from professional who has specialized in hydraulic products for agricultural and industrial applications for over 10 years. Free technical support, and we service overseas customers, and all products are covered with one year warranty
