| Quantity: | |
|---|---|
500540A5120AAAAA
Xeriwell or Others
| Product: | Medium Duty Hydraulic Motor | Model Number: | RE Series |
|---|---|---|---|
| Applications: | Hydraulic System Request High Pressure | Rotary: | Counter-clockwise |
| Flange: | 4 Hole Mounting | Shaft: | Straight Shaft |
| Highlight: | 500540A5120AAAAA parker tg motor,Medium Duty Hydraulic parker tg motor | ||

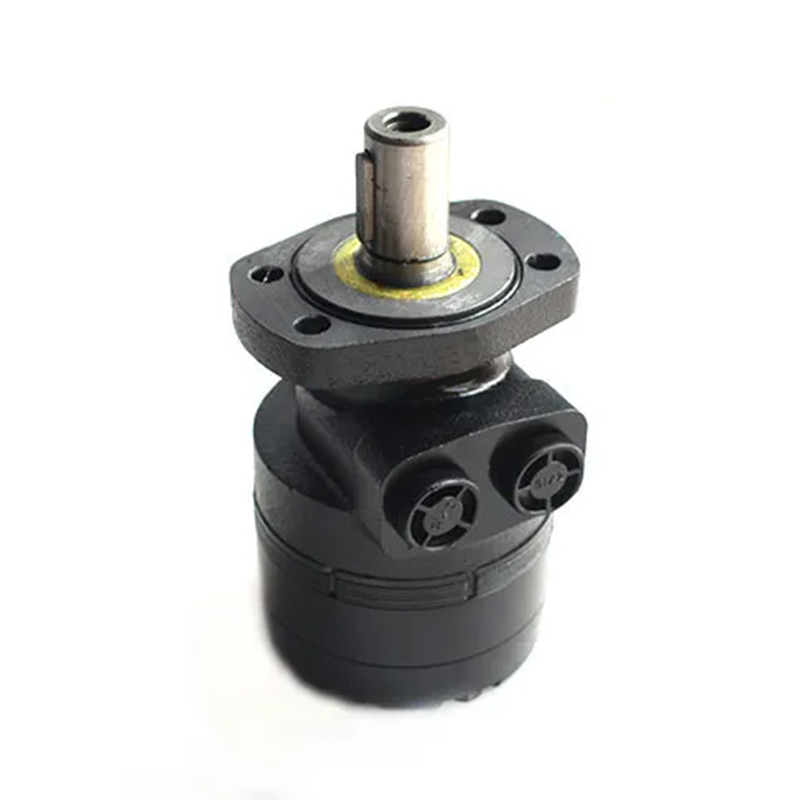

500540A5120AAAAA Replacement Hydraulic Motor of Parker TG, White 500 series torqmotor
Quick view:
RE series is one replacement type for White RE series. Now White short supply, delivery long, price expensive, many customers come to find this as a directly replacement for White RE.
Part Number:
500540A5120AAAAA
BMER-2-540-FS-G2-R-B LSHT Hydraulic Motor
4 Bolt Magneto Mount
32.94 Cu In. Displacement (540cc)
1-1/4" Keyed Shaft
#10 SAE ports (7/8-14 UNF)
Replaces the following brands and model numbers
Dynamic : BMER-2-540-FS-G2-S-R
White: 500540A5120AAAAA
White:505540A5120AAAAA
Parker:TG0530ES030AAAA
Specifications:
| CODE | DISPLACEMENT | CONT MAX | INTER MAX | CONT MAX FLOW | INTER MAX FLOW lpm (gpm) | CONT MAX TORQUE Nm (lb-in) | INTER MAX TORQUE Nm (lb-in) | CONT MAX PRESSURE BAR (psi) | INTER MAX PRESSURE BAR (psi) | PEAK MAX PRESSURE BAR (psi) |
| cc (in3/rev) | SPEED rpm | SPEED rpm | lpm (gpm) | |||||||
| 120 | 121 (7.4) | 360 | 490 | 45 (12) | 61 (16) | 327 (2900) | 383 (3400) | 207 (3000) | 241 (3500) | 276 (4000) |
| 160 | 162 (9.9) | 370 | 470 | 61 (16) | 76 (20) | 475 (4200) | 542 (4800) | 207 (3000) | 241 (3500) | 276 (4000) |
| 200 | 204 (12.4) | 300 | 370 | 68 (18) | 83 (22) | 542 (4800) | 633 (5600) | 207 (3000) | 241 (3500) | 276 (4000) |
| 230 | 232 (14.2) | 260 | 320 | 68 (18) | 83 (22) | 644 (5700) | 712 (6300) | 207 (3000) | 241 (3500) | 276 (4000) |
| 260 | 261 (15.9) | 260 | 350 | 76 (20) | 91 (24) | 712 (6300) | 791 (7000) | 207 (3000) | 241 (3500) | 276 (4000) |
| 300 | 300 (18.3) | 250 | 320 | 83 (22) | 95 (25) | 825 (7300) | 938 (8300) | 207 (3000) | 241 (3500) | 276 (4000) |
| 350 | 348 (21.2) | 220 | 270 | 83 (22) | 95 (25) | 921 (8150) | 1045 (9250) | 207 (3000) | 241 (3500) | 276 (4000) |
| 375 | 375 (22.8) | 200 | 250 | 76 (20) | 91 (24) | 1006 (8900) | 1158 (10250) | 207 (3000) | 241 (3500) | 276 (4000) |
| 470 | 465 (28.3) | 160 | 200 | 76 (20) | 91 (24) | 1096 (9700) | 1184 (10475) | 172 (2500) | 189 (2750) | 207 (3000) |
| 540 | 536 (32.7) | 140 | 170 | 76 (20) | 91 (24) | 983 (8700) | 1243 (11000) | 138 (2000) | 172 (2500) | 207 (3000) |
| 750 | 748 (45.6) | 100 | 130 | 76 (20) | 91 (24) | 1062 (9400) | 1237 (10950) | 103 (1500) | 121 (1750) | 138 (2000) |
Here are example RE alternative available from us:
| 530300A5130AAAAA | 500200A5102AAAAA | 500160A5120AAAAA |
| 530375A5130AAAAA | 500200A5123AAAAA | 500160W3120AAAAA |
| 500540A3123ZAAAA | 500230A3102AAAAA | 500200A5120AAAAA |
| 500200A5122AAAAA | 500260A3110AAAAA | 500230A3122AAAAA |
| 500375W3122AAAAA | 500300A5102AAAAA | 500230A5120AAAAA |
| 500300W3122AAAAA | 505300A5120AAAAA | 500260A3123AJAAA |
| 500230W3122AAAAA | 500300K3122AAAAA | 500470W3120AAAAA |
| 500120W3120AAAAA | 500350A5123AAAAA | 500470W3120AEAAA |
| 500160W3122AAAAA | 500375A5120AAAAA | 505540A5120AAAAA |
| 500260W3120AAAAA | 500470A5120AAAAA | 500540W3120AAAAA |
| 500200W3122AAAAA | 500470W3122AAAAA | 500540W3122AAAAA |
| 500260W3122AAAAA | 500540A5123AAAAA | 501750K3122ACAAA |
| 500750A5120AFAAA | 505750A5120AAAAA | 501540A5123AAAAA |
| 500540W3120AEAAA | 500120A5102AAAAA | 501200A3123AAAAA |
| 500540A3122AABAA | 500350W3122AAAAA | 501540A5122AABAA |
| 500470A3120AAAAA | 500160A3110AAAAA | 500230A5101AAAAA |
| 520300A5103AAAAA | 520300W3125AAAAA | 530200X3831AABACS |
| 530300T31N8AAABRP | 530230X3131ZAAAAS | 530200X3122AAAAAS |
| 530230X3131ZAAAAP | 530200X3122AAAAAP |
If you are looking for other White Drive Motors, we also have :
