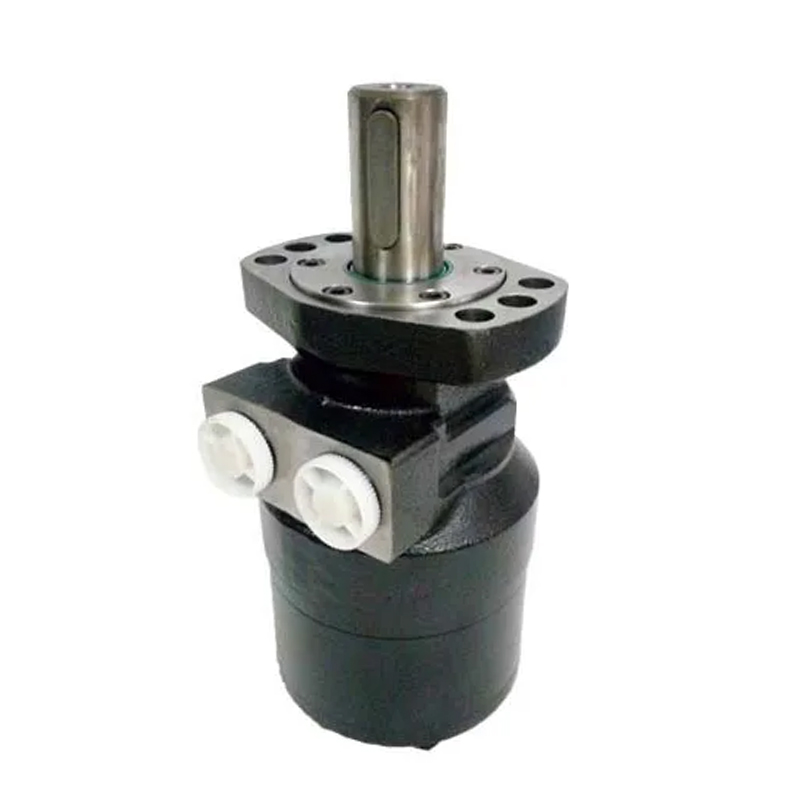

BMH 500
Xeriwell or Others
| Type: | Concrete Pump Hydraulic Motor | Brand: | Xeriwell |
|---|---|---|---|
| Model No.: | BMH | Displacement: | 500ml/r |
| Feature: | Interchange OMH, M+S MH, Ross ME, Parker TG, White RE, ... | Apply: | Concrete Pump & Truck Mixer Of Putzmeister, Schwing, Mercedes-Benz, ... |
| Highlight: | fixed displacement hydraulic motor,hydraulic pump motor | ||
Low RPM Hydraulic Motor, Concrete Pump Parts For Putzmeister, Schwing,
Product features:
Xeriwell BMH series motors apply to Concrete Pump & Truck Mixer of Putzmeister, Schwing, , ...
Replace OEM parts of the above machines, interchange OMH, M+S MH, Ross ME, Parker TG, White RE, ...
China top quality
Displacement 400ml/r, 500ml/r, 630ml/r, 750ml/r
RPM cont. 155 - 366
RPM int. 184 - 439
Torque cont. 510 - 830 NM
Torque int. 579 - 1040 NM
Torque peak. 651 - 1170 NM
Characteristic Features:
Advanced manufacturing devices for the Gerolor gear set, which use low pressure of start-up,provide smooth, reliable operation and high efficiency.
Shaft seal can bear high pressure of back and the motor can be used in parallel or series.
Special design in the driver-linker and prolong operating life.
Special design for distribution system can meet the requirement of low noise of unit.
Compact volume and easy installation
Model Crossing:
| MOTOR CROSS REFERENCE TABLE | ||||||||
| Xeriwell HYDRAULIC | M+S HYDRAULIC | EATON CHAR LYNN | ROSS TRW | WHITE CROSS | PARKER | SAM BREVINI | RECROTH | |
| BMM | MM MLHK | J SERIES | OMM | BGM | MGX | |||
| BMP/BM1 | MP HP | H SERIES | OMP DH | MF MG | WP RS | TC TE TB | BG | MGP GXP |
| BMR/BM2 | MR HR MLHRW,RW | S,T SERIES W SERIES | OMR DS OMEW | MB | WR RE | TF | BR | MGR GMR |
| BMH/BM4 | MH MLHH HW HWF | OMH | ME | RE | TG | |||
| BMS/BM5 | MS MSY MLHS | 2000 SERIES | OMS | ME | RE | TG | HPR | MGS GMS |
| BMT/BM6 | MT MLHT MTM | 6000 SERIES | OMT TMT | MJ | HT | MGT,GMT | ||
| BMV | MV MLHV | 10000 SERIES | OMV | MGV GMV | ||||

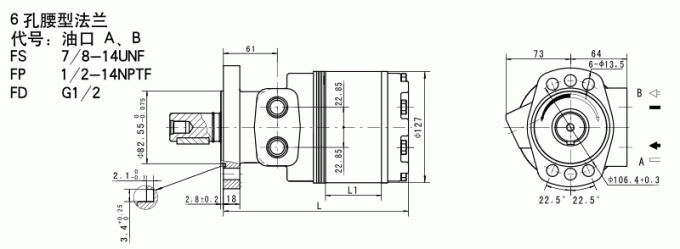

BMH hydraulic motor Main specifiction:
| Type | BMH 200 | BMH 250 | BMH 315 | BMH 400 | BMH 500 | |
Displacement (cc/rev) | 203.2 | 255.9 | 316.5 | 406.4 | 489.2 | |
Max torque (n.m) | cont | 510 | 621 | 740 | 850 | 830 |
| int | 439 | 348 | 282 | 220 | 184 | |
Max pressure (mpa) | cont | 17.5 | 17.5 | 17.5 | 15.5 | 12.5 |
| int | 20 | 20 | 20 | 19 | 16 | |
Max speed rate (rpm) | cont | 366 | 290 | 236 | 183 | 155 |
| int | 439 | 348 | 282 | 220 | 184 | |
Max flow (L/min) | cont | 75 | 75 | 75 | 75 | 75 |
| int | 90 | 90 | 90 | 90 | 90 | |
Weight(kg) | 10.5 | 11 | 11.5 | 12.3 | 13.0 | |
