A8V
xeriwell or others

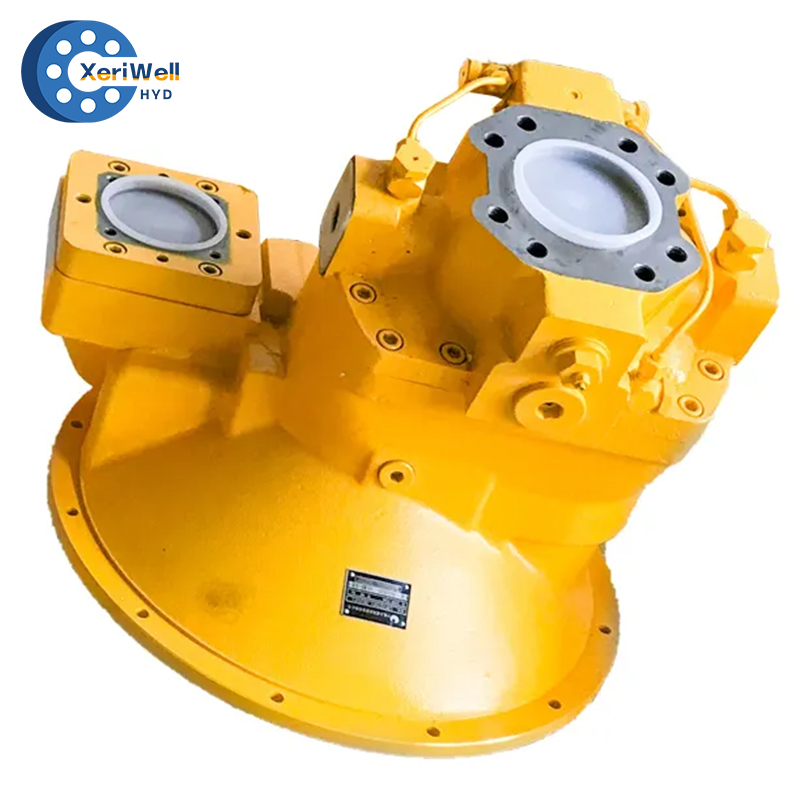

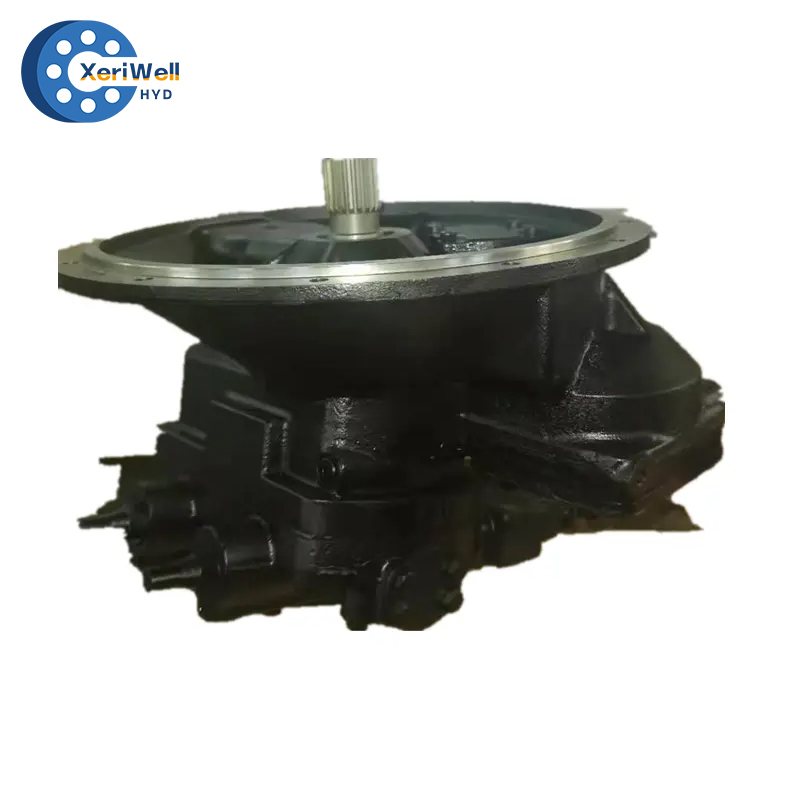

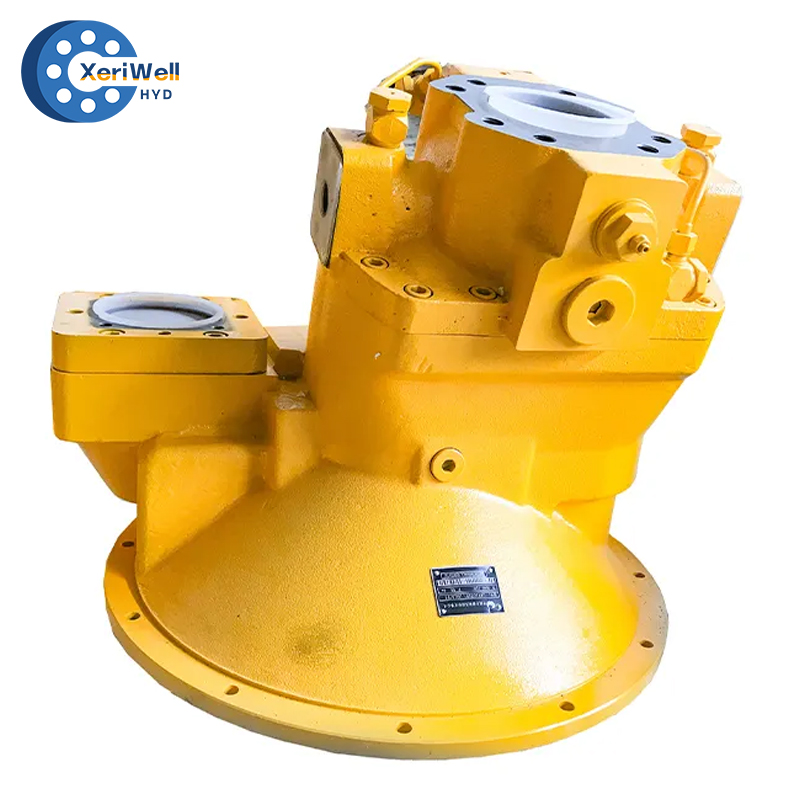

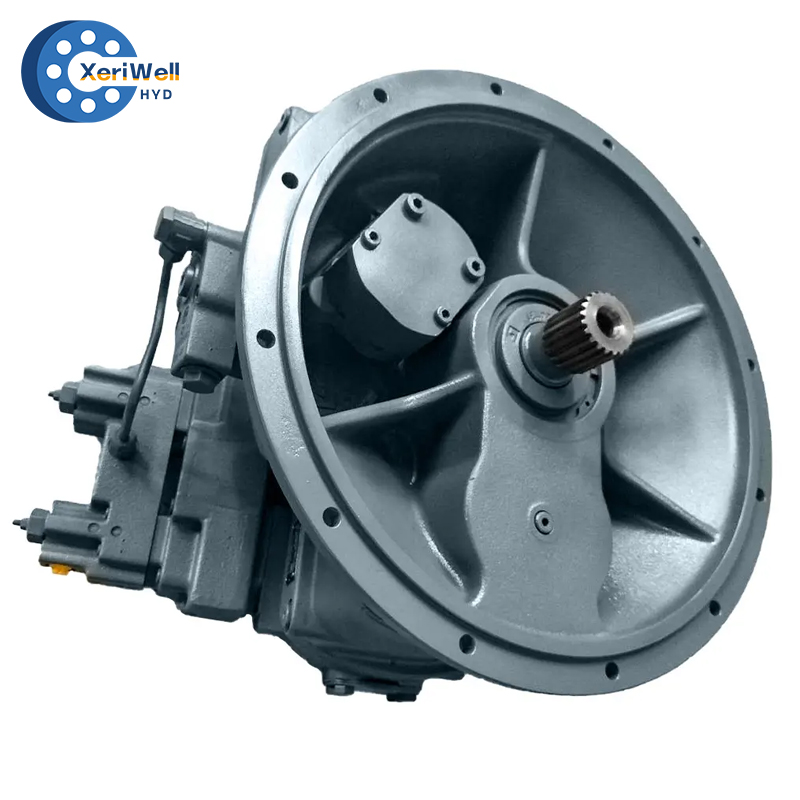

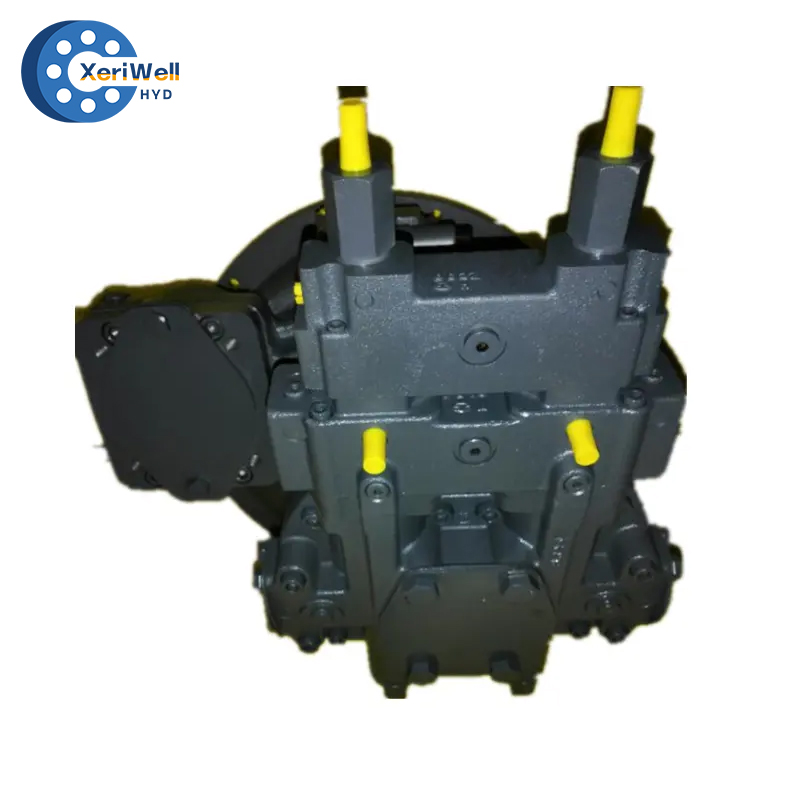

Rexroth A8V pump is a variable displacement double pump. Two variable pumps in a common housing, the splitter box, an SAE flange for direct mounting on to the prime mover and the control device-usually summation HP control.
Flow is proportional to speed by change the swivel angle.
Special Features:
The various design options with auxiliary drive and the possibility of multi-circuit control allow optimum matching to individual drive applications.
Type: A8V28, A8V55, A8V58, A8V80, A8V107, A8V125, A8V160

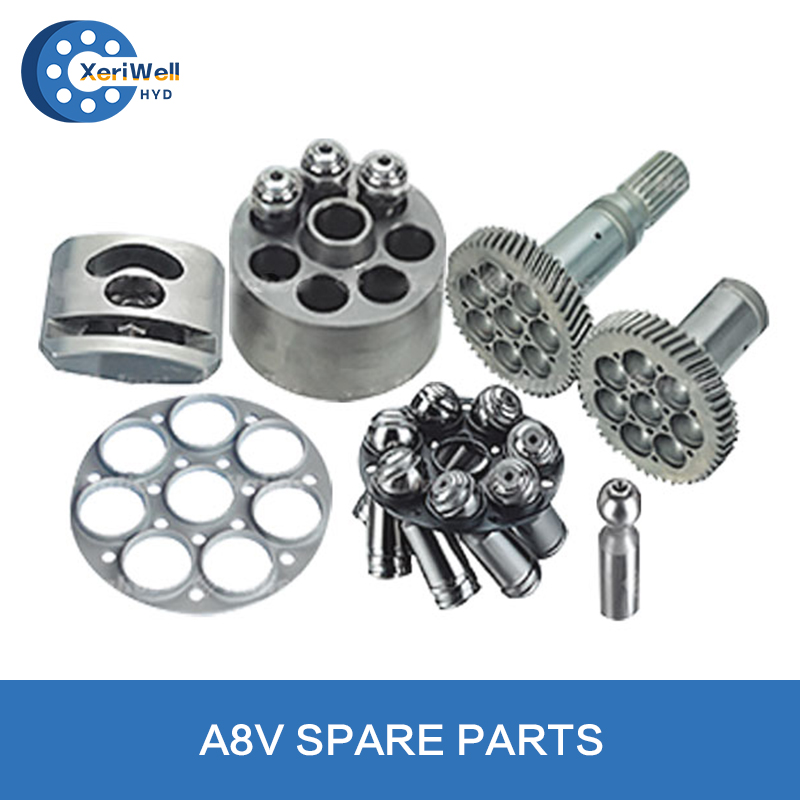

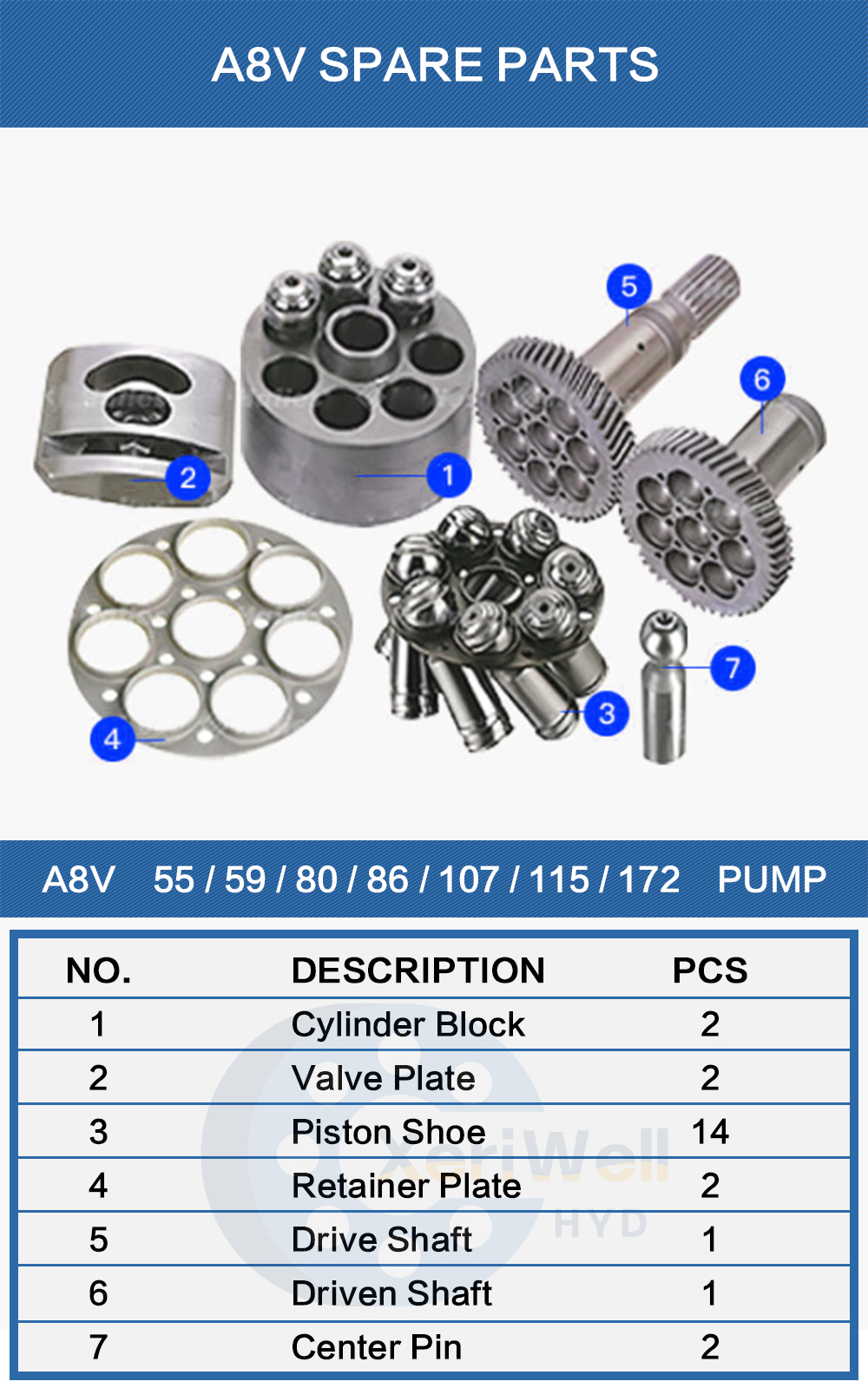

REXROTH A8V 28/55/58/59/80/86/107/115/125/160/172/200 Hydraulic Pump spare parts list:

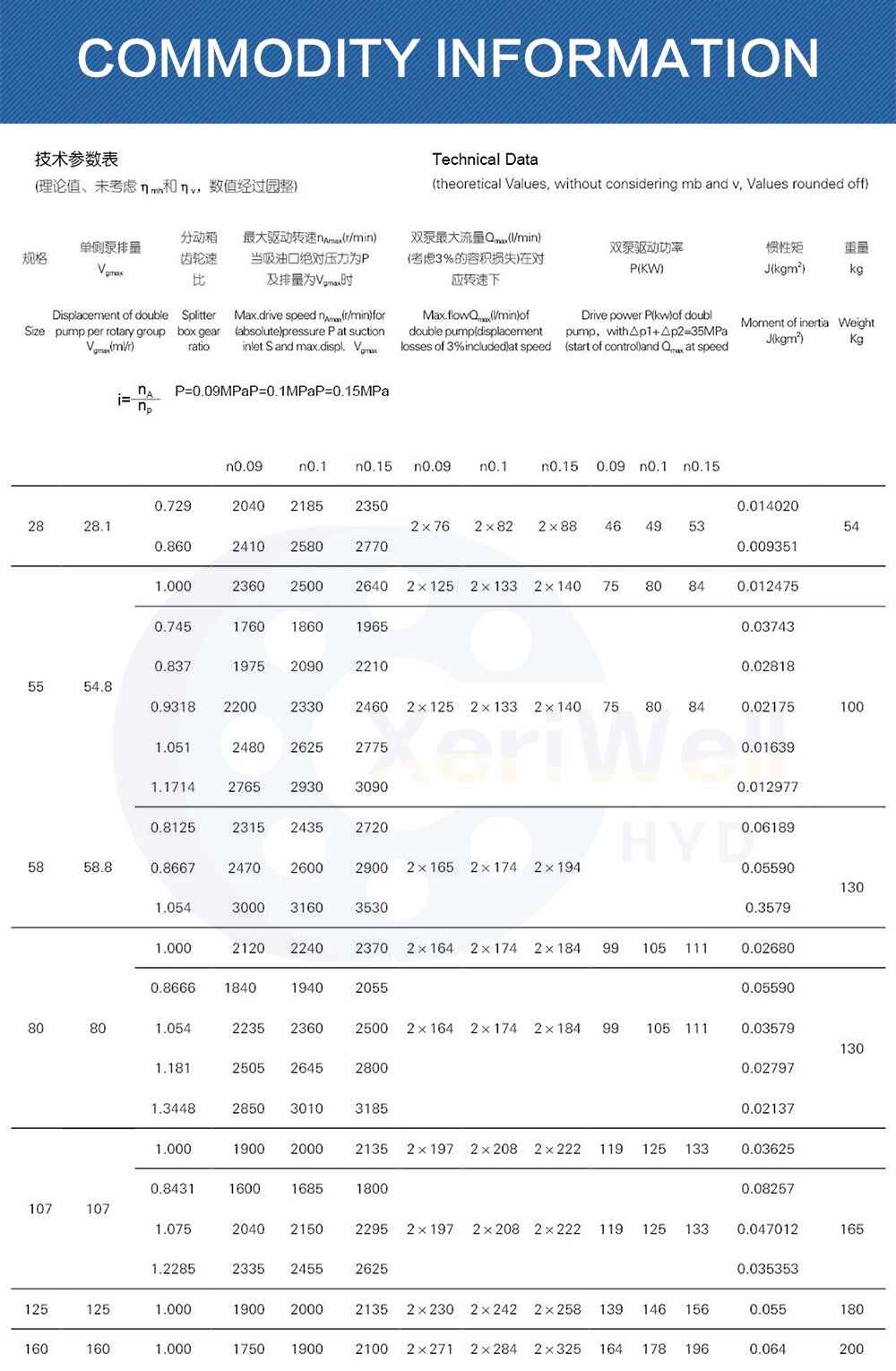

| n0.09 | n0.1 | n0.15 | n0.09 | n0.1 | n0.15 | 0.09 | n0.1 | n0.15 | |||||
| 28 | 28.1 | 0.729 | 2040 | 2185 | 2350 | 2 × 76 | 2 × 82 | 2 × 88 | 46 | 49 | 53 | 0.01402 | 54 |
| 0.86 | 2410 | 2580 | 2770 | 0.009351 | |||||||||
| 55 | 54.8 | 1 | 2360 | 2500 | 2640 | 2 × 125 | 2 × 133 | 2 × 140 | 75 | 80 | 84 | 0.012475 | |
| 0.745 | 1760 | 1860 | 1965 | 2 × 125 | 2 × 133 | 2 × 140 | 75 | 80 | 84 | 0.03743 | 100 | ||
| 0.837 | 1975 | 2090 | 2210 | 0.02818 | |||||||||
| 0.9318 | 2200 | 2330 | 2460 | 0.02175 | |||||||||
| 1.051 | 2480 | 2625 | 2775 | 0.01639 | |||||||||
| 1.1714 | 2765 | 2930 | 3090 | 0.012977 | |||||||||
| 58 | 58.8 | 0.8125 | 2315 | 2435 | 2720 | 2 × 165 | 2 × 174 | 2 × 194 | 0.06189 | 130 | |||
| 0.8667 | 2470 | 2600 | 2900 | 0.0559 | |||||||||
| 1.054 | 3000 | 3160 | 3530 | 0.3579 | |||||||||
| 80 | 80 | 1 | 2120 | 2240 | 2370 | 2 × 164 | 2 × 174 | 2 × 184 | 99 | 105 | 111 | 0.0268 | |
| 0.8666 | 1840 | 1940 | 2055 | 2 × 164 | 2 × 174 | 2 × 184 | 99 | 105 | 111 | 0.0559 | 130 | ||
| 1.054 | 2235 | 2360 | 2500 | 0.03579 | |||||||||
| 1.181 | 2505 | 2645 | 2800 | 0.02797 | |||||||||
| 1.3448 | 2850 | 3010 | 3185 | 0.02137 | |||||||||
| 107 | 107 | 1 | 1900 | 2000 | 2135 | 2 × 197 | 2 × 208 | 2 × 222 | 119 | 125 | 133 | 0.03625 | |
| 0.8431 | 1600 | 1685 | 1800 | 2 × 197 | 2 × 208 | 2 × 222 | 119 | 125 | 133 | 0.08257 | 165 | ||
| 1.075 | 2040 | 2150 | 2295 | 0.047012 | |||||||||
| 1.2285 | 2335 | 2455 | 2625 | 0.035353 | |||||||||
| 125 | 125 | 1 | 1900 | 2000 | 2135 | 2 × 230 | 2 × 242 | 2 × 258 | 139 | 146 | 156 | 0.055 | 180 |
| 160 | 160 | 1 | 1750 | 1900 | 2100 | 2 × 271 | 2 × 284 | 2 × 325 | 164 | 178 | 196 | 0.064 | 200 |
