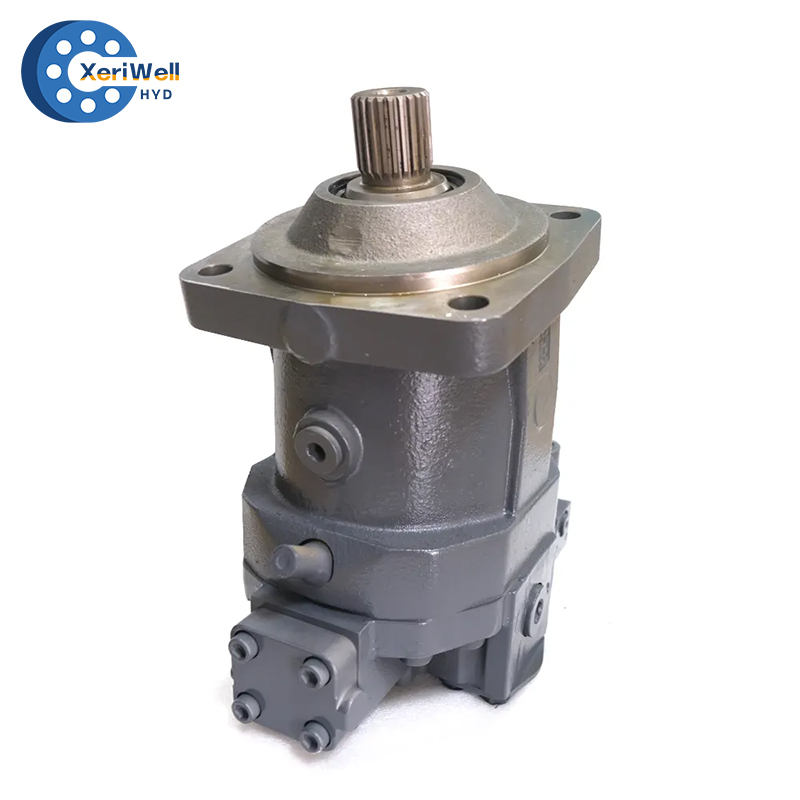

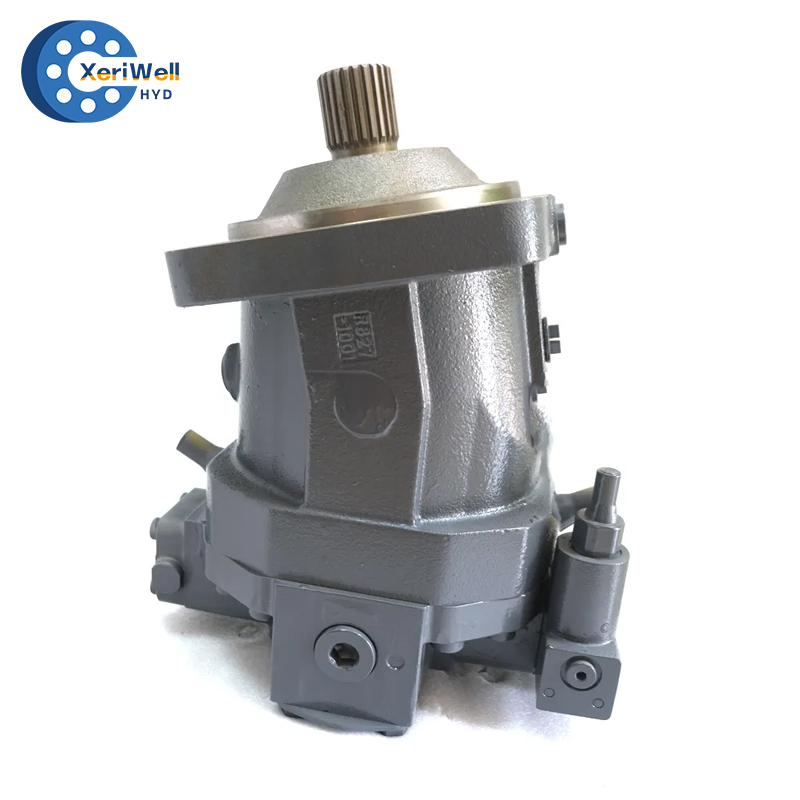

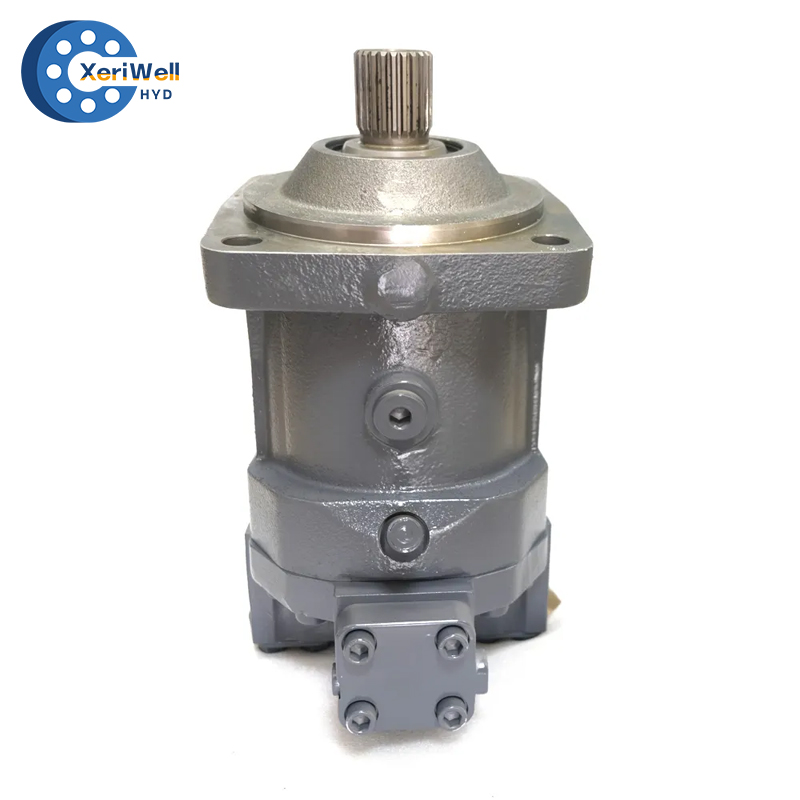

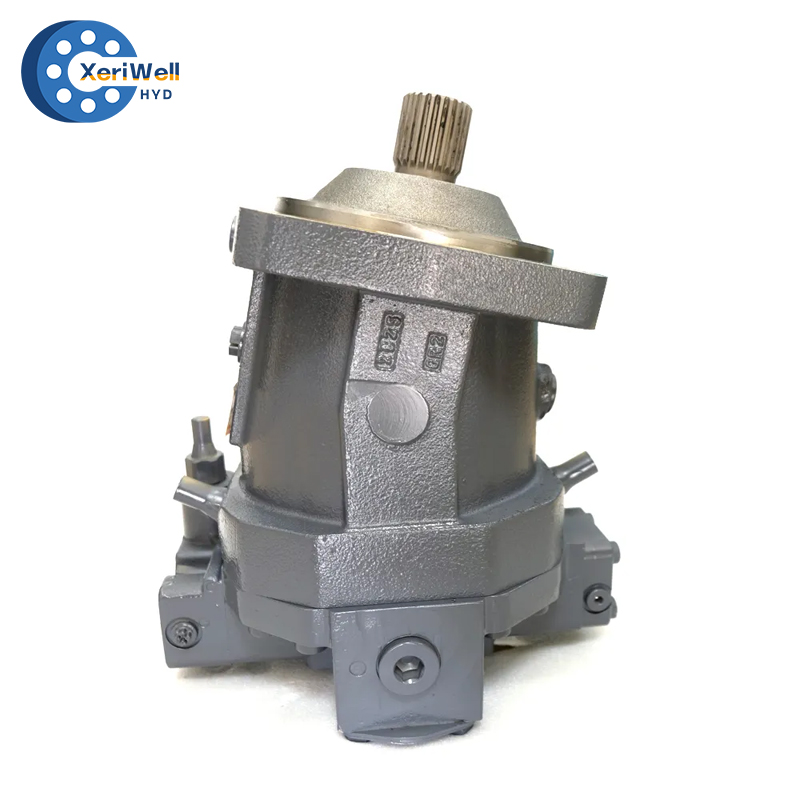

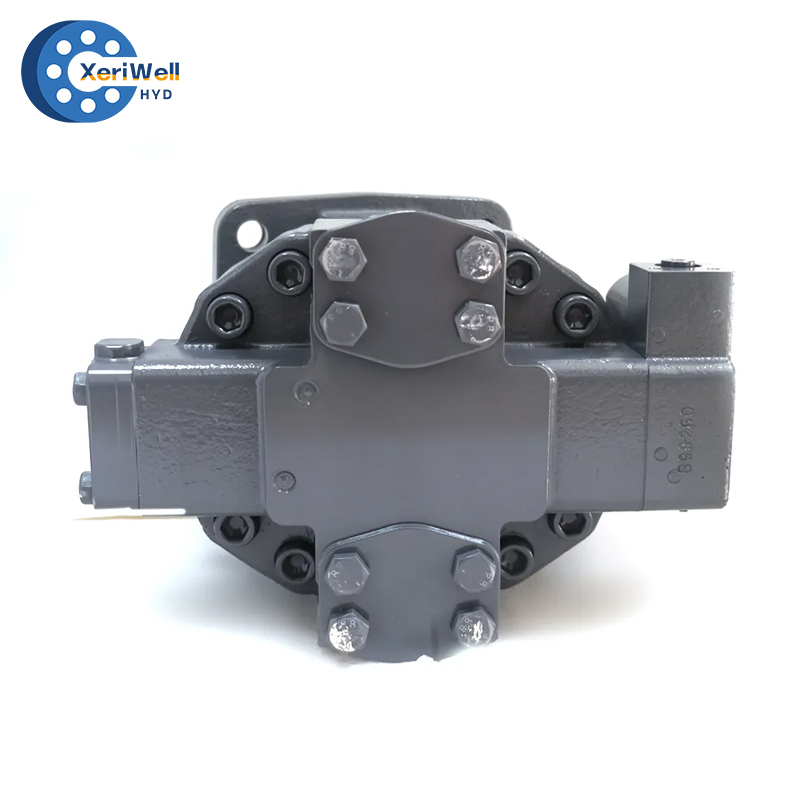

REXROTH A6VM Hydraulic Motor

Pictures are for display only, please contact us to choose the right product for you.

Quantity:
Type:	A6VM28 A6VM55 A6VM80 A6VM107 A6VM115 A6VM140 A6VM160 A6VM200 A6VM250 A6VM355 A6VM500 A6VM1000

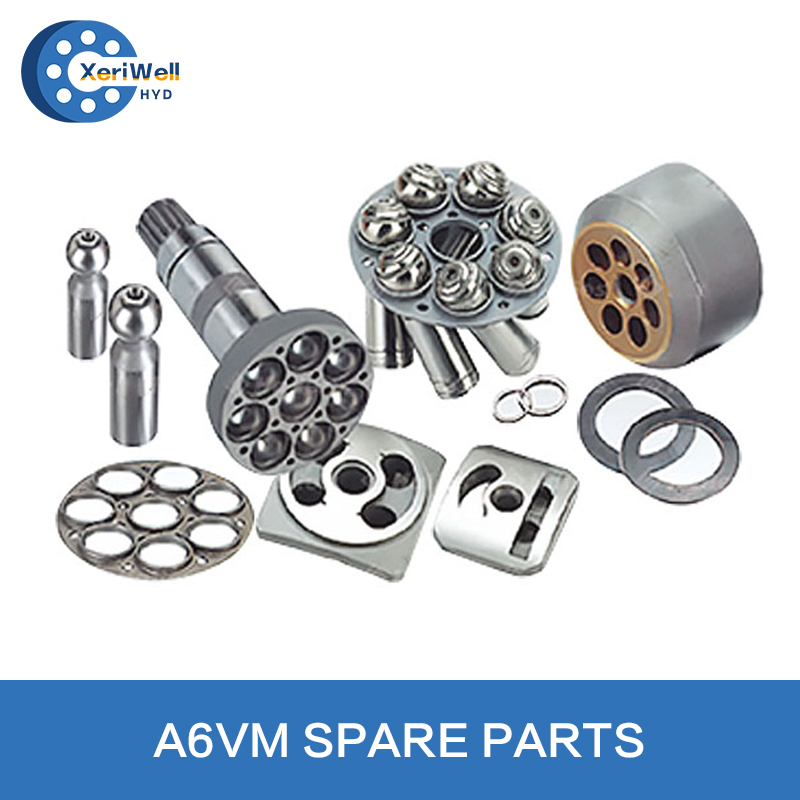

spare parts avaliable:	Cylinder Block Valve Plate Piston Shoe Piston Ring Retainer Plate Drive Shaft Center Pin Others
Availability:





Inquire Add to Basket

REXROTH A6VM Hydraulic Motor and spare parts

A6VM 28/55/80/107/115/140/160/200/250/355/500/1000 Hydraulic Motor technical data:

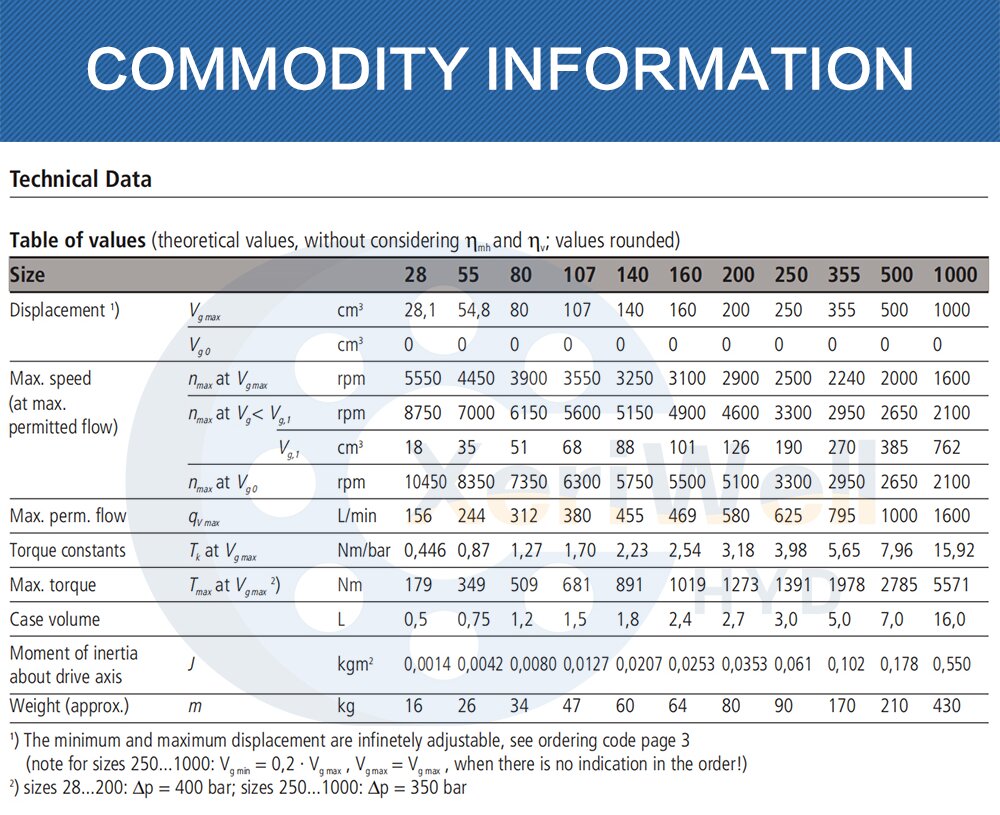

rexroth a6vm series 65 pdf

A6VM 28/55/80/107/115/140/160/200/250/355/500/1000 Hydraulic Motor spare parts list:

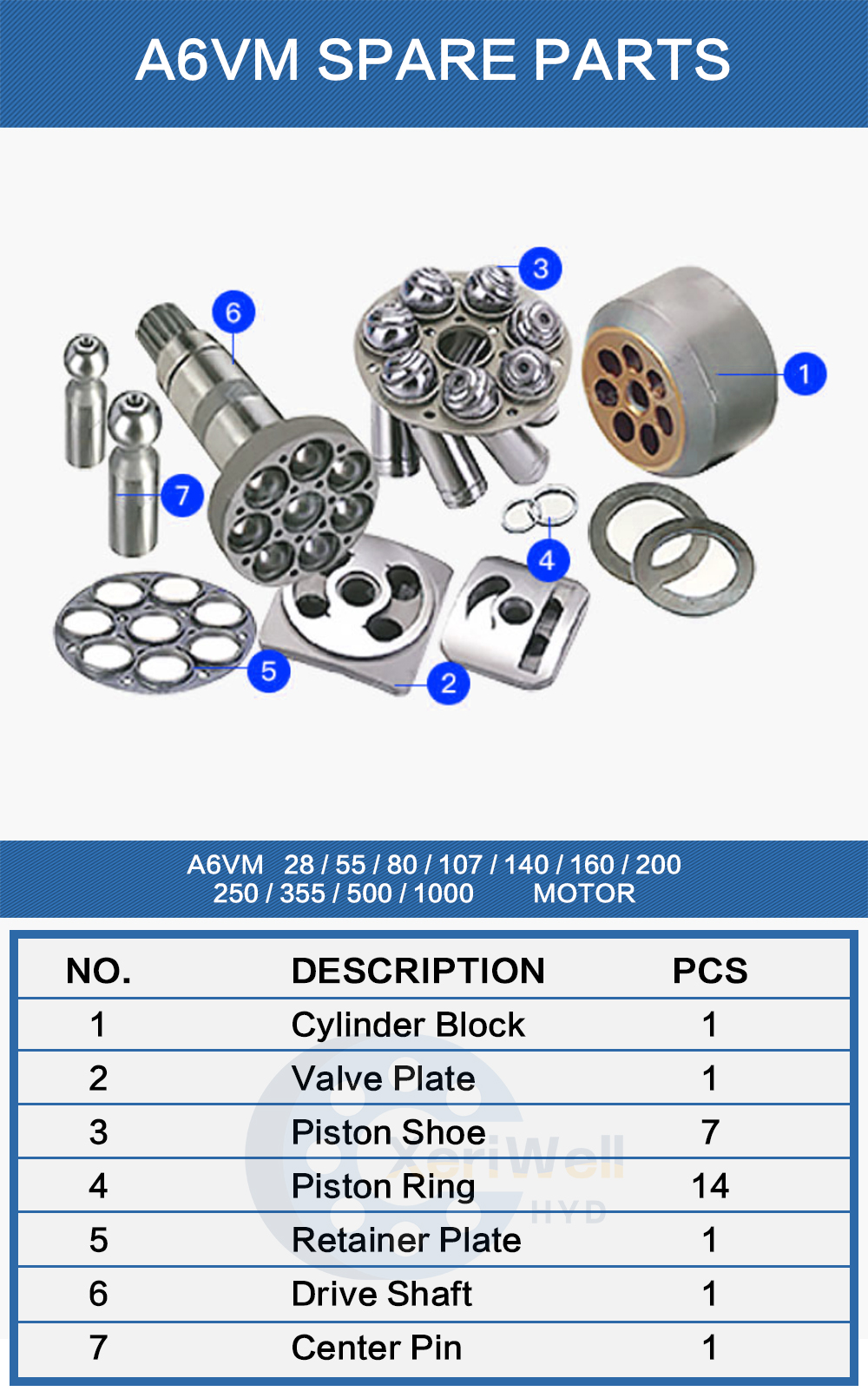

rexroth a6vm parts manual pdf

Table of values (theoretical values,without considering ηmhand ηvi;values rounded)

Size			28	55	80	107	140	160	200	250	355	500	1000
Displacement1)	Vg max	cm³	28,1	54,8	80	107	140	160	200	250	355	500	1000
Displacement1)	Vg 0	cm³	0	0	0	0	0	0	0	0	0	0	0
Max. speed (at max. permitted flow)	nmaxat Vg max	rpm	5550	4450	3900	3550	3250	3100	2900	2500	2240	2000	1600
	nmaxat Vg< Vg 1	rpm	8750	7000	6150	5600	5150	4900	4600	3300	2950	2650	2100
	Vg 1	cm³	18	35	51	68	88	101	126	190	270	385	762
	nmaxat Vg 0	rpm	10450	8350	7350	6300	5750	5500	5100	3300	2950	2650	2100
Max. perm. flow	qV max	L/min	156	244	312	380	455	469	580	625	795	1000	1600
Torque constants	Tkat Vg max	Nm/bar	0,446	0,87	1,27	1,70	2,23	2,54	3,18	3,98	5,65	7,96	15,92
Max. torque	Tmaxat Vg max2)	Nm	179	349	509	681	891	1019	1273	1391	1978	2785	5571
Case volume		L	0,5	0,75	1,2	1,5	1,8	2,4	2,7	3,0	5,0	7,0	16,0
Moment of inertia about drive axis	J	kgm²	0,0014	0,0042	0,0080	0,0127	0,0207	0,0253	0,0353	0,061	0,102	0,178	0,550
Weight (approx.)	m	kg	16	26	34	47	60	64	80	90	170	210	430
1)The minimum and maximum displacement are infinitely adjustable,see ordering code page 3 (note for sizes 250...1000:Vg min= 0,2 · Vg max,Vg max= Vg max,when there is no indication in the order!) 2)sizes 28...200:Δp = 400 bar;sizes 250...1000:Δp = 350 bar

Hydraulic
