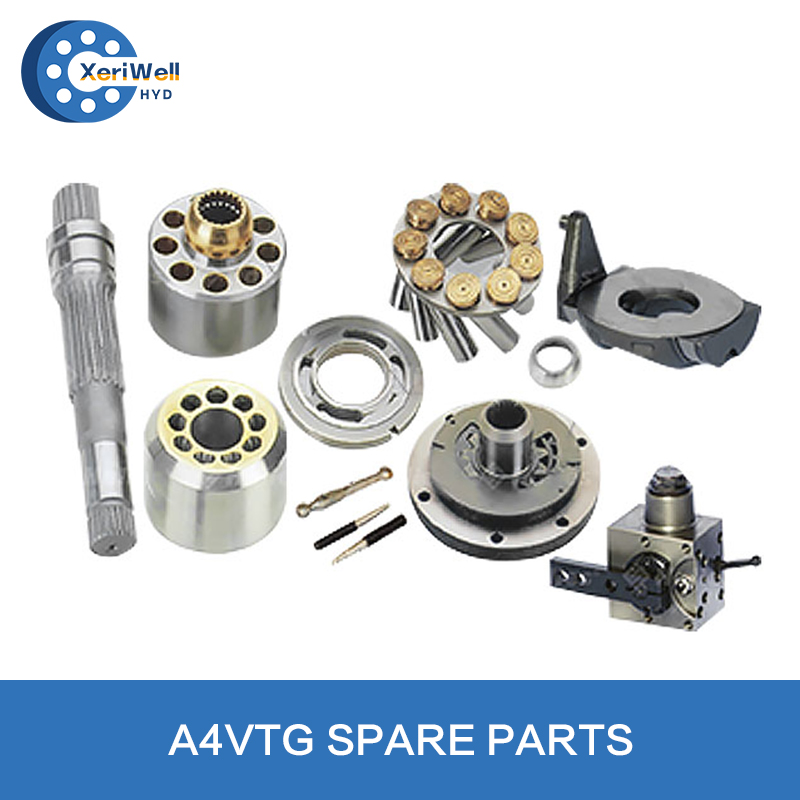

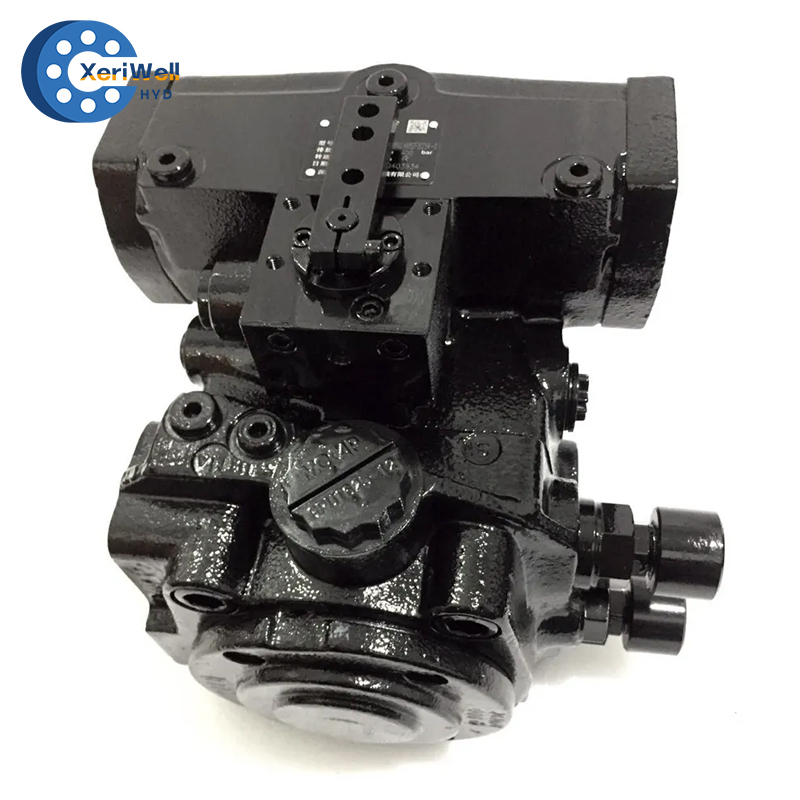

Rexroth A4VTG Axial Piston Variable Pump-Series 33 is designed for hydrostatic drives in closed circuits, specially used in mobile concrete mixers. These variable pumps have a swashplate design, which allows flow that is proportionate displacement and drive speed. As the swashplate passes through the neutral position, the flow direction changes smoothly.
Features:
1) Variable axial piston pump of swashplate design for hydrostatic drives in closed circuit
2) The flow is proportional to the drive speed and displacement.
3) The flow increases as the angle of the swashplate is adjusted from zero to its maximum value.
4) Flow direction changes smoothly when the swashplate is
moved through the neutral position.
5) Two pressure-relief valves are provided on the high pressure
ports to protect the hydrostatic transmission (pump and motor) from overload.
6) The high-pressure relief valves also function as boost valves.

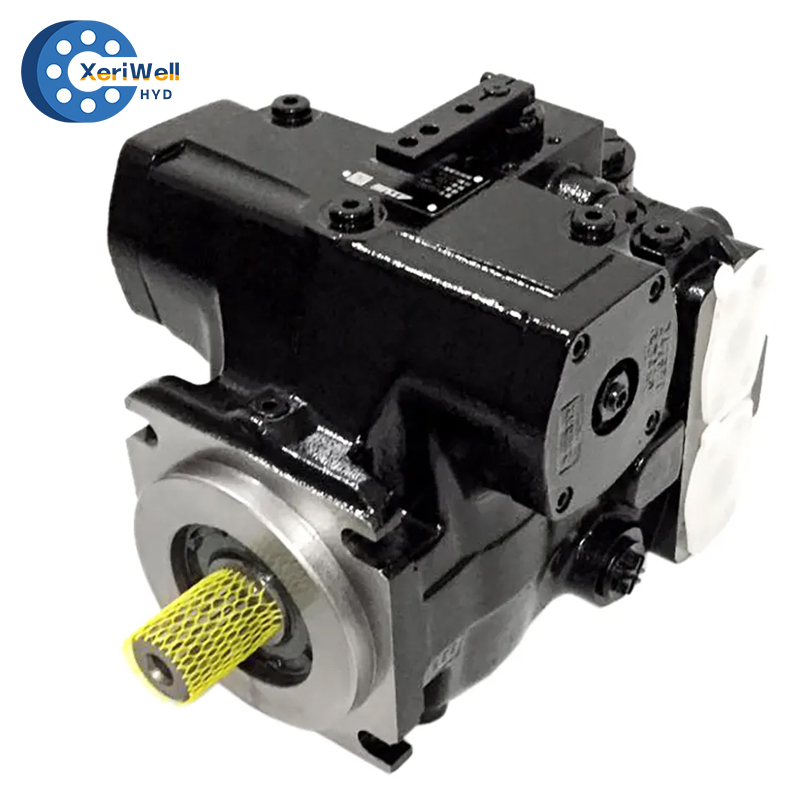

7) The integrated boost pump acts as a feed pump and control
pressure supply.
8) The maximum boost pressure is limited by a built-in boost
pressure-relief valve.

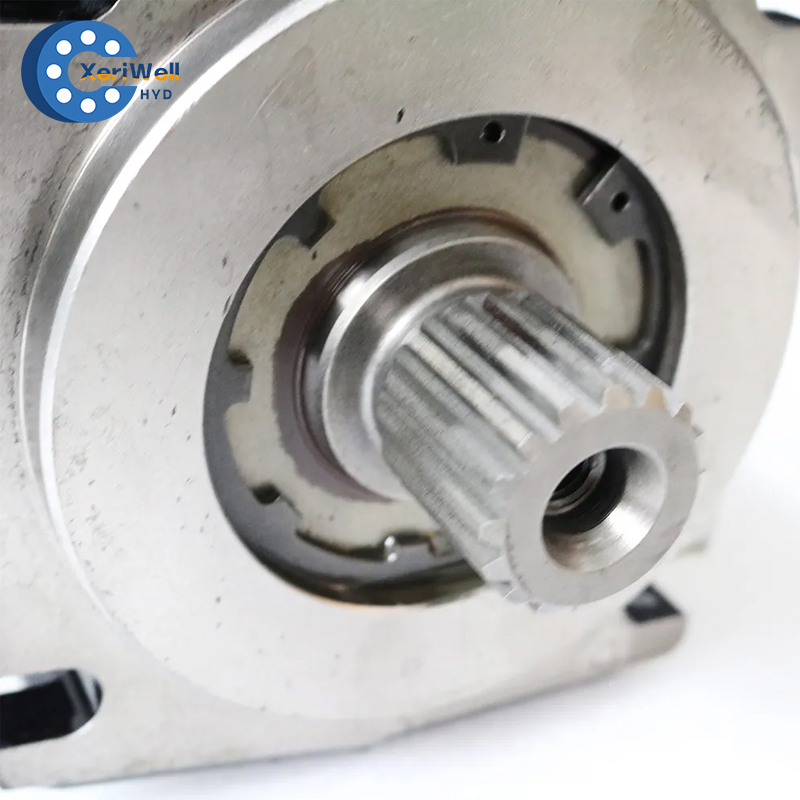

9) Tapered shaft option for direct drive shaft yoke installation.

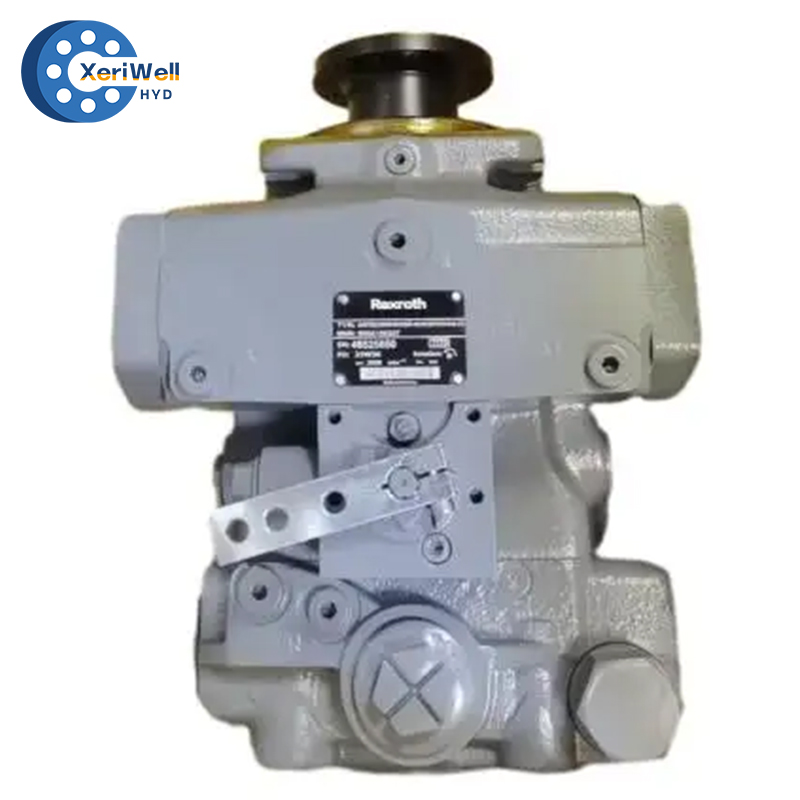

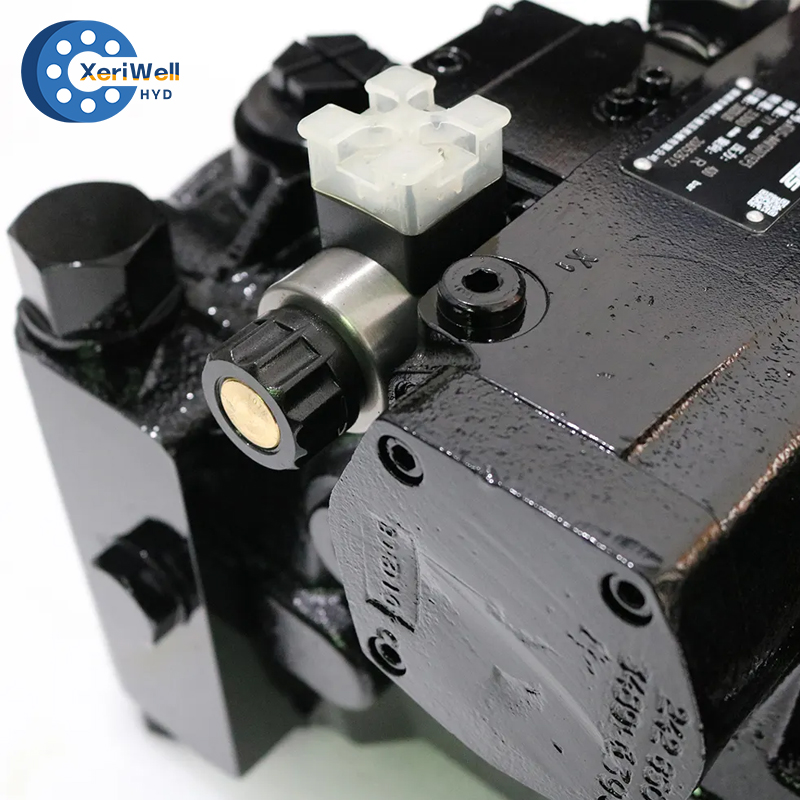

Type: A4VTG71, A4VTG90
REXROTH A4VTG Hydraulic Travel Motor

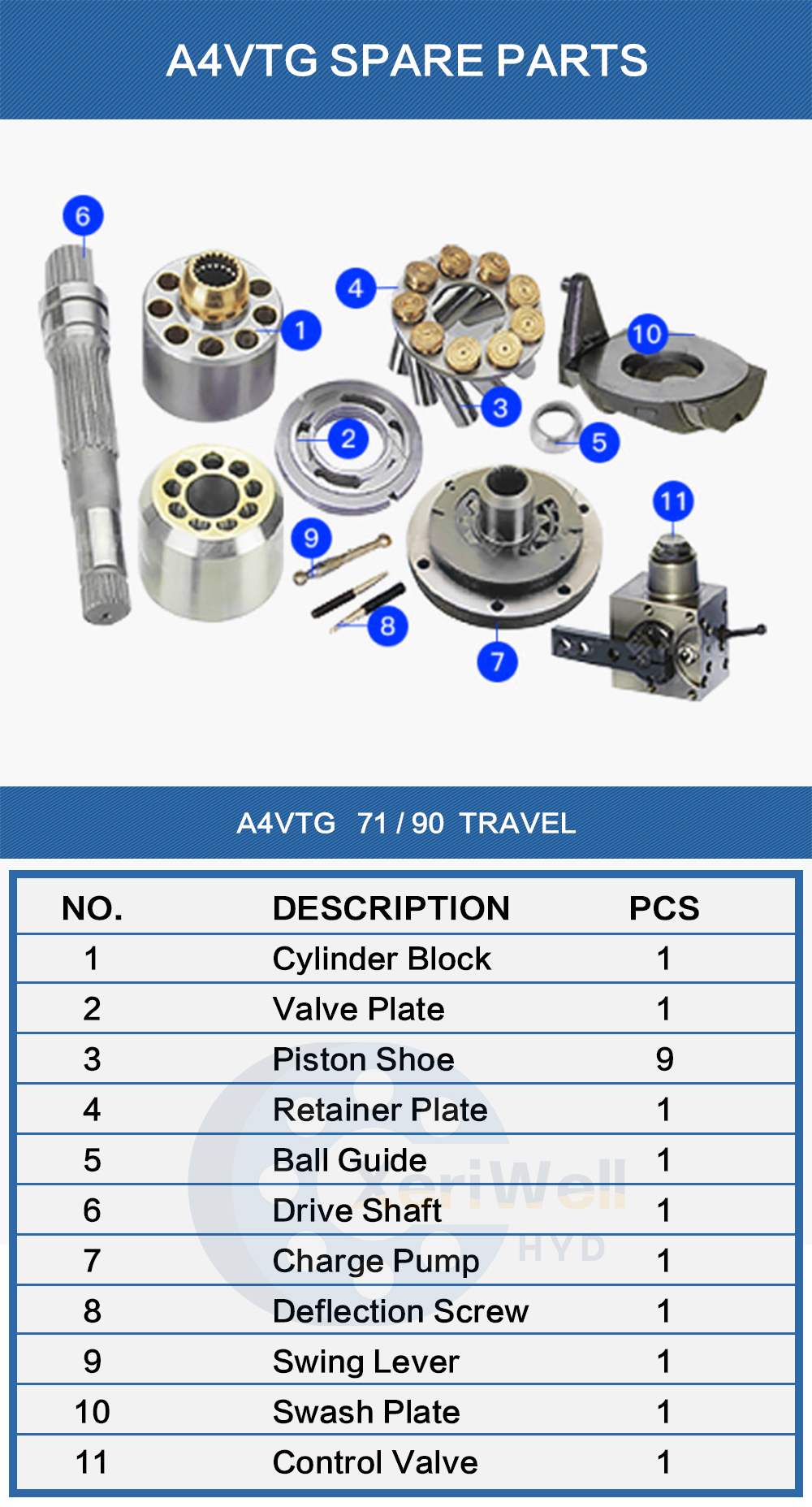

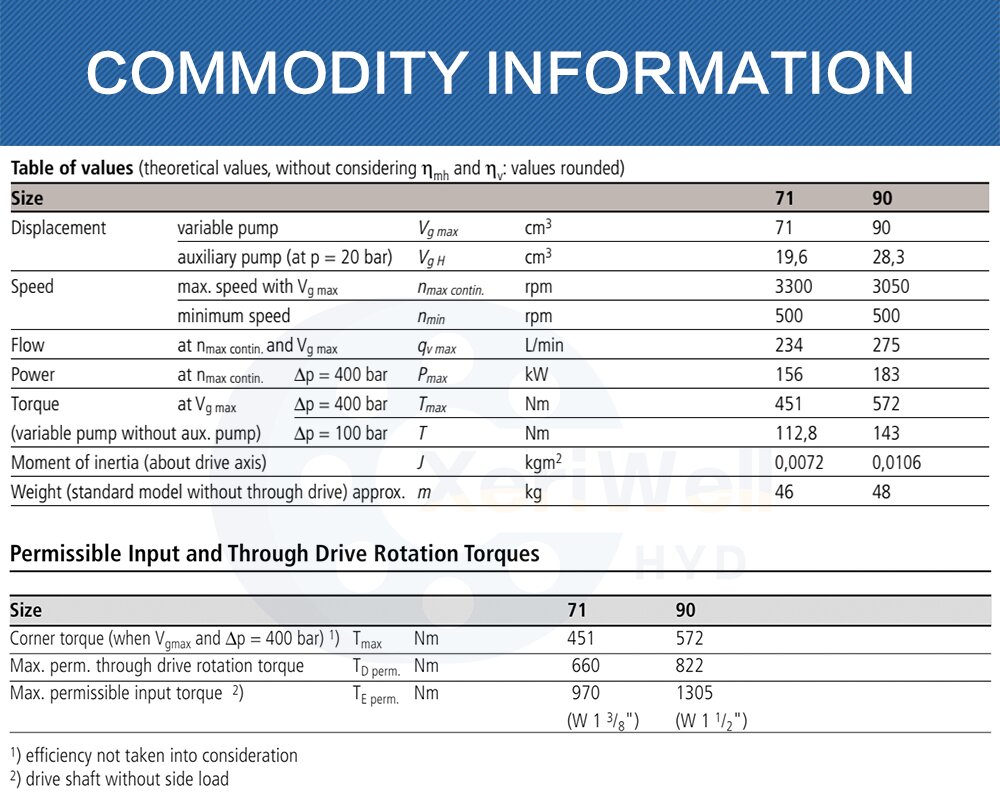

| Table of values (theoretical values,without considering ηmhand ηv;values rounded) | ||||||
| Size | 71 | 90 | ||||
| Displacement | variable pump | Vg max | cm³ | 71 | 90 | |
| auxiliary pump (at p = 20 bar) | Vg H | cm³ | 19,6 | 28,3 | ||
| Speed | max. speed with Vg max | nmax contin. | rpm | 3300 | 3050 | |
| minimum speed | nmin | rpm | 500 | 500 | ||
| Flow | at nmax contin. and Vg max | qv max | L/min | 234 | 275 | |
| Power | at nmax contin. | Δp = 400 bar | Pmax | kW | 156 | 183 |
| Torque (variable pump without aux. pump) | at Vg max | Δp = 400 bar | Tmax | Nm | 451 | 572 |
| Δp = 100 bar | T | Nm | 112,8 | 143 | ||
| Moment of inertia (about drive axis) | J | kgm² | 0,0072 | 0,0106 | ||
| Weight (standard model without through drive) approx. | m | kg | 46 | 48 | ||
| Permissible Input and Through Drive Rotation Torques | ||||
| Size | 71 | 90 | ||
| Corner torque (when Vgmax and Δp = 400 bar)1) | Tmax | Nm | 451 | 572 |
| Max. perm. through drive rotation torque | TD perm. | Nm | 660 | 822 |
| Max. permissible input torque2) | TE perm. | Nm | 970 | 1305 |
| (W 1 3/8") | (W 1 1/2") | |||
| 1)efficiency not taken into consideration 2)drive shaft without side load | ||||
