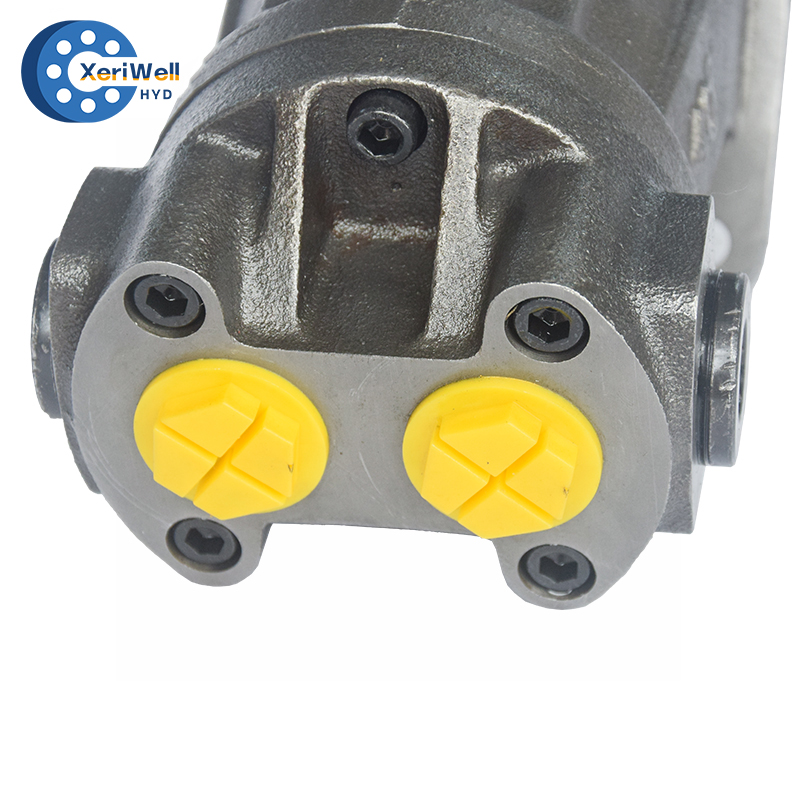

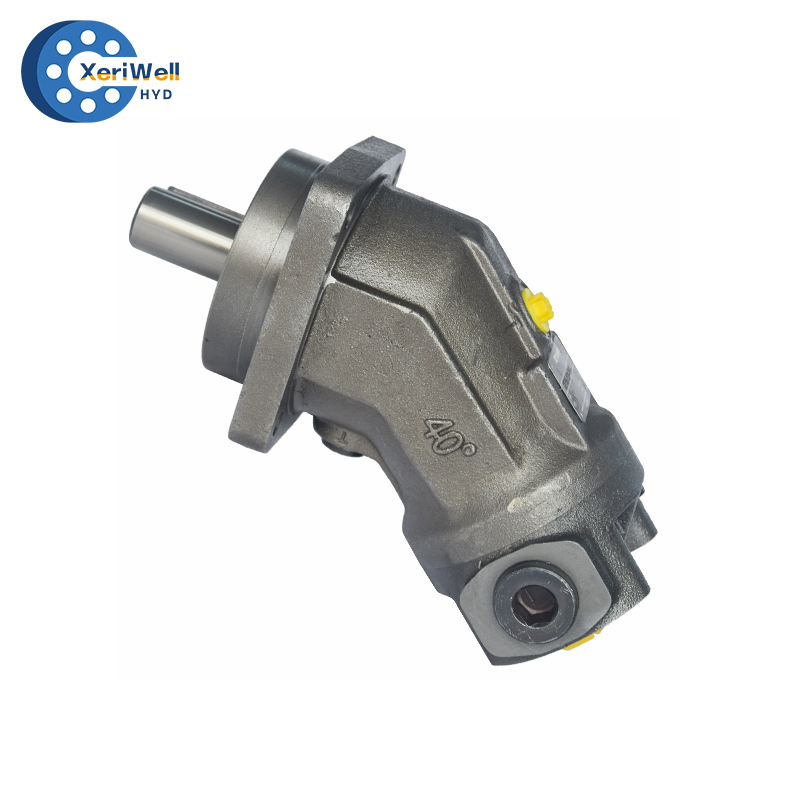

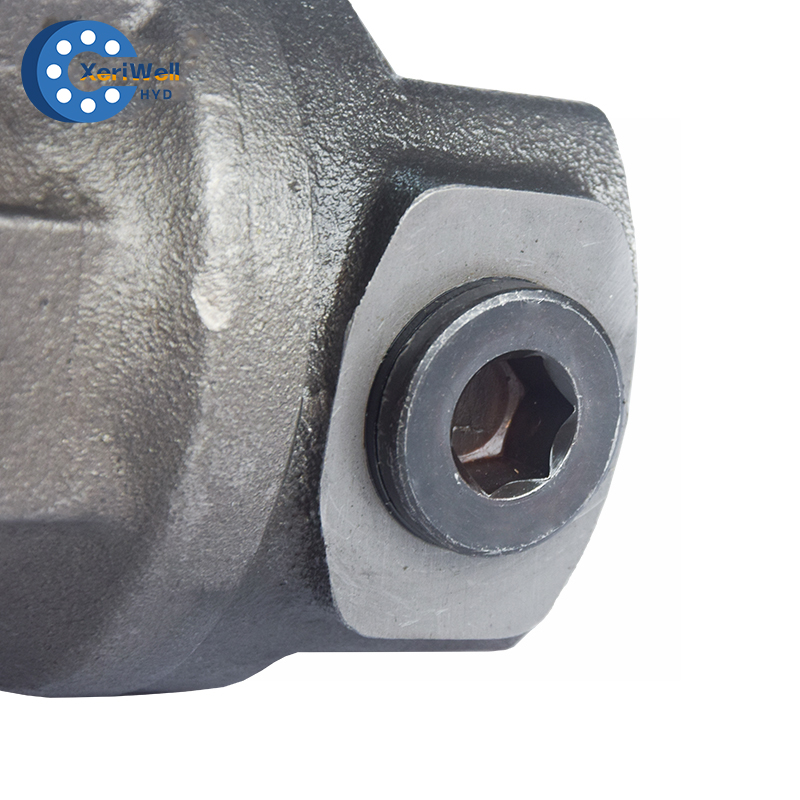

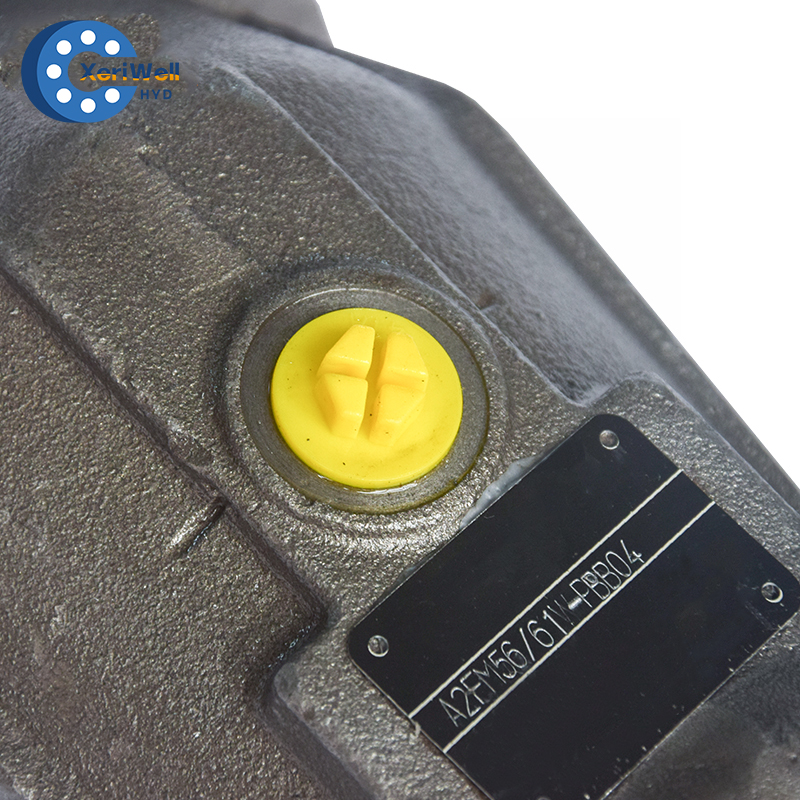

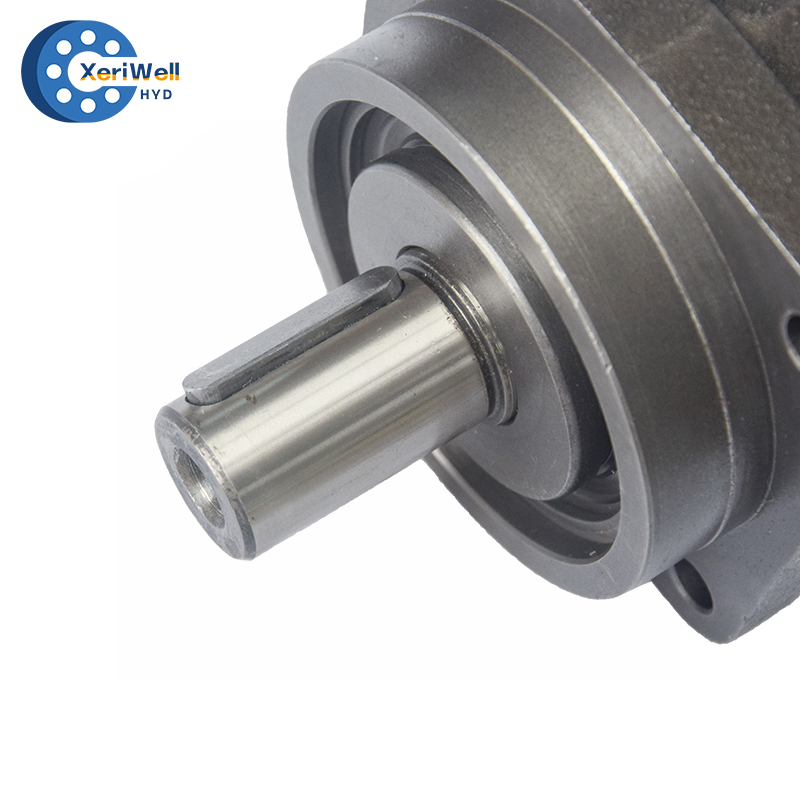

REXROTH A2FM Bent Axis Hydraulic Motor

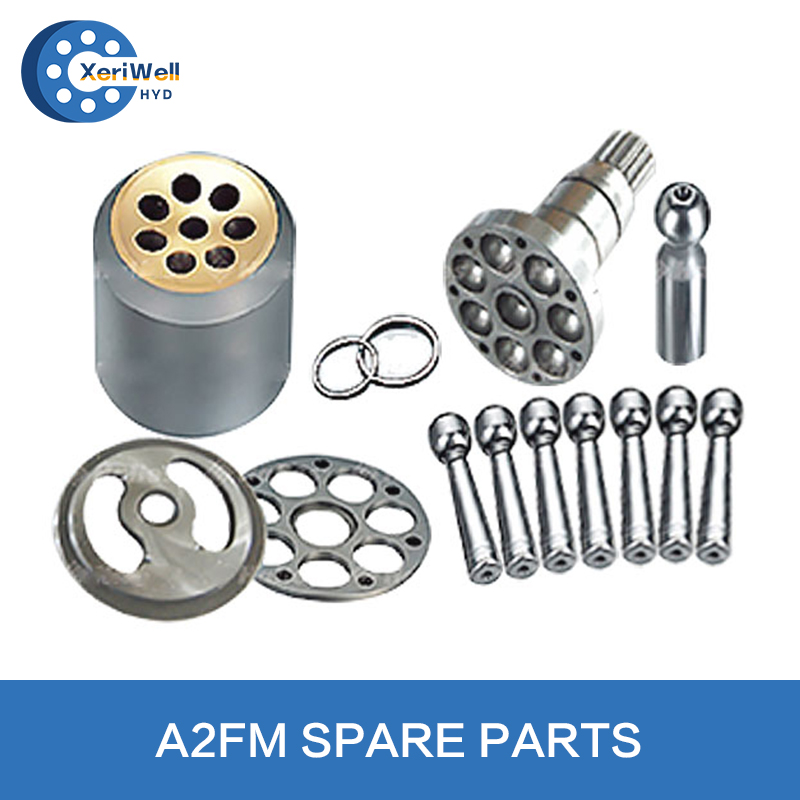

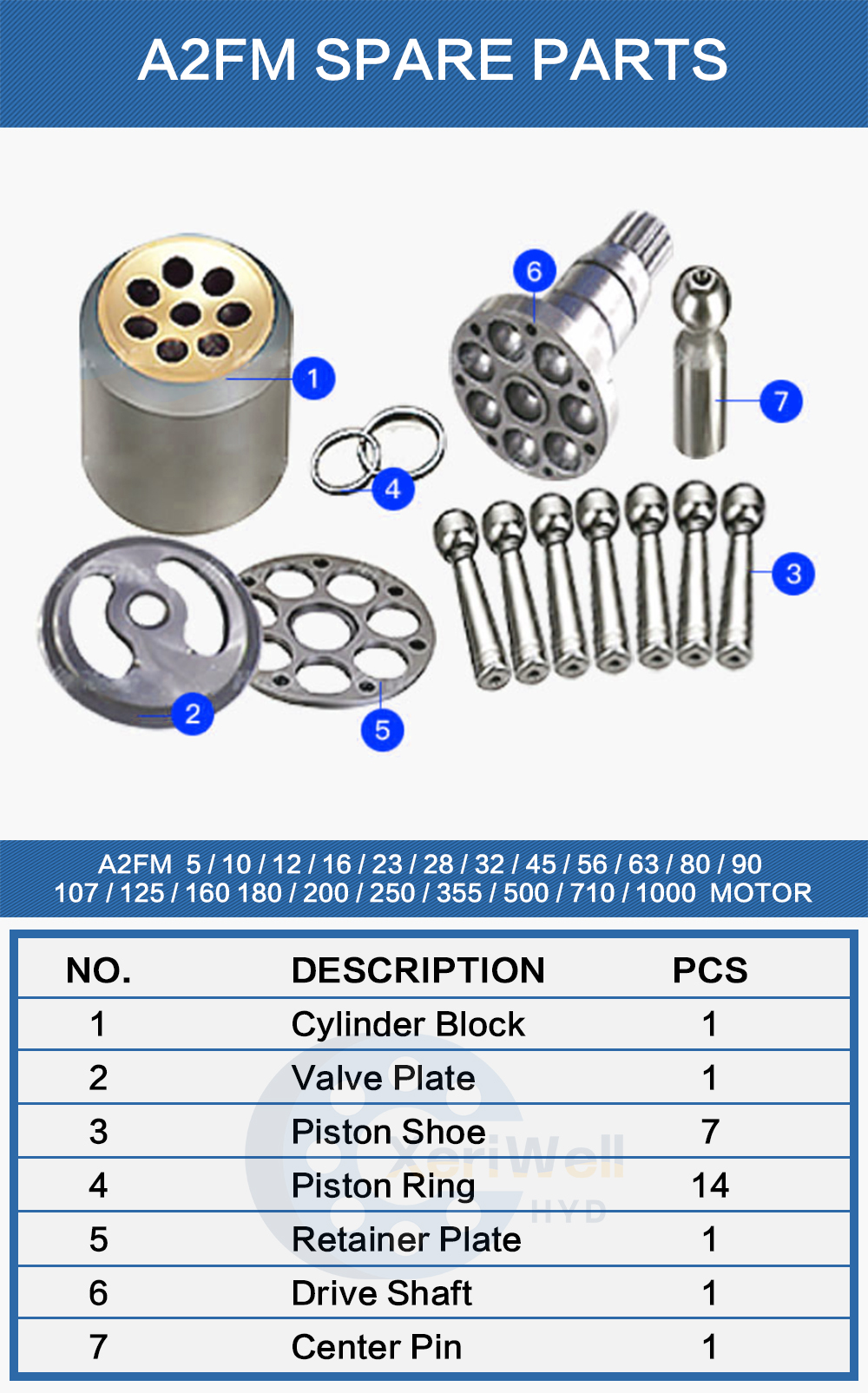

REXROTH A2FM Bent Axis Hydraulic Motor and spare parts Product Introduction

A2FM hydraulic motor is an axial piston motor, it has many features below:

1) Fixed motor with axial tapered piston rotary group of bentaxis design, for hydrostatic drives in open and closed circuits

2) For use in mobile and stationary applications

3) The output speed is dependent on the flow of the pump and the displacement of the motor.

4) The output torque increases with the pressure differential between the high-pressure and the low-pressure side.

5) Finely graduated sizes permit far-reaching adaptation to the drive case

6) High power density

7) Small dimensions

8) High total efficiency

9) Good starting characteristics

10) Economical design

11) One-piece tapered piston with piston rings for sealing

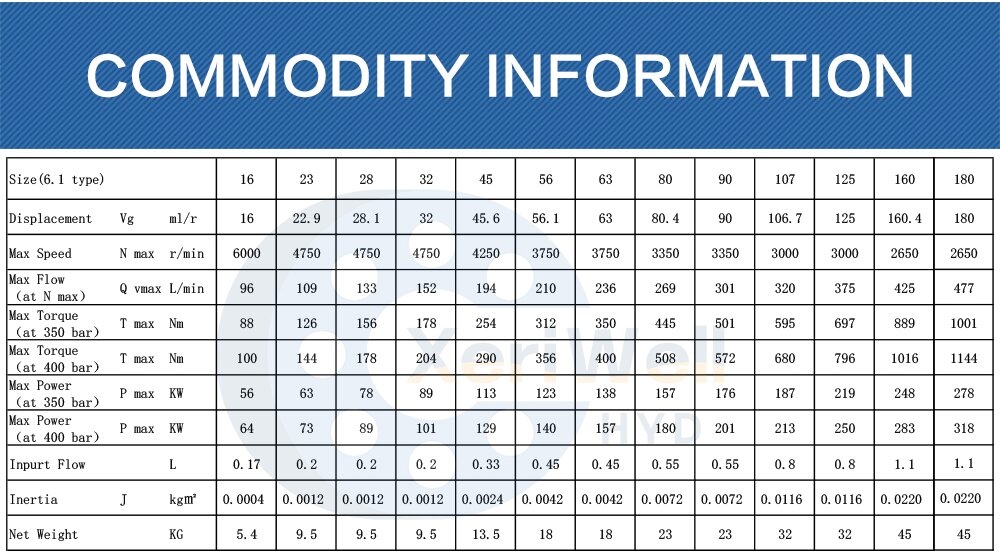

Type: A2FM5, A2FM10, A2FM12, A2FM16, A2FM23, A2FM28, A2FM32, A2FM45, A2FM56, A2FM63, A2FM80, A2FM90, A2FM107, A2FM125, A2FM160, A2FM180, A2FM200, A2FM250, A2FM355, A2FM500, A2FM710, A2FM1000
