Type: | |
---|---|
spare parts avaliable: | |
Availability: | |
Quantity: | |
A10V
Xeriwell or Others

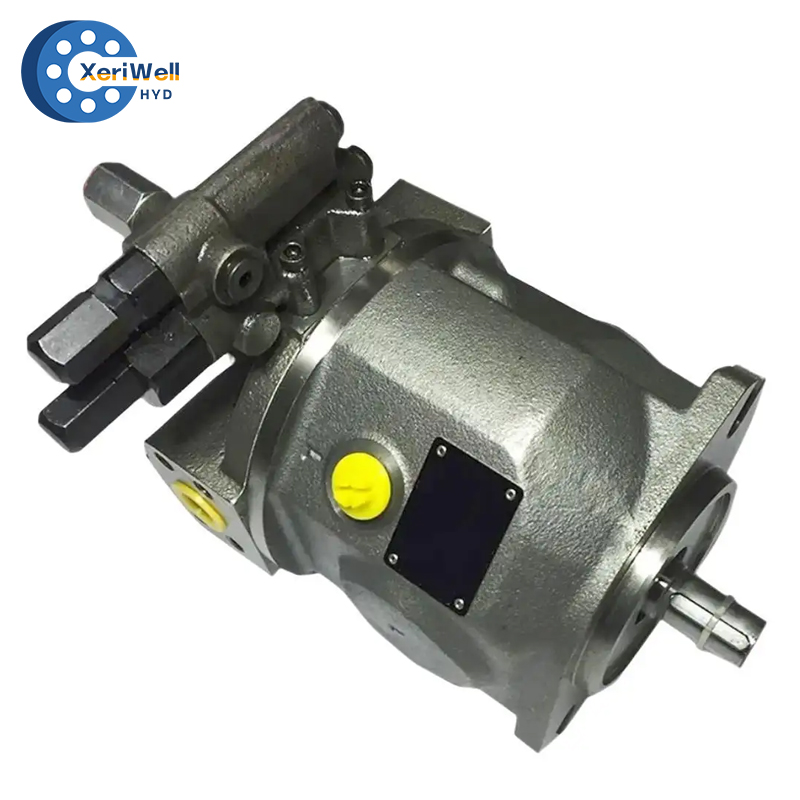

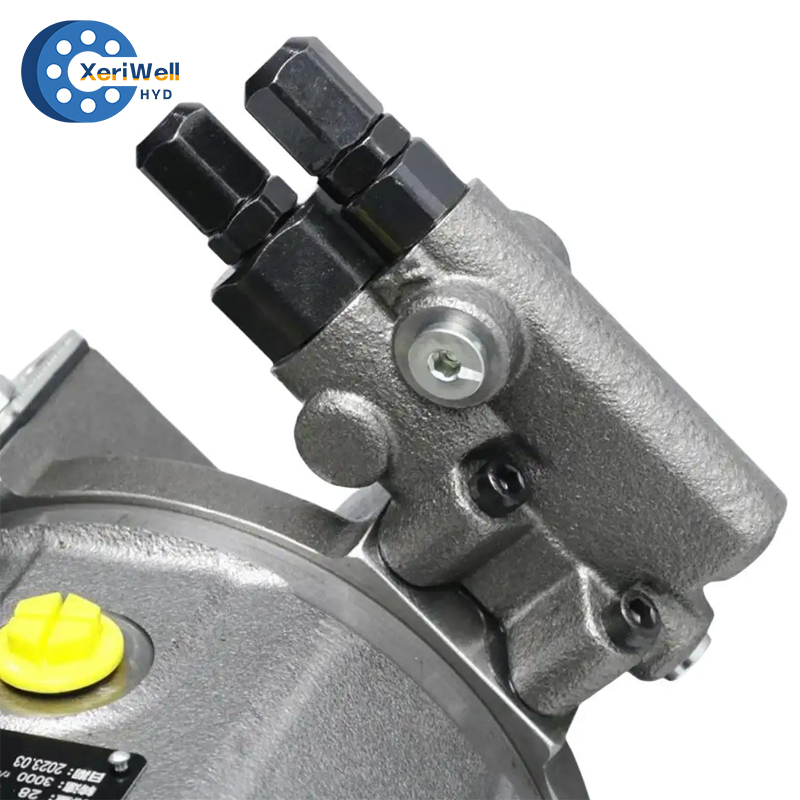

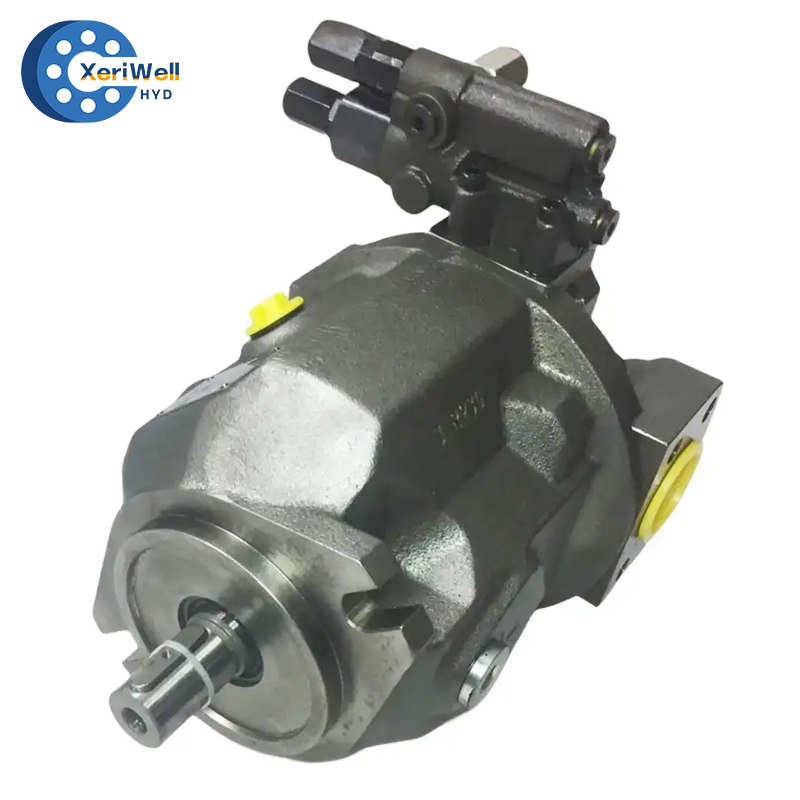

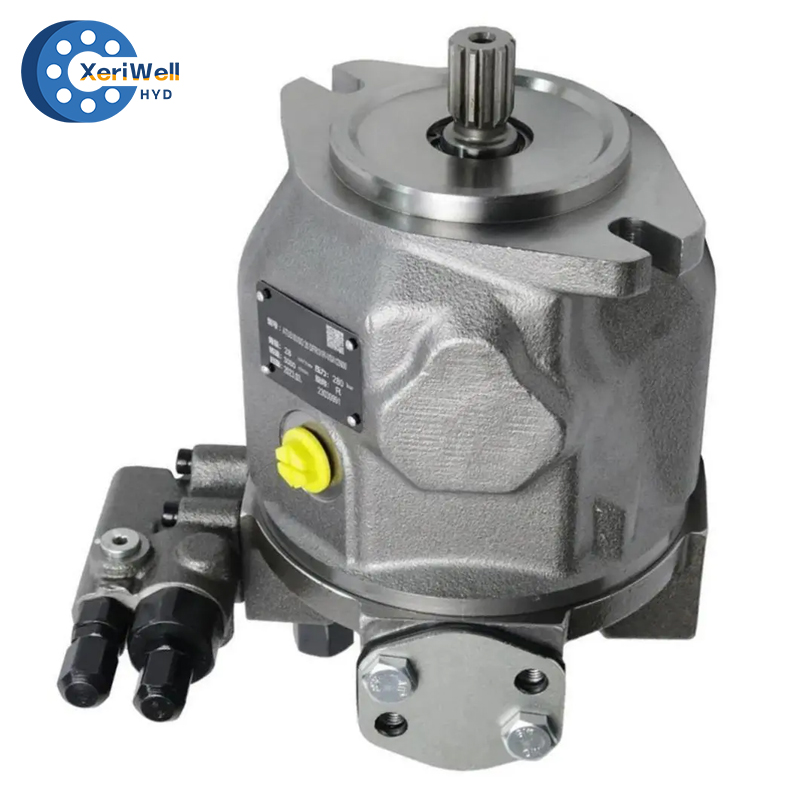

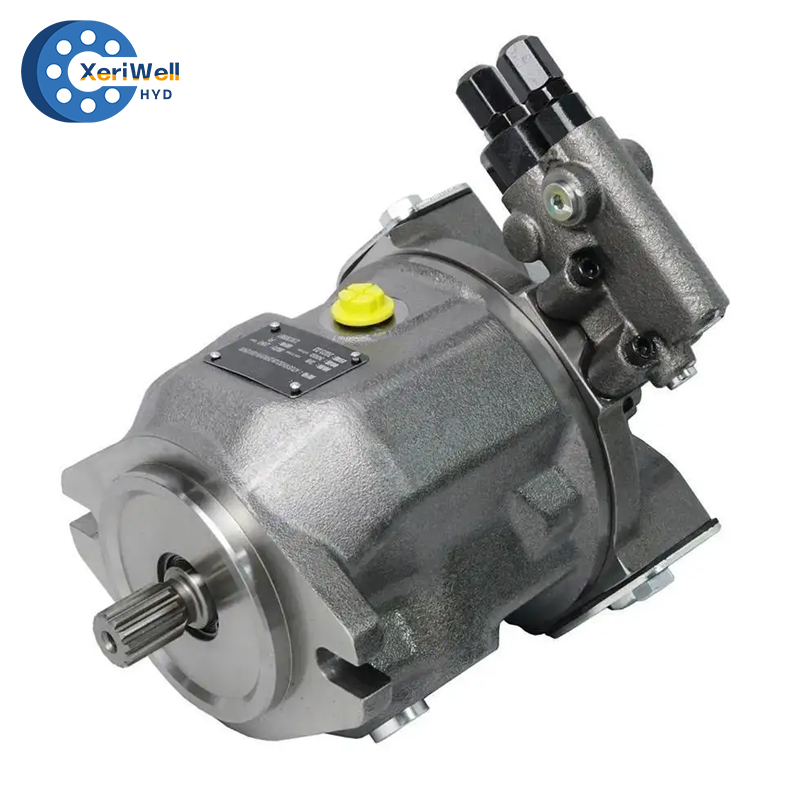

Axial piston pump A10V in swashplate design is used for hydrostatic transmissions in open loop circuits. Flow is proportional to drive speed and displacement. By adjusting the position of the swashplate it is possible to smoothly vary the flow.
Features:
1) Flange connections to SAE-UNC or Isometric
2) 2 case drain ports
3) High permissible speeds
4) Good suction characteristics
5) Low noise level
6) High power/weight ratio
7) Long service life
8) Quick response time
9) Axial and radial loading of drive shaft possible
10) Wide range of controls
11) Through drive option for multi-circuit system
Type: A10V18, A10V28, A10V43, A10V45, A10V63, A10V71, A10V100, A10V140

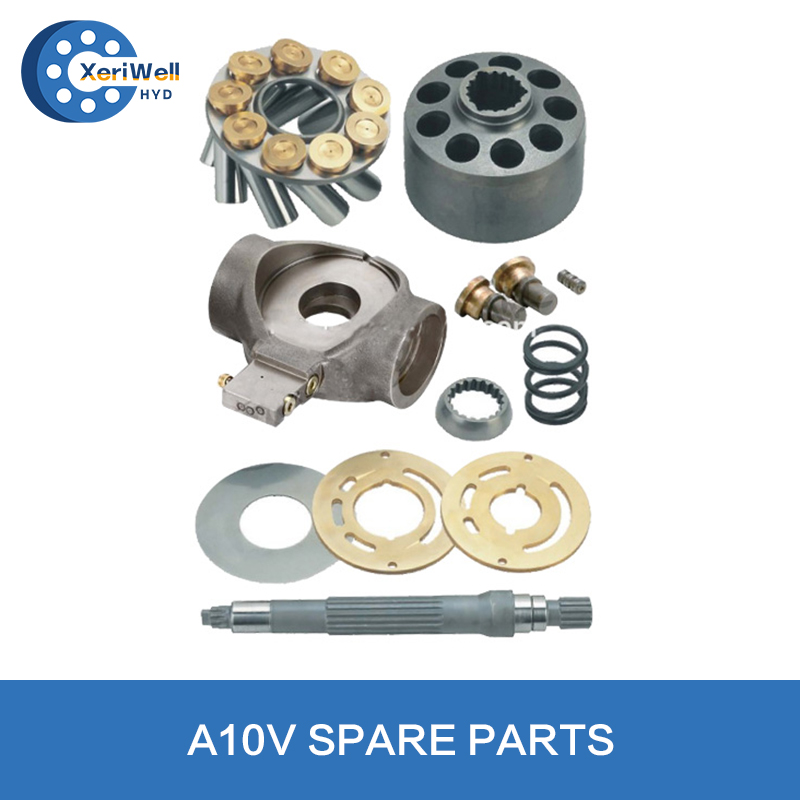

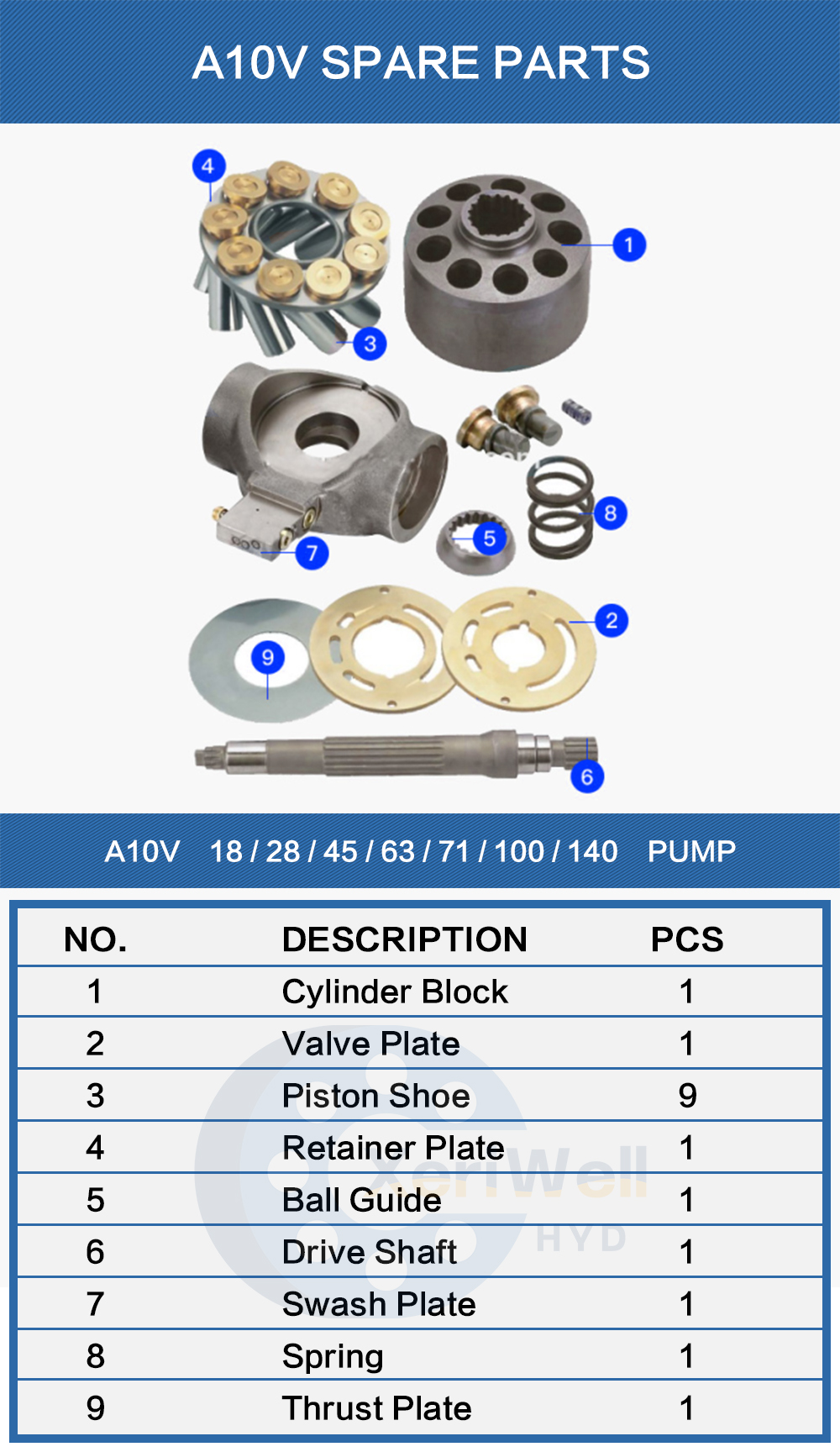

REXROTH A10V 18/28/43/45/63/71/100/140 Hydraulic Pump parts list:
Axial piston pump A10V in swashplate design is used for hydrostatic transmissions in open loop circuits. Flow is proportional to drive speed and displacement. By adjusting the position of the swashplate it is possible to smoothly vary the flow.
Features:
1) Flange connections to SAE-UNC or Isometric
2) 2 case drain ports
3) High permissible speeds
4) Good suction characteristics
5) Low noise level
6) High power/weight ratio
7) Long service life
8) Quick response time
9) Axial and radial loading of drive shaft possible
10) Wide range of controls
11) Through drive option for multi-circuit system
Type: A10V18, A10V28, A10V43, A10V45, A10V63, A10V71, A10V100, A10V140
REXROTH A10V 18/28/43/45/63/71/100/140 Hydraulic Pump parts list:
