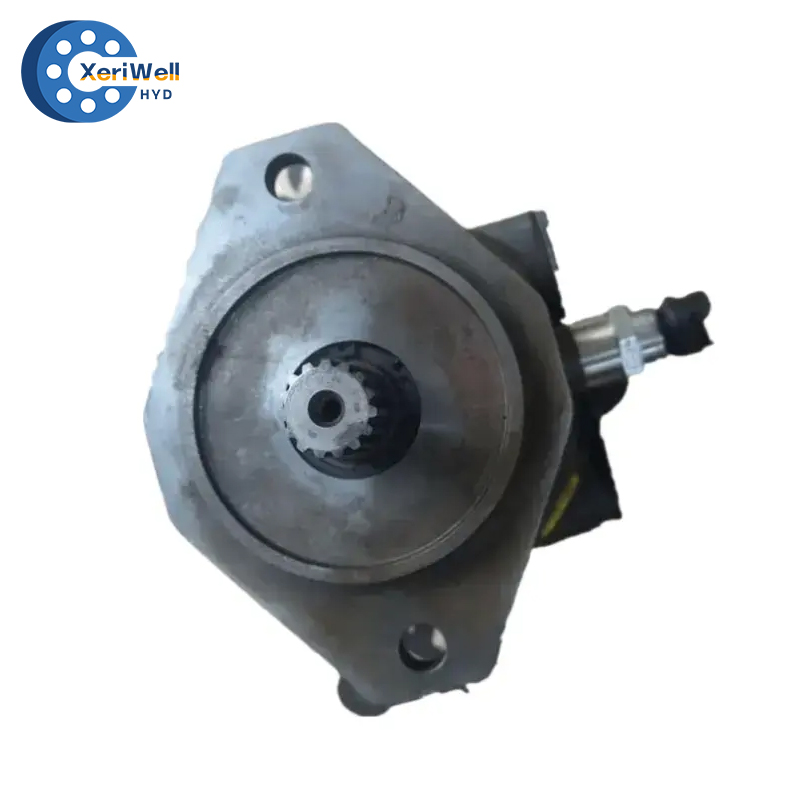

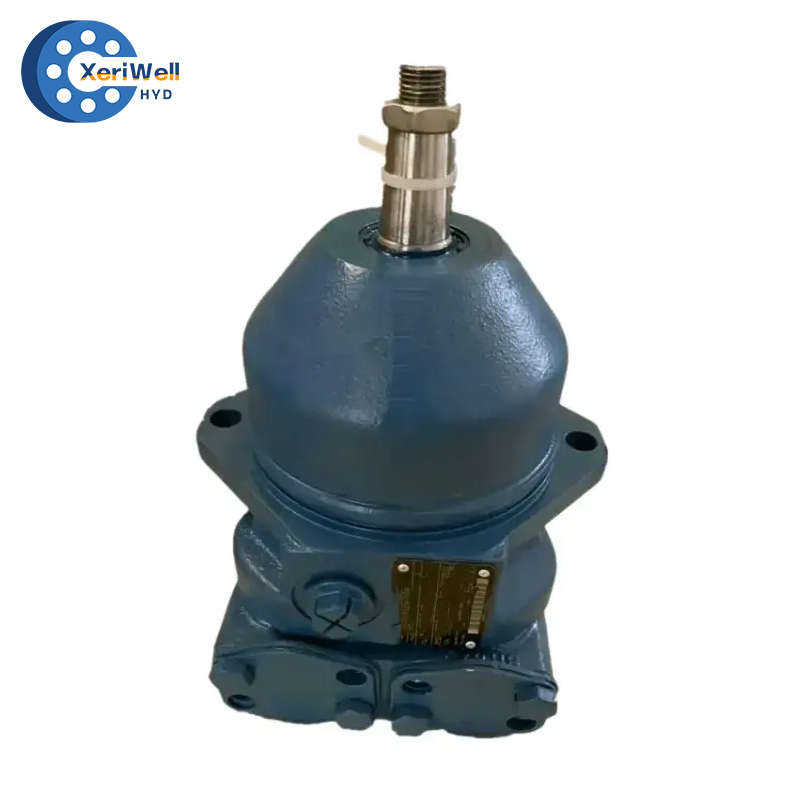

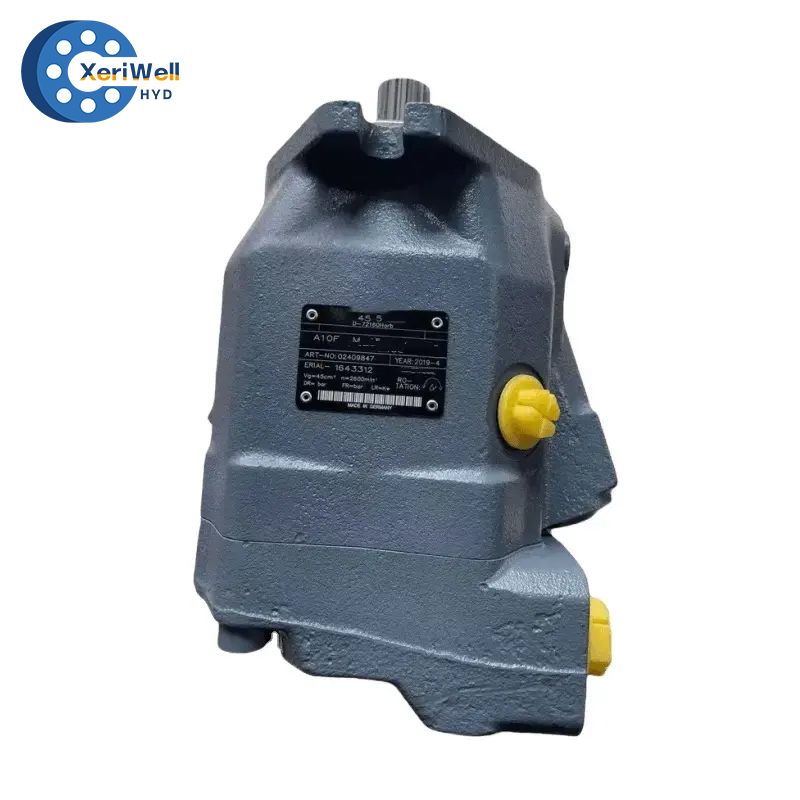

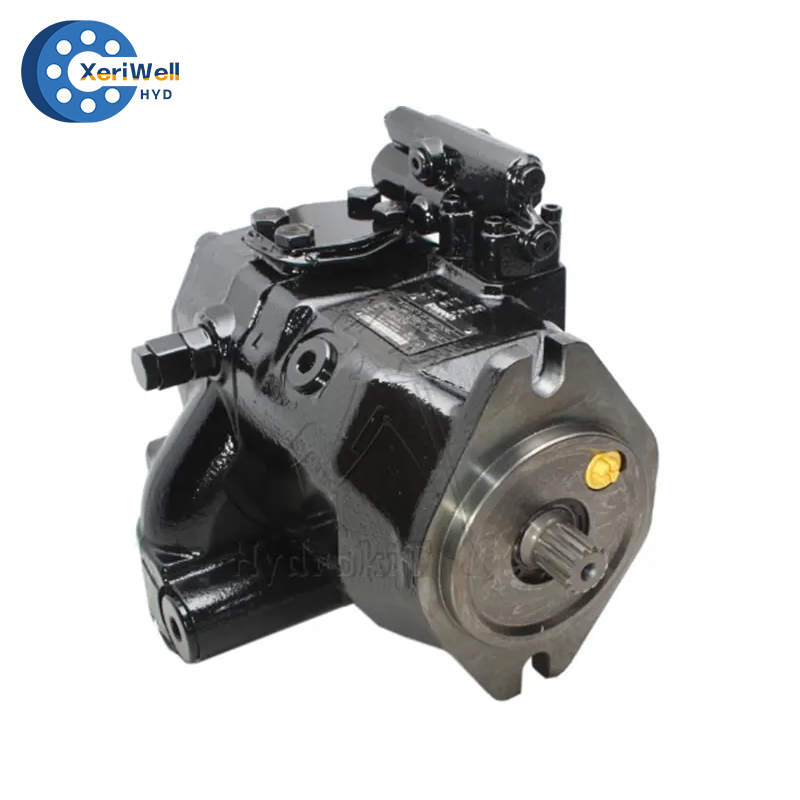

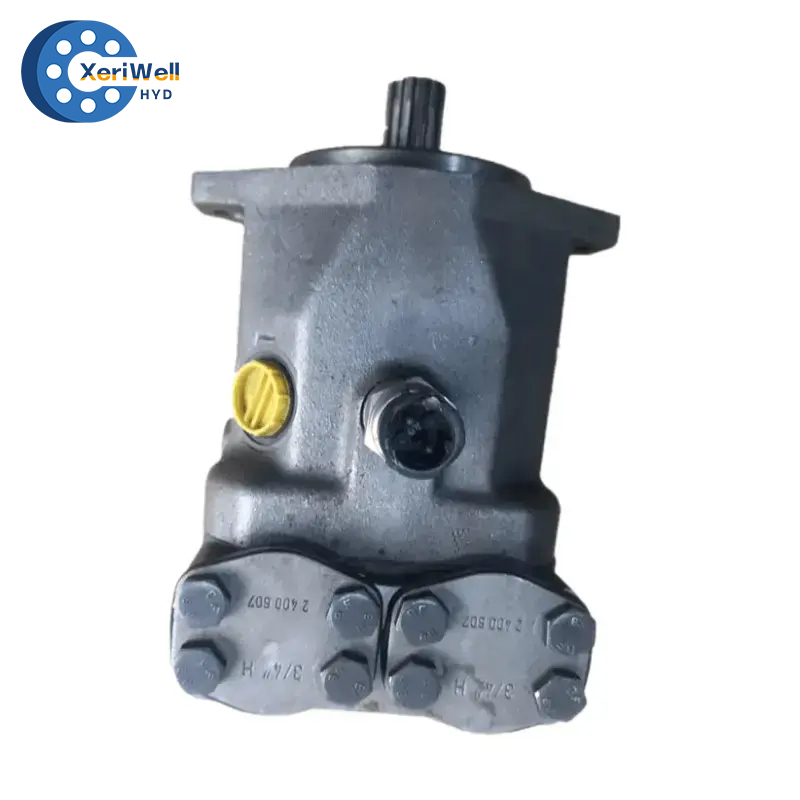

REXROTH A10FM 10/11/14/16/18/23/28/37/45/58/63 Hydraulic Motor technical data:

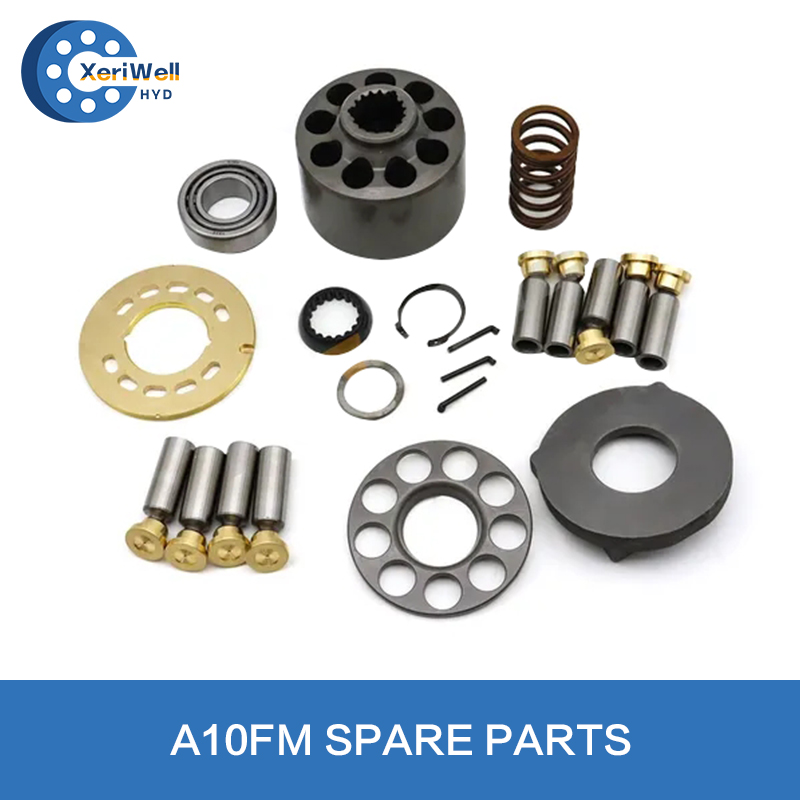

REXROTH A10FM 10/11/14/16/18/23/28/37/45/58/63 Hydraulic Motor spare parts list:
| Size | NG | 10 | 11 | 14 | 16 | 18 | 23 | 28 | 37 | 45 | |
| Displacement geometric,per revolution | Vg maxcm3 (inch3) | 10.6 | 11.5 | 14.1 | 16.1 | 18 | 23.5 | 28.5 | 36.7 | 44.5 | |
| -0.65 | -0.7 | -0.86 | -0.98 | -1.1 | -1.43 | -1.73 | -2.24 | -2.71 | |||
| Maximum rotational speed1)2) | at Vg max | nnomrpm | 5000 | 4200 | 4200 | 4200 | 4200 | 4900 | 4700 | 4200 | 4000 |
| Inlet flow | at nnom | qv maxl/min (gpm) | 53 | 48 | 59 | 68 | 76 | 115 | 134 | 154 | 178 |
| -14 | -12.7 | -15.6 | -17.9 | -20.1 | -30.4 | -35.4 | -40.7 | -47 | |||
| Power | at nnomand pN= 280 bar (4100 psi) | PmaxkW (HP) | 24.7 | 22.5 | 27.6 | 31.6 | 35.3 | 53.6 | 62.5 | 71.8 | 83.1 |
| -33 | -30 | -37 | -42 | -47 | -71 | -83 | -95 | -111 | |||
| Actual starting torque,approx. at n= 0 rpm and pN= 280 bar (4100 psi) | M(lb·ft) | Nm | 37.5 | 30 | 45 | 53 | 67.5 | 75 | 105 | 125 | 170 |
| (lb·ft) | -27.6 | -22.1 | -33.2 | -39.1 | -49.8 | -55.3 | -77.5 | -92.2 | -125 | ||
| Torque | at Vg maxand pN= 280 bar (4100 psi) | MmaxNm(lb·ft) | 47 | 51 | 63 | 72 | 80 | 105 | 127 | 163 | 198 |
| -34.6 | -37.5 | -46.5 | -53.1 | -59 | -77.4 | -93.7 | -120 | -146 | |||
| Rotary stiffness of drive shaft | R c | Nm/rad | – | – | – | – | 14835 | 28478 | 28478 | 46859 | 46859 |
| (lb·ft/rad) | – | – | – | – | -10942 | -21005 | -21005 | -34563 | -34563 | ||
| W c | Nm/rad | – | – | – | – | – | – | – | 38489 | 38489 | |
| (lb·ft/rad) | – | – | – | – | – | – | – | -28389 | -28389 | ||
| C c | Nm/rad | 15084 | 18662 | 18662 | 18662 | 18662 | 30017 | 30017 | 46546 | 46546 | |
| (lb·ft/rad) | -11126 | -13765 | -13765 | -13765 | -13765 | -22140 | -22140 | -34332 | -34332 | ||
| Moment of inertia of the rotary group | JTW | kgm2 | 0.0006 | 0.00093 | 0.00093 | 0.00093 | 0.00093 | 0.0017 | 0.0017 | 0.0033 | 0.0033 |
| (lb·ft2) | -0.014 | -0.022 | -0.022 | -0.022 | -0.022 | -0.04 | -0.04 | -0.078 | -0.078 | ||
| Maximum angular acceleration3) | α | rad/s2 | 8000 | 6800 | 6800 | 6800 | 6800 | 5500 | 5500 | 4000 | 4000 |
| Case volume | V | l | 0.1 | 0.15 | 0.15 | 0.15 | 0.15 | 0.6 | 0.6 | 0.7 | 0.7 |
| (gal) | -0.03 | -0.04 | -0.04 | -0.04 | -0.04 | -0.16 | -0.16 | -0.18 | -0.18 | ||
| Weight approx. | m | kg | 5 | 6.5 | 6.5 | 6.5 | 6.5 | 12 | 12 | 17 | 17 |
| (lbs) | -11 | -14.3 | -14.3 | -14.3 | -14.3 | -26.5 | -26.5 | -37.5 | -37.5 | ||
