| Quantity: | |
|---|---|
BMH
Xeriwell or Others
| Product: | Hydraulic Gertor Motor | Displacement: | 500CC |
|---|---|---|---|
| Frature: | Match | Max.Speed(rpm): | Cont.155rpm/int.160rpm |
| Max.Torque(N.m): | Cont.830N.m/int.1040N.m | Max. Pressure Drop: | Cont.12.5MPa/int.16MPa |
| Max.flow(L/min): | Cont.75L/min~int.90L/min | Oil Temperature: | -35℃~80℃ |
| Viscosity: | 42-74mm2/s | ||
| Highlight: | cycloid hydraulic motor,hydraulic rotary motor | ||

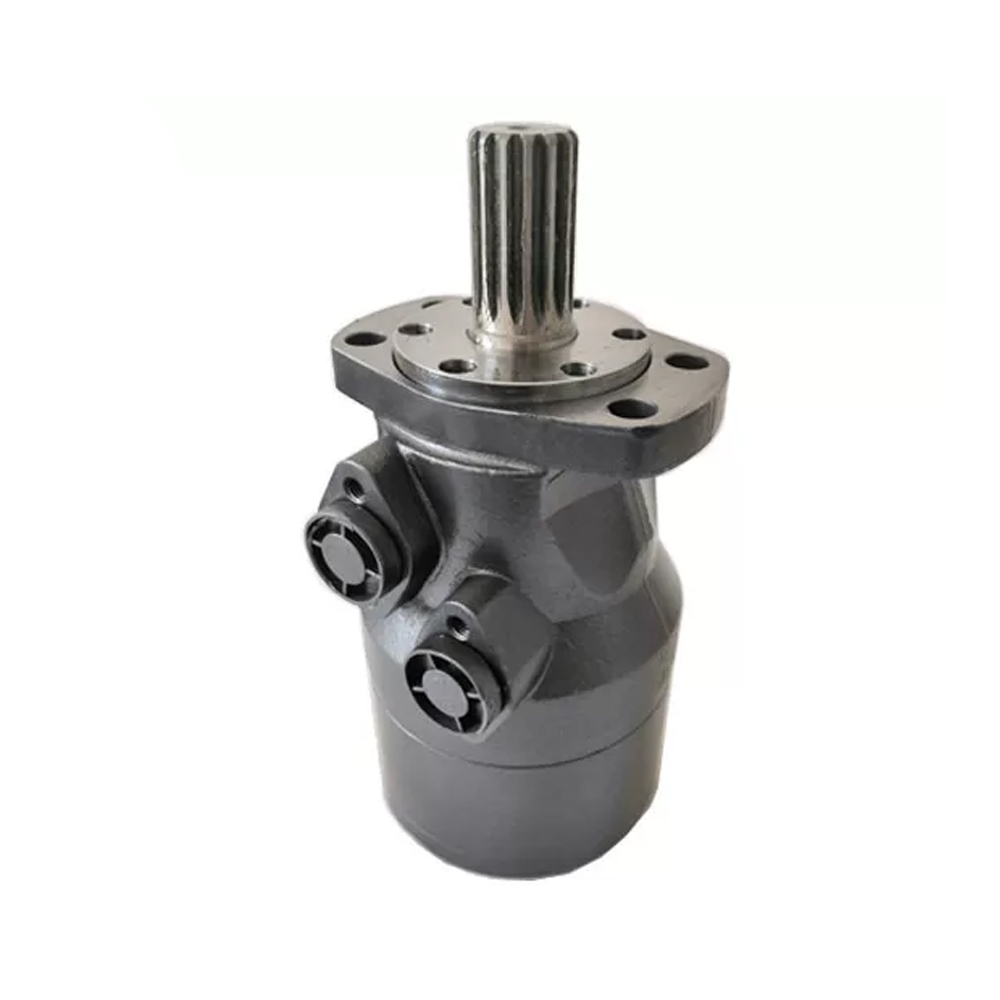

Putzmeister/Kcp/Junjin Concrete Pump Spare Parts Hydraulic Agitator Motor OMH BMH 500
Xeriwell BMH series motor match OMH, M+S MH series.
BMH series motor can widely use for construction equipment, the shaft (32mm and 35mm) is the most suitable size. The direction of shaft rotation and speed can be controlled easily and smoothly. And has a greater lateral load capacity and lon life.
Features:
* The output shaft, with the deep groove ball bearing, can bear certain axial force and radial force.
* Special design in the driver-linker and prolong operating life.
* Special design for distribution system can meet the requirement of low noise of unit.
* Compact volume and easy installation.
Applications:
BMH motor have widely usages, like concrete pump, harvester, sweeper, forklift truck, etc.
BMH500 specificalized in using for concrete concrete pump,such as the following :
Cifa, Junjin, Putzmeister, Schwing, Sebhsa, Sermac, MercedesBenz, Iveco, , Scania and .
Main Specifications:
| Type | BMH 200 | BMH 250 | BMH 315 | BMH 400 | BMH 500 | |
Displacement (cc/rev) | 203.2 | 255.9 | 316.5 | 406.4 | 489.2 | |
Max torque (n.m) | cont | 510 | 621 | 740 | 850 | 830 |
| int | 439 | 348 | 282 | 220 | 184 | |
Max pressure (mpa) | cont | 17.5 | 17.5 | 17.5 | 15.5 | 12.5 |
| int | 20 | 20 | 20 | 19 | 16 | |
Max speed rate (rpm) | cont | 366 | 290 | 236 | 183 | 155 |
| int | 439 | 348 | 282 | 220 | 184 | |
Max flow (L/min) | cont | 75 | 75 | 75 | 75 | 75 |
| int | 90 | 90 | 90 | 90 | 90 | |
Weight(kg) | 10.5 | 11 | 11.5 | 12.3 | 13.0 | |
