| Quantity: | |
|---|---|
BMH-500-4MDB
Xeriwell or Others
| Product: | Concrete Pump Parts | Replace: | Putzmeister OEM |
|---|---|---|---|
| Alternative: | 151H1016 | Apply To: | Concrete Pump |
| Displacement: | 500 Ml/r (500 Cc, 500 Cm3/r) | Flange: | 4 Hole, Rhomb |
| Shaft: | 35mm | Max Flow: | 90 L/min |
| Max Speed: | 166 Rpm | Weight: | 13 Kgs |
| Measurement: | 2pcs/36x32x18cm | ||
| Highlight: | heavy duty hydraulic motor,hydraulic lift motor | ||

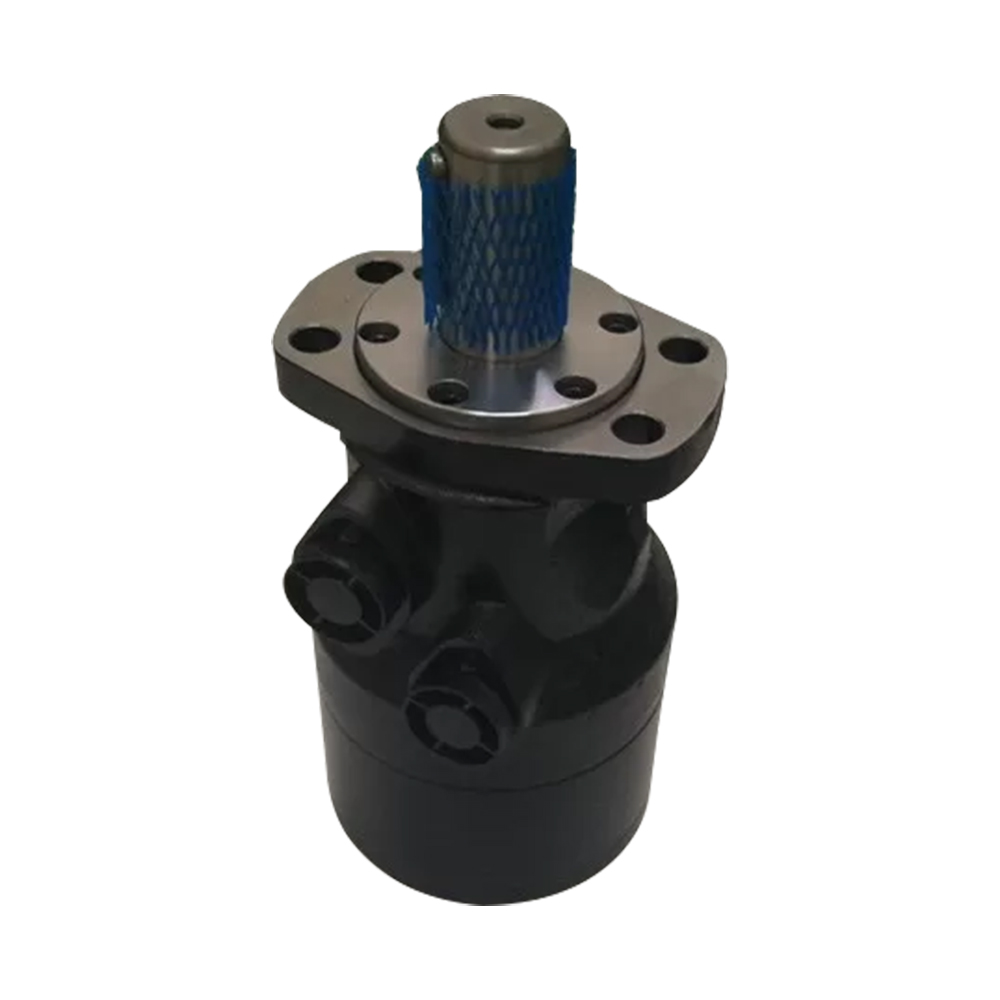

Putzmeister Concrete Pump Parts Hydraulic Drive Motor 151H1016
BMH indroduction:
This motor is a Gerotor Hydraulic Motor, also called Orbit Hydraulic Motor, or Low Speed High Torque Hydraulic Motor, also spool valve hydraulic motor.
Characteristics:
This motor produced by Xeriwell from China, it's a alternative gerotor hydraulic motor to OMH series, also alternative with M+S MH series, and alternative with many other manufacturers from USA and European.
What benefit can i get?
As it's performance is 98% near the below manufacturers, however it's price is more than 50% lower than the below manufacturers, it has been widely used in the Agricultural, forestry, mining machinery, construction plant, access platforms, special vehicles, aeria plant, and many more hydraulic systems that need rolling, lifting, conveying applications.
Xeriwell BMH-500-4MDB = OMH series, from Danmark
Xeriwell BMH-500-4MDB = M+S MH series, from Bulgaria
we have strong ability to match OEM part no. and provide you.
BMH-500-4MDB replace Putzmeister OEM
BMH-500-4MDB replace 151H1016
This motor is widely used on concrete pumps of Putzmeister, Schwing, Sebhsa, Sermac, Daf, Man, Mercedes-Benz,...If you are in construction aftermarket parts industry, this motor will help you to enlarge your market, If you sell $1,000,000 a year, you raise profit by at least 30%, f you sell $1,000,000 a year, your profit raised by at least $300,000.
BMH-500-4MDB
151H1016
35mm shaft, 10x8x45
4 hole oval flange
pilot 82.55mm
oil ports G1/2
drain G1/4
Specifications/ Technical Data:
This Gerotor Hydraulic Motor BMH is a small motor compare with other series like BMS(OMS,MS, MSY), BMT(OMT, MT), BMV(OMV, MV), it's displacement start from 200 ml/r to 750 ml/r, speed from 155 rpm to 439 ml/r, torque from 510 N.m to 1170 N.m, max output from 11 kw to 18.5 kw, max flow from 75 L/min to 90 L/min. Below is the detail specifications of this BMH gerotor hydraulic motors.
| Type | BMH 200 | BMH 250 | BMH 315 | BMH 400 | BMH 500 | |
Displacement (cc/rev) | 203.2 | 255.9 | 316.5 | 406.4 | 489.2 | |
Max torque (n.m) | cont | 510 | 621 | 740 | 850 | 830 |
| int | 439 | 348 | 282 | 220 | 184 | |
Max pressure (mpa) | cont | 17.5 | 17.5 | 17.5 | 15.5 | 12.5 |
| int | 20 | 20 | 20 | 19 | 16 | |
Max speed rate (rpm) | cont | 366 | 290 | 236 | 183 | 155 |
| int | 439 | 348 | 282 | 220 | 184 | |
Max flow (L/min) | cont | 75 | 75 | 75 | 75 | 75 |
| int | 90 | 90 | 90 | 90 | 90 | |
Weight(kg) | 10.5 | 11 | 11.5 | 12.3 | 13.0 | |
How to work with Xeriwell?
Inorder to make you better understand how to work with us, here i give you the steps:
discuss your demand with us first
we help you to confirm the products
match with our models
discuss your demand quantity with us, this will help us to provide you our best offer
we make a deal on the offer
sign a contract
you pay deposit
we produce
you pay balance payment after order ready for shipping
dispatch order
Payment terms: 30% deposit, 70% balance should be paid before shipping
Shipping: by sea, by air, by train
Terms: FOB, CFR, CIF
Loading port: Tianjin, Qingdao, Shanghai, Ningbo, China
What is you warranty period?
For your further better understand what after-sale service we are offering, here i give you the details:
each item supplied by 'Xeriwell' will be tested on it's testing plant at leaset twice
each item supplied by 'Xeriwell' will with a quality certificate
charge-free products, parts and services will be provided if any failures or defects of the contractual product in normal operation condition within the warranty period.
all of our product practice protect the quality 1 year.
How can i get more infomations?
If you want to lean more about this Hydraulic Drive Motor BMH, there is an example drawings attached at the buttom of this artical, please note to check.
XeriWell is a dedicated provider of hydraulic products, specializing in hydraulic motors, pumps, components, and complete hydraulic systems. Positioned as a trusted supplier to the global market, we focus on delivering innovative and reliable hydraulic solutions that meet the highest standards. With a commitment to serving clients worldwide, XeriWell provides tailored solutions that address the unique hydraulic needs of any region, supporting industries with high-quality, dependable performance.
At XeriWell, we bring extensive expertise to the hydraulic industry, grounded in a deep understanding of industry standards and certifications that ensure top-quality products and services. Our team of specialized hydraulic engineers is well-versed in international standards, rigorously following certifications and guidelines to meet diverse market requirements. With an average of over 10 years of experience, our professionals have the knowledge to handle complex projects and offer fully customizable solutions.
XeriWell offers a comprehensive range of hydraulic products, including hydraulic motors, pumps, components, complete hydraulic systems, and various other hydraulic parts to meet diverse industry needs. In addition to our extensive product line, we provide tailored hydraulic system solutions, designed to meet each client's unique specifications. Our customization services save clients valuable time by eliminating the need to source multiple suppliers, delivering fully integrated and efficient solutions for their hydraulic applications.
XeriWell's core competitive advantage lies in our technical expertise. Unlike standard suppliers, we are a technology-driven company focused not only on sourcing high-quality hydraulic products but also on offering strategic guidance and expert recommendations to our clients. This technical strength, combined with our comprehensive product range and customization capabilities, allows us to deliver hydraulic solutions that truly add value and meet the specific needs of a global clientele.
At XeriWell, our vision is to be a leading global provider of innovative and reliable hydraulic solutions that drive industry progress and customer success. We are committed to excellence, integrity, and customer-centric service, valuing strong partnerships and continuous improvement. Our goal is to empower our clients by delivering high-quality, tailored solutions that meet evolving industry demands, fostering a future where hydraulic technology is seamlessly integrated, efficient, and sustainable for all.
At XeriWell, we offer a comprehensive range of hydraulic components, including hydraulic motors, pumps, accessories, valves and more, with options for both original and high-quality domestic alternatives. Backed by a robust supply chain, we are able to meet the vast majority of our clients'procurement needs, from standard models to non-standard and even discontinued products. Additionally, we provide fully customized services and solutions tailored to specific requirements, ensuring clients receive precisely the products and configurations needed for optimal performance. Our commitment to flexibility and reliability makes XeriWell a trusted partner for all hydraulic sourcing and customization needs.
