BMH750 / BMH500
Xeriwell or Others
| Features: | High Pressure Oil Seals | Product Name: | Concrete Pump Hydraulic Motor |
|---|---|---|---|
| Brand Name: | Xeriwell | Model Number: | BMH750 ,BMH500 |
| Displacement: | 160cc - 750cc | Application: | Concrete Pump / Truck Mixers |
| Highlight: | orbital hydraulic motor,cycloid hydraulic motor | ||

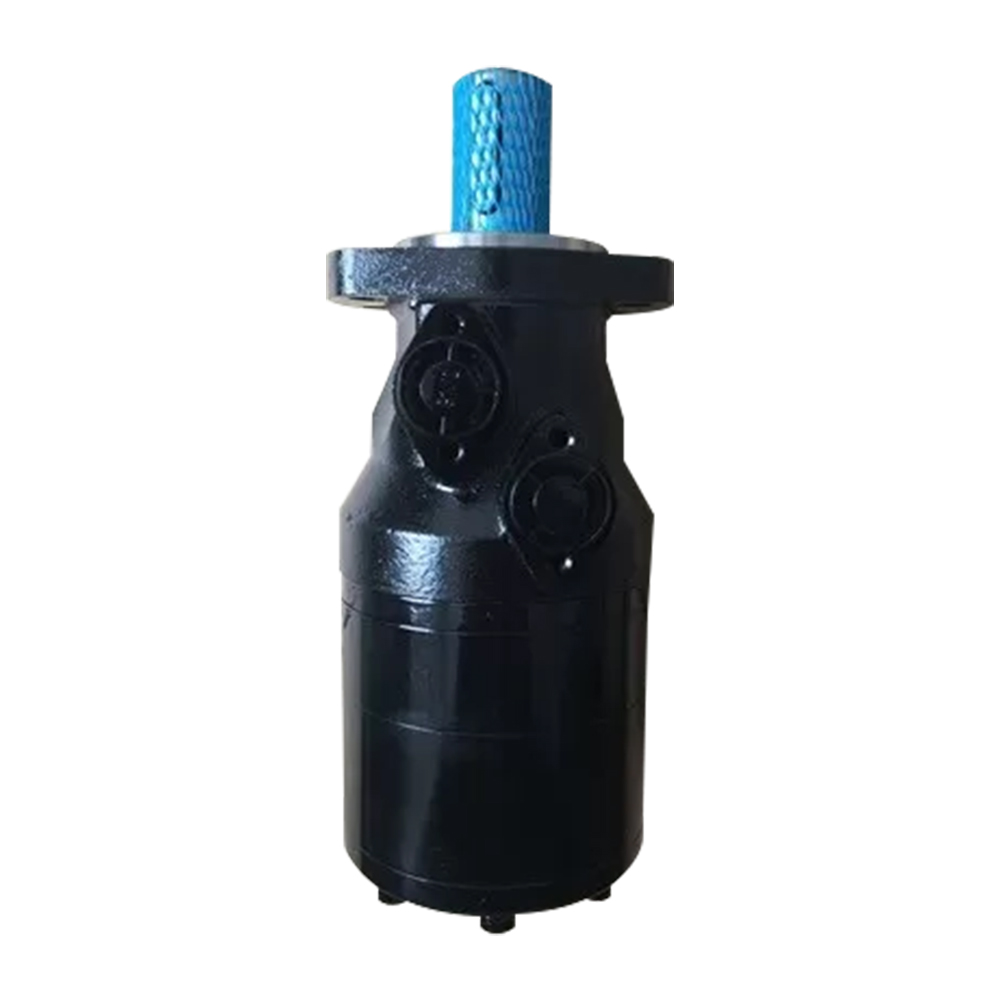

Putzmeister Concrete Pump Hydraulic Motor OMH750 / OMH500 OEM Part
1. We are professional manufacturer produce Hydraulic Orbital Motors.
2. Our BMH Series hydraulic motor have a good application on Concrete Pumps.
Such as Putzmeister, Schwing, CIFA, Sermac, Sany, Zoomlion, XCMG, KCP, Junjin.
3. Our processing equipment from Germany,oil seal is high pressure oil seal,precision parts processing and strict quality control.
4. Xeriwell Hydraulic BMH Motors quality match than M+S and .
| Type | BMH 200 | BMH 250 | BMH 315 | BMH 400 | BMH 500 | |
Displacement (cc/rev) | 203.2 | 255.9 | 316.5 | 406.4 | 489.2 | |
Max torque (n.m) | cont | 510 | 621 | 740 | 850 | 830 |
| int | 439 | 348 | 282 | 220 | 184 | |
Max pressure (mpa) | cont | 17.5 | 17.5 | 17.5 | 15.5 | 12.5 |
| int | 20 | 20 | 20 | 19 | 16 | |
Max speed rate (rpm) | cont | 366 | 290 | 236 | 183 | 155 |
| int | 439 | 348 | 282 | 220 | 184 | |
Max flow (L/min) | cont | 75 | 75 | 75 | 75 | 75 |
| int | 90 | 90 | 90 | 90 | 90 | |
Weight(kg)
| 10.5 | 11 | 11.5 | 12.3 | 13.0 | |
| Features: | High Pressure Oil Seals | Product Name: | Concrete Pump Hydraulic Motor |
|---|---|---|---|
| Brand Name: | Xeriwell | Model Number: | BMH750 ,BMH500 |
| Displacement: | 160cc - 750cc | Application: | Concrete Pump / Truck Mixers |
| Highlight: | orbital hydraulic motor,cycloid hydraulic motor | ||
Putzmeister Concrete Pump Hydraulic Motor OMH750 / OMH500 OEM Part
1. We are professional manufacturer produce Hydraulic Orbital Motors.
2. Our BMH Series hydraulic motor have a good application on Concrete Pumps.
Such as Putzmeister, Schwing, CIFA, Sermac, Sany, Zoomlion, XCMG, KCP, Junjin.
3. Our processing equipment from Germany,oil seal is high pressure oil seal,precision parts processing and strict quality control.
4. Xeriwell Hydraulic BMH Motors quality match than M+S and .
| Type | BMH 200 | BMH 250 | BMH 315 | BMH 400 | BMH 500 | |
Displacement (cc/rev) | 203.2 | 255.9 | 316.5 | 406.4 | 489.2 | |
Max torque (n.m) | cont | 510 | 621 | 740 | 850 | 830 |
| int | 439 | 348 | 282 | 220 | 184 | |
Max pressure (mpa) | cont | 17.5 | 17.5 | 17.5 | 15.5 | 12.5 |
| int | 20 | 20 | 20 | 19 | 16 | |
Max speed rate (rpm) | cont | 366 | 290 | 236 | 183 | 155 |
| int | 439 | 348 | 282 | 220 | 184 | |
Max flow (L/min) | cont | 75 | 75 | 75 | 75 | 75 |
| int | 90 | 90 | 90 | 90 | 90 | |
Weight(kg)
| 10.5 | 11 | 11.5 | 12.3 | 13.0 | |
