| Quantity: | |
|---|---|
BMS
Xeriwell or Others
| Product: | Hydraulic Engine | Feature: | Replacement Of , Eaton, M+S, Parker, Etc |
|---|---|---|---|
| Displacement: | 50-500 Cc/rev | Weight: | 9.5-14KGS |
| HS Code: | 84122910 | Color: | Black Or Gray |
| Highlight: | hydraulic rotation motor,hydraulic pump motor | ||

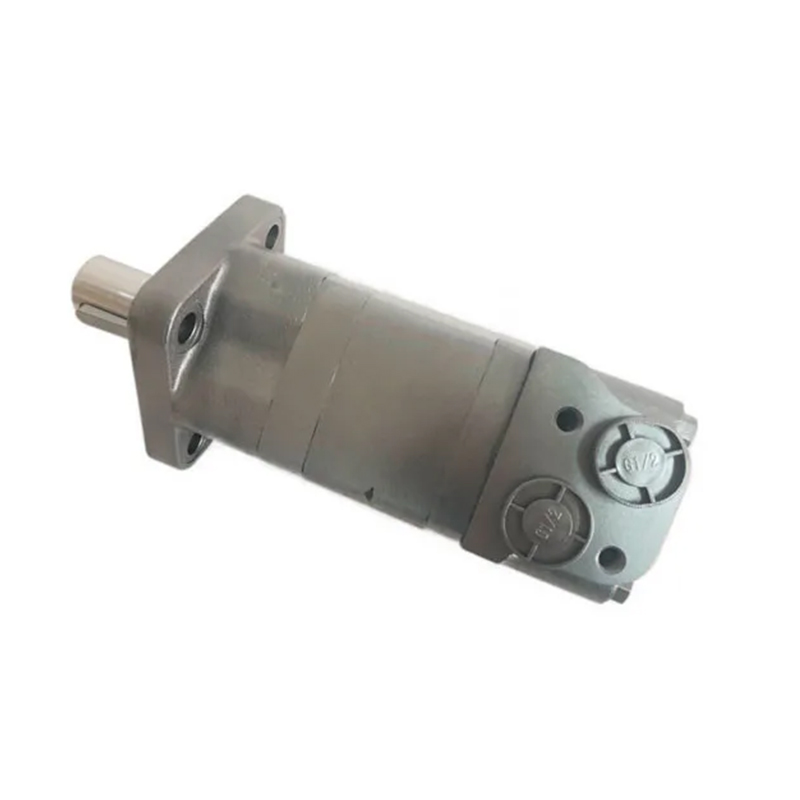

Low RPM Hydraulic Motor BMS/2000 Series φ31.75mm Straight Shaft
Characteristic Features:
1. Advanced design in disc distribution flow, which can automatically compensatein operating.
2. Shaft seal can bear high pressure of back and the motor can be used in parallel or inseries.
3. Special design in the driver-linker and prolong operation life.
4. The output shaft adopts in tapered roller bearings thatpermit high axial and radial forces. The can offers capacities of highpressure and high torque in the wide of applications.

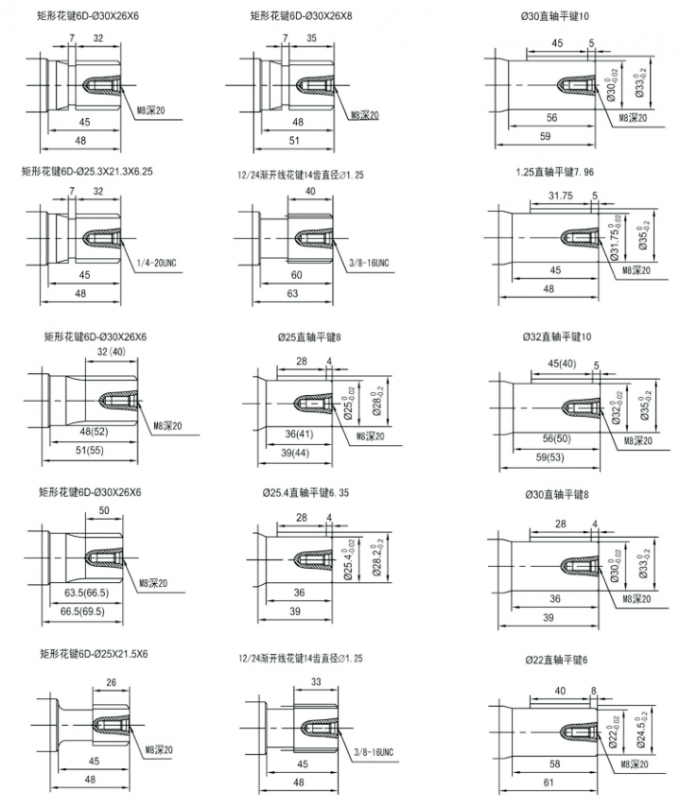

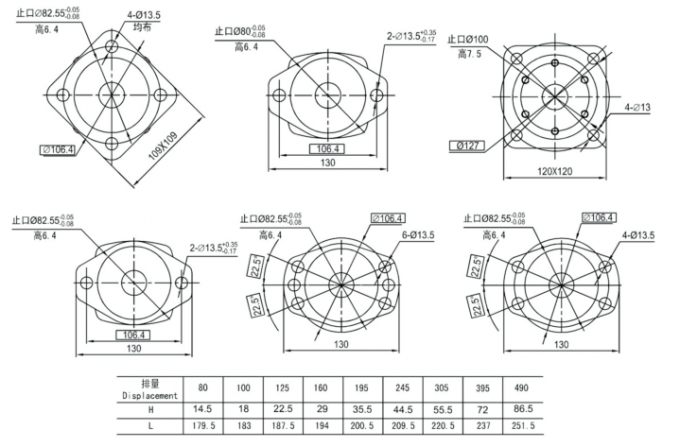

5. Various kinds of flange, output shaft and oil port mounting dimension.
Applications:
BM hydraulic motors are widely applied in agriculture machinery, fishing machinery, plastic industry, mining, and construction machinery.
1. An agricultural use: all combine harvesters, seeders, rotary tiller, mower, sprayer, feed mixers, ground drilling machine.
2. fishing with: hauling machine.
3. light industry: winding machines, textile machines, printing presses, operating with a washing machine.
4. construction industry: rollers, cement mixers, cleaning cars.
Main Specifications:
| Type | BMS BMSE 80 | BMS BMSE 100 | BMS BMSE 125 | BMS BMSE 160 | BMS BMSE 200 | BMS BMSE 250 | BMS BMSE 315 | BMS BMSE 375 | |
| Geometric displacement (cm3 /rev.) | 80.6 | 100.8 | 125 | 157.2 | 200 | 252 | 314.5 | 370 | |
| Max. speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 200 |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 240 | |
| Max. torque (N·m) | cont. | 190 | 240 | 310 | 316 | 400 | 450 | 560 | 536 |
| int. | 240 | 300 | 370 | 430 | 466 | 540 | 658 | 645 | |
| peak | 260 | 320 | 400 | 472 | 650 | 690 | 740 | 751 | |
| Max. output (kW) | cont. | 15.9 | 18.8 | 19.5 | 15.6 | 15.7 | 14.1 | 14.1 | 11.8 |
| int. | 20.1 | 23.5 | 23.2 | 21.2 | 18.3 | 17 | 18.9 | 17 | |
| Max. pressure drop (MPa) | cont. | 17.5 | 17.5 | 17.5 | 15 | 14 | 12.5 | 12 | 10 |
| int. | 21 | 21 | 21 | 21 | 16 | 16 | 14 | 12 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 18.5 | 14 | |
| Max. flow (L/min) | cont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Max. inlet pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 12.6 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
Reference Brand List:
| Xeriwell | M+S | EATON | ROSS | WHITE | PARKER | SAM | ||
| HYDRAULIC | HYDRAULIC | CHAR LYNN | TRW | CROSS | BREVINI | REXROTH | ||
| BMM | MM | OMM | MGX | |||||
| MLHK | J SERIES | - | - | - | BGM | |||
| BMP/BM1 | MP | OMP | MF | WP | TC | BG | MGP, GMP | |
| TE | ||||||||
| HP | H SERIES | DH | MG | RS | TB | |||
| BMR/BM2 | MR | OMR | MB | WR | BR | MGR, GMR | ||
| HR | S,T SERIES | DS | RE | TF | ||||
| MLHRW, RW | W SERIES | OMEW | ||||||
| BMH/BM4 | MH | OMH | ||||||
| MLHH | ME | |||||||
| HW, HWF | RE | TG | ||||||
| BMS/BM5 | MS, MSY | OMS | TG | MGS, GMS | ||||
| HPR | ||||||||
| MLHS | 2000 SERIES | ME | RE | |||||
| BMT/BM6 | MT | OMT | MGT, GMT | |||||
| MLHT | 6000 SERIES | MJ | HT | |||||
| MTM | TMT | |||||||
| BMV | MV | OMV | MGV, GMV | |||||
| MLHV | 10000 SERIES |
