| Quantity: | |
|---|---|
BMSW
Xeriwell or Others
| Products Name: | Hydraulic Orbital Motor | Model No.: | BMSW |
|---|---|---|---|
| Tags: | Motor, Wheel, Hydraulic, , Orbital, Sauer, OMSW | Categories: | Automotive, Construction, Machine Design |
| Warranty: | 12-18 Months | Application: | Construction Machines, Heavey Machines, Rollers Etc. |
| Highlight: | hydraulic wheel drive motors,spool valve motor | ||

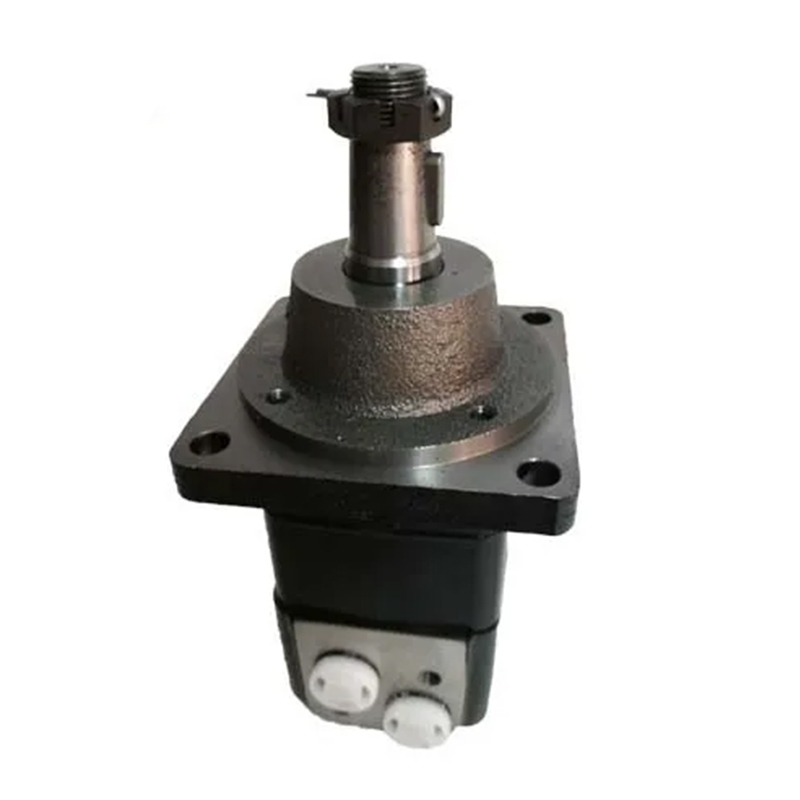

Hydraulic Wheel Motor / Hydraulic Drive Device Engine BMSW315 / 3W 315Z2AY
Introduction
A simultaneous maximum torque and maximum speed NOT recommended.
Bar-True pressure difference between inlet port and outlet port.
Continuous Rating-Motor may be run continuously at these ratings.
Intermittent Operation-10% of very minute
To assure best more life, run motor for approximately one hour at 30% of rated pressure before application to full load. Be sure motor is filled with fluid prior to any load applications.
Feature
Compact size, high efficiency
Low-friction and long life advantages
Internal check valves, Escort seal
This motor has a rugged housing with an extra large capacity side load bearing
Shaft seal can bear high pressure of back and the motor can be used in parallel or series
Geroler and drive use the SMT series motors parameter, prolong operating life.
| YPE | BMSW-315 | BMSW-400 | BMSW-500 | BMSW-630 | BMSW-800 | BMSW-985 | |
| Displacement(ml/r) | 314.9 | 399.7 | 496.6 | 617.8 | 787.4 | 969.1 | |
Max.Pressure.Drop(Mpa) | cont. | 20 | 20 | 20 | 18 | 16 | 14 |
| int. | 24 | 24 | 24 | 21 | 18 | 16 | |
| peak. | 28 | 28 | 28 | 24 | 21 | 18 | |
| Max.Torque(N.m) | cont. | 873 | 1108 | 1385 | 1570 | 1773 | 1900 |
| int. | 1119 | 1440 | 1783 | 1951 | 2122 | 2133 | |
| peak. | 1293 | 1650 | 2060 | 2249 | 2481 | 2399 | |
| Speed.Range(cont.)(r/min) | 10-475 | 9-375 | 8-300 | 6-238 | 5-187 | 5-154 | |
| Max.Flow(cont.)(L/min) | 150 | 150 | 150 | 150 | 150 | 150 | |
| Max.Output.Power(cont.)(Kw) | 32 | 32 | 32 | 32 | 32 | 24 | |
| Weight(kg) | 30.7 | 31.5 | 32.4 | 33.6 | 35.2 | 37.2 | |
