| Quantity: | |
|---|---|
BZZ
Xeriwell or Others
| Name: | Orbitrol Steering Pump | Model No.: | BZZ |
|---|---|---|---|
| Brand: | Xeriwell | Displacement: | 50ml/rev-1000ml/rev |
| Mounting Data: | Long Spigot, Short Spigot, SAE Involute Spline Mounting | Warranty: | One Year |
| Highlight: | power steering valve,hydraulic steering gear | ||

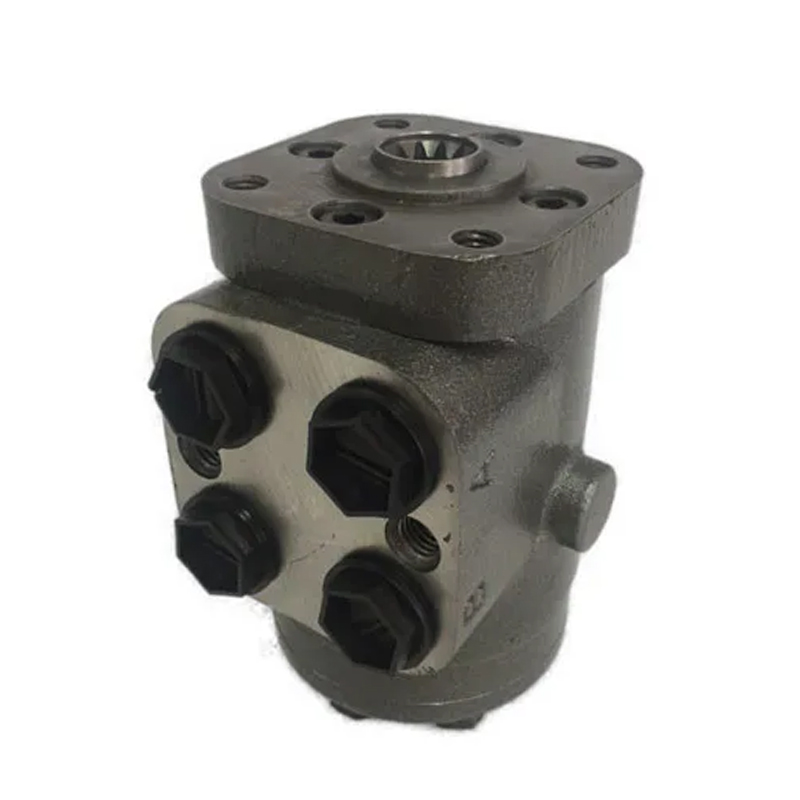

Professional Hydraulic Power Steering Pump BZZ 1 / 2 / 3 For Loader / Forklift
Description:

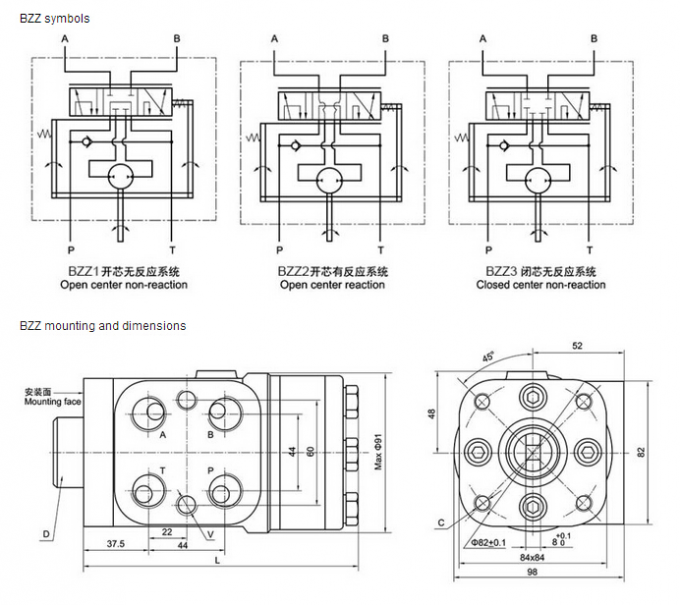

BZZ1, BZZ2, BZZ3 Hydraulic steering control units(SCU), new design, better performance. Different Mountings (Long spigot, cross-block mounting; Short spigot, cross-block mounting; Sae involute spline mounting). Different Functions ( Open Center Non Reaction; Close Center Non Reaction; Loadsensing). Widely applied to low speed and heavy load vehicles.
Features:
1. Low cost, reliable.
2. No load reaction on the steering wheel comfortable.
3. Manual operation available when the pump doesnt work.
4. Low control torque, continuous operation.
5. According to the system, different function and pressure level valves available.

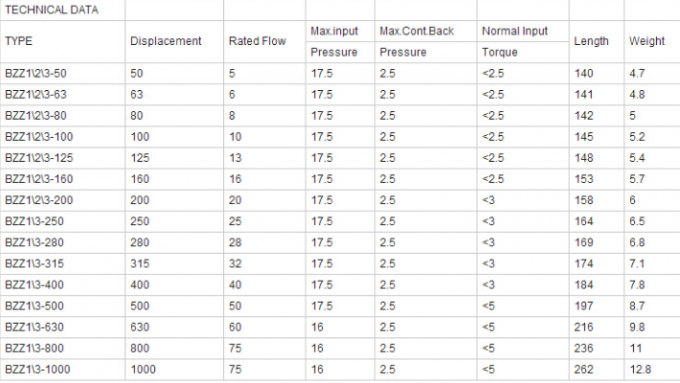

Main Specifications:
Applications:
BZZ SCU can widely use for construction machinary, forklift, tractor, harvester and helm control etc.
| Orbitrol | |||
| Xeriwell Hydraulic | M+S | Eaton | |
| 101 | OSPB | ||
| 101S | OSPC | ||
| 101S-5T | OSPJ | ||
| 102 | HKU | ||
| 102S | HKUS | ||
| 060 | 45 series | ||
