| Quantity: | |
|---|---|

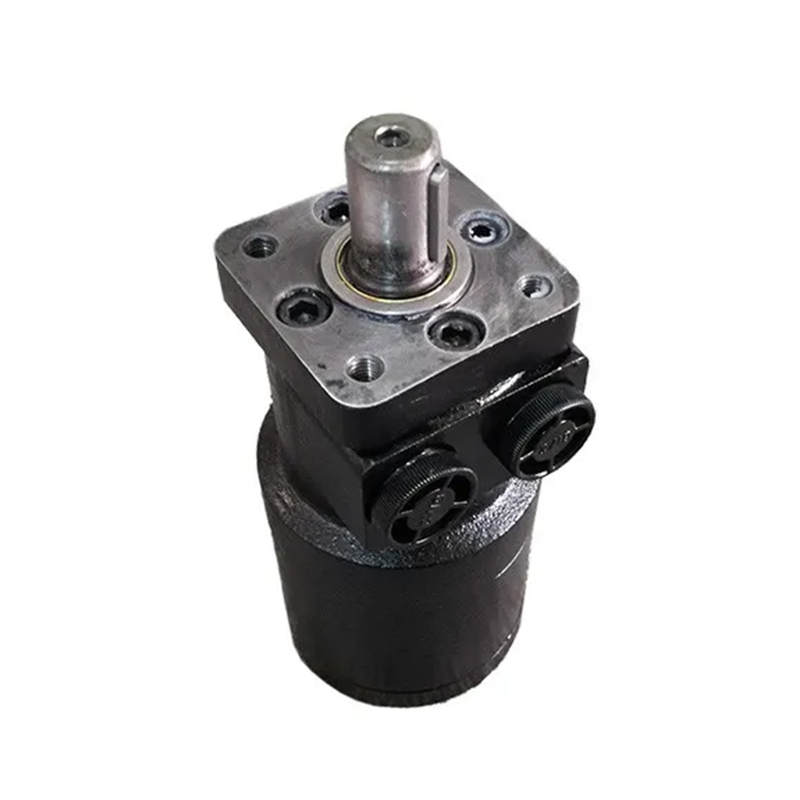

BMRS315-H5RG-00
Xeriwell or Others
| Type: | Replace Motor Hydraulics | Brand: | Xeriwell |
|---|---|---|---|
| Model No.: | BMRS315-H5RG-00 | Displacement: | 315 Ml/r |
| More Size: | 50ml, 80ml, 100ml, 125ml, 200ml, 315ml, 400ml, 500ml | Speed: | 190 RPM To 240RPM |
| Flow: | 60 Lpm To 75 Lpm | Application: | Heavy Duty Equipment, Ag Machinery |
| Highlight: | high power hydraulic motor,industrial hydraulic motor | ||

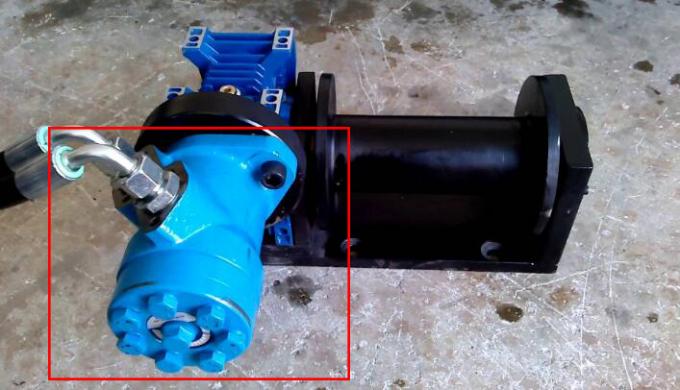

Hydraulic Winch Hydraulic Motors BMRS315 replace OMR315 MR315
Quick details:
we produce hydraulic motors for digging, drilling, rolling, lifting applications
variety version available from BMM, BMP, BMR, BMH, BMS, BMT, BMV, BMK2, BMK6, BMER
variety types with same specifications with most Eaton Char-lynn, , Parker, and many more
Speed: 200 RPM to 1650 RPM
Flow: 240 Lpm to 55 Lpm
Power: 5.0 KW - 56 KW
Torque: 55 Nm - 2400 Nm

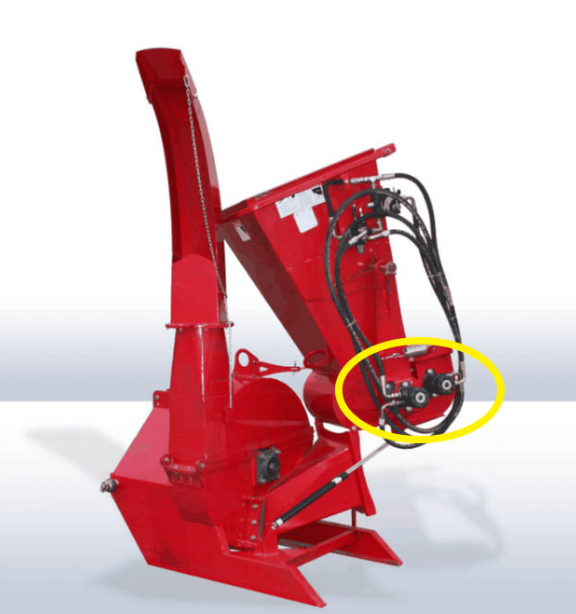

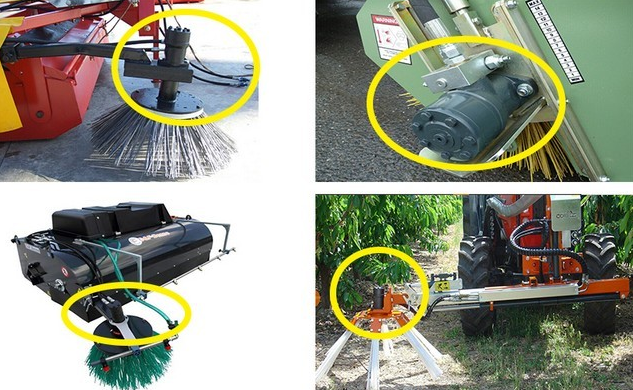

meet all application on Heavy duty equipment, Ag machinery, Industrial
| Main Specifications: |
| Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft: |
| Type | BMR BMRS 36 | BMR BMRS 50 | BMR BMRS 80 | BMR BMRS 100 | BMR BMRS 125 | BMR BMRS 160 | BMR BMRS 200 | BMR BMRS 250 | BMR BMRS 315 | BMR BMRS 375 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 640 | 650 | 680 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 10 | 7 | 6 | 5 |
| int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 9.5 | 9 | 8 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 17.5 | 15 | |
| Max. flow (L/min) | cont. | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 | |
Technical data for BMR with 31.75 and 32 shaft:
| Type | BMR BMRS 36 | BMR BMRS 50 | BMR BMRS 80 | BMR BMRS 100 | BMR BMRS 125 | BMR BMRS 160 | BMR BMRS 200 | BMR BMRS 250 | BMR BMRS 315 | BMR BMRS 375 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1250 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1520 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 380 | 450 | 540 | 550 | 580 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 500 | 610 | 690 | 690 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 710 | 840 | 830 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 11 | 10 | 9 | 7.5 |
| int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 12 | 10 | 9 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 13.5 | 11.5 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 20 | 20 | 17.5 | 15 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 21 | 17.5 | |
| Max. flow (L/min) | cont. | 45 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 55 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 | |
* Continuous pressure:Max.value of operating motor continuously.
* Intermittent pressure:Max.value of operating motor in 6 seconds per minute .
* Peak pressure:Max.value of operating motor in 0.6 second per minute.
| Specification Data of Hydraulic Motors | |||||
| Distribution type | Model | Displacement | Max. operating pressure | Speed range | Max. output power |
| (cm3/rev.) | (MPa) | (rpm) | (kW) | ||
| Axial distribution | BMM | 8-50 | 14 | 30-1950 | 3.2 |
| BMP | 36-400 | 16.5 | 30-879 | 10 | |
| BMR | 36-375 | 20 | 30-970 | 15 | |
| BMH | 200-500 | 20 | 30-430 | 17 | |
| Specification Data of Hydraulic Motor | |||||
| Distribution type | Model | Displacement | Max. operating pressure | Speed range | Max. output power |
| (cm3/rev.) | (MPa) | (rpm) | (kW) | ||
| Disc distribution | BMS | 80-475 | 22.5 | 30-800 | 24 |
| BMT | 160-800 | 24 | 30-705 | 35 | |
| BMV | 315-800 | 28 | 10-446 | 43 | |
Features:
Orbital Motors Low speed high torque, widely used for lifting, windling, load handling, delivery and many more power transmission applications.
From big to small, multi types, sizes, key and shaft available, small volume, light weight, save valuable space, High torque, High power transmission, long life under extreme operation conditions.
Displacement from 8ml/r to 1000ml/r, speed from 100RPM to 2000RPM, flow from 40Lpm to 225Lpm, working pressure from 9MPa to 30MPa, torque from 75N*M to 3000N*M.
Our motors interchangeable with most common brands and models of domestic and other European manufactures, simialr performance more moderate prices.
We always do our best to keep excellent prices with great quality, and are constantly investigating new methods of quality improvement. We can provid you better hydraulic solutions.
