| Quantity: | |
|---|---|
BMK2-125-WE-T4-SU-B
Xeriwell or Others
| Type: | Hydraulic Drive Motor | Manufacturer: | Xeriwell |
|---|---|---|---|
| Model No.: | BMK2-125-WE-T4-SU-B | Size: | 125 Ml/r |
| Replace: | Char-lynn 2000 Series | Flange: | 4-hole Wheel Flange |
| Shaft: | 31.75 Tap | Oil Port: | 7/8-14UNF O-ring |
| Drain : | 7/16-20 UNF | ||
| Highlight: | heavy duty hydraulic motor,large hydraulic motor | ||

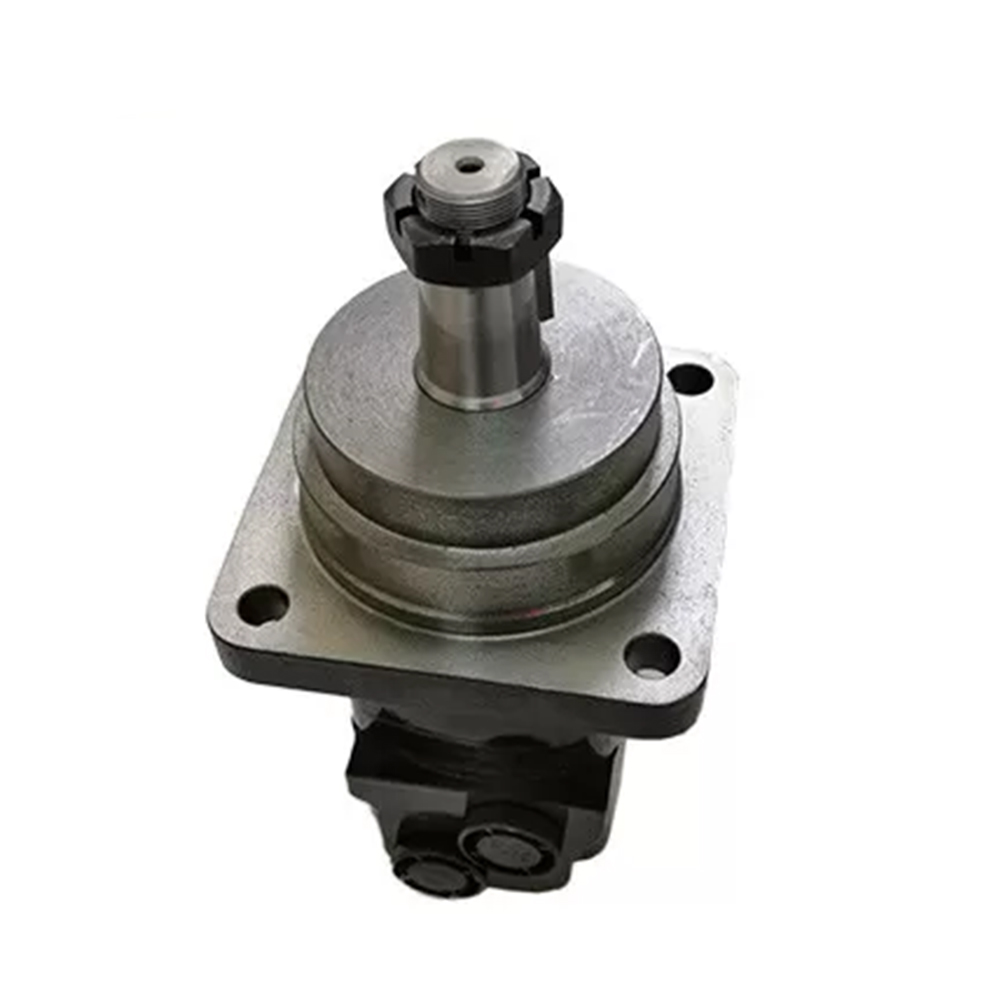

New Eaton 2k-125 Hydraulic Motor Replace, Hydraulic Motor Driving Wheel
Quick details:
Hydraulic motor driving wheel
Xeriwell Hydraulic Motor BMK2-125 widely used on Heavy Equipments
Customers use Xeriwell BMK2-125 to replace Eaton 2K series
Motor Eaton alternative BMK2-125 = 2K-125
BMK2-125
| 1, | model number | BMK2-125-WE-T4-SU-B |
| 2, | displacement | 125 ml/r |
| 3, | flange | 4 - hole wheel mounting |
| 4, | shaft | 31.75 mm TAPPER shaft |
| 5, | oil port | 7/8-14UNF O-ring |
| 6, | drain | 7/16-20 UNF |
| 7, | rotation | Standard |
| 8, | paint | Black |
| 9, | replace | Char-lynn 2K |
The company strong at Hydraulic Motors produce and export.
Customers use our hydraulic motor to be alternative as PARKER, , WHITE, EATON, M+S, and many more.
Because our motor are very ECONOMICAL, and have obviouse advantage in terms of delivery time, price, service compare with other makes.
Market we serve:
• Turf Equipment
• Aerial
• Agriculture Machinery
• Construction Equipment
• Factory Automation
• Material Handling Equipment
• Oil & Gas
• Forestry Equipment
• Mining
Features/Benefits:
• Robust construction for longer life
• Continuous oil flow across internal splines for longer life
• Superior side load capacity
• Smooth, extra low speed operation
• High pressure shaft seal is standard
• Innovative design eliminates the need for a drain
• Dependability based on high quality design and manufacturing
• Designed and manufactured in Greeneville, TN USA
Applications:
• Trenchers
• Skid Steer Attachments
• Zero Turn Mowers
• Golf Course Maintenance Equipment
• Sweepers
• Wood Chippers
• Conveyers
• Combine Harvesters
• Winches
• Augers
• Portable Irrigation Systems
• Post Hole Augers
• Potato, Tomato, Nut, Leafy Vegetable, Sugar, Cotton, Coffee and Grape Specialty Harvesters
• Combine Header Drives
• Sprayers
• Scissor Lifts
• Snow Removal
• Salt and Sand Spreaders
• Oil and Gas Blender Trucks
• Mini and Walk-Behind Skid Steers
• Tool Carriers
• Pipe Spinners
Are you looking for Economical Low Speed High Torque Motors?
Perhaps you are looking for Parker / / Eaton / M+S replacement Low Speed High Torque Motors?
Or you are looking for other economical hydraulic spare part for Industrial equipments?
Contact Hanju and you will be pleasantly to find that they will surprise you.
| 主要技术参数 Main Specification | ||||||||||||
| 类型Type | BMK2 65 | BMK2 80 | BMK2 100 | BMK2 125 | BMK2 160 | BMK2 200 | BMK2 250 | BMK2 315 | BMK2 400 | BMK2 475 | ||
| 排量 Disp. | (cm3/rev.) | 65 | 80 | 100.9 | 129.8 | 156.8 | 193.4 | 242.5 | 304.3 | 390.8 | 485 | |
| 最高转速 Max. speed | (rpm) | 连续 | 835 | 800 | 742 | 576 | 477 | 385 | 308 | 246 | 191 | 153 |
| 断续 | 990 | 980 | 924 | 720 | 713 | 577 | 462 | 365 | 287 | 230 | ||
| 最大扭矩 Max. torque | (N•m) | 连续 | 185 | 235 | 295 | 385 | 455 | 540 | 660 | 765 | 775 | 845 |
| 断续 | 245 | 345 | 445 | 560 | 570 | 665 | 820 | 885 | 925 | 930 | ||
| 最高工作压差 Max. pressure drop | (MPa) | 连续 | 20.5 | 21 | 21 | 21 | 20.5 | 20.5 | 20.5 | 21 | 15.5 | 12 |
| 断续 | 27.5 | 31 | 31 | 31 | 26 | 26 | 26 | 24 | 17 | 14 | ||
| 峰值 | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 20.5 | 17 | ||
| 最大流量 Max. flow | (L/min) | 连续 | 55 | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| 断续 | 65 | 80 | 95 | 95 | 115 | 115 | 115 | 115 | 115 | 115 | ||
| 重量 weight | (kg) | 9.2 | 9.4 | 9.7 | 10 | 10.2 | 10.5 | 11 | 11.5 | 12 | 12.4 | |
| * Continuous pressure:Max.value of operating motor continuously . * Intermittent pressure:Max.value of operating motor in 6 seconds per minute . * Peak pressure:Max.value of operating motor in 0.6 second per minute . | ||||||||||||
