BMV630 / MV630 / OMV630
Xeriwell or Others
| Features: | High Pressure Oil Seal,Low Noise Level | Product Name: | Splitter Drilling Rigs Motor BMV630 |
|---|---|---|---|
| Brand Name: | Xeriwell | Speedr: | Powerful Low Speed High Torque |
| Displacement: | 315cc--1000cc | Application: | Hydraulic Splitter Drilling Rigs |
| Highlight: | heavy duty hydraulic motor,large hydraulic motor | ||

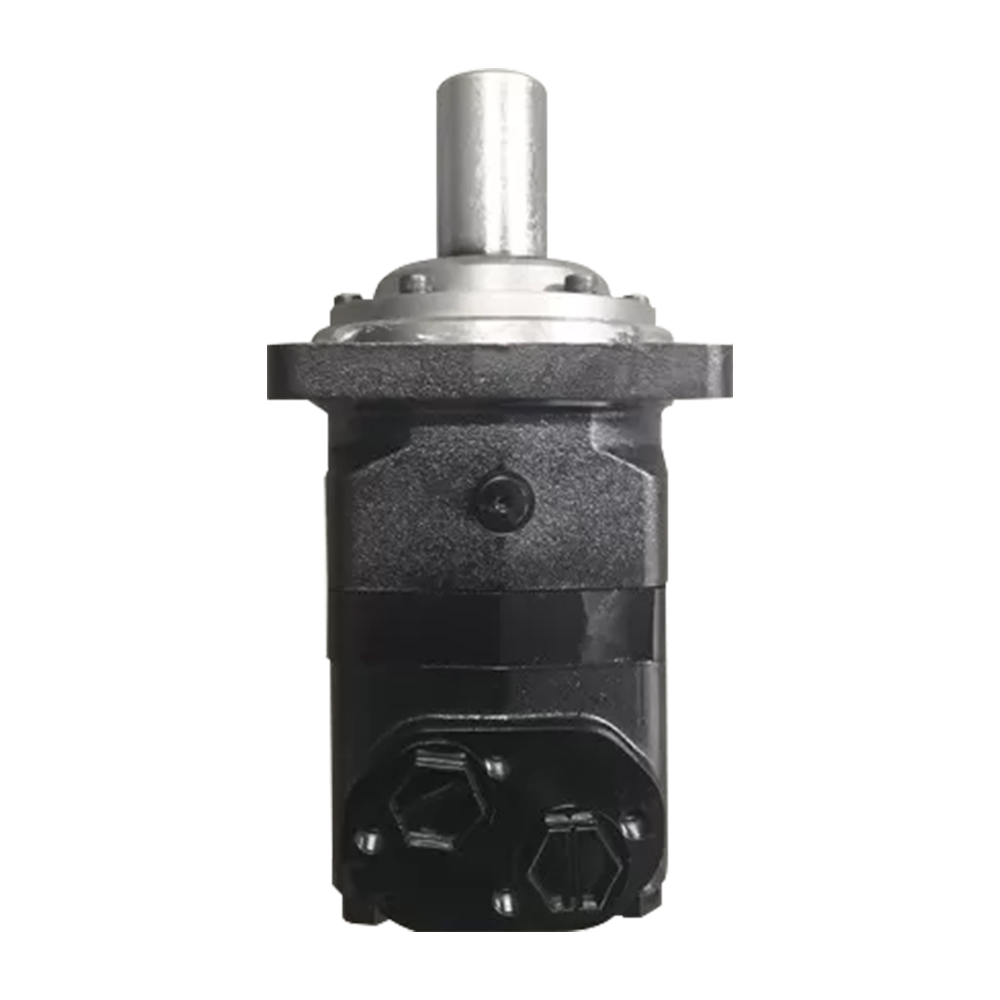

Powerful Low Speed High Torque Hydraulic Motor OMV630 For Splitter Drilling Rigs
| Hydraulic Splitter Drilling Rigs |
| BMV / OMV315 |
| BMV / OMV400 |
| BMV / OMV500 |
| BMV / OMV500 |
| BMV / OMV500 |
| BMV / OMV500 |
1. Characteristic Features
• Constant operating torque over a wide speed range
• Smooth running over the entire speed range
• High starting torque
• High pressure oil seals
• Low speed, high torque motors
• Roller vane type drive system – offers high volumetric efficiency and long life.
• Available in several body sizes, with a range of displacements, mounts, ports, shafts and valve options
• Manufactured with high quality materials and systems to exacting standards
2. Specification
| Type | BMV 315 | BMV 400 | BMV 500 | BMV 630 | BMV 800 | BMV 1000 | |
| Geometric displacement (cm3 /rev.) | 333 | 419 | 518 | 666 | 801 | 990 | |
| Max. speed (rpm) | cont. | 510 | 500 | 400 | 320 | 250 | 200 |
| int. | 630 | 600 | 480 | 380 | 300 | 240 | |
| Max. torque (N·m) | cont. | 920 | 1180 | 1460 | 1660 | 1880 | 2015 |
| int. | 1110 | 1410 | 1760 | 1940 | 2110 | 2280 | |
| peak | 1290 | 1640 | 2050 | 2210 | 2470 | 2400 | |
| Max. output (kW) | cont. | 38 | 47 | 47 | 40 | 33 | 28.6 |
| int. | 46 | 56 | 56 | 56 | 44 | 40 | |
| Max. pressure drop (MPa) | cont. | 20 | 20 | 20 | 18 | 16 | 14 |
| int. | 24 | 24 | 24 | 21 | 18 | 16 | |
| peak | 28 | 28 | 28 | 24 | 21 | 18 | |
| Max. flow (L/min) | cont. | 160 | 200 | 200 | 200 | 200 | 200 |
| int. | 200 | 240 | 240 | 240 | 240 | 240 | |
3. Application
• Hydraulic Splitter Drilling Rigs
• Cone Splitter
• Excavator Splitter
• Drilling Machine
• Mining Equipment
• Geological exploration
4. Xeriwell Exhibition
1.
ITALY BOLOGNA EIMA INTERNATIONAL AGRICULTURAL AND GARDENING MACHINERY EXHIBITION
NOVEMBER 9 - 13,2016
BOOTH NO. : 18BIS - C14
2.
AGRITECHNICA - THE WORLD’S NO.1
NOVEMBER 12 - 18,2017 HANOVER,GERMANY
BOOTH NO. : 15B14
3.
IRAN AGRISHOW 2018
FEBRUARY 21 - 24,2018 TEHRAN,IRAN
BOOTH NO. : HALL 8 - 9,STAND 31
4.
KONYA 2018 AGRICULTURE
MARCH 20 - 24,2018 KONYA,TURKEY
BOOTH NO. : HALL 5,STAND 25
5.
INTERMAT
APRIL 23 - 28,2018 PARIS,FRANCE
BOOTH NO. : 5A C008
