BMR400
Xeriwell or Others
| Features: | Quality Same Than ,M+S | Product Name: | Gerotor Hydraulic Motor |
|---|---|---|---|
| Brand Name: | Xeriwell | Model Number: | OMR / MR / BMR400 |
| Displacement: | 80cc - 500cc | Application: | Fishing Boat Net Hauler Hydraulic Winch |
| Highlight: | orbital hydraulic motor,cycloid hydraulic motor | ||

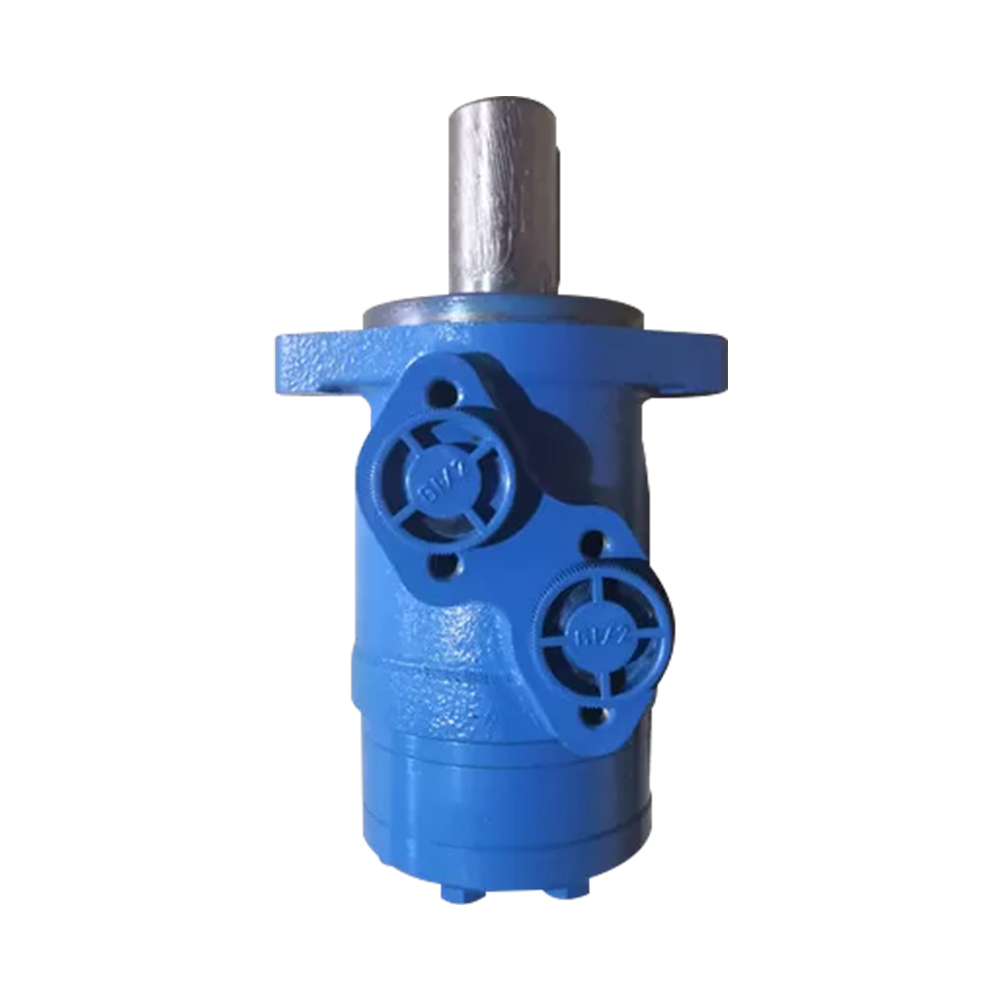

Powerful Fishing Boat Net Hauler Hydraulic Winch Orbital Motor BMR / MR / OMR400cc
| Fishing Boat Net Hauler Hydraulic Winch Orbital Motor |
| BMR / MR / OMR160cc |
| BMR / MR / OMR200cc |
| BMR / MR / OMR250cc |
| BMR / MR / OMR315cc |
| BMR / MR / OMR400cc |
| BMR / MR / OMR500cc |
► Characteristic Features
1. Low internal leakage
2. High torque at low speeds
3. Large displacement volume
4. Relatively small size
5. Low noise level
6. Longer life expectancy
► Specification
| Type | BMR 36 | BMR 50 | BMR 80 | BMR 100 | BMR 125 | BMR 160 | BMR 200 | BMR 250 | BMR 315 | BMR 375 | |
| Geometric displacement (cm3 /rev.) | 36 | 51.7 | 81.5 | 102 | 127.2 | 157.2 | 194.5 | 253.3 | 317.5 | 381.4 | |
| Max. speed (rpm) | cont. | 1085 | 960 | 750 | 600 | 475 | 378 | 310 | 240 | 190 | 155 |
| int. | 1220 | 1150 | 940 | 750 | 600 | 475 | 385 | 300 | 240 | 190 | |
| Max. torque (N·m) | cont. | 72 | 100 | 195 | 240 | 300 | 360 | 360 | 390 | 390 | 365 |
| int. | 83 | 126 | 220 | 280 | 340 | 430 | 440 | 490 | 535 | 495 | |
| peak | 105 | 165 | 270 | 320 | 370 | 460 | 560 | 640 | 650 | 680 | |
| Max. output (kW) | cont. | 8.5 | 9.5 | 12.5 | 13 | 12.5 | 12.5 | 10 | 7 | 6 | 5 |
| int. | 9.8 | 11.2 | 15 | 15 | 14.5 | 14 | 13 | 9.5 | 9 | 8 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 9 | 7 |
| int. | 16.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 15 | 13 | 10 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 17.5 | 15 | |
| Max. flow (L/min) | cont. | 40 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 45 | 60 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight (kg) | 6.5 | 6.7 | 6.9 | 7 | 7.3 | 7.6 | 8 | 8.5 | 9 | 9.5 | |

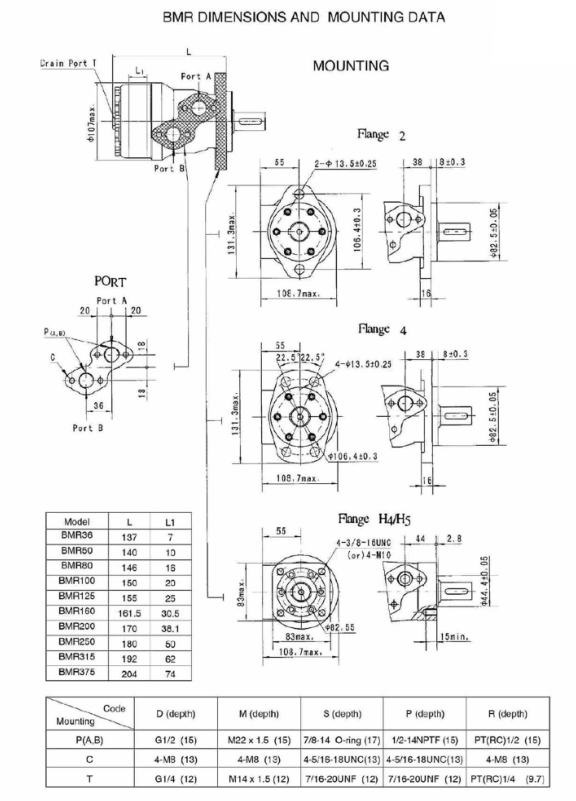

| Model | L | L1 |
| BMR36 | 137 | 7 |
| BMR60 | 140 | 10 |
| BMR80 | 146 | 15 |
| BMR100 | 150 | 20 |
| BMR125 | 155 | 25 |
| BMR160 | 161.5 | 30.5 |
| BMR200 | 170 | 38.1 |
| BMR250 | 180 | 50 |
| BMR315 | 192 | 62 |
| BMR375 | 204 | 74 |
| Mounting Code | D (depth) | M (depth) | S (depth) | P (depth) | R (depth) |
| P(A,B) | G1/2（15） | M22×1.5（15） | 7/8-14 O-ring（17） | 1/2-14NPTF（15） | PT(RC)1/2（15） |
| C | 4-M8（13） | 4-M8（13） | 4-5/16-18UNC(13) | 4-5/16-18UNC(13) | 4-M8（13） |
| T | G1/4（12） | M14×1.5（12） | 7/16-20UNF（12） | 7/16-20UNF（12） | PT(RC)1/4 （9.7） |
