V12 V14

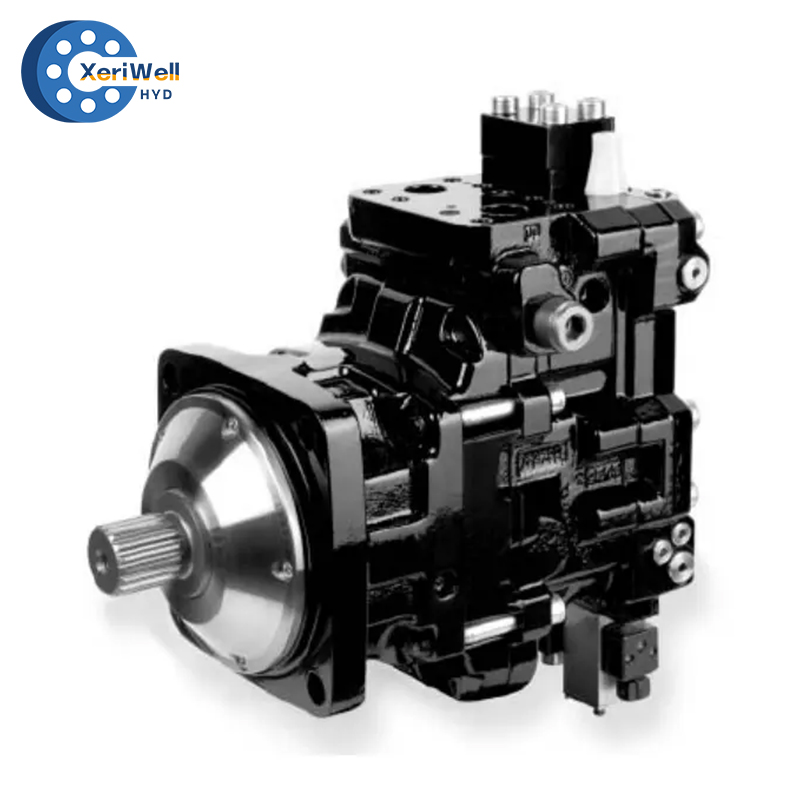

The Parker V12 hydraulic motor is a high-performance, variable displacement motor designed for demanding mobile and industrial applications. With advanced engineering, it delivers outstanding efficiency, durability, and versatility.
Features:
1）High Pressure and Speed Capability: The V12 can handle intermittent pressures of up to 480 bar and continuous pressures of 420 bar, supporting high speeds for demanding applications.
2）Variable Displacement: Featuring a wide displacement range (5:1 ratio), it provides precise control and adaptability for diverse operational requirements.
3）Compact and Robust Design: The V12 combines a small footprint with a high power-to-weight ratio, making it ideal for space-constrained applications while maintaining robust performance.
4）Durable Construction: Engineered with heavy-duty roller bearings, a strong synchronizing shaft, and laminated piston rings, it ensures long-lasting reliability even under extreme conditions.
5）Low Noise Levels: Its sturdy design with smooth fluid passages ensures quieter operation, suitable for environments where noise reduction is essential.
The Parker V12 is an excellent choice for applications such as construction, forestry, mining, and drilling, where high efficiency and reliability are essential.

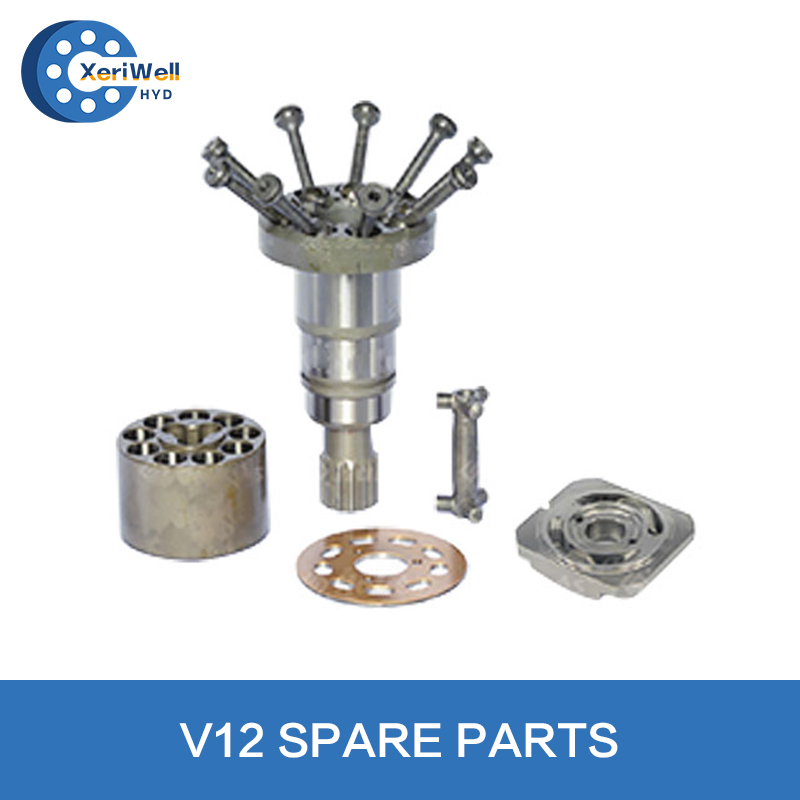

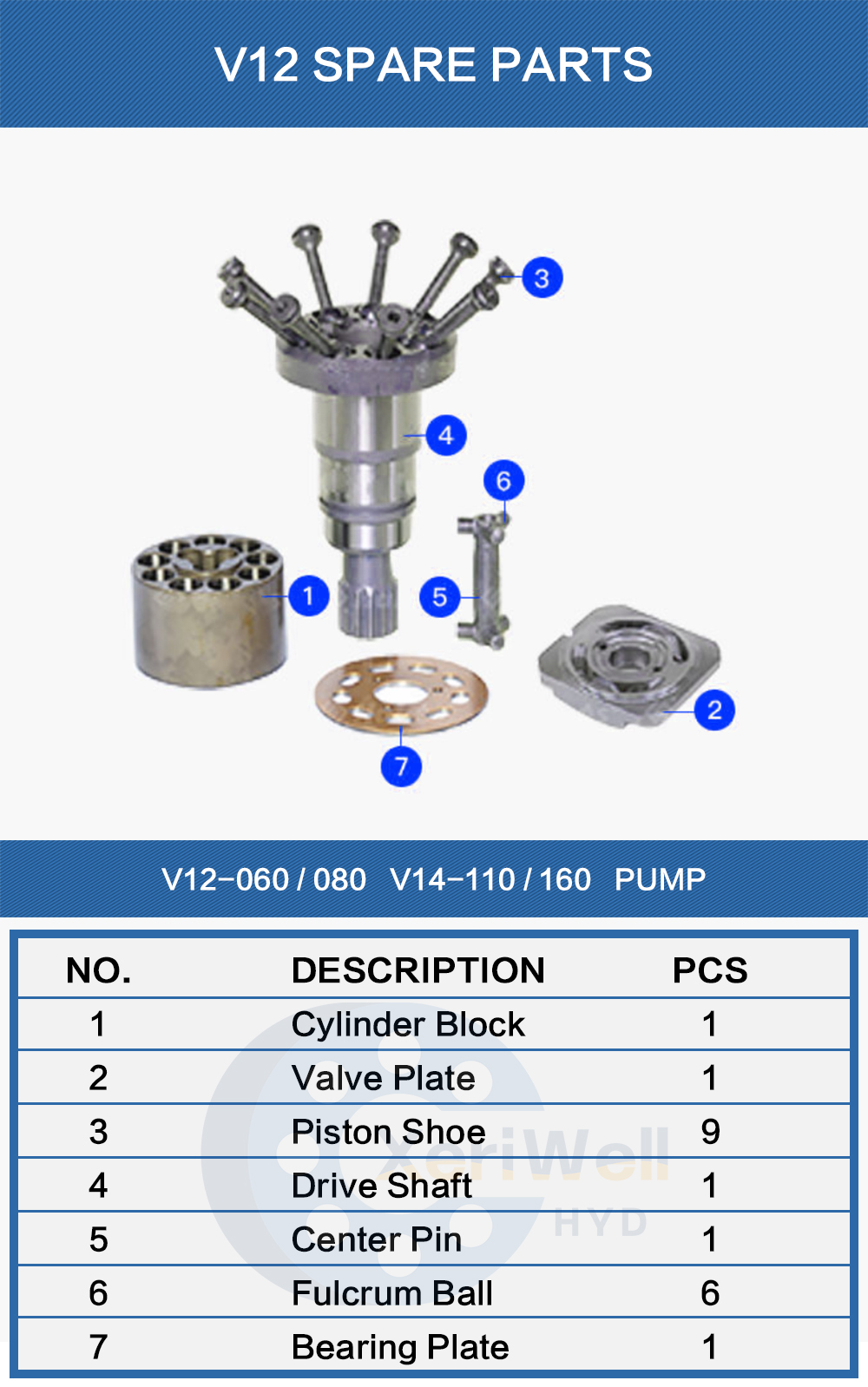

Parker V12-060 V12-080 V14-110 V14-160 Hydraulic Motor spare parts list:

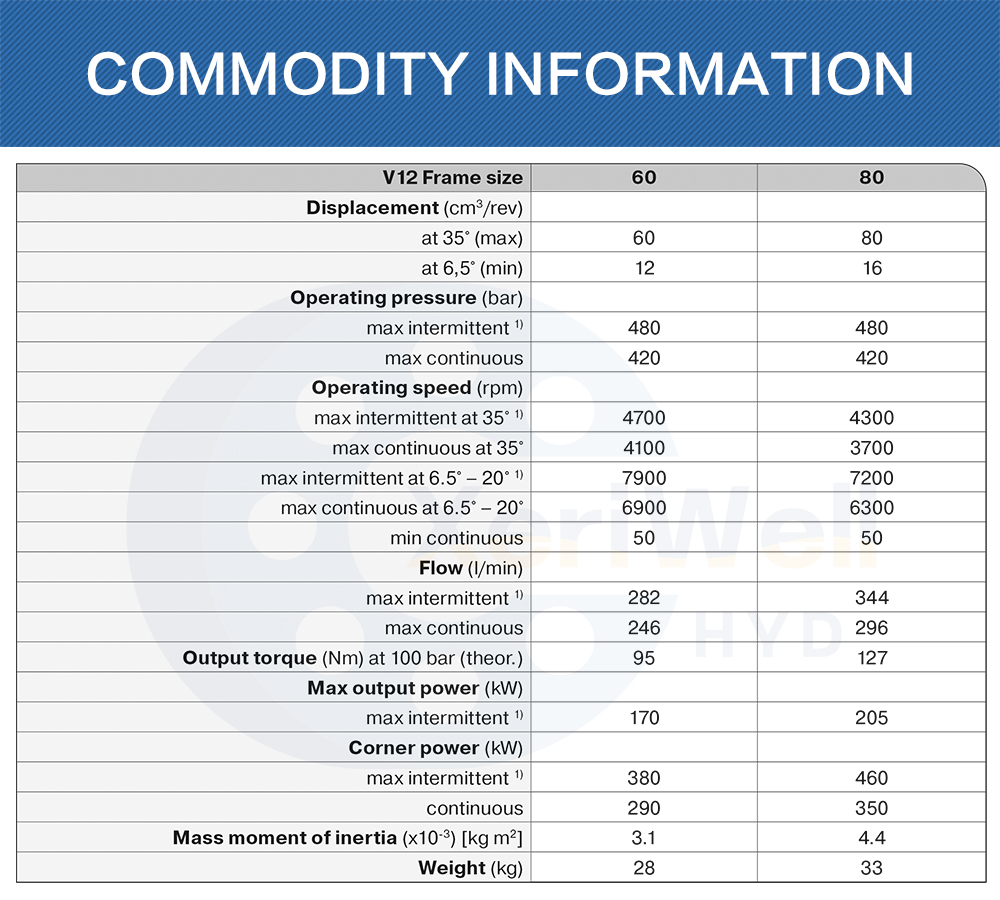

| V12 Frame size | 60 | 80 |
| Displacement (cm3/rev) | ||
| at 35° (max) | 60 | 80 |
| at 6,5° (min) | 12 | 16 |
| Operating pressure (bar) | ||
| max intermittent 1) | 480 | 480 |
| max continuous | 420 | 420 |
| Operating speed (rpm) | ||
| max intermittent at 35° 1) | 4700 | 4300 |
| max continuous at 35° | 4100 | 3700 |
| max intermittent at 6.5° – 20° 1) | 7900 | 7200 |
| max continuous at 6.5° – 20° | 6900 | 6300 |
| min continuous | 50 | 50 |
| Flow (l/min) | ||
| max intermittent 1) | 282 | 344 |
| max continuous | 246 | 296 |
| Output torque (Nm) at 100 bar (theor.) | 95 | 127 |
| Max output power (kW) | ||
| max intermittent 1) | 170 | 205 |
| Corner power (kW) | ||
| max intermittent 1) | 380 | 460 |
| continuous | 290 | 350 |
| Mass moment of inertia (×10-3) [kg m2] | 3.1 | 4.4 |
| Weight (kg) | 28 | 33 |

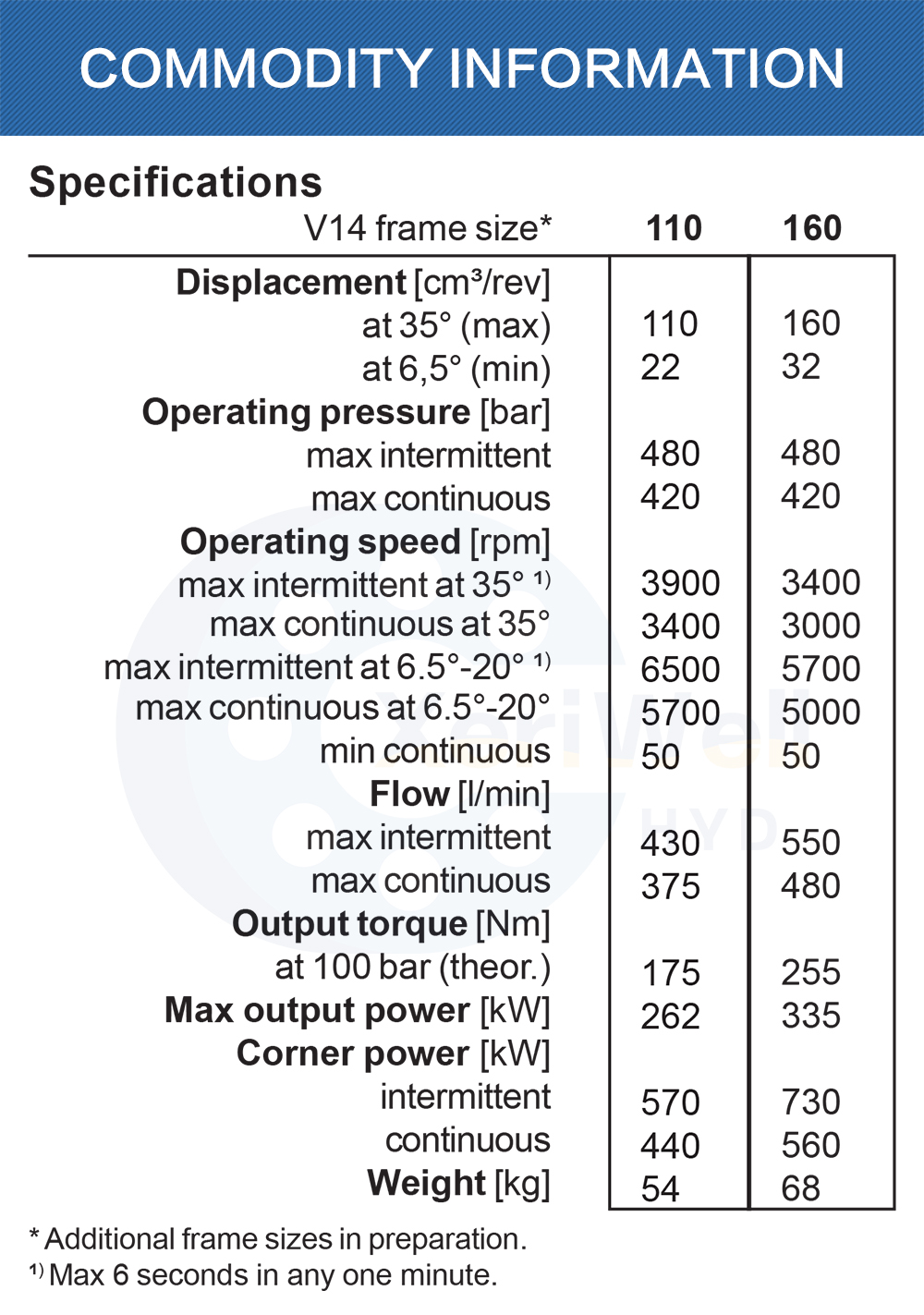

| Specifications | ||
| V14 frame size* | 110 | 160 |
| Displacement [cm3/rev] | ||
| at 35° (max) | 110 | 160 |
| at 6,5° (min) | 22 | 32 |
| Operating pressure [bar] | ||
| max intermittent | 480 | 480 |
| max continuous | 420 | 420 |
| Operating speed [rpm] | ||
| max intermittent at 35°1) | 3900 | 3400 |
| max continuous at 35° | 3400 | 3000 |
| max intermittent at 6.5°-20°1) | 6500 | 5700 |
| max continuous at 6.5°-20° | 5700 | 5000 |
| min continuous | 50 | 50 |
| Flow [l/min] | ||
| max intermittent | 430 | 550 |
| max continuous | 375 | 480 |
| Output torque [Nm] | ||
| at 100 bar (theor.) | 175 | 255 |
| Max output power [kW] | 262 | 335 |
| Corner power [kW] | ||
| intermittent | 570 | 730 |
| continuous | 440 | 560 |
| Weight [kg] | 54 | 68 |
| * Additional frame sizes in preparation. 1)Max 6 seconds in any one minute. | ||
