| Quantity: | |
|---|---|
BMER-2-300
Xeriwell or Others
| Type: | Sweeper Hydraulic Motor | Speed: | 220rpm-270rpm |
|---|---|---|---|
| Displacement: | 300cc | Torque: | 905N.M-1035N.M |
| Output: | 17.5kw-20.0kw | Pressure: | 24mpa-27.6mpa |
| Highlight: | cycloid hydraulic motor,hydraulic rotary motor | ||

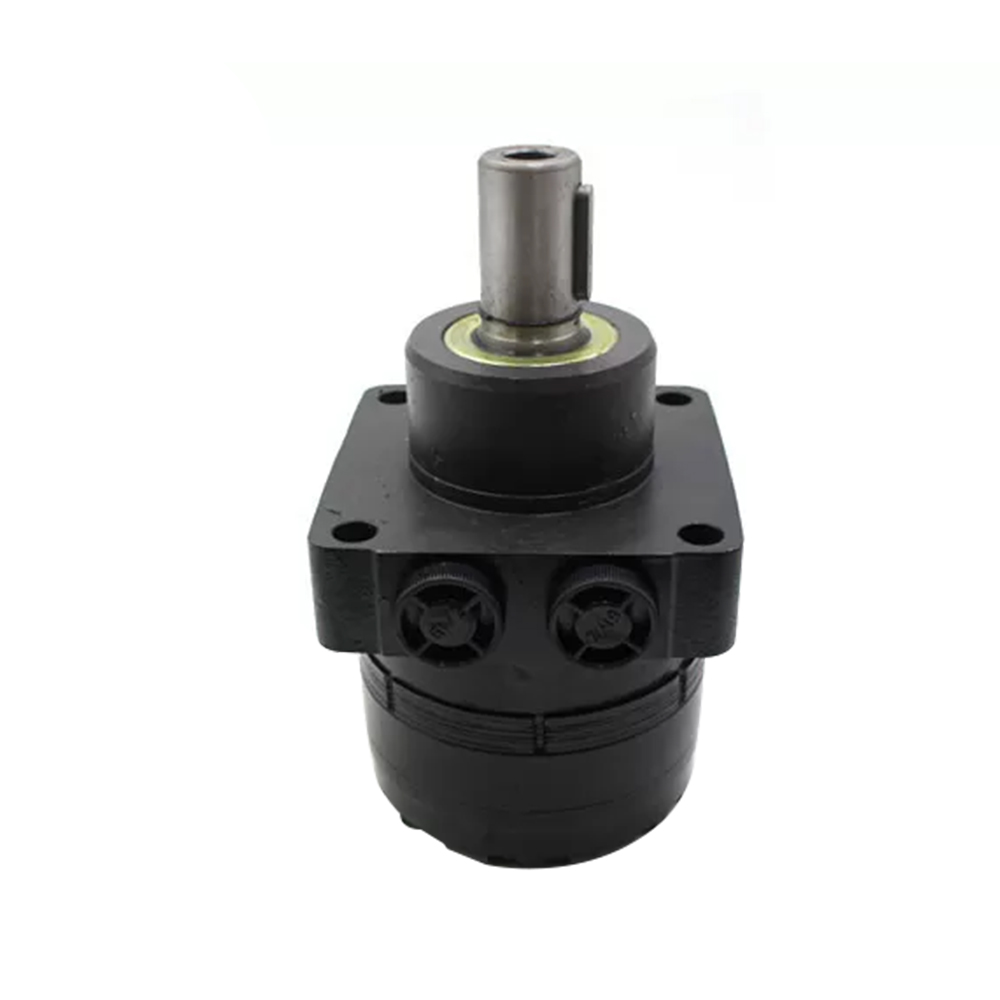

Parker Torqmotor Gerotor sweeper brush ELGIN TYM501767 Hydraulic Gutter Broom Drive Motor
This type of hydraulic motors are widely used on sweeper machines, sweeper brush
for brand ELGIN/TYMCO/SCHWARZE/Paladina/Kersten
We can also do below order code
| Parker TF0280US080AAAA | BMER-300 |
| Parker TF0280AS080AAAA | BMER-300 |
| Parker TF0280MS080AAAA | BMER-300 |
| Parker TF0195US080AAAA | BMER-200 |
Xeriwell High Torque BMER Replaces American Parker Conical Cycloidal Hydraulic Oil Motor
BMER series motor adapt the advanced Geroler gear set designed with high speed distribution flow and high pressure, and have good stability in low speed , and can keep high volume efficiency. The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.
Main Specifications:
| Type | BMER 125 | BMER 160 | BMER 200 | BMER 230 | BMER 250 | BMER 300 | BMER 350 | BMER 375 | BMER 475 | BMER 540 | BMER 750 | |
Geometric displacement (cm3 /rev.) | 118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 | |
| Max. speed (rpm) | cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
| int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 | |
| Max. torque (N*m) | cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
| int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 | |
| peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 | |
| Max. output (kW) | cont. | 12.0 | 15 | 15.5 | 16.0 | 17.5 | 18.0 | 17.5 | 16.5 | 14.5 | 11.5 | 8.0 |
| int. | 14.0 | 17.5 | 18.0 | 19.0 | 20.0 | 21.0 | 20.0 | 19.0 | 16.5 | 15.0 | 10.0 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 | |
| peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 14 | |
| Max. flow (L/min) | cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
| int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 | |
| 1, | model number | BMER-2-300 |
| 2, | displacement196 | ml/r |
| 3, | flange | wheel Mount |
| 4, | shaft | 1.25'' (31.75) mm splined key |
| 5, | oil port | G1/2 |
| 6, | drain | --- |
| 7, | rotation | Standard |
| 8, | paint | Black |
| 9, | replace | Parker TE TG TF |
| Type: | Sweeper Hydraulic Motor | Speed: | 220rpm-270rpm |
|---|---|---|---|
| Displacement: | 300cc | Torque: | 905N.M-1035N.M |
| Output: | 17.5kw-20.0kw | Pressure: | 24mpa-27.6mpa |
| Highlight: | cycloid hydraulic motor,hydraulic rotary motor | ||
Parker Torqmotor Gerotor sweeper brush ELGIN TYM501767 Hydraulic Gutter Broom Drive Motor
This type of hydraulic motors are widely used on sweeper machines, sweeper brush
for brand ELGIN/TYMCO/SCHWARZE/Paladina/Kersten
We can also do below order code
| Parker TF0280US080AAAA | BMER-300 |
| Parker TF0280AS080AAAA | BMER-300 |
| Parker TF0280MS080AAAA | BMER-300 |
| Parker TF0195US080AAAA | BMER-200 |
Xeriwell High Torque BMER Replaces American Parker Conical Cycloidal Hydraulic Oil Motor
BMER series motor adapt the advanced Geroler gear set designed with high speed distribution flow and high pressure, and have good stability in low speed , and can keep high volume efficiency. The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.
Main Specifications:
| Type | BMER 125 | BMER 160 | BMER 200 | BMER 230 | BMER 250 | BMER 300 | BMER 350 | BMER 375 | BMER 475 | BMER 540 | BMER 750 | |
Geometric displacement (cm3 /rev.) | 118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 | |
| Max. speed (rpm) | cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
| int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 | |
| Max. torque (N*m) | cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
| int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 | |
| peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 | |
| Max. output (kW) | cont. | 12.0 | 15 | 15.5 | 16.0 | 17.5 | 18.0 | 17.5 | 16.5 | 14.5 | 11.5 | 8.0 |
| int. | 14.0 | 17.5 | 18.0 | 19.0 | 20.0 | 21.0 | 20.0 | 19.0 | 16.5 | 15.0 | 10.0 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 | |
| peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 14 | |
| Max. flow (L/min) | cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
| int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 | |
| 1, | model number | BMER-2-300 |
| 2, | displacement196 | ml/r |
| 3, | flange | wheel Mount |
| 4, | shaft | 1.25'' (31.75) mm splined key |
| 5, | oil port | G1/2 |
| 6, | drain | --- |
| 7, | rotation | Standard |
| 8, | paint | Black |
| 9, | replace | Parker TE TG TF |
