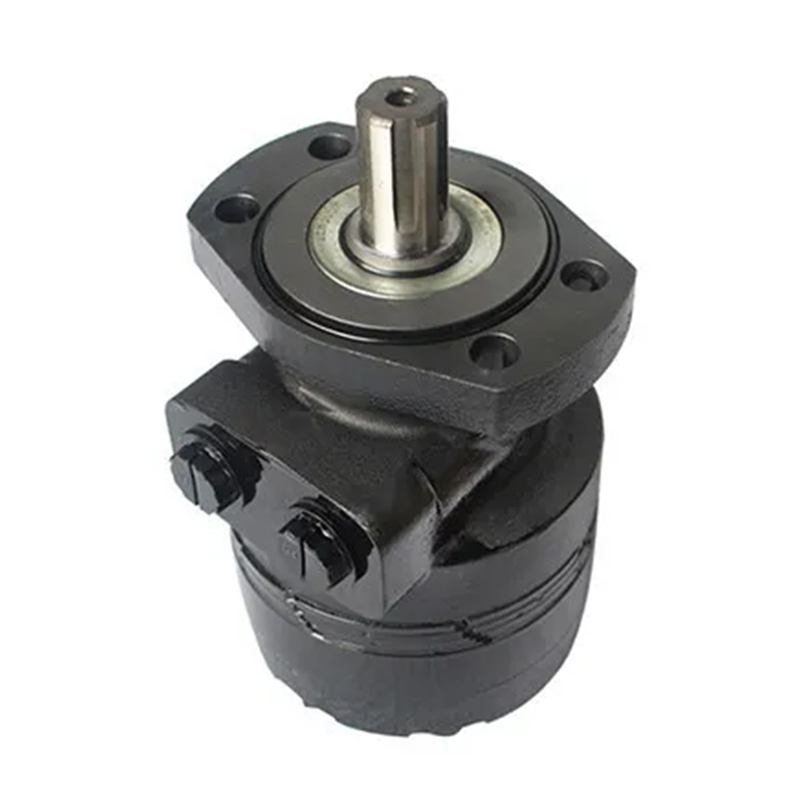

Parker TG Series LSHT Low RPM Orbital Hydraulic Torqmotor, Medium-Duty Wear Resistant Hydraulic Drive Motor

Parker TG Series Torque Motor Low Speed High Torque Medium Duty Gerotor Motor

Quick view:
TG series is one replacement type for Parker TG series. Now Parker lead time 10 months or longer, price expensive, many customers come to find this as a directly replacement for Parker TG. They continue to buy, volume bigger, cause this motor works excellent, delivery quick, price fair.

Specifications:

The TG Series Torqmotor is a durable, low speed, high torque motor that is ideal for medium duty applications. With increased power and durability, the TG Series motor is available in flange or wheel mounts. It has superior side load capacity – up to 16013 N dynamic side load at the key. The TG motor is available in 14 displacements from 140 cc/rev to 959 cc/rev: TG0140 | TG170 | TG0195 | TG0240 | TG0280 | TG0310 | TG0335 | TG0360| TG0405 | TG0475 | TG0530 | TG0625 | TG0785 | TG0960

Features and benefits include:

Intermittent pressures up to 280 bar
Torques to 1490 Nm
Shaft sizes to 34.9 mm nominal
Robust construction for longer life
Continuous oil flow across internal splines for longer life
Superior side load capacity
Smooth, extra low speed operation
High pressure shaft seal as standard
Innovative design eliminates the need for a drain

Here are example TG alternative available from us:

If you are looking for other Parker Torque Motors, we also have :

TC Series
