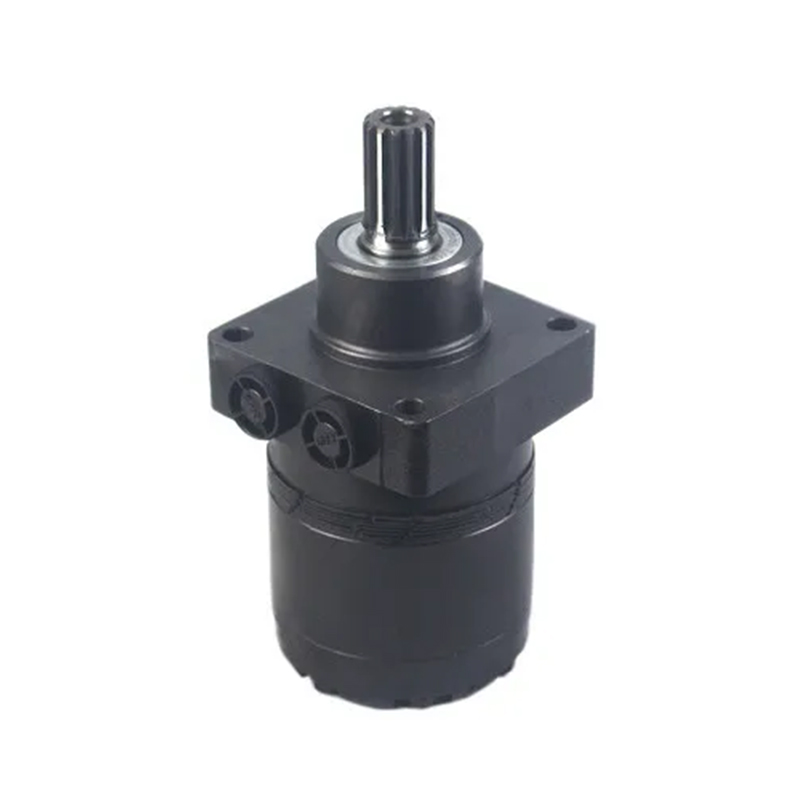

BMER-2-750-VD-FD1-B
Xeriwell or Others
| Product: | Hydraulic Motor | Model No.: | BMER-2-750-VD-FD1-B |
|---|---|---|---|
| Size: | 750 Ml/r | Flange: | Wheel Mount |
| Shaft: | 31.75mm Spline Shaft 14T | Feature: | Replace Parker TF Series |
| Highlight: | parker tf hydraulic motor low rpm,750 ml/r hydraulic motor low rpm,750 ml/r low rpm hydraulic motor | ||
Parker TF series replacement motor from China manufacturer Xeriwell, 750 ml/r, wheel flange, mounting size can customized
Quick review:
Xeriwell BMER = Parker TF
| Product | Hydraulic Motor |
| Model No. | BMER-2-750-VD-FD1-B |
| Size | 750 ml/r |
| Flange | Wheel |
| Port | G 1/2 |
| Shaft | 31.75mm |
| Rotation | CW |
| Color | Black |
| More size | 125ml/r,160 ml/r, 200 ml/r, 230 ml/r, 250 ml/r, 300 ml/r, 350 ml/r, 375 ml/r 400 ml/r, 475 ml/r, 540 ml/r, 650 ml/r, 750 ml/r |
Specification:
| Type | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | |
| 125 | 160 | 200 | 230 | 250 | 300 | 350 | 375 | 475 | 540 | 750 | ||
| Geometric displacement (cm3/rev.) | 118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 | |
| Max. speed (rpm) | cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
| int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 | |
| Max. torque (N•m) | cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
| int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 | |
| peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 | |
| Max. output (kW) | cont. | 12.0 | 15.0 | 15.5 | 16.0 | 17.5 | 18.0 | 17.5 | 16.5 | 14.5 | 11.5 | 8.0 |
| int. | 14.0 | 17.5 | 18.0 | 19.0 | 20.0 | 21.0 | 20.0 | 19.0 | 16.5 | 15.0 | 10.0 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 | |
| peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 14 | |
| Max. flow (L/min) | cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
| int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 | |
More BMER series to match Parker TF series
More Parker replacement motor available:
TE
TB
TC
TF
TG
TJ
TK
